Rollco U-Rail linear system

U-RAIL

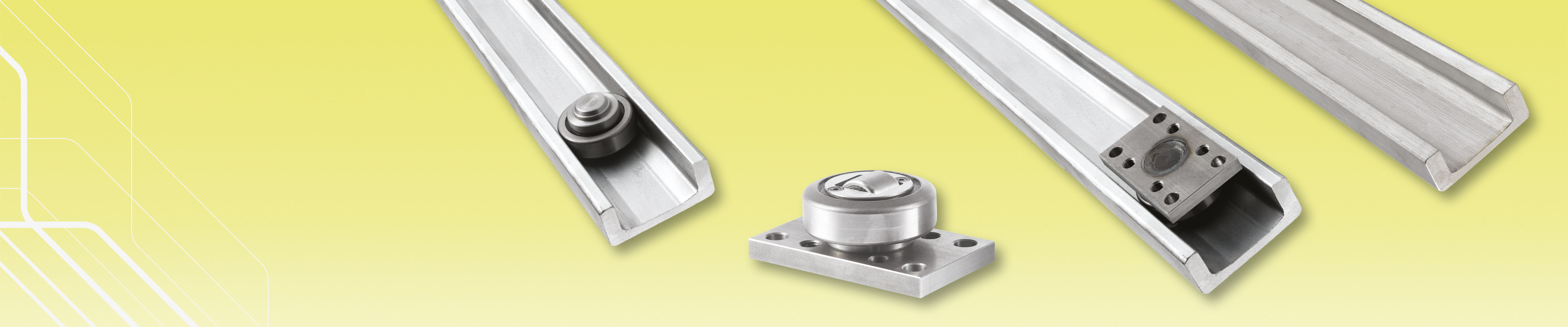

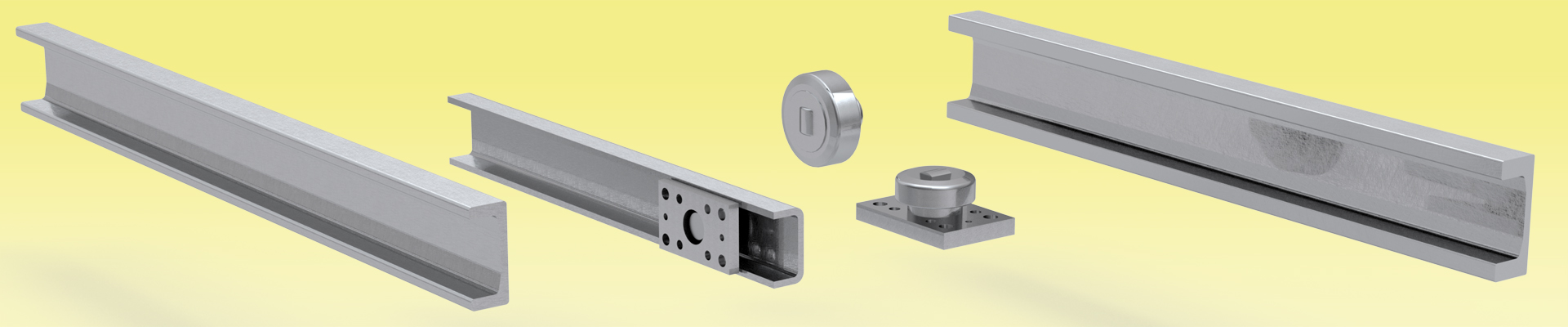

U-Rail is robust system where precision is secondary. The profiles can be welded on existing constructions and the rollers can be delivered with or without assembly plates. The U-Rail system is designed to compensate for deviations in parallelism.

FURTHER INFORMATION
  • STANDARD

    UP---.0700
    Standard U-Profile, good weldability and available in various surfaces
  • STANDARD

    UP---.0730
    Light U-Profile, good weldability and available in various surfaces
  • STANDARD

  • IP---.0800
    I-Profile, good weldability and available in various surfaces

  • TR---.0200
    Standard Roller Fixed, for profile UP---.0700/0730

  • TR---.0300
    Standard Roller, adj. of the axial clearance, for profile UP---.0700

  • TR---.0360
    Standard Roller with Oilamide Sliding Block, for profile UP---.0700

  • STR---.6200
    Standard Roller with axial bearing, for profile UP---.0700

  • PAS ---.0200
    Polyamide roller combined fixed, for profile UP---.0730

  • PAS ---.0360
    Roller combined fixed with oilamide sliding block for profile UP---.0730

  • PSAS ---.6200
    Polyamide roller combined fixed axial, for profile UP---.0730

  • TR---.0390
    Stainless Roller combined, fixed with oilamide sliding block, for profile UP---.0780

  • XTR---.0200
    Heavy Roller Fixed, up to 60% higher load capacity, for profile XUP---.0700

  • XTR---.0300
    Heavy Roller combined adjustable w. insert washer, for profile XUP---.0700

  • XSTR---.6200
    Heavy Roller axis, extra sustainable, for profile XUP---.0700

  • BQ---.1000
    Fixing Element Square - welded with the combined roller

  • BQ---.4000
    Stainless Fixing Element Square - welded w. the combined roller

  • BR---.1100
    Fixing Element Rectangular - welded with the combined roller

  • BR---.4100
    Stainless Fixing Element Rectangular- welded w. the combined roller
  • STANDARD
