XUP---.0700

• Extra sustainable
• Extra exact
• Extra strong
• Extra long-lasting
• Chamber dimension tolerance 0,2 mm
• Max. loading pressure 1060 Mpa
• Elastic limit ≥ 550 Mpa
• Tensile strength 700 ... 900 Mpa
• Special machining on request
• Max length in one piece 8,8 m

Ordering example: XUP 070.0700-2800

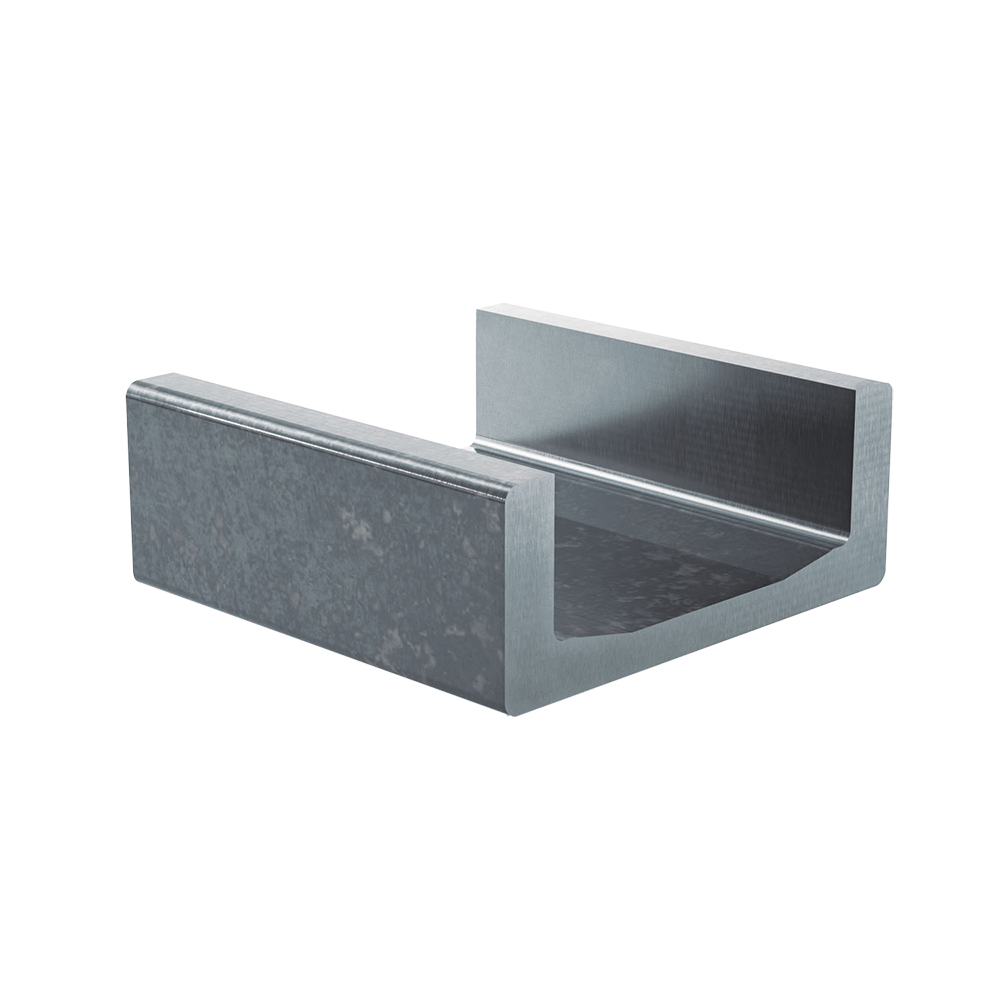

U-Profile with inside measurement 74,1 mm, length 2800 mm

Dimensions in mm.
Read more

Product Information

Material: 25 MnV5mod with plenty more load capacity
Sizes Available: 60; 70; 90; 110; 150
Designation Select all Compare Get quote Lead Time * Weight (kg/m)
Get quote 1 9.82
Get quote 2 13.97
Get quote 2 27.65
Get quote 2 34.77
Get quote 2 50.99

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Compare Get quote B D H I T
Get quote 36 7 ±0.5 86.5 65.8 ±0.1 10.3 ±0.5
Get quote 40 ±0.8 7.7 ±0.5 103.2 74.1 ±0.1 14.5 ±0.5
Get quote 53 ±0.5 12.7 ±0.5 135.4 92.7 ±0.1 21.3 ±0.5
Get quote 61.2 ±0.8 14 ±0.5 157.2 111.7 ±0.1 22.7 ±0.5
Get quote 71.2 ±0.8 19.4 ±0.5 201.5 153.4 ±0.1 24 ±0.5
