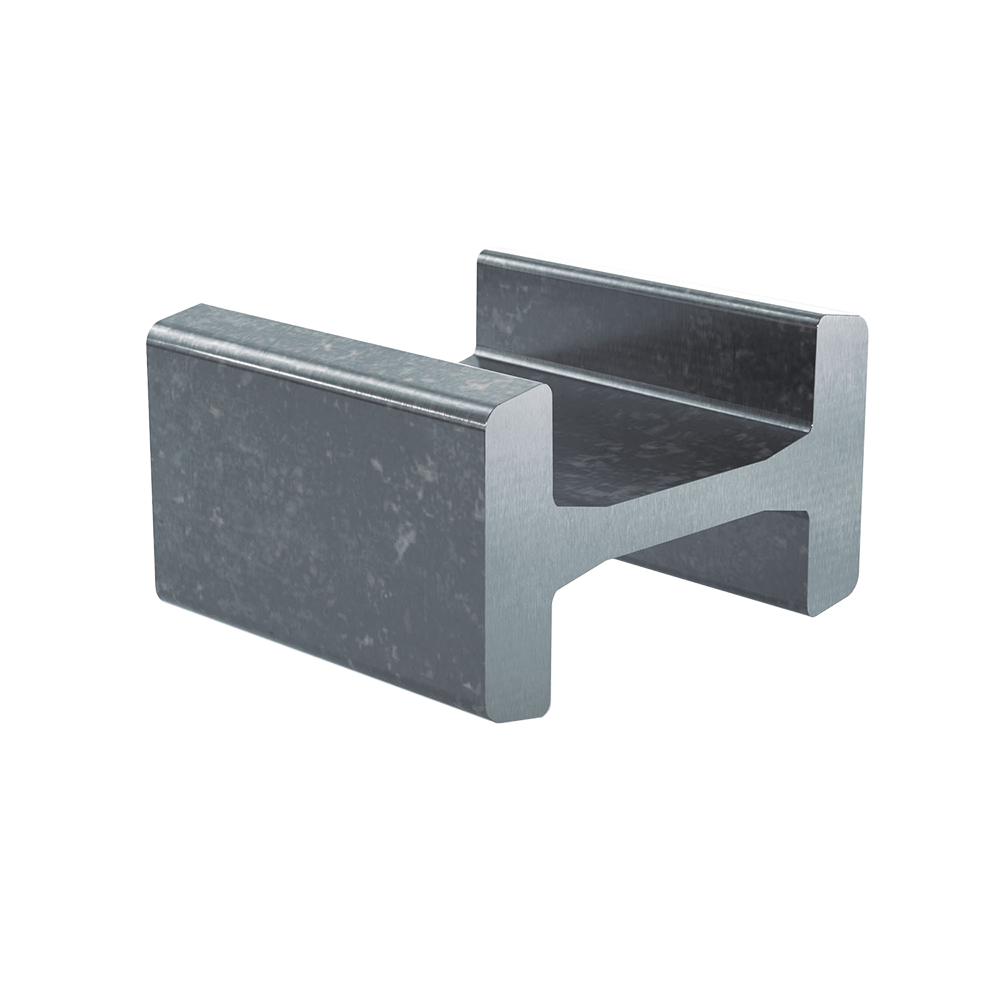

IP---.0800

• Higher wear resistance
• Fine grained structure
• Easy to weld

Versions of delivery:
Standard IP---.0800
Fine straightened style ± 0,3 mm/m IP---.0801
Sandblasted IP---.0802
Sandblasted + fine straightened style IP---.0803

Ordering example: IP 070.0800-2800 (I-Profile with inside measurement 70 mm, length 2800 mm)

Dimensions in mm.
Read more

Product Information

Material: Material 18MnNb 6 with plenty more load capacity by add-on of Niob (Nb)
Sizes Available: 60; 70; 80; 90; 110; 120
Designation Select all Compare Get quote Lead Time * Weight (kg/m)
Get quote 2 21.00
Get quote 2 19.40
Get quote 2 25.30
Get quote 2 34.00
Get quote 2 40.80
Get quote 2 51.50

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Compare Get quote B D H I T
Get quote 72 ±1 14 ±0.5 86.5 62.7 +0.8 12 ±0.5
Get quote 65 ±1 9 ±0.5 98 70 +1 14 ±0.5
Get quote 66 ±1 11 ±0.5 113.9 77.9 +1 18 ±0.5
Get quote 81 ±1.25 12 ±0.5 129.6 88.6 +1 20.5 ±0.5
Get quote 83 ±1 14 ±0.5 152.4 108.4 ±0.5 22 ±0.5
Get quote 90 ±1.3 15 ±0.5 175 ±0.5 123.8 ±0.5 25.6 ±0.5
