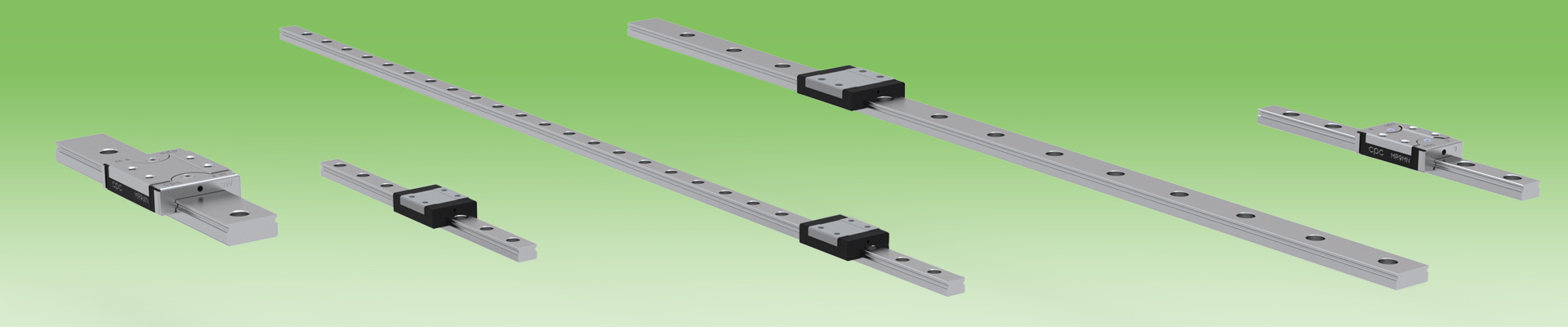

Linear Miniature Guide

Linear guide system in miniature sizes suitable for applications with limited space. Typical application areas are within pharmaceutical and electronic industries.

FURTHER INFORMATION

More about Linear Miniature Guide
CAD-filer
Catalogue
Product Overview
Order Codes
Technical Information
Video Linear Miniature Guide

MR-M ZUE Series

Block with reinforcement plate and integrated lubrication

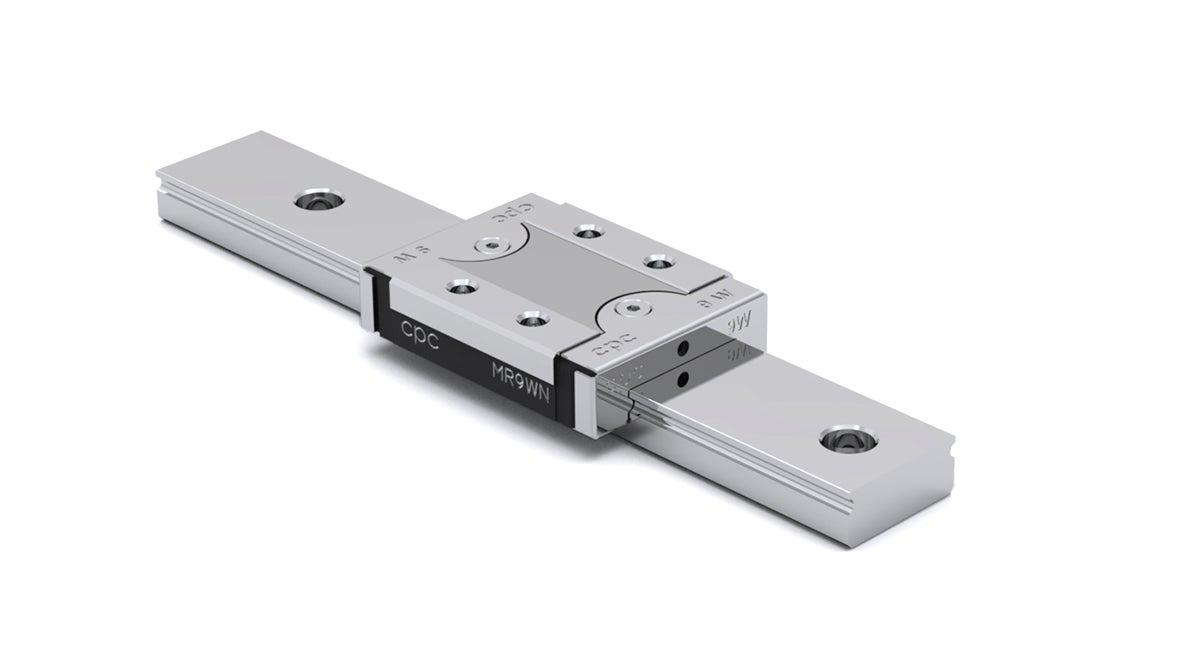

MR-W ZUE Series

Wide block with reinforcement plate and integrated lubrication
MR-M SS Series

Standard block with end seal

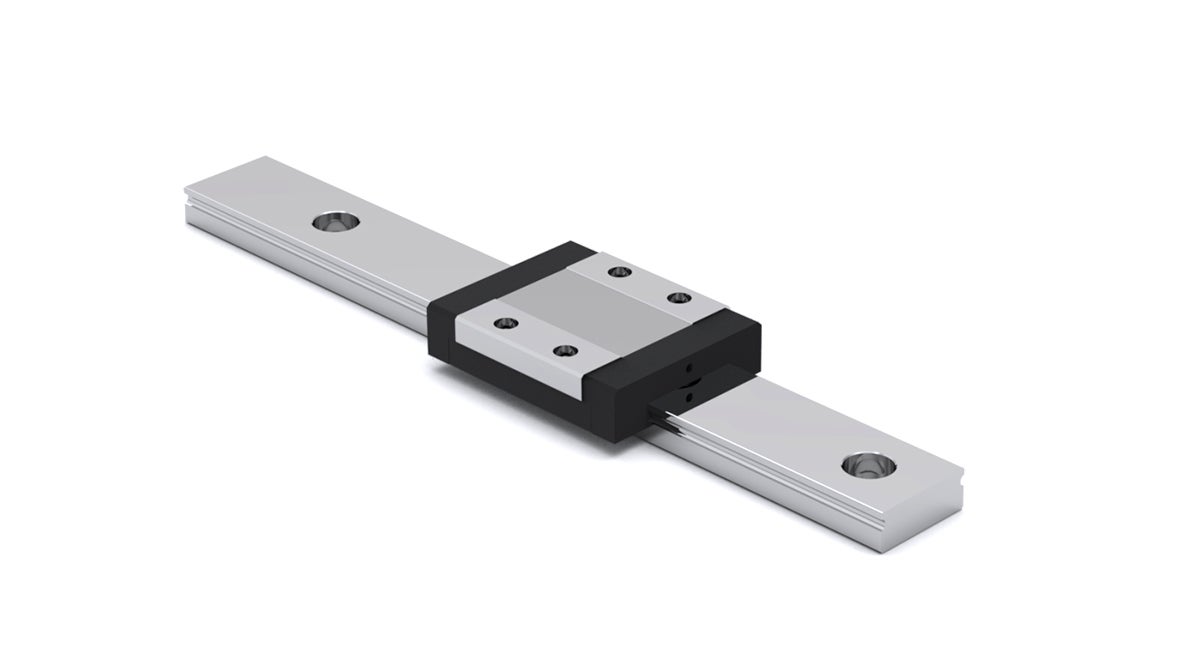

MR-W SS Series

Wide block with end seal
Standard MR-M Rail

Hardened ground rail
Wide MR-W Rail

Wide hardened ground rail
Standard MRU-M Rail

Hardened ground rail with threaded holes for mounting from below

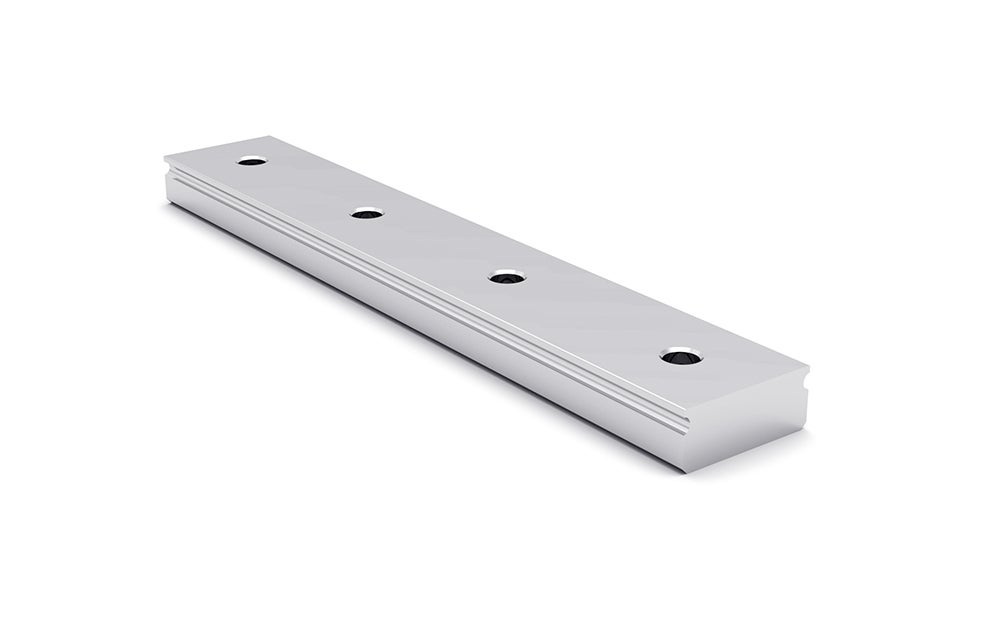

Wide MRU-W Rail

Wide hardened ground rail with threaded holes for mounting from below
