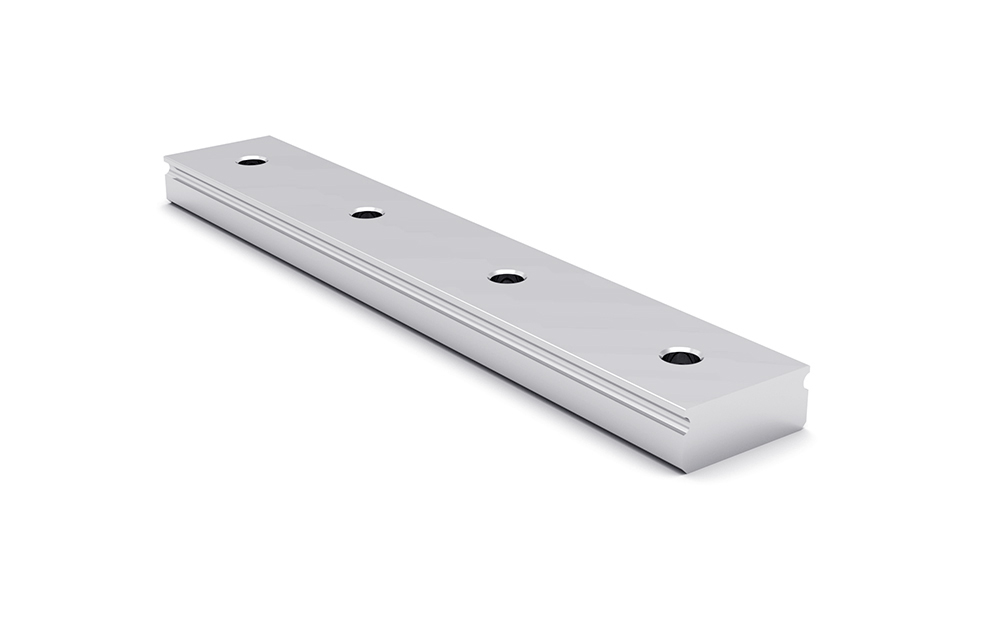

Wide MRU-W Rail

STOCK ITEM
Tapped from bottom.

Dimensions in mm.

Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
Read more
Designation Select all Compare Get quote Lead Time * Weight Rail (g/m)
Get quote 2 105
Get quote 2 280
Get quote 2 516
Get quote 2 940
Get quote 2 1472
Get quote 1 2818

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Compare Get quote H1 W1 Hole Pitch (P) M1
Get quote 2.7 6 15 M3x0.5
Get quote 4 10 20 M3x0.5
Get quote 5.2 14 30 M4x0.7
Get quote 7.3 18 30 M4x0.7
Get quote 8.5 24 40 M5x0.8
Get quote 9.5 42 40 M5x0.8
