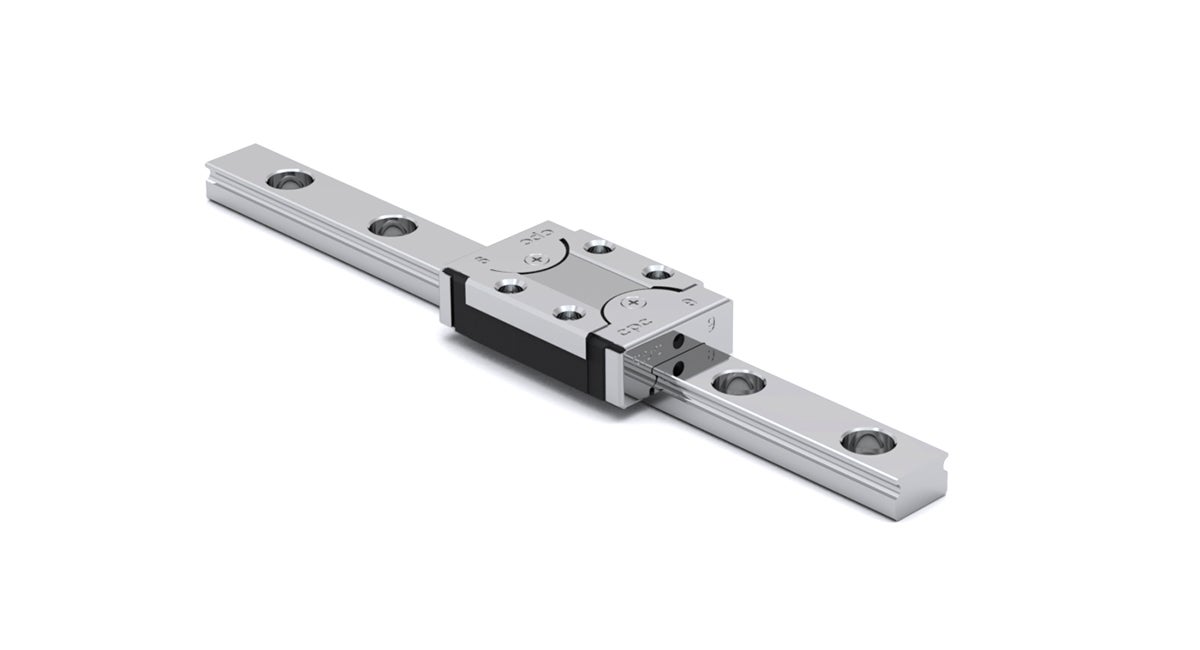

MR-M ZUE Series
Block with reinforcement plate and integrated lubrication

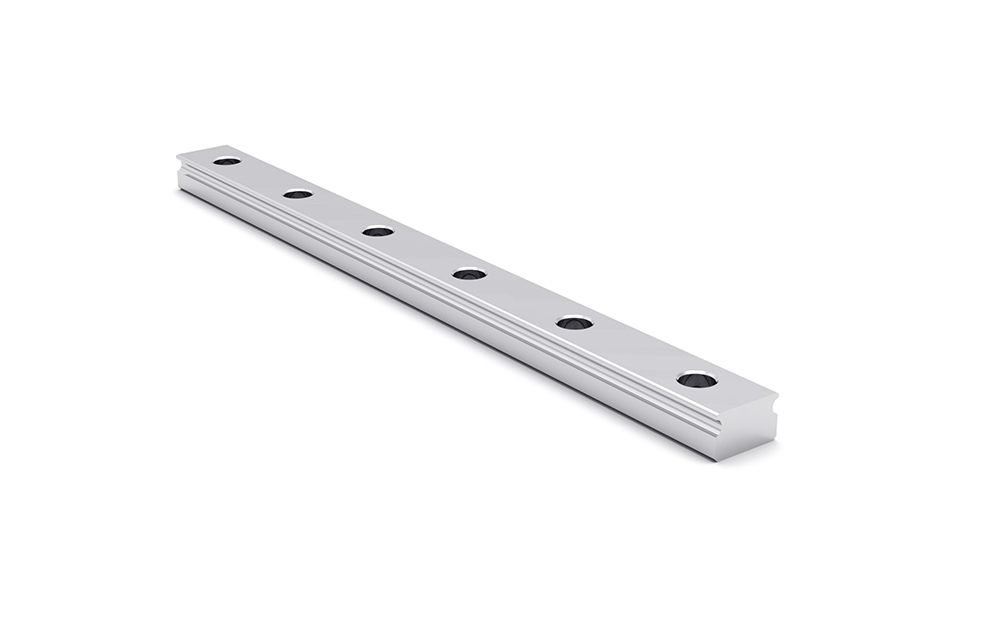

Standard MR-M Rail
Tapped from above.
Dimensions in mm.
Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
Dimensions in mm.
Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
Product Information
Material: Stainless steel
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Weight Rail (g/m) |
|---|---|---|---|---|---|
|
|
|
1 | 116 | ||
|
|
|
1 | 215 | ||
|
|
|
1 | 301 | ||
|
|
|
1 | 602 | ||
|
|
|
1 | 930 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | Compare | Get quote | H1 | W1 | D x d x g1 | Hole Pitch (P) |
|---|---|---|---|---|---|---|---|
|
|
|
3.5 | 5 | 3.5 x 2.4 x 1 | 15 | ||
|
|
|
4.7 | 7 | 4.2 x 2.4 x 2.3 | 15 | ||
|
|
|
5.5 | 9 | 6 x 3.5 x 3.5 | 20 | ||
|
|
|
7.5 | 12 | 6 x 3.5 x 4.5 | 25 | ||
|
|
|
9.5 | 15 | 6 x 3.5 x 4.5 | 40 |
-
-

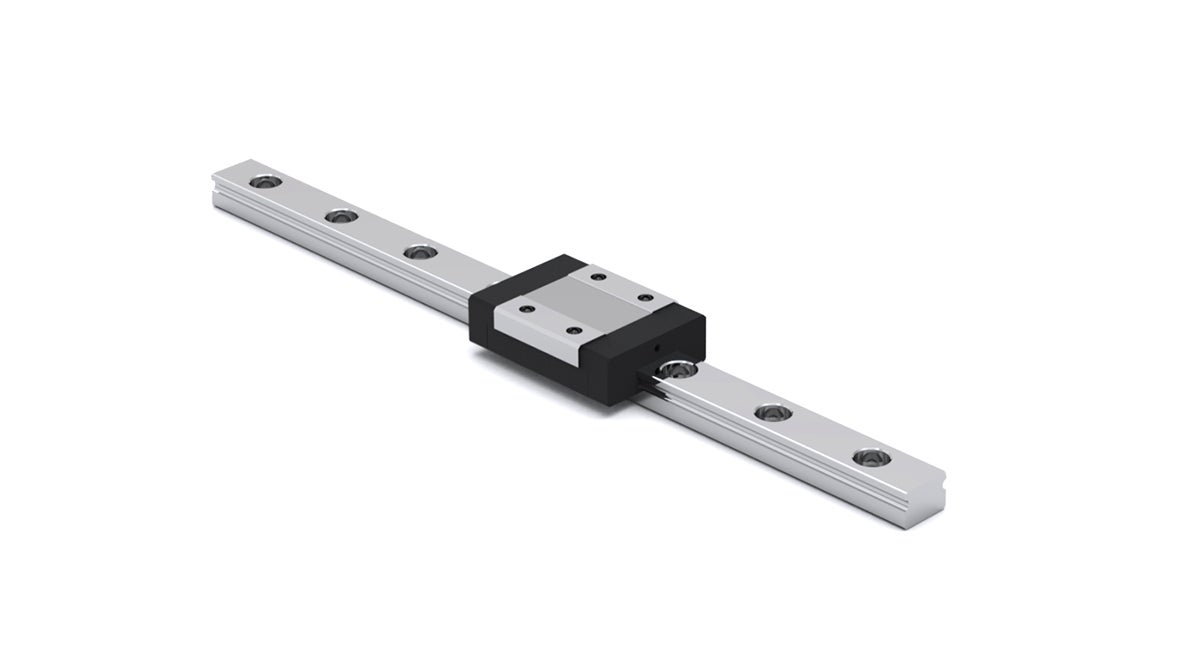

MR-M SS Series
Standard block with end seal
