Bellow

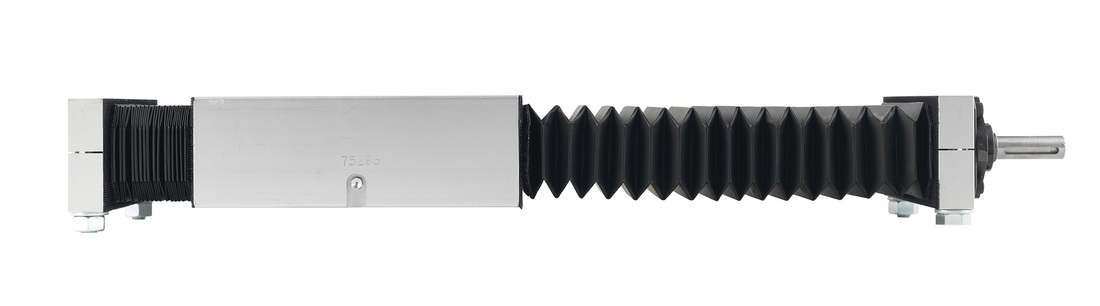

Bellow for QME Linear Unit.
Note that “stroke” for a L+R unit refers to the stroke of each individual slider.
Bellows are recommended for all applications where the unit isn’t protected against dust and dirt. The bellow may also work as a squeeze protection.

Dimensions in mm.
Read more
Designation Select all Compare Get quote Lead Time * Bellow Ltot Bellow R+L Ltot
Get quote 2 stroke * 1.286 + 110 stroke * 2.572 + 195
Get quote 2 stroke * 1.200 + 162 stroke * 2.4 + 292
Get quote 2 stroke * 1.146 + 234 stroke * 2.292 + 434

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
