LINEAR UNIT QME

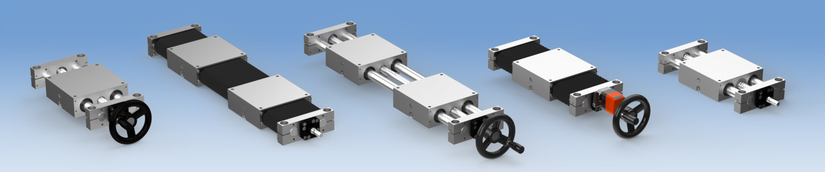

Linear Unit QME is a complete and compact linear unit that consists of a linear table with linear ball bearings on hardened shafts and driven by ball- or lead-screw.

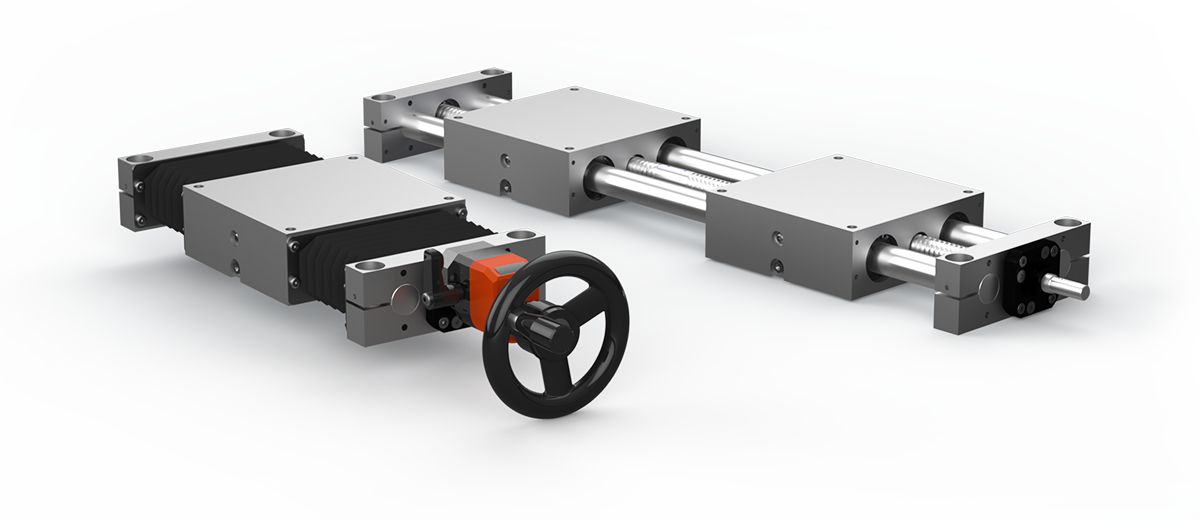

QME is available in the sizes 12, 20 and 30 mm. They are delivered ready for installation and thereby saves both design and assembly time. Selectable standard options are bellows, hand wheel, manual screw locking, mechanical position counter as well as double block units with left + right hand drive screws.
A wide variety of executions is available for quick delivery from our workshop in Helsingborg, Sweden.
In cooperation with CeramicSpeed we offer coating solutions of the ball screws. The long-life coatings provide extremely high corrosion resistance and wear and friction-suppressant properties. Contact us for further information.
READ MORE ABOUT LINEAR UNITS ON OUR BLOG
FURTHER INFORMATION
- Products
- CAD files
- Technical information (pdf)
- Order codes (pdf)
- Checklist Linear Unit QME
- Rollco & CeramicSpeed
- Standard tolerances
CHARACTERISTICS
- Compact design
- Three different sizes
- Local manufacturing allows customised solutions
- Ball screw or trapezoidal screw driven
- Stainless steel version as an option
APPLICATION AREA
- Positioner (e.g. in production line)
- Grippers xy-system
- Positioning systems
