Linear Unit QME-WL – Right+Left Drive

LOCALLY MANUFACTURED

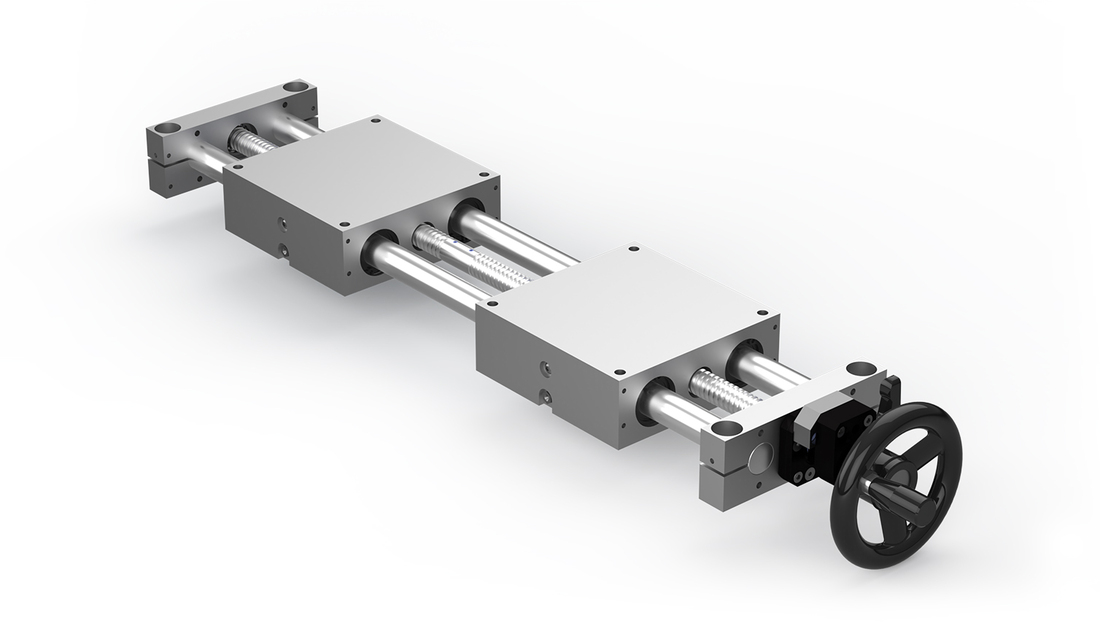

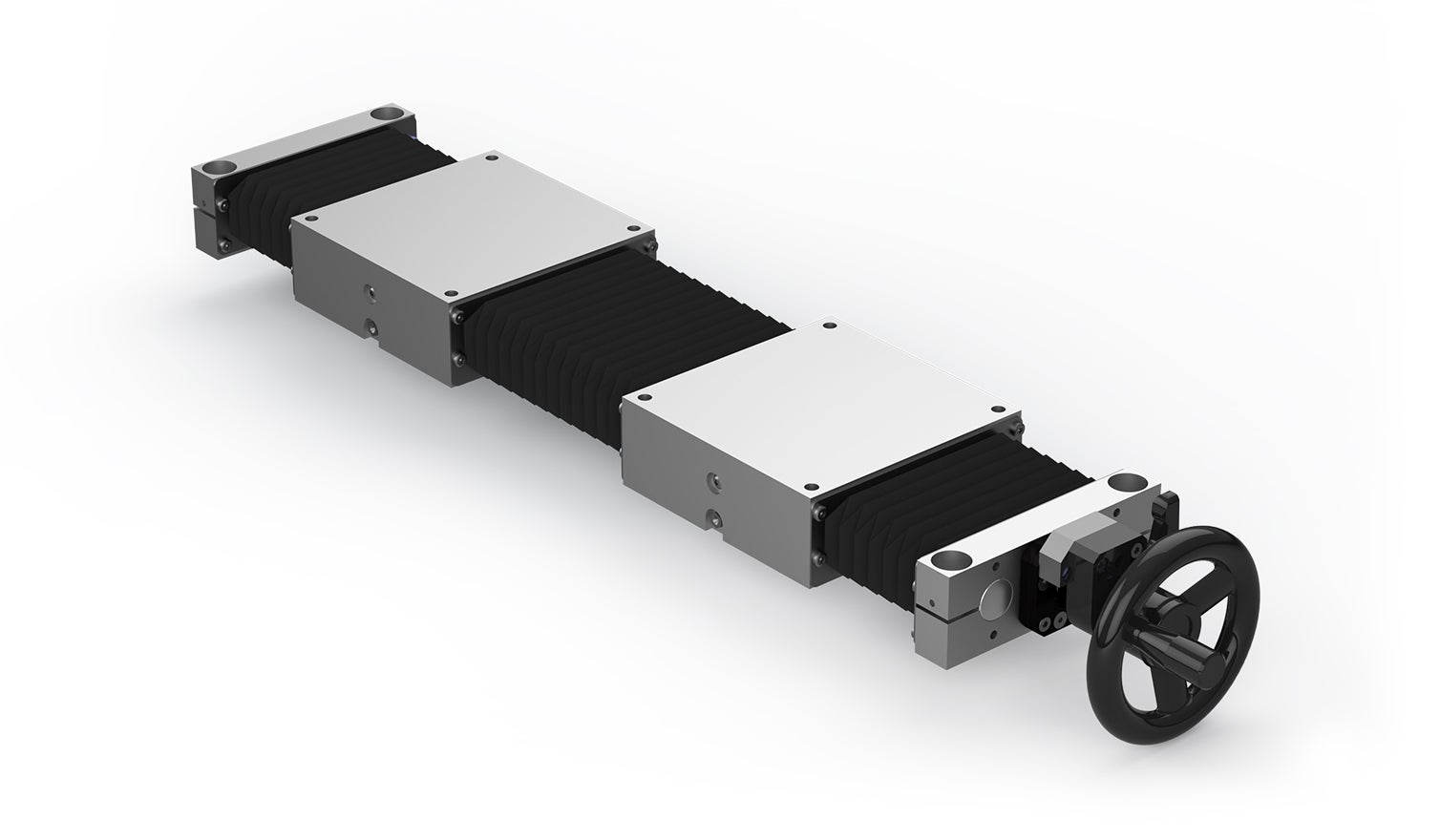

QME with right + left drive is a ready to mount positioning table guided with linear ball bearings on hardened shafts and driven by ball-or lead screw. The linear unit is a precision adjustment module that can be positioned manually with a handwheel or driven by motor.

Rollco recommend locking device for all hand driven units with ball screw to avoid back driving.

Customized machining of the drive- and mounting interfaces, higher level of corrosion resistance or low/high temperature versions, please contact Rollco.

Note that “stroke” for a R+L unit refers to the stroke of each individual slider.All dimensions in mm.

QME12-2xstroke: Max. L tot: 1 000 mm
QME20-2xstroke: Max. L tot: 1 500 mm
QME30-2xstroke: Max. L tot: 2 000 mm
Read more
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Screw Type Static Load Capacity Fz (N) Dynamic Load Capacity Fz (N) Static Load Capacity Fy (Nm) Dynamic Load Capacity Fy (Nm) Static Load Capacity Mx (Nm) Dynamic Load Capacity Mx (Nm) Static Load Capacity My (Nm) Dynamic Load Capacity My (Nm) Static Load Capacity Mz (Nm) Dynamic Load Capacity Mz (Nm) Dynamic Capacity Ca (N) Permissible Fx (N)
Get quote 2 TR/TL1203 3160 2080 3160 2080 71 47 74 47 74 49 2030 (n/a for TR) 1400
Get quote 2 TR/TL1604 5600 3520 5600 3520 202 127 216 127 216 136 7100 (n/a for TR) 2500
Get quote 2 SR/SL3205 11200 6400 11200 6400 728 416 678 416 678 387 9500 (n/a for TR) 3200

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote J L L1 L2 h W W1 W2 M Ltot d1 D1 d2 D2 h1 h2 h3 h4 H h5 L4 X
Get quote 73 85 12 14 15 85 73 45 M6 x 15 Stroke*2+183 5.2 10 5.5 10 5.5 5.7 1.5 7.5 31.5 1.5 13.5 56
Get quote 115 130 20 20 24 130 108 72 M8 x 18 Stroke*2+280 6.8 11 11 18 8 13.5 2 7.5 48 2 - 79.5
Get quote 184 200 22 22 36 200 178 130 M8 x 20 Stroke*2+422 6.8 11 13 20 8 14 2 15 71 1 - 87
Designation Select all CAD Compare Get quote Zero stroke (kg) Moving part (kg) +/100 mm stroke (kg) Remark
Get quote 1.72 / 1.76 with bellows 0.55 / 0.57 with bellows 0.43 / 0.65 with bellows Masses may deviate +/- 5% depending on screw type and other options.
Get quote 5.92 / 6.00 with bellows 1.76 / 1.80 with bellows 1.29 / 1.42 with bellows Masses may deviate +/- 5% depending on screw type and other options.
Get quote 20.2 / 20.5 with bellows 5.77 / 5.91 with bellows 3.46 / 3.71 with bellows Masses may deviate +/- 5% depending on screw type and other options.
