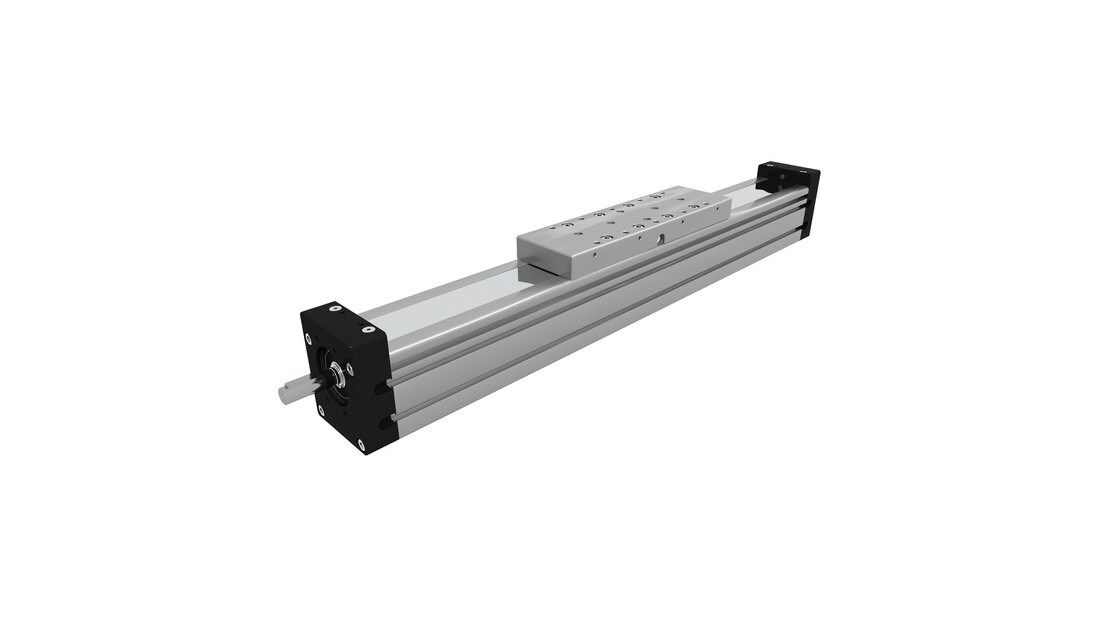

Linear Unit MTV 65

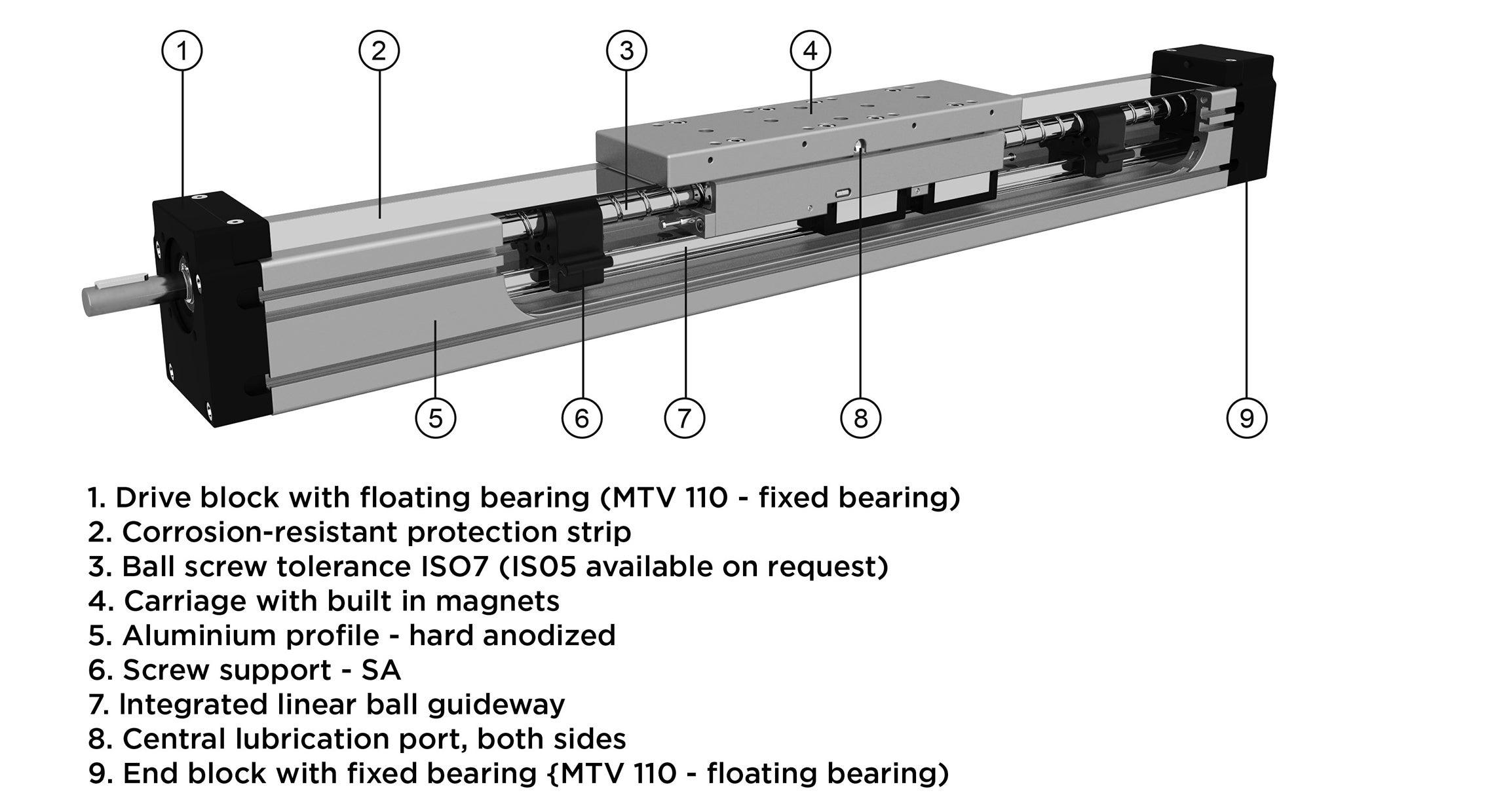

The MTV series describes linear units with precision ball screw drive, integrated guide rail and compact dimensions. The units use a precision ball screw, with tolerance class ISO7 (ISO5 on request), with reduced backlash of the ball nut. A corrosion-resistant protection strip, protects all the parts in the profile from dust and other contaminants.

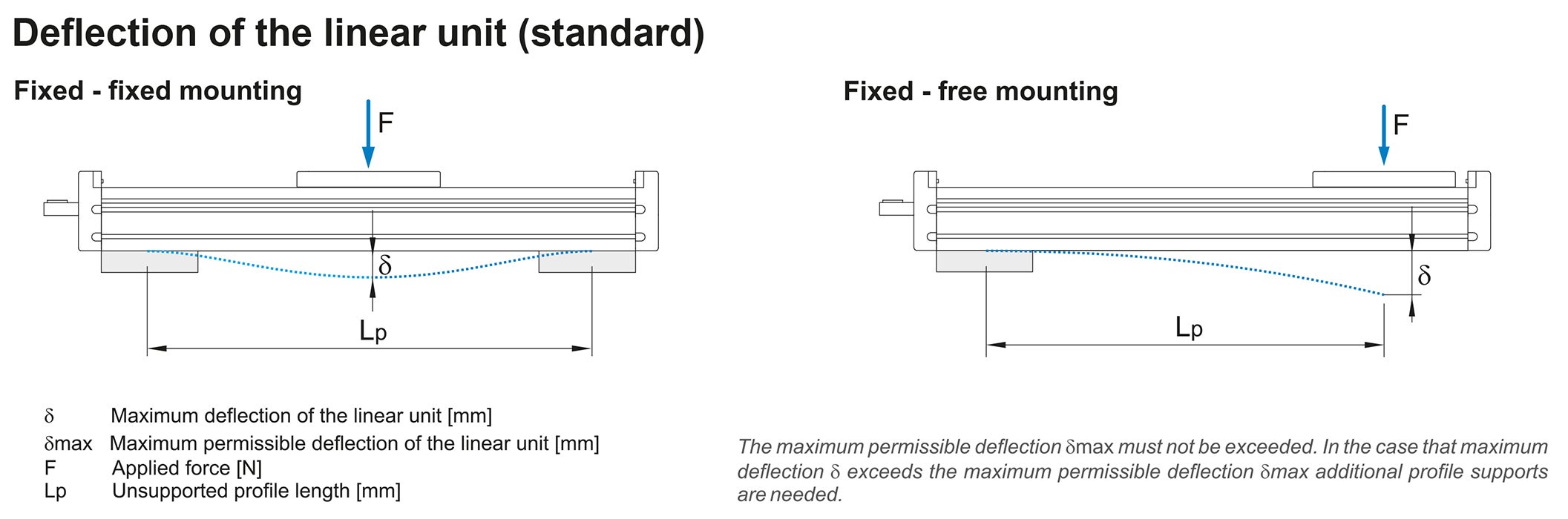

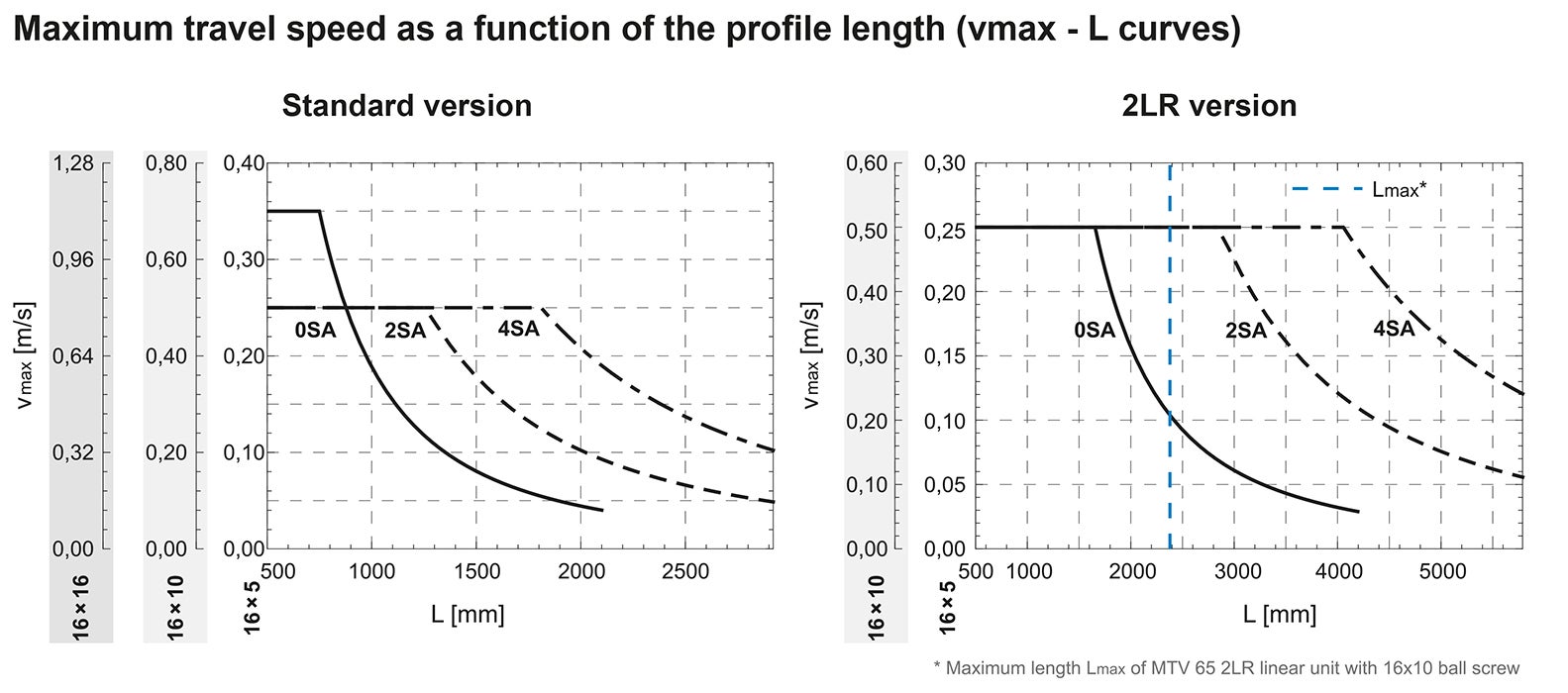

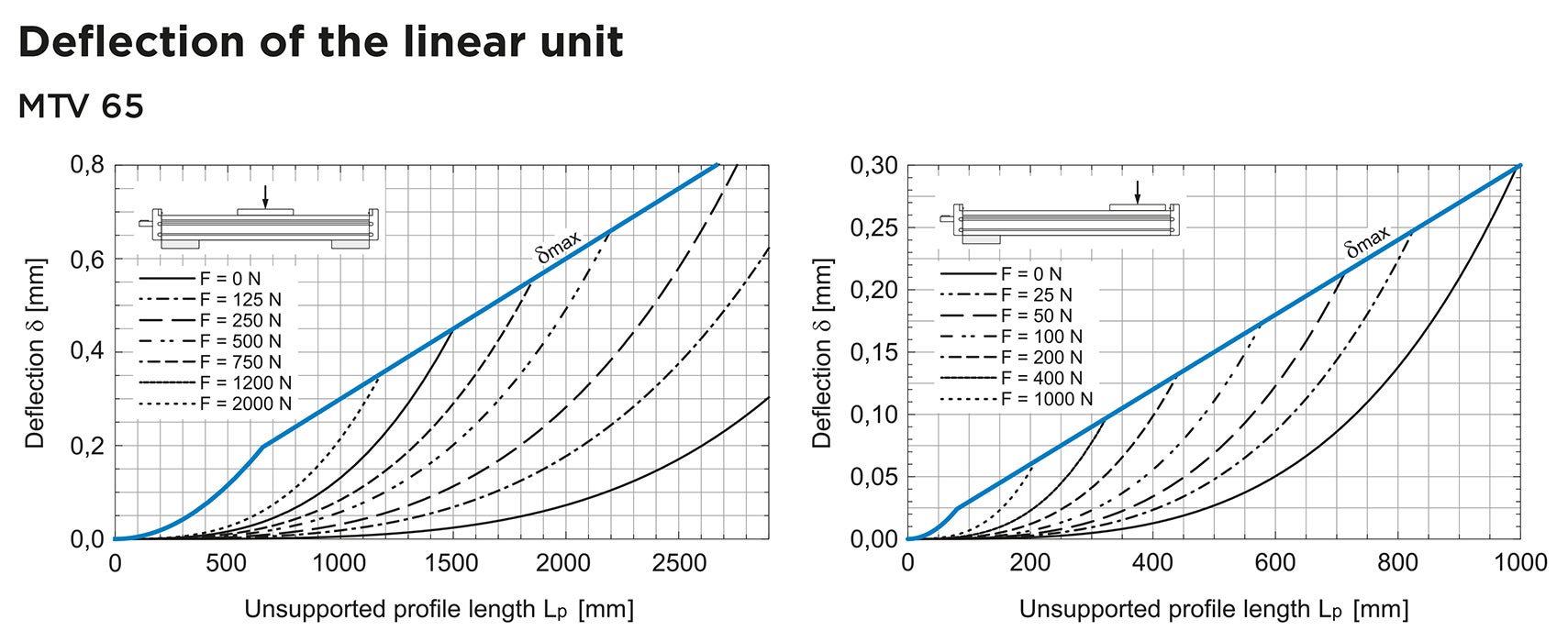

To achieve higher speeds at the same stroke of the linear unit, the ball screw support system can be integrated. With this feature vibrations and deflections of the ball screw are reduced, therefore longer strokes are possible. The linear unit with integrated support system can have a higher axial load capacity. Ball screw supports are made of high quality plastic materials with high wear resistance properties. The system enables ball screw support in horizontal or vertical positioning of the linear unit.

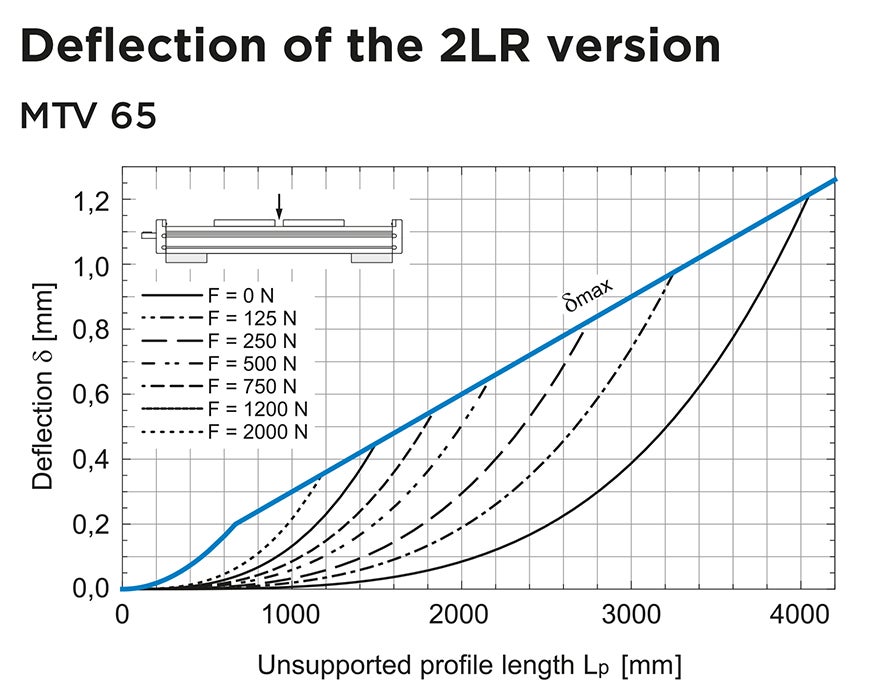

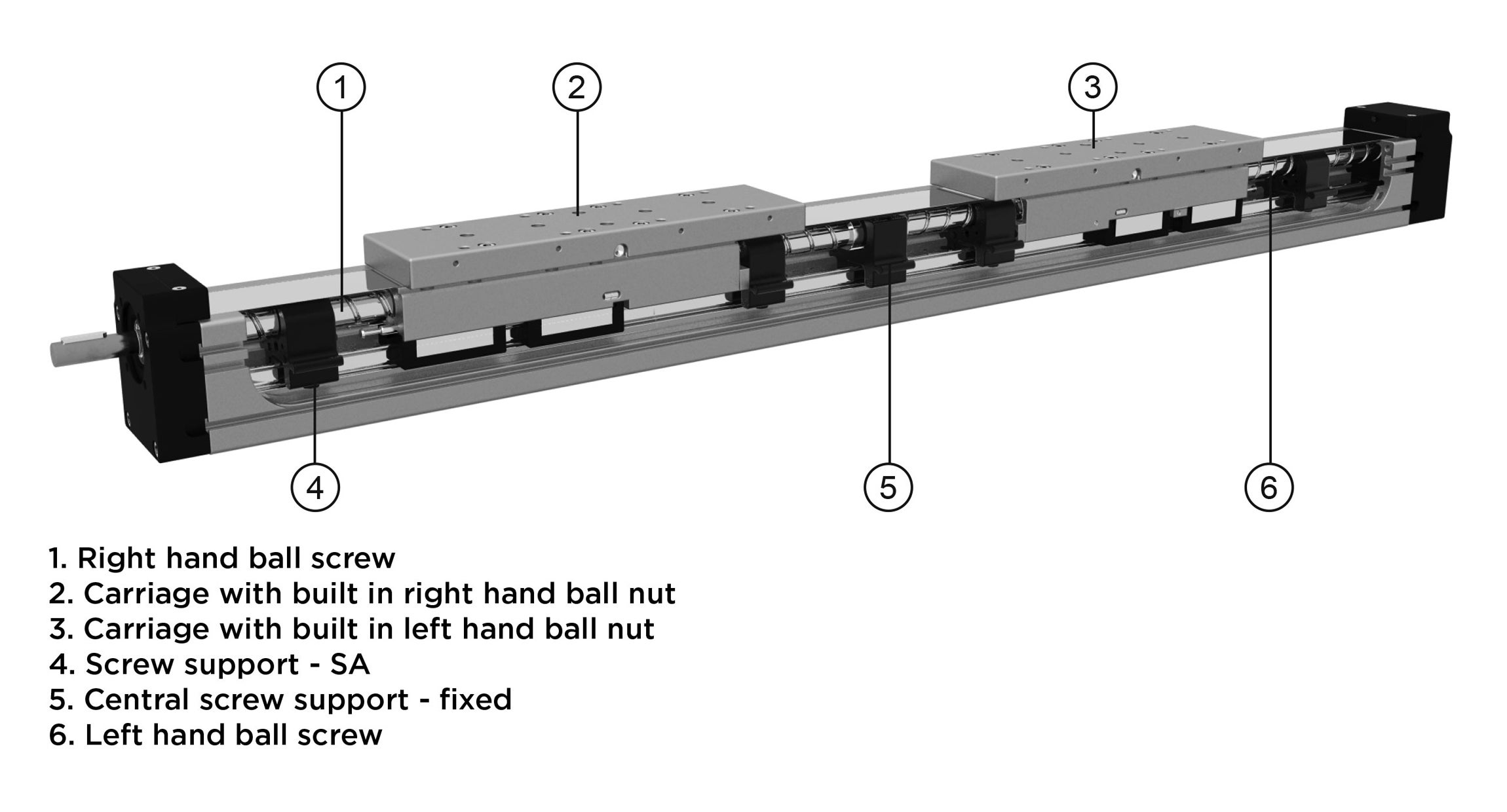

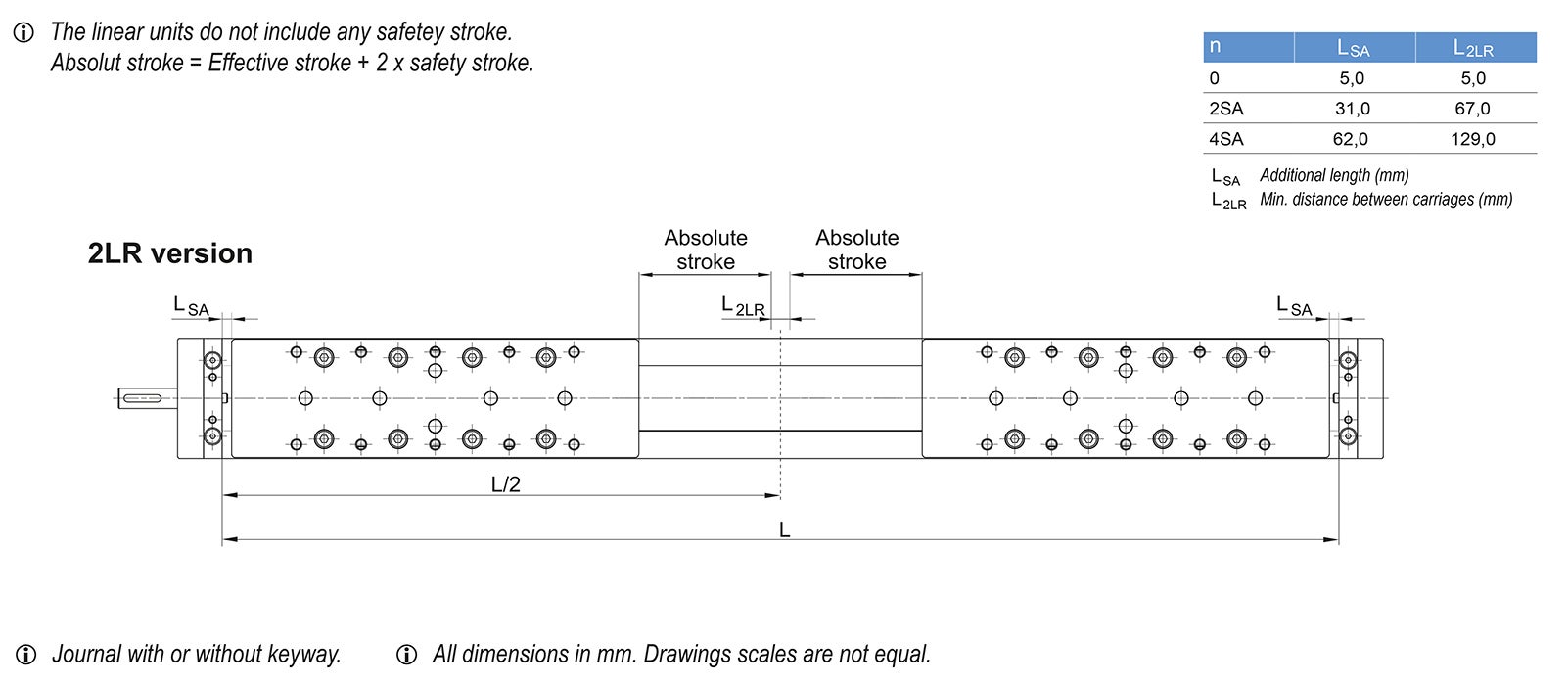

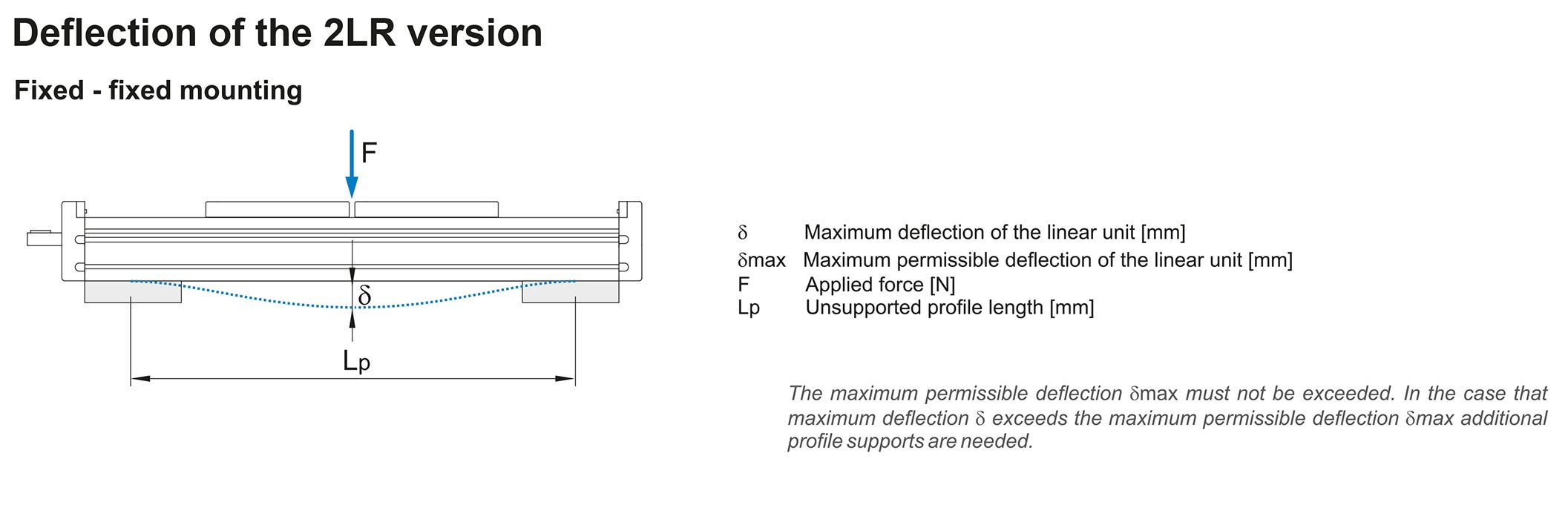

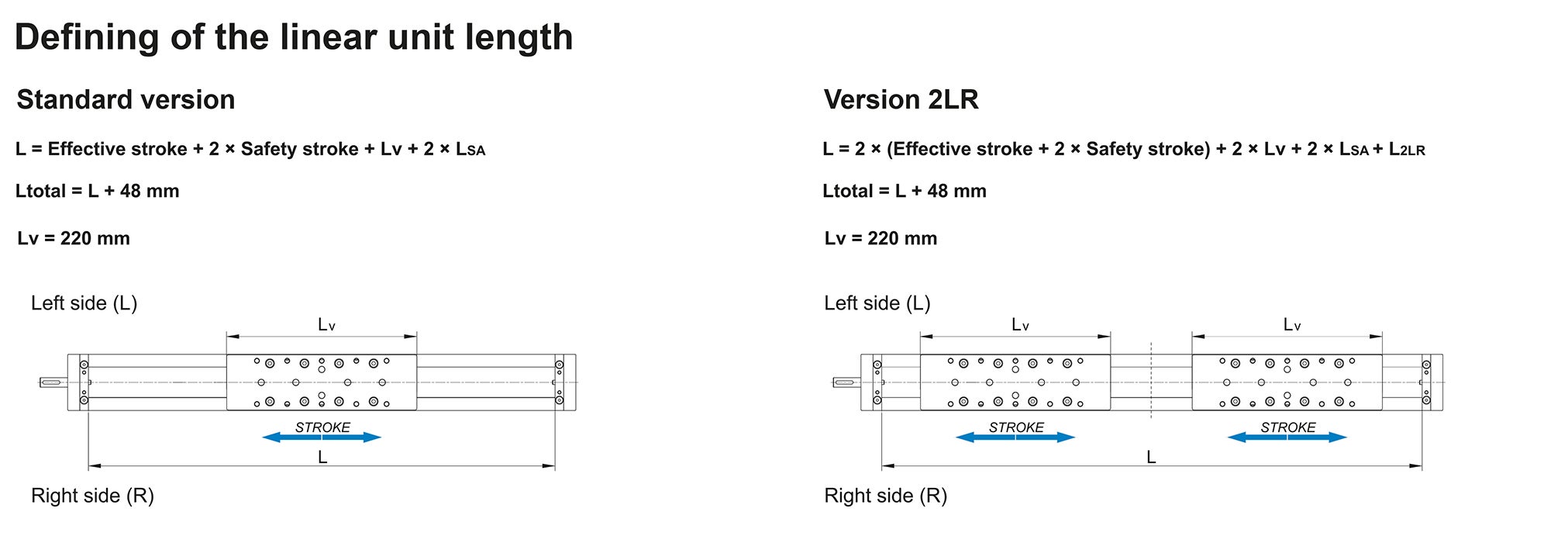

A 2LR version of MTV linear unit is available, where two carriages are moving simultaneously in opposite directions. Both right- and left-handed precision ball screws are used, which are rigidly connected. The ball screw support system can also be integrated.

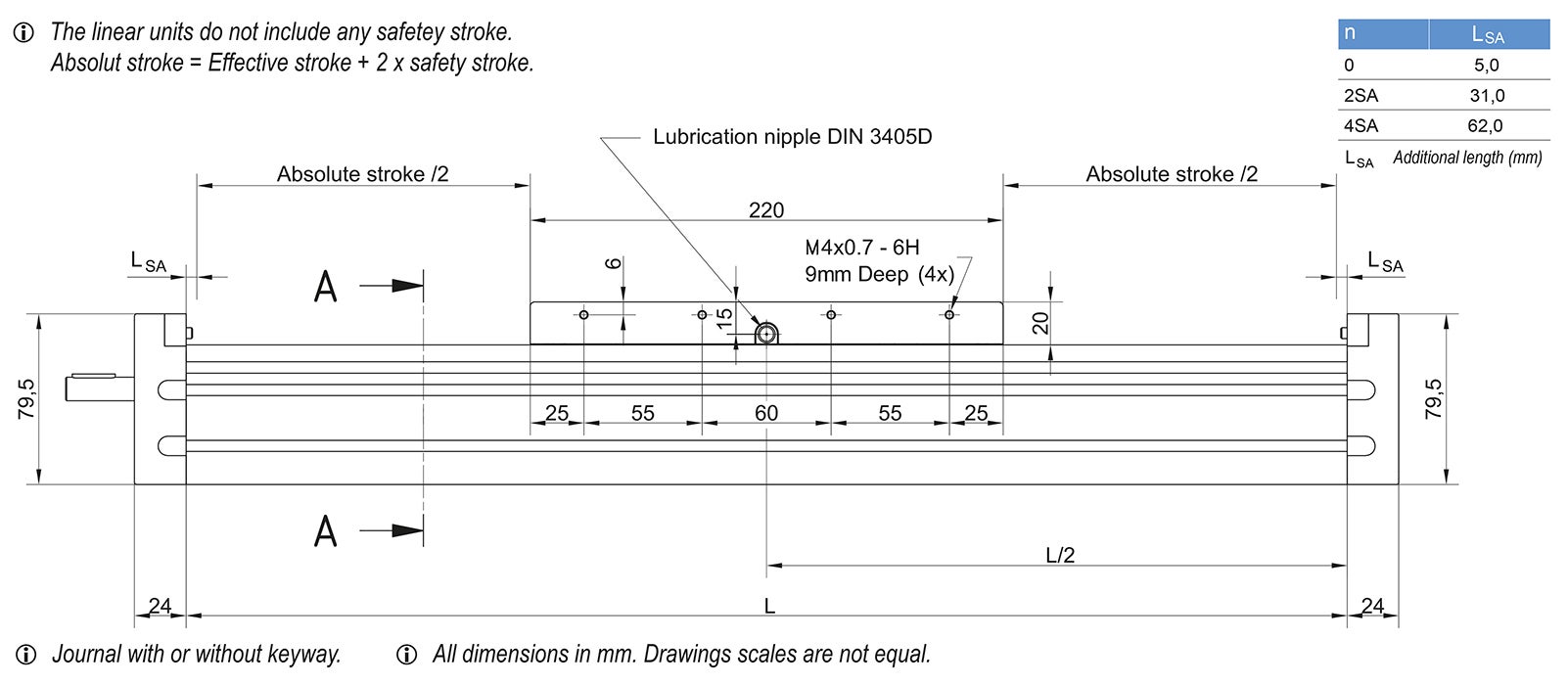

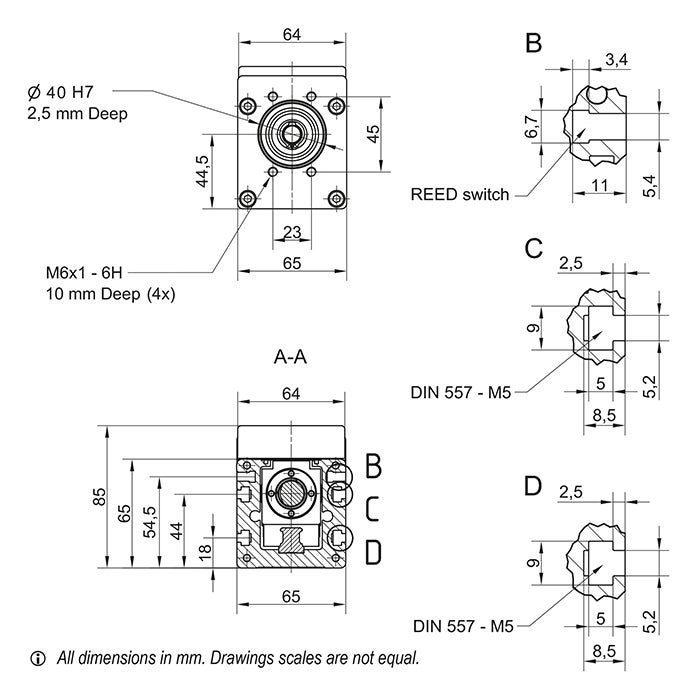

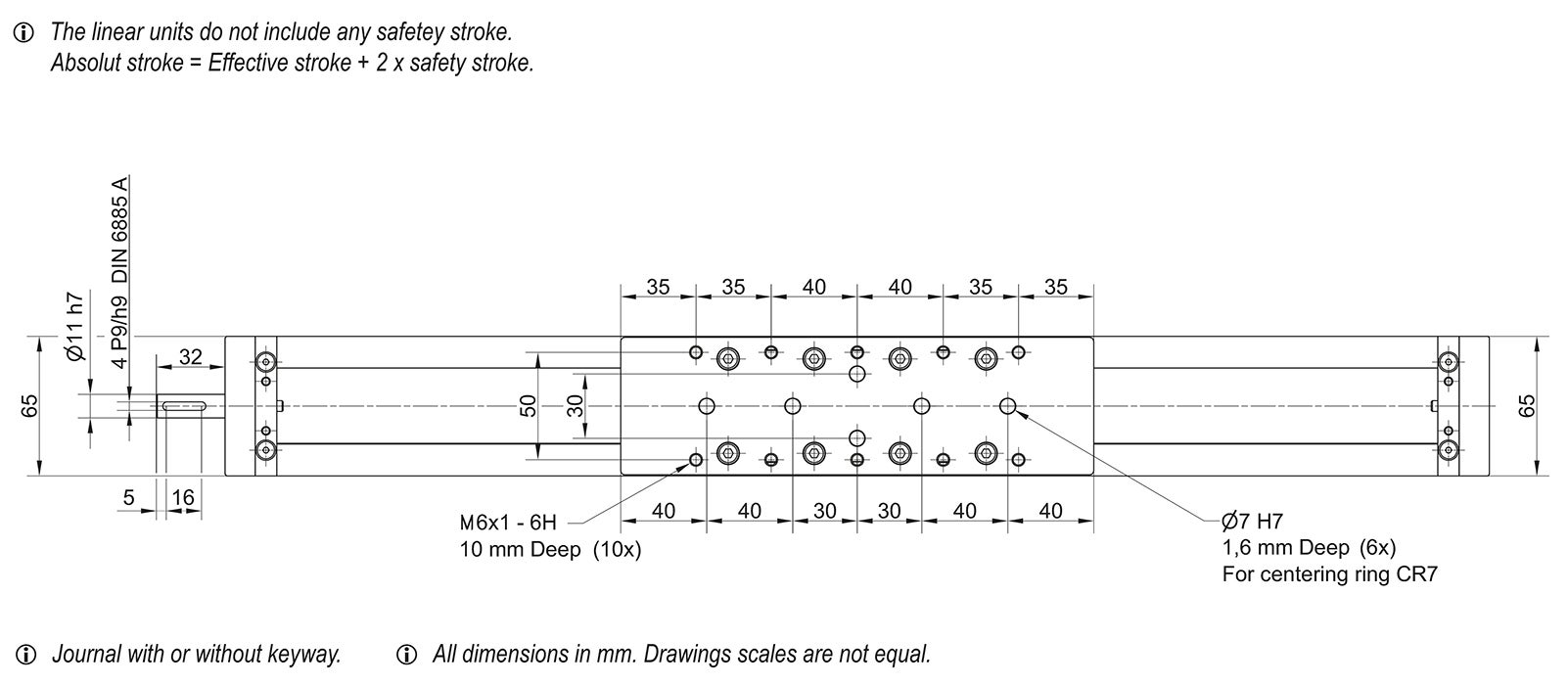

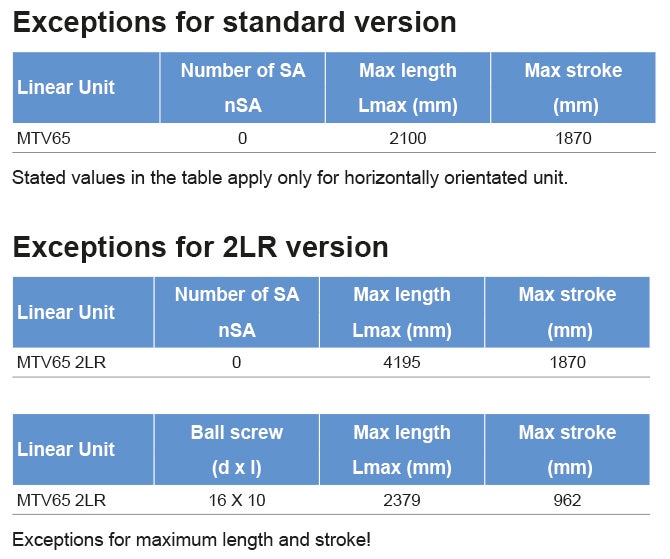

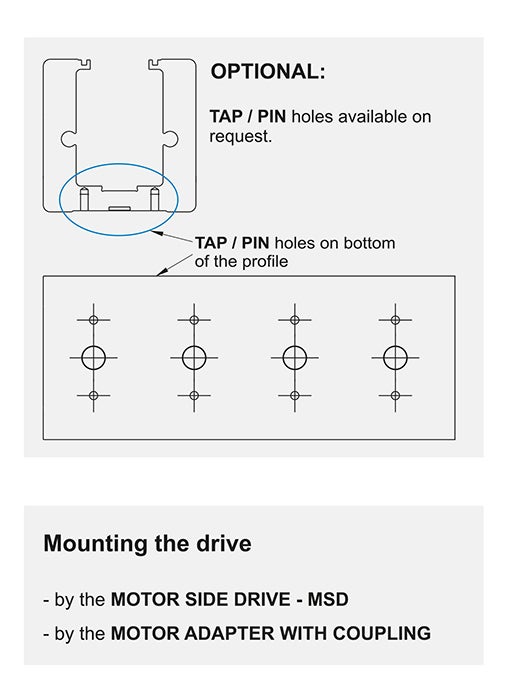

Dimensions in mm.
Download PDF (all data) Generating PDF
+ Add to PDF catalogue

Product Information

Modulus of Elasticity: E = 70000 N / mm2
Operating Temperature (°C): 0 ~ +60 For operating temperature out of the presented range, please contact Rollco.
Duty Cycle: 100%
Max. Acceleration (m/s²): 20
Linear_Units_CT_MT_Technical_Information.pdf
Order_Codes_MTV.pdf
Maintenance_and_Assembly_Instructions_MTV.pdf
Calculation Tool
Designation Select all Lead Time * Carriage Length Lv (mm) Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Dynamic Moment Mx (Nm) Dynamic Moment My (Nm) Dynamic Moment Mz (Nm) Max. Permissible Loads Forces Fpy (N) Max. Permissible Loads Forces Fpz (N) Max. Permissible Loads Moments Mpy (Nm) Max. Permissible Loads Moments Mpz (Nm) Max. Length Lmax (mm) Max. Stroke (mm) Min. Stroke (mm) CAD Compare
2 220 19800 35000 158 700 700 6540 10190 350 233 2920 2690 40
Get quote
2 220 19800 35000 158 700 700 6540 10190 350 233 5789 2667 40
Get quote
2 220 19800 35000 158 700 700 6540 10190 350 233 2920 2690 40
Get quote
2 220 19800 35000 158 700 700 6540 10190 350 233 5789 2667 40
Get quote
2 220 19800 35000 158 700 700 6540 10190 350 233 2920 2690 40
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Max. Rotational Speed (without SA) (rev/min) Max. Travel Speed (without SA) (m/s) Lead Constant (mm/rev) Ball Screw (d x l) Max. Repeatability Precision Standard ISO7 Max. Repeatability Precision ISO5 Dynamic Load Capacity BS Ca (N) Max. Axial Load Fx (N) Max. Drive Torque Ma (Nm) Planar Moment of Inertia ly (cm⁴) Planar Moment of Inertia lz (cm⁴) CAD Compare
4200 0.35 5 16 × 5 ±0.02 ±0.01 13150 8700 5.5 with keyway / 7.7 without keyway 71.3 89.4
Get quote
4200 0.35 5 16 × 5 ±0.02 ±0.01 13150 8700 5.5 with keyway / 7.7 without keyway 71.3 89.4
Get quote
4200 0.70 10 16 × 10 ±0.02 ±0.01 11550 6730 5.5 with keyway / 11.9 without keyway 71.3 89.4
Get quote
4200 0.70 10 16 × 10 ±0.02 ±0.01 11550 6730 5.5 with keyway / 11.9 without keyway 71.3 89.4
Get quote
4200 1.12 16 16 × 16 ±0.02 ±0.01 8170 4200 5.5 with keyway / 11.9 without keyway 71.3 89.4
Get quote
Designation Select all Ball Screw (d x l) Number of SA ⁿSA Mass of Linear Unit (kg) Moved Mass (kg) Mass Moment of Inertia (10⁻⁵ kg m²) No Load Torque (Nm) Planar Moment of Inertia ly (cm⁴) Planar Moment of Inertia lz (cm⁴) CAD Compare
16 × 5 0 ; 2 ; 4 4.0 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) ; 4.5 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) ; 5.0 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) 1.50 + 1.50 × (nc - 1) ; 1.58 + 1.50 × (nc - 1) ; 1.66 + 1.50 × (nc - 1) 1.6 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.09 × (nc - 1) ; 1.9 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.09 × (nc - 1) ; 2.2 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.09 × (nc - 1) 0.14 + 0.14 × (nc - 1) ; 0.16 + 0.14 × (nc - 1) ; 0.18 + 0.14 × (nc - 1) 71.3 89.4
Get quote
16 × 5 0 ; 2 ; 4 7.2 + 0.0146 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 8.2 + 0.0146 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 9.2 + 0.0146 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) 3.00 + 3.00 × (nc - 1) ; 3.16 + 3.00 × (nc - 1) ; 3.32 + 3.00 × (nc - 1) 2.9 + 0.0104 × (Abs. Stroke + (nc - 1) × A) + 0.19 × (nc - 1) ; 3.5 + 0.0104 × (Abs. Stroke + (nc - 1) × A) + 0.19 × (nc - 1) ; 4.1 + 0.0104 × (Abs. Stroke + (nc - 1) × A) + 0.19 × (nc - 1) 0.28 + 0.28 × (nc - 1) ; 0.32 + 0.28 × (nc - 1) ; 0.35 + 0.28 × (nc - 1) 71.3 89.4
Get quote
16 × 10 0 ; 2 ; 4 4.0 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) ; 4.5 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) ; 5.0 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) 1.50 + 1.50 × (nc - 1) ; 1.58 + 1.50 × (nc - 1) ; 1.66 + 1.50 × (nc - 1) 1.9 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.38 × (nc - 1) ; 2.2 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.38 × (nc - 1) ; 2.5 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.38 × (nc - 1) 0.15 + 0.15 × (nc - 1) ; 0.19 + 0.15 × (nc - 1) ; 0.22 + 0.15 × (nc - 1) 71.3 89.4
Get quote
16 × 10 0 ; 2 ; 4 7.2 + 0.0146 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 8.2 + 0.0146 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 9.2 + 0.0146 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) 3.00 + 3.00 × (nc - 1) ; 3.16 + 3.00 × (nc - 1) ; 3.32 + 3.00 × (nc - 1) 3.5 + 0.0104 × (Abs. Stroke + (nc - 1) × A) + 0.76 × (nc - 1) ; 4.1 + 0.0104 × (Abs. Stroke + (nc - 1) × A) + 0.76 × (nc - 1) ; 4.8 + 0.0104 × (Abs. Stroke + (nc - 1) × A) + 0.76 × (nc - 1) 0.30 + 0.30 × (nc - 1) ; 0.34 + 0.30 × (nc - 1) ; 0.37 + 0.30 × (nc - 1) 71.3 89.4
Get quote
16 × 16 0 ; 2 ; 4 4.0 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) ; 4.5 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) ; 5.0 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) 1.50 + 1.50 × (nc - 1) ; 1.58 + 1.50 × (nc - 1) ; 1.66 + 1.50 × (nc - 1) 2.5 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.97 × (nc - 1) ; 2.8 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.97 × (nc - 1) ; 3.2 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.97 × (nc - 1) 0.20 + 0.20 × (nc - 1) ; 0.26 + 0.20 × (nc - 1) ; 0.31 + 0.20 × (nc - 1) 71.3 89.4
Get quote
