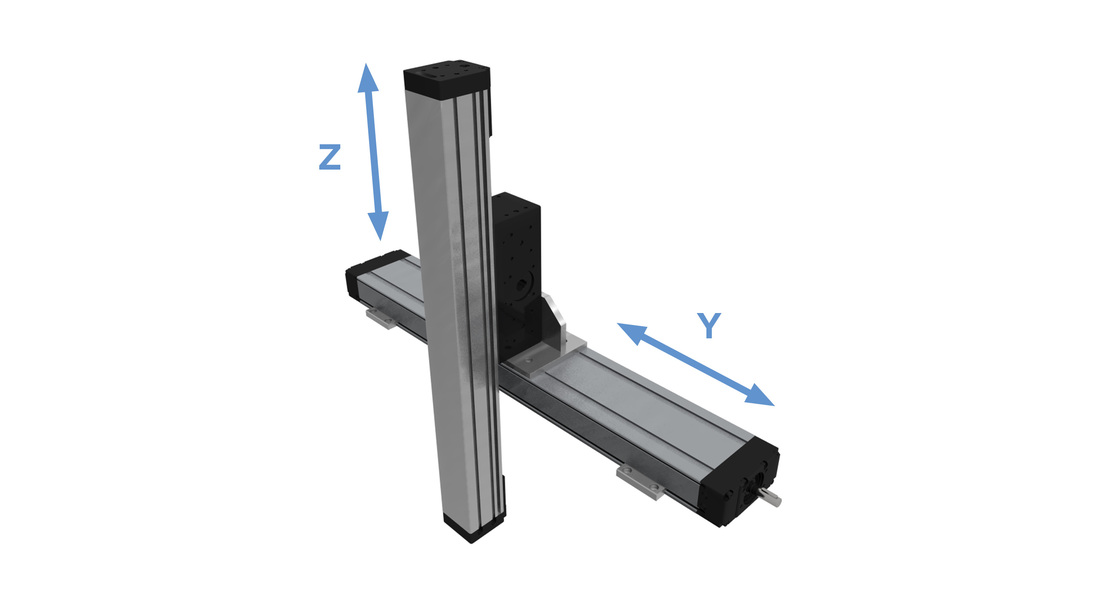

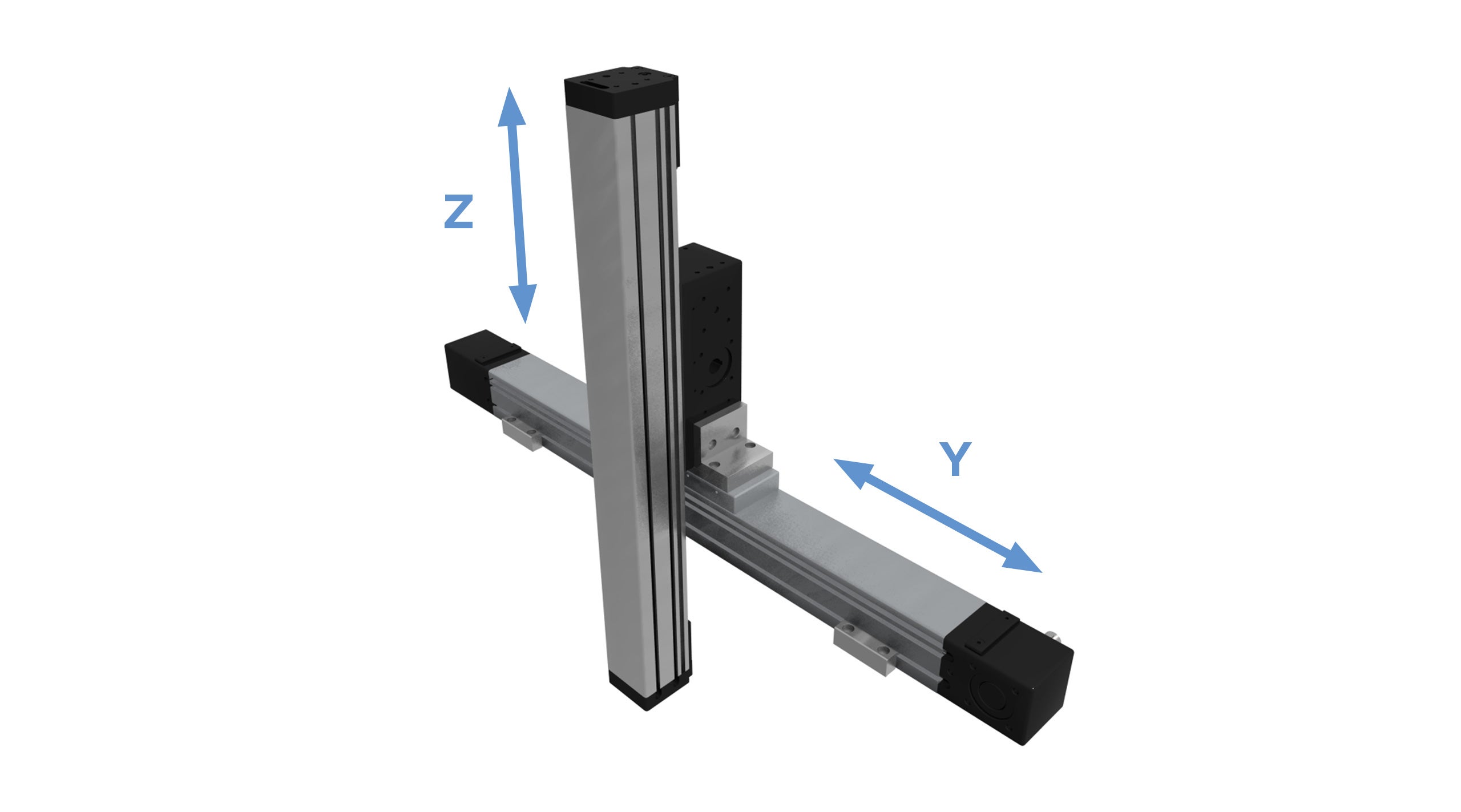

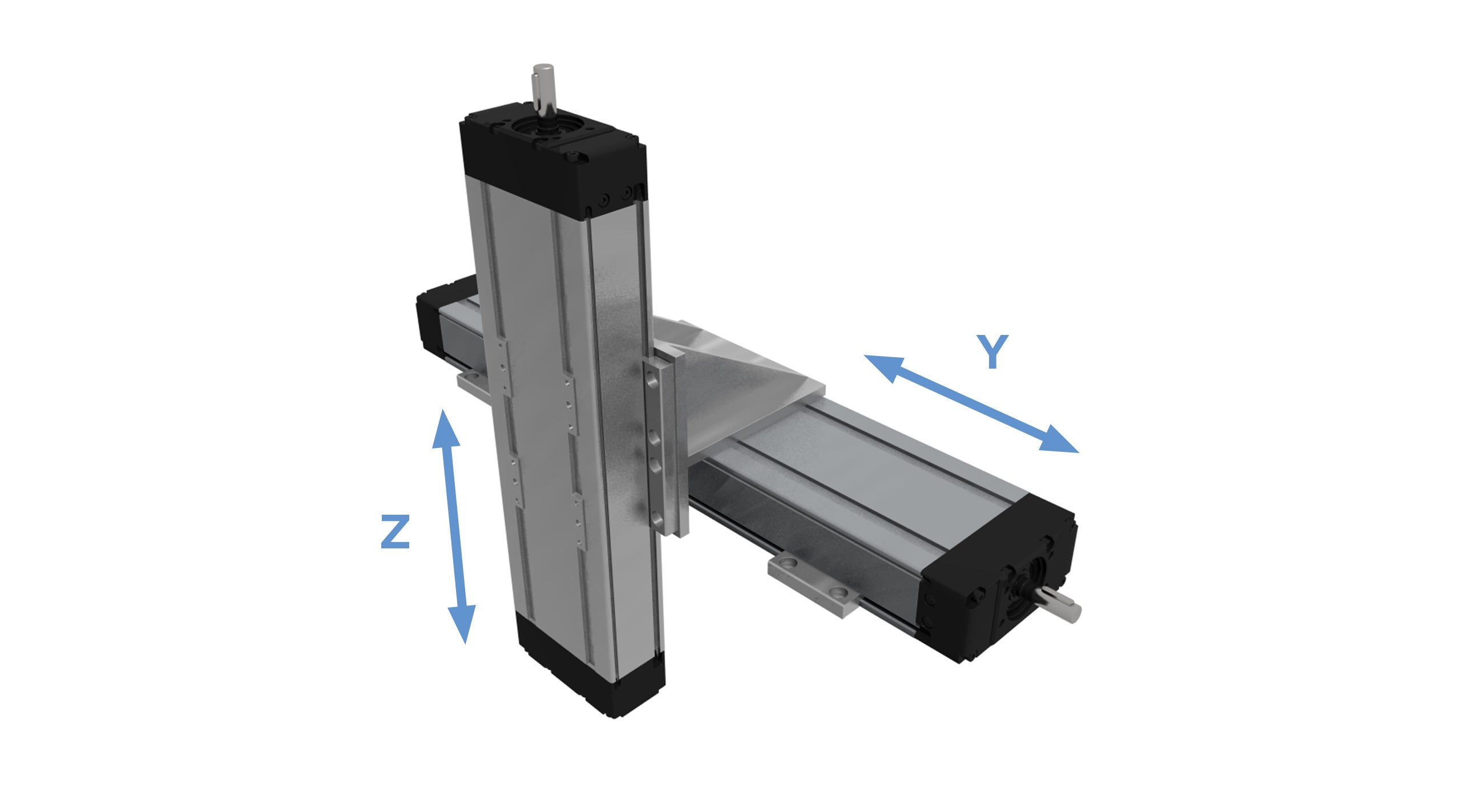

Y-Z Connection Elements, Y-Axis = 0° Z Axis = 90°

Y-Axis MTJ, MRJ, MTV, MTJ ECO, CTV, CTJ = 0°, Z-Axis = 90°

Contact Rollco for more information and CAD-files.

Product Information

Calculation Tool

Designation	Lead Time *	Connection Plate
Y-Axis = MTJ/MRJ 40, Z-Axis = MTJZ 40	2	CP M40 0 Z40	Get quote
Y-Axis = MTJ/MRJ/MTV 65, Z-Axis = MTJZ 40	2	CP M65 0 Z40	Get quote
Y-Axis = MTJ/MRJ/MTV 65, Z-Axis = MTJZ 65	2	CP M65 0 Z65	Get quote
Y-Axis = MTJ/MRJ/MTV 65, Z-Axis = MTV 65	2	CP M65 0 ZM65	Get quote
Y-Axis = MTJ/MRJ/MTV 80, Z-Axis = MTJZ 40	2	CP M80 0 Z40	Get quote
Y-Axis = MTJ/MRJ/MTV 80, Z-Axis = MTJZ 65	2	CP M80 0 Z65	Get quote
Y-Axis = MTJ/MRJ/MTV 80, Z-Axis = MTJZ 80	2	CP M80 0 Z80	Get quote
Y-Axis = MTJ/MRJ/MTV 80, Z-Axis = MTV 65	2	CP M80 0 ZM65	Get quote
Y-Axis = MTJ/MRJ/MTV 80, Z-Axis = MTV 80	2	CP M80 0 ZM80	Get quote
Y-Axis = MTJ/MRJ 110, Z-Axis = MTJZ 65	2	CP M110 0 Z65	Get quote
Y-Axis = MTJ/MRJ 110, Z-Axis = MTJZ 80	2	CP M110 0 Z80	Get quote
Y-Axis = MTJ/MRJ 110, Z-Axis = MTJZ 110	2	CP M110 0 Z110	Get quote
Y-Axis = MTJ/MRJ 110, Z-Axis = MTV 65	2	CP M110 0 ZM65	Get quote
Y-Axis = MTJ/MRJ 110, Z-Axis = MTV 80	2	CP M110 0 ZM80	Get quote
Y-Axis = MTJ/MRJ 110, Z-Axis = MTV 110	2	CP M110 0 ZM110	Get quote
Y-Axis = MTJ 40 ECO, Z-Axis = MTJZ 40	2	CP E40 0 Z40	Get quote
Y-Axis = CTV/CTJ 90, Z-Axis = MTJZ 40	2	CP C90 0 Z40	Get quote
Y-Axis = CTV/CTJ 90, Z-Axis = MTJZ 65	2	CP C90 0 Z65	Get quote
Y-Axis = CTV/CTJ 90, Z-Axis = CTV 90	2	CP C90 0 ZC90	Get quote
Y-Axis = CTV/CTJ 110, Z-Axis = MTJZ 40	2	CP C110 0 Z40	Get quote
Y-Axis = CTV/CTJ 110, Z-Axis = MTJZ 65	2	CP C110 0 Z65	Get quote
Y-Axis = CTV/CTJ 110, Z-Axis = MTJZ 80	2	CP C110 0 Z80	Get quote
Y-Axis = CTV/CTJ 110, Z-Axis = MTV 65	2	CP C110 0 ZM65	Get quote
Y-Axis = CTV/CTJ 110, Z-Axis = MTV 80	2	CP C110 0 ZM80	Get quote
Y-Axis = CTV/CTJ 110, Z-Axis = CTV 90	2	CP C110 0 ZC90	Get quote
Y-Axis = CTV/CTJ 110, Z-Axis = CTV 110	2	CP C110 0 ZC110	Get quote
Y-Axis = CTV/CTJ 145, Z-Axis = MTJZ 40	2	CP C145 0 Z40	Get quote
Y-Axis = CTV/CTJ 145, Z-Axis = MTJZ 65	2	CP C145 0 Z65	Get quote
Y-Axis = CTV/CTJ 145, Z-Axis = MTJZ 80	2	CP C145 0 Z80	Get quote
Y-Axis = CTV/CTJ 145, Z-Axis = MTJZ 110	2	CP C145 0 Z110	Get quote
Y-Axis = CTV/CTJ 145, Z-Axis = MTV 65	2	CP C145 0 ZM65	Get quote
Y-Axis = CTV/CTJ 145, Z-Axis = MTV 80	2	CP C145 0 ZM80	Get quote
Y-Axis = CTV/CTJ 145, Z-Axis = MTV 110	2	CP C145 0 ZM110	Get quote
Y-Axis = CTV/CTJ 145, Z-Axis = CTV 90	2	CP C145 0 ZC90	Get quote
Y-Axis = CTV/CTJ 145, Z-Axis = CTV 110	2	CP C145 0 ZC110	Get quote
Y-Axis = CTV/CTJ 145, Z-Axis = CTV 145	2	CP C145 0 ZC145	Get quote
Y-Axis = CTV/CTJ 200, Z-Axis = MTJZ 80	2	CP C200 0 Z80	Get quote
Y-Axis = CTV/CTJ 200, Z-Axis = MTJZ 110	2	CP C200 0 Z110	Get quote
Y-Axis = CTV/CTJ 200, Z-Axis = MTV 80	2	CP C200 0 ZM80	Get quote
Y-Axis = CTV/CTJ 200, Z-Axis = MTV 110	2	CP C200 0 ZM110	Get quote
Y-Axis = CTV/CTJ 200, Z-Axis = CTV 110	2	CP C200 0 ZC110	Get quote
Y-Axis = CTV/CTJ 200, Z-Axis = CTV 145	2	CP C200 0 ZC145	Get quote
