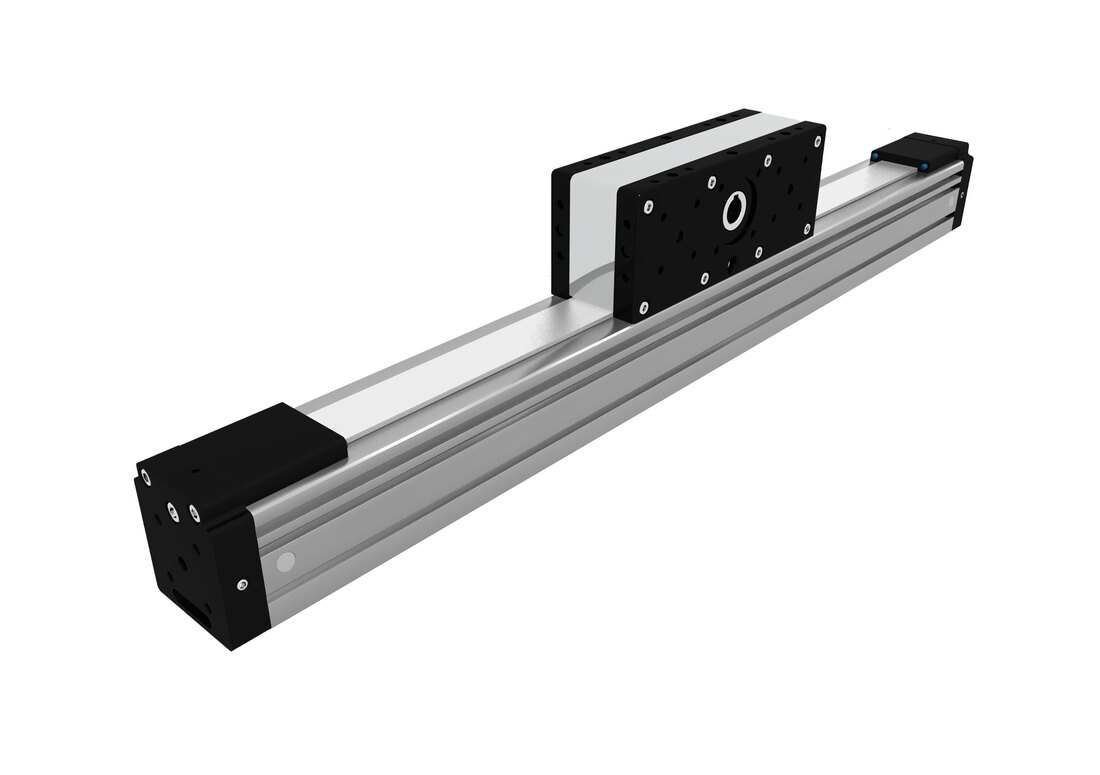

Linear Unit MTJZ 80
The MTJZ series contains Z-axis linear units with toothed belt drive, integrated ball rail system and compact dimensions. This linear units provide high performance features such as, high speed, good accuracy and repeatability by vertical applications.
In the linear units MTJZ is used a pre-tensioned steel reinforced AT polyurethane timing toothed belt. In conjunction with a zero-backlash drive pulley high moments with alternating loads with good positioning accuracy, low wear and low noise can be realized.
The in the profile slot driving timing belt protects all the parts in the profile from dust and other contaminations. The drive block provides the possibility to attach a motor or gearbox housing and additional accessories on it.
For CAD-files please contact Rollco.

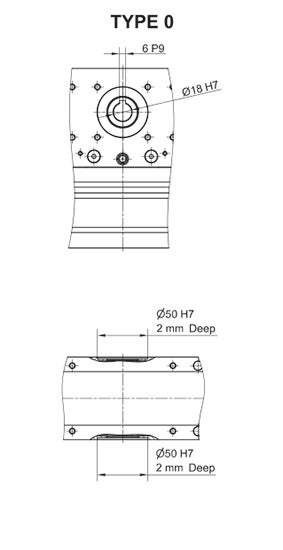

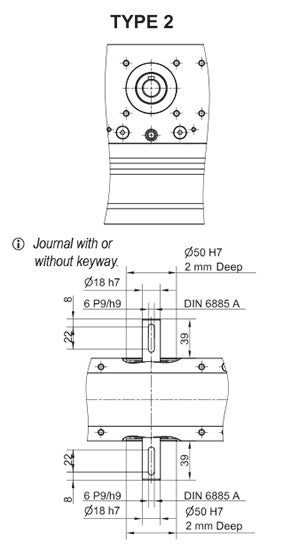

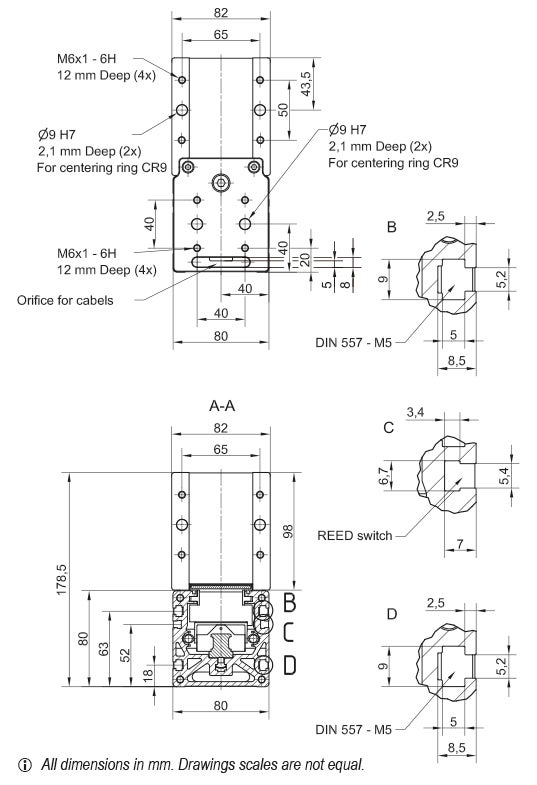

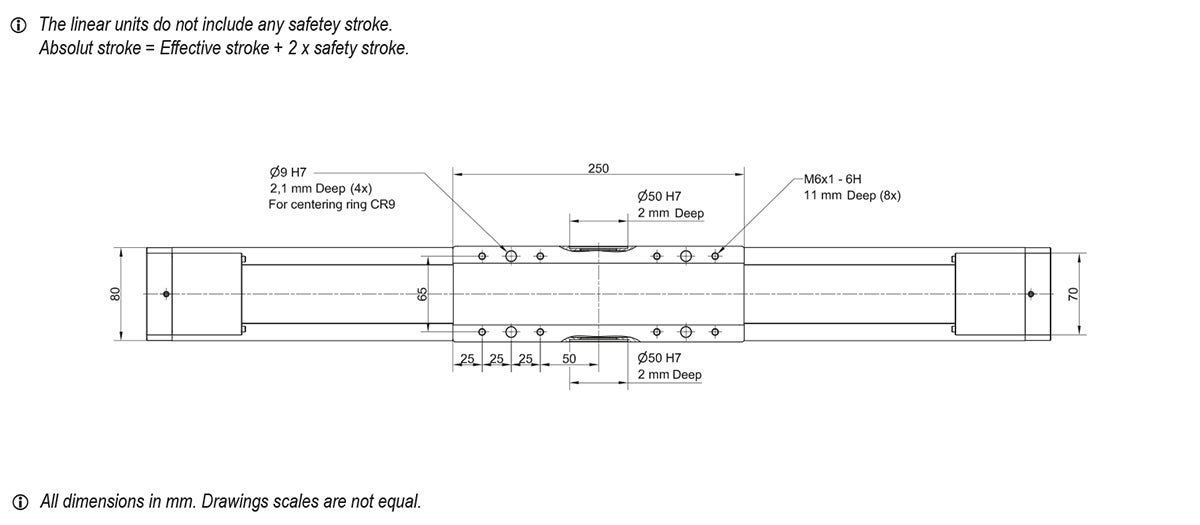

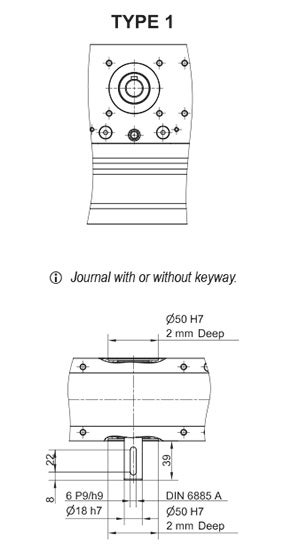

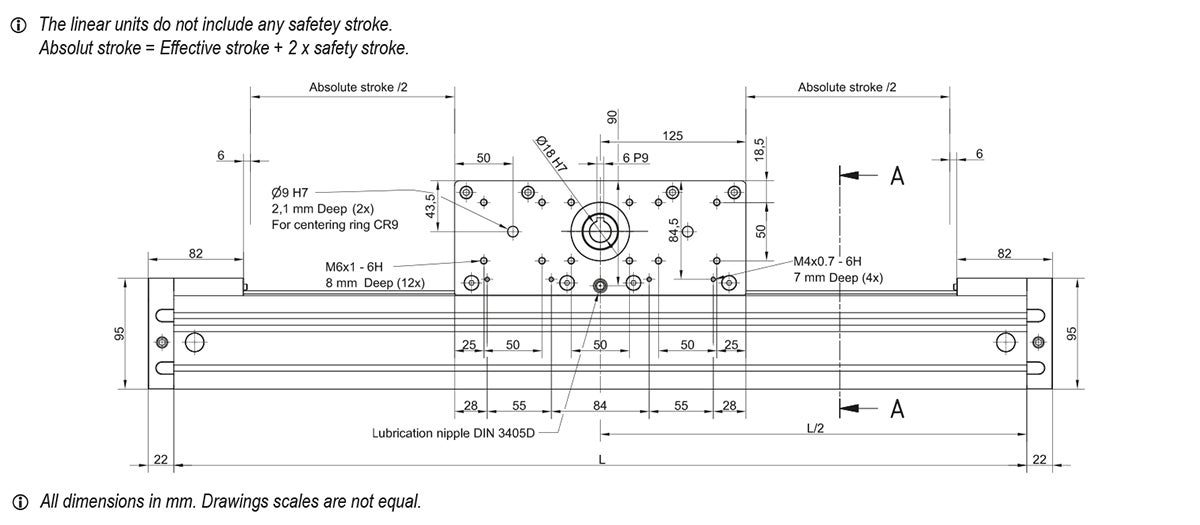

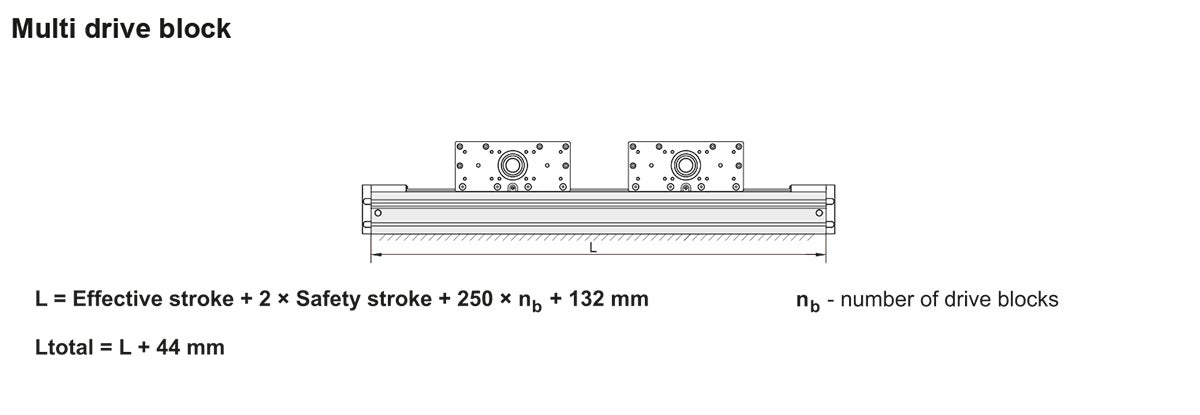

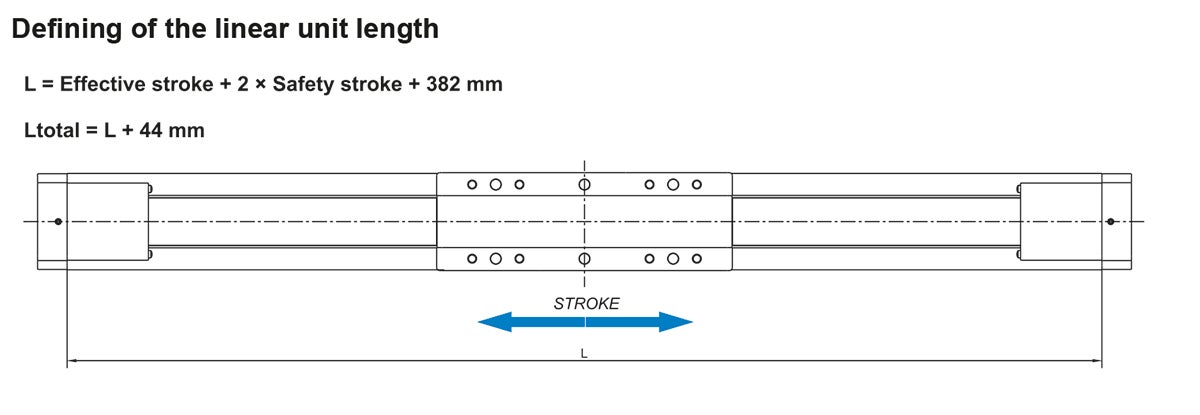

Dimensions in mm.
In the linear units MTJZ is used a pre-tensioned steel reinforced AT polyurethane timing toothed belt. In conjunction with a zero-backlash drive pulley high moments with alternating loads with good positioning accuracy, low wear and low noise can be realized.
The in the profile slot driving timing belt protects all the parts in the profile from dust and other contaminations. The drive block provides the possibility to attach a motor or gearbox housing and additional accessories on it.
For CAD-files please contact Rollco.
Dimensions in mm.

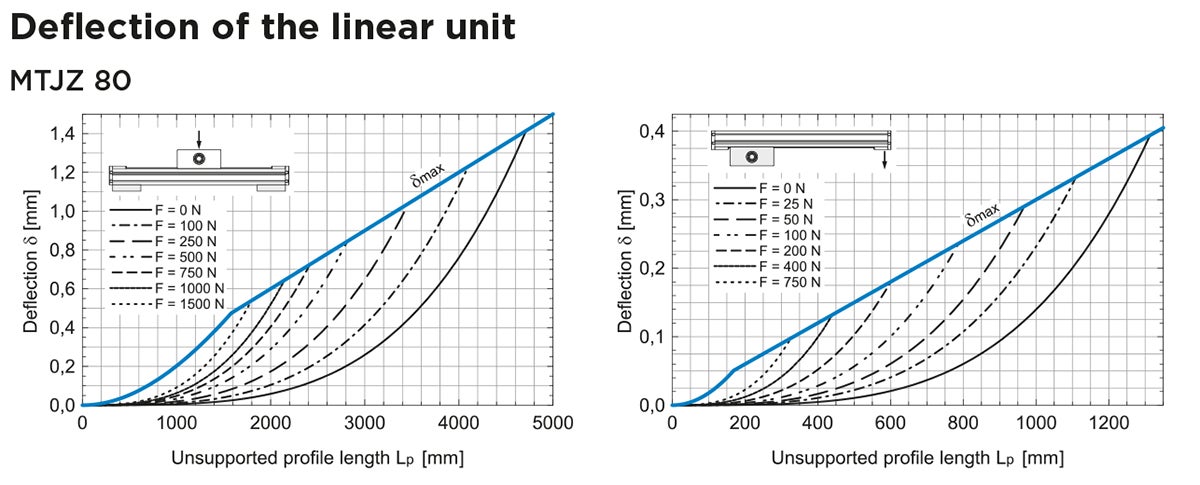

Product Information
Modulus of elasticity: E = 70000 N / mm2
Operating temperature: 0°C ~ +60°C For operating temperature out of the presented range, please contact Rollco.
Duty cycle: 100%
| Designation | Select all | Lead Time * | Drive block length Lv | Dynamic Load Capacity C | Static Load Capacity C0 | Dynamic moments Mx | Dynamic moments My | Dynamic moments Mz | Mass of drive block | Max. permissible loads Forces Fpy | Max. permissible loads Forces Fpz | Max. permissible loads Moments Mpx | Max. permissible loads Moments Mpy | Max. permissible loads Moments Mpz | Max. repeatability | Max length version 1 (Lmax) | Max length version 2 (Lmax) | Max. stroke version 1 | Max. stroke version 2 | Min. stroke | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 250 | 34200 N | 60000 N | 370 Nm | 2565 Nm | 2565 Nm | 4,9 kg | 8930 N | 7130 N | 150 Nm | 535 Nm | 670 Nm | ± 0,08 | 1500 | 6000 | 1118 | 5618 | 55 |
|
Get quote |
* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
| Designation | Select all | Max travel speed | Max. drive torque | Pulley drive ratio | Pulley diameter | Min. stroke | Planar moment of inertia ly cm⁴ | Planar moment of inertia lz cm⁴ | Belt type | Belt width | Max. force transmitted by belt | Specific spring constant Cspec | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
5 m/s | 29,4 Nm | 210 mm/rev | 66.84 | 55 | 129.10 | 173.40 | AT5 | 50 | 880 N | 960000 N |
|
Get quote |
| Designation | Select all | Mass of linear unit | Mass moment of inertia of drive block (10⁻⁴ kg * m₂) | Planar moment of inertia ly cm⁴ | Planar moment of inertia lz cm⁴ | ||
|---|---|---|---|---|---|---|---|
|
|
9,7 + 0,0083 * Stroke (mm) kg | 60,5 + 0,0922 * Stroke (mm) | 129.10 | 173.40 |
|
Get quote |
-
-

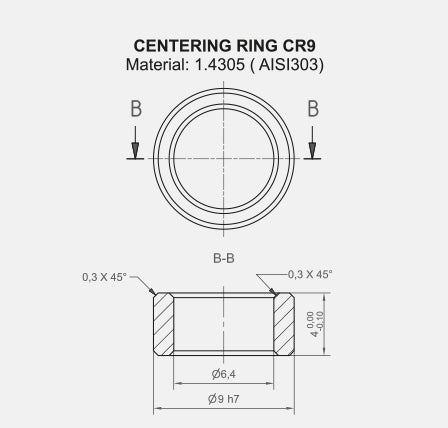

Fixing System
The linear units are mounted by using fixtures placed in the slot on the side of the profile -
-
-
-
-
-
-
-
-
-
-
-
-
-
