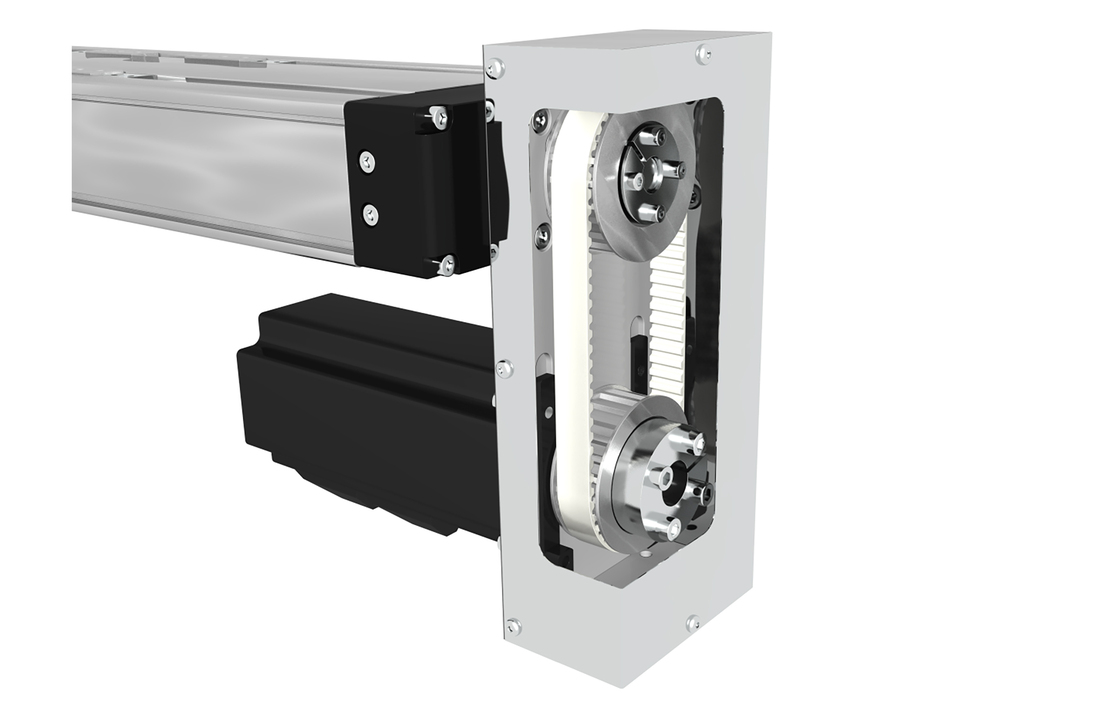

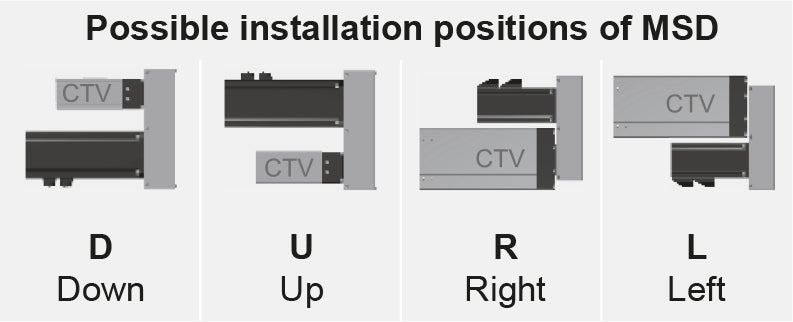

Motor Side Drive - MSD

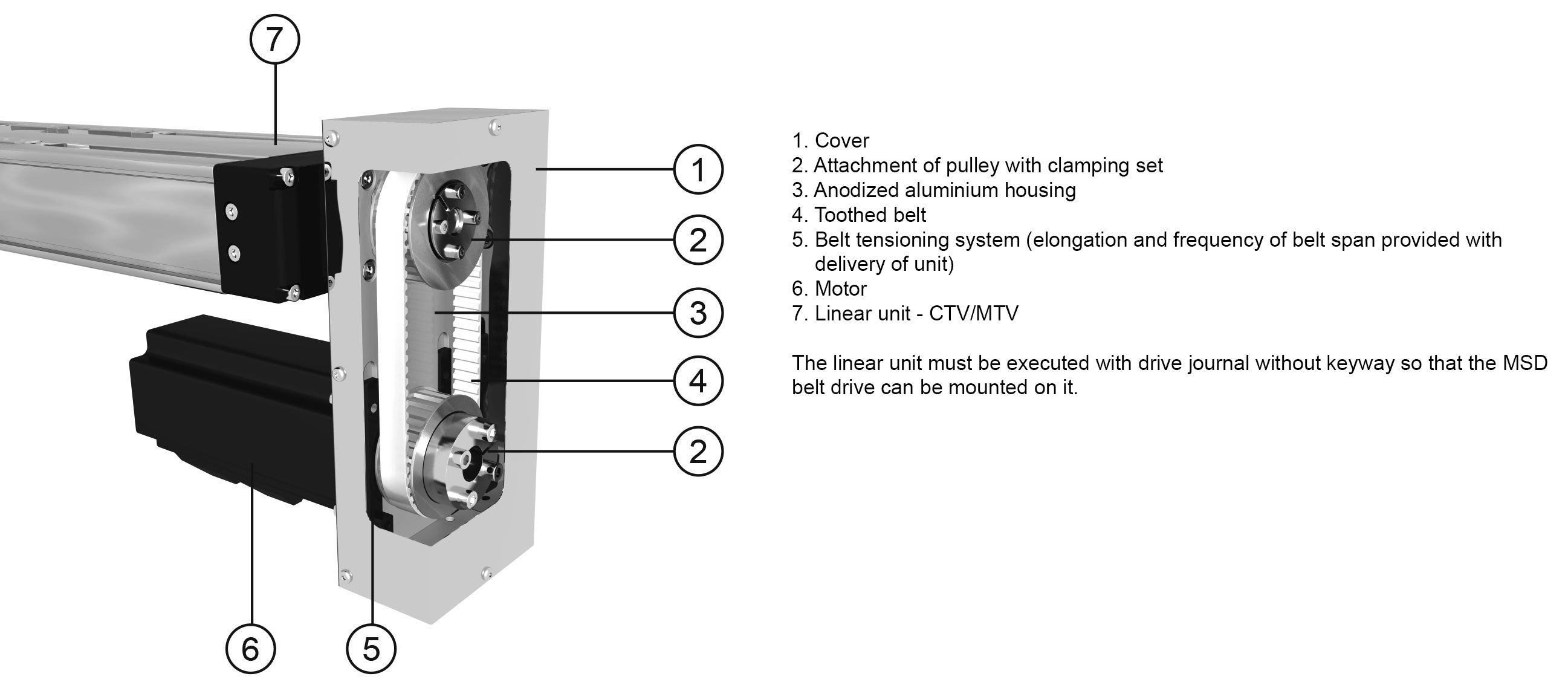

The linear unit must be executed with drive journal without keyway so that the MSD belt drive can be mounted on it.

Dimensions in mm.
Read more
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD / Request quote Download CAD
Designation Select all CAD Compare Get quote Lead Time * Max. Drive Torque (Linear Unit) (Nm) Max. Radial Load on Shaft (N) Mass Moment of Inertia (10⁻⁶ kg m²) Mass (kg) ØB max. ØC max. M max. Motor size limits - L1 -min. keyway Motor size limits -L1- max. ØD Max. Clamping set ØD Max. Keyway E F G G2 K L N
Request quote 2 1.3 60 4.6 0.5 60 36 4 20 32 8 12 58.5 52 39 33 26 113 6
Request quote 2 1.3 60 5.4 0.5 60 36 4 20 32 8 – 59 52 39 33 26 113 6
Request quote 2 3 80 45 0.8 80 52 4 25 39 19 – 65 68 42 36 31 135 8
Request quote 2 3 80 31 0.7 80 52 4 25 39 10 14 64.5 68 42 36 31 135 8
Request quote 2 2.7 90 75 0.8 70 – 4 25 39 19 – 100 70 41 – 31 179 2
Request quote 2 2.7 90 45 0.7 70 – 4 25 39 10 14 102 70 41 – 31 179 2
Request quote 2 5 175 70 0.8 70 – 4 25 39 19 – 100 70 41 – 31 179 2
Request quote 2 5 175 45 0.8 70 – 4 25 39 10 14 112 70 41 – 31 190 2
Request quote 2 5 175 70 0.8 70 – 4 25 39 19 – 100 70 41 – 31 179 2
Request quote 2 5 175 45 0.8 70 – 4 25 39 10 14 112 70 41 – 31 190 2
Request quote 2 9 245 210 1.5 100 – 4 30 49 22 – 145 90 51 – 43 250 2
Request quote 2 11 235 330 1.5 100 – 4 30 49 19 28 139 90 51 – 43 250 2
Request quote 2 9 245 210 1.5 100 – 4 30 49 22 – 145 90 51 – 43 250 2
Request quote 2 11 235 330 1.5 100 – 4 30 49 19 28 139 90 51 – 43 250 2
Request quote 2 13 350 210 1.5 100 – 4 30 49 22 – 145 90 51 – 43 250 2
Request quote 2 19 410 330 1.6 100 – 4 30 49 19 28 180 90 51 – 43 282 2
Request quote 2 13 350 210 1.5 100 – 4 30 49 22 – 145 90 51 – 43 250 2
Request quote 2 19 410 330 1.6 100 – 4 30 49 19 28 180 90 51 – 43 282 2
Request quote 2 19 410 550 3.0 130 – 4 35 59 35 – 160 120 61 – 56 297 2.5
Request quote 2 24 375 860 2.9 130 – 4 35 59 19 28 158 120 61 – 56 297 2.5
Request quote 2 19 410 550 3.0 130 – 4 35 59 35 – 160 120 61 – 56 297 2.5
Request quote 2 24 375 860 2.9 130 – 4 35 59 19 28 158 120 61 – 56 297 2.5
Request quote 2 25 500 640 3.8 130 – 4 35 59 35 – 268 120 61 – 56 403 2.5
Request quote 2 25 400 960 3.6 130 – 4 35 59 19 28 267 120 61 – 56 403 2.5
Request quote 2 25 500 640 3.8 130 – 4 35 59 35 – 268 120 61 – 56 403 2.5
Request quote 2 25 400 960 3.6 130 – 4 35 59 19 28 267 120 61 – 56 403 2.5

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
