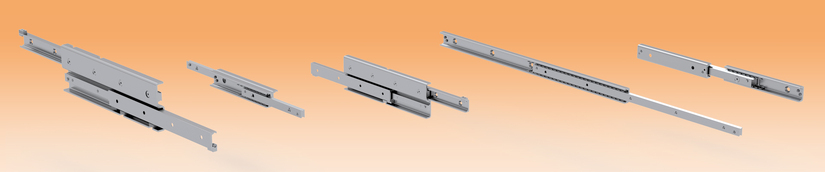

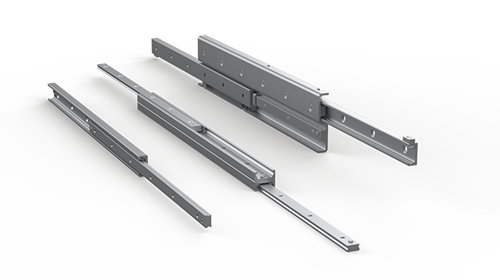

TELESCOPIC RAIL HEAVY
Telescopic Rails Heavy are designed specifically for industrial applications. They are ideal for applications with frequent movements, high loads, minimal deflection and high precision.
The rails are made of cold drawn carbon steel for high durability. The raceways are hardened to achieve a smooth and easy operation, even at vibrations and impacts.
The telescopic rails have a load capacity of up to 2 ton/pair. They are available in sizes with stroke lengths up to 2 m in both directions.
We offer many different types of telescopic rails: With extension in one or both directions, with 50% or full extension. We also have special solutions for extensions over 100%. The telescopic rails come in series ASN, DS-, DE- and DBN. The rails have different cross-sections and intermediate elements in S-shape, double-T or square shape, depending on the model.
Choosing a telescopic rail
The choice of a suitable telescopic rail should be based on the load and the maximum permissible deflection in the extended state. The load capacity of a telescopic rail depends on two factors: the load capacity of the ball cage and the stiffness of the intermediate element. For mainly short strokes, the load capacity is determined by the load-bearing capacity of the ball cage; for medium and long strokes, it is determined by the stiffness of the intermediate element.
Note! These products are not available for sale on all markets. Please contact us for more information.
- Heavy loads with low deflection
- Rigid intermediate elements
- Smooth running even at maximum load
- Space-saving design
- Stroke can be customized according to special requirements
- Train (doors, battery boxes etc.)
- Building and machining industry
- Logistics (e.g. extensions for containers or gripping movements)
- Automotive industry
- Packaging machines
- Special machinery
