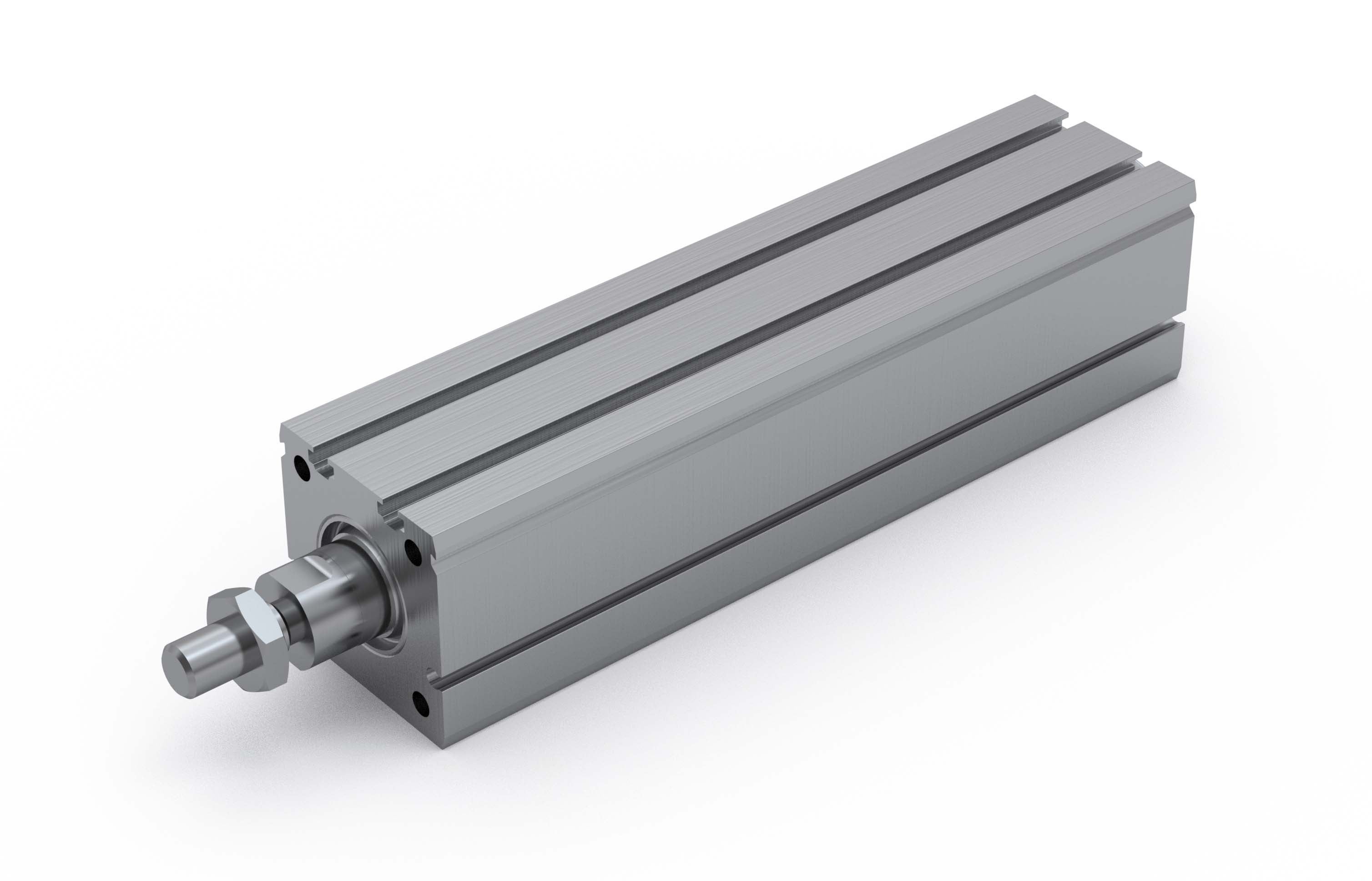

Mini electric cylinder MCE is a mini linear drive with a piston rod. By using an integrated precision ball screw drive, the rotary motion (rotation) of the drive shaft is converted to the linear motion (translation) of the piston rod with high mechanical efficiency and low internal friction.

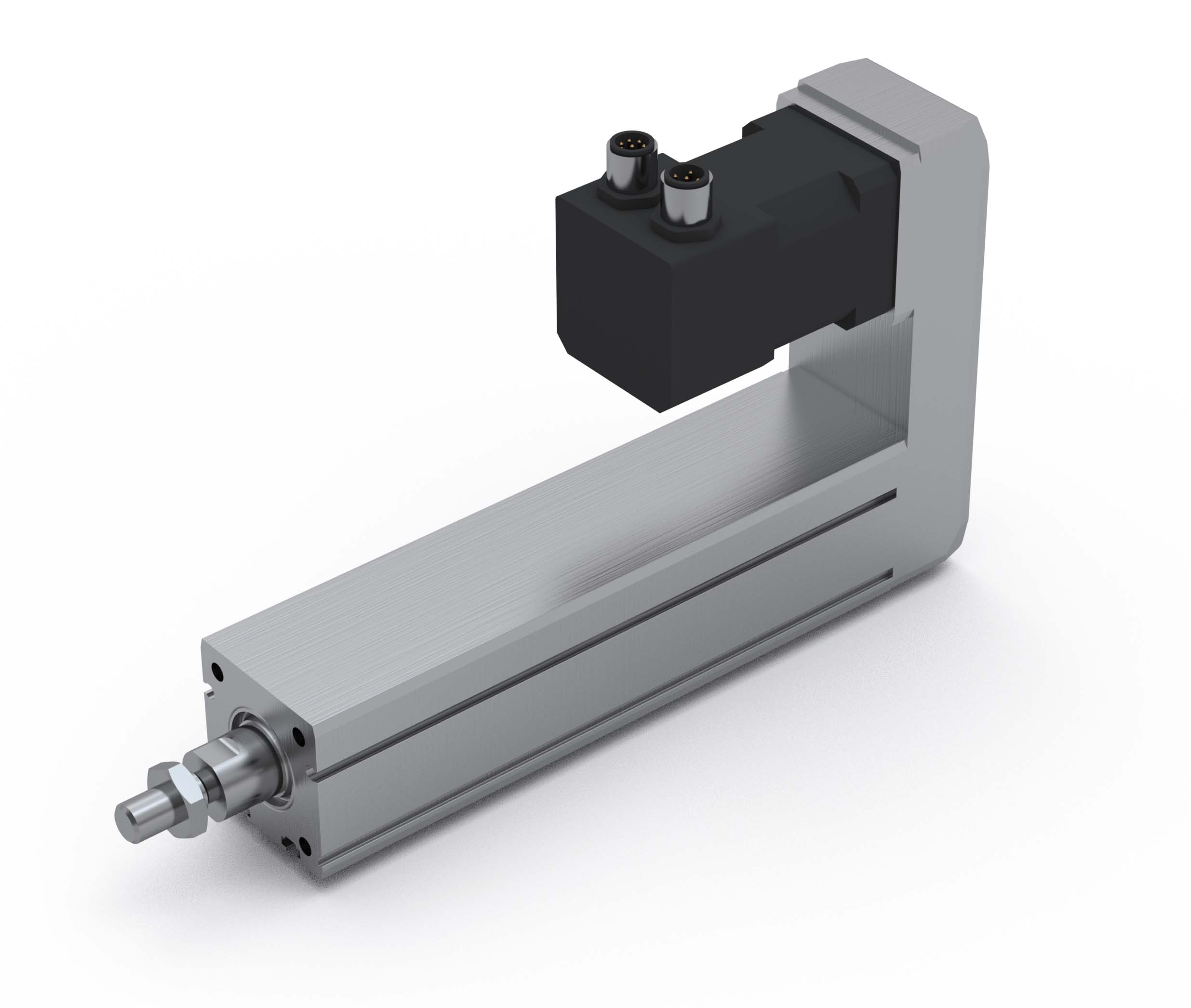

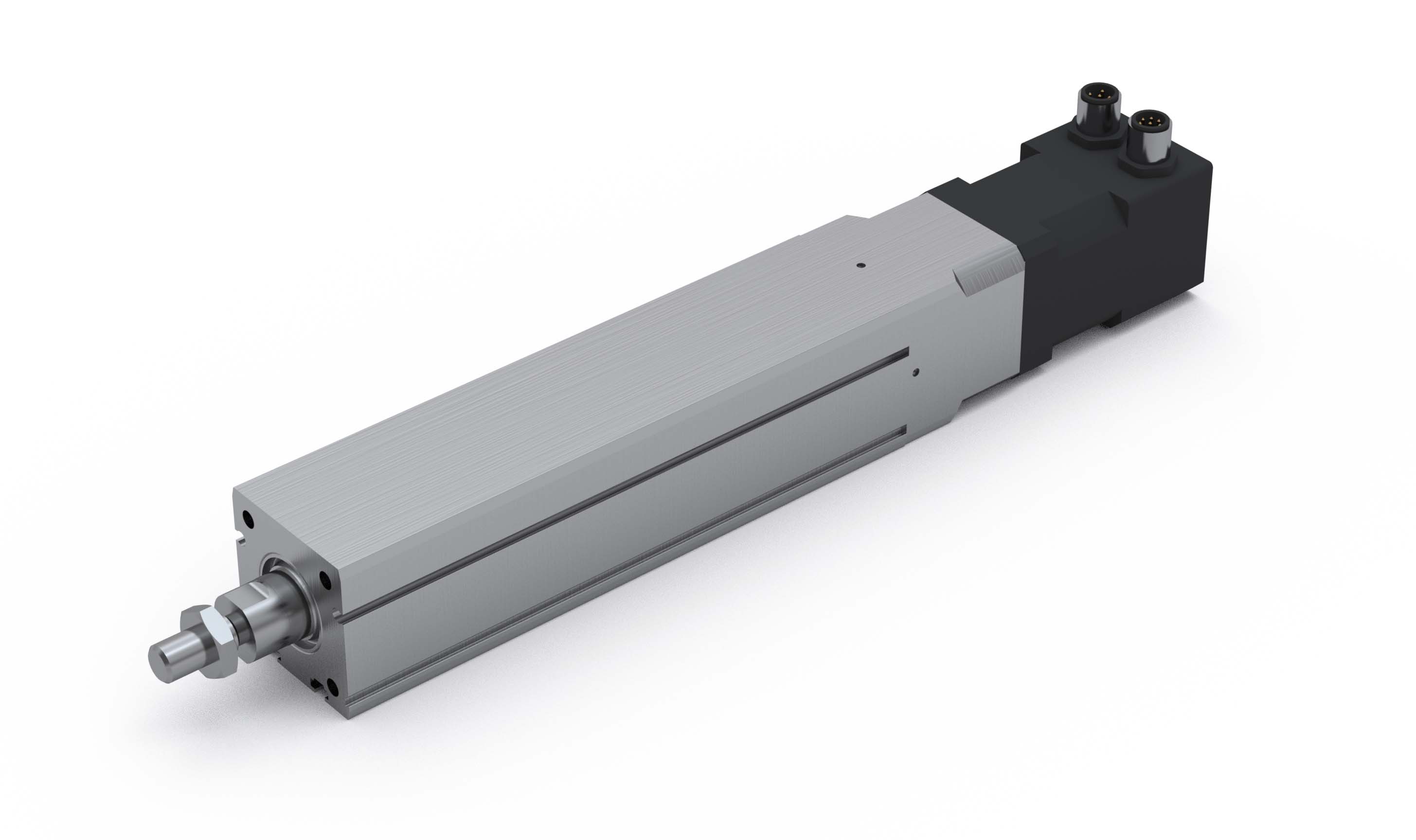

A preassembled standard motor (in-line with a motor adapter and a coupling or in-parallel with a motor sidedrive and a timing belt) together with the standard drive, makes the system plug and play ready. Compact dimensions and optimally selected motor combinations cover a wide range of applications.

The aluminium cylinder profile includes T-slots on the bottom for fixing the electric cylinder, as well as side slots for clamping fixtures and magnetic field sensors.

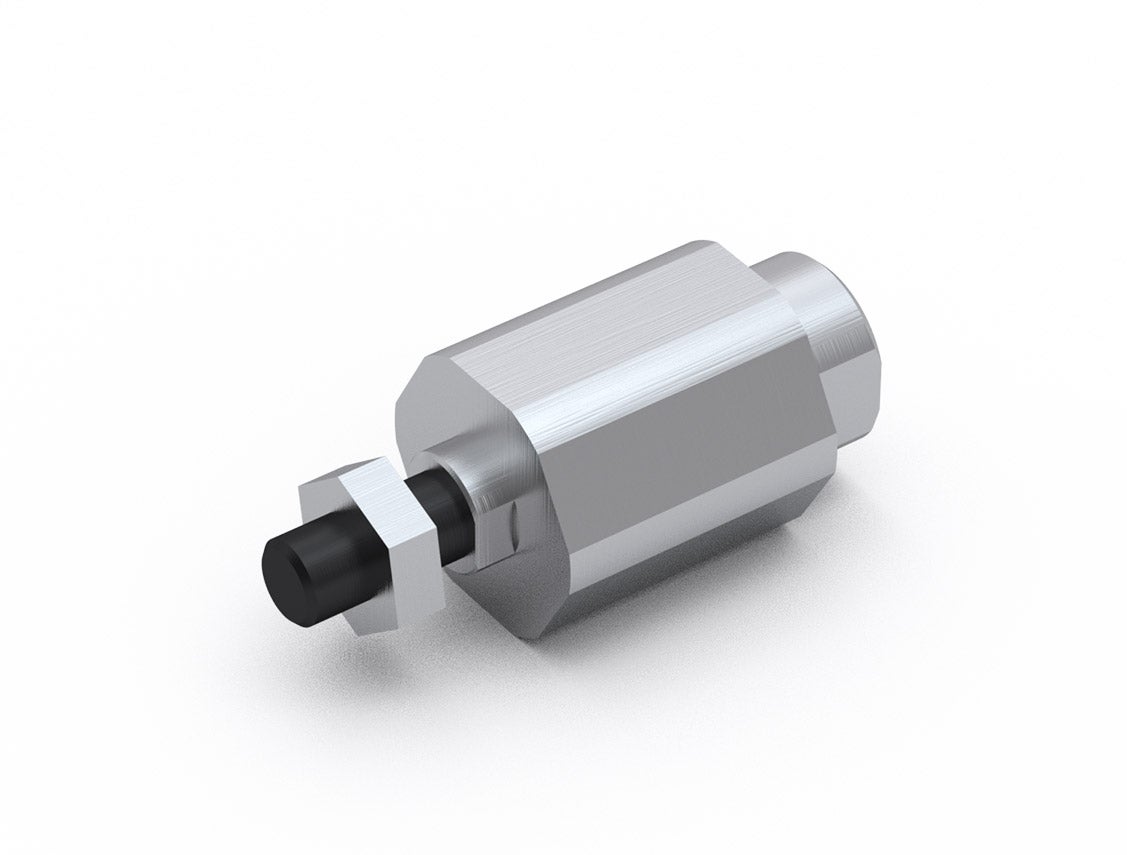

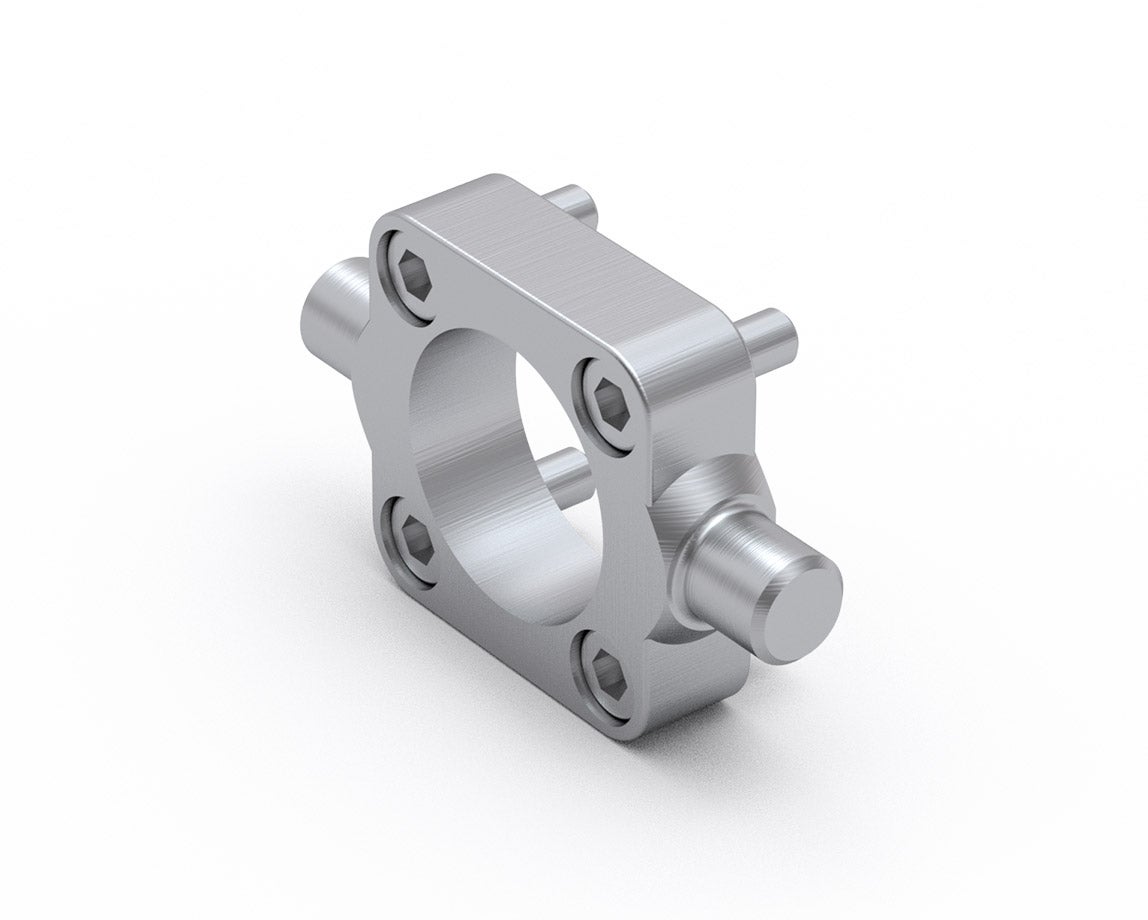

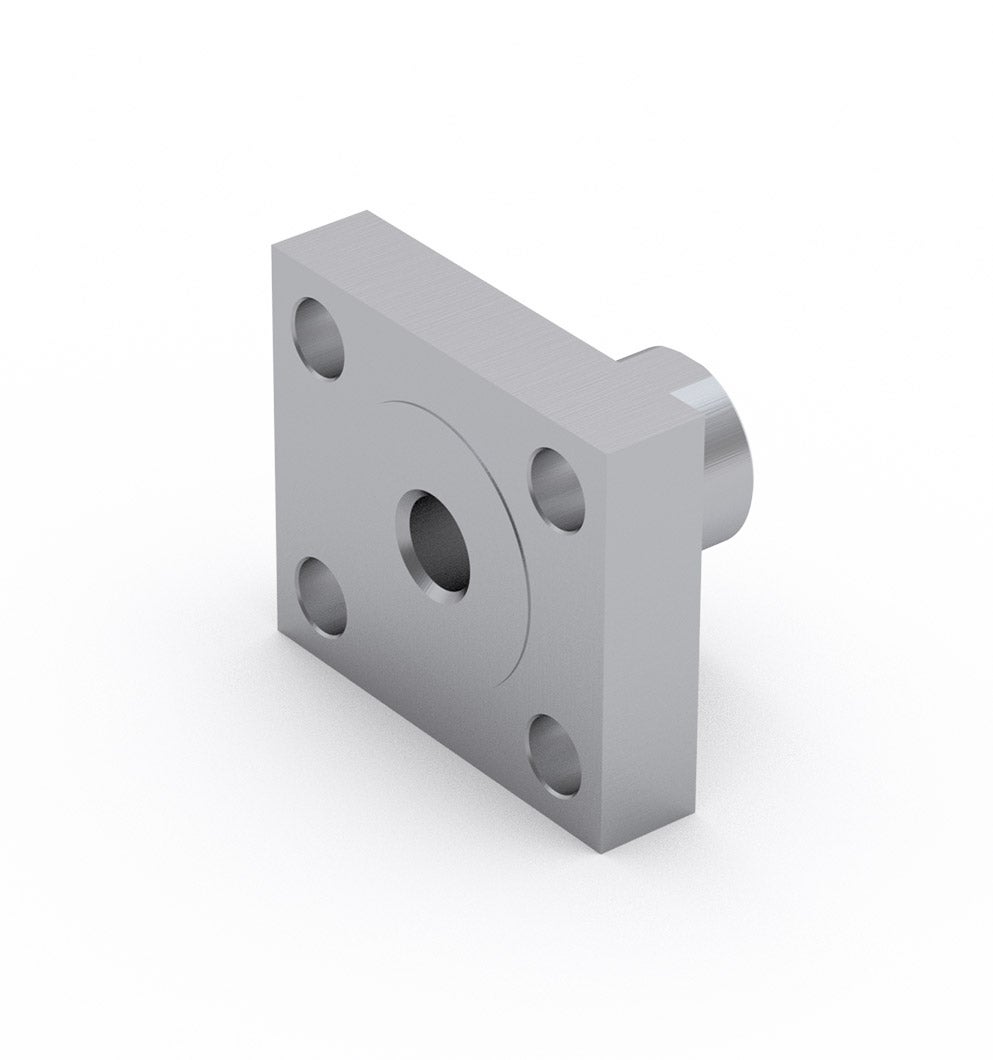

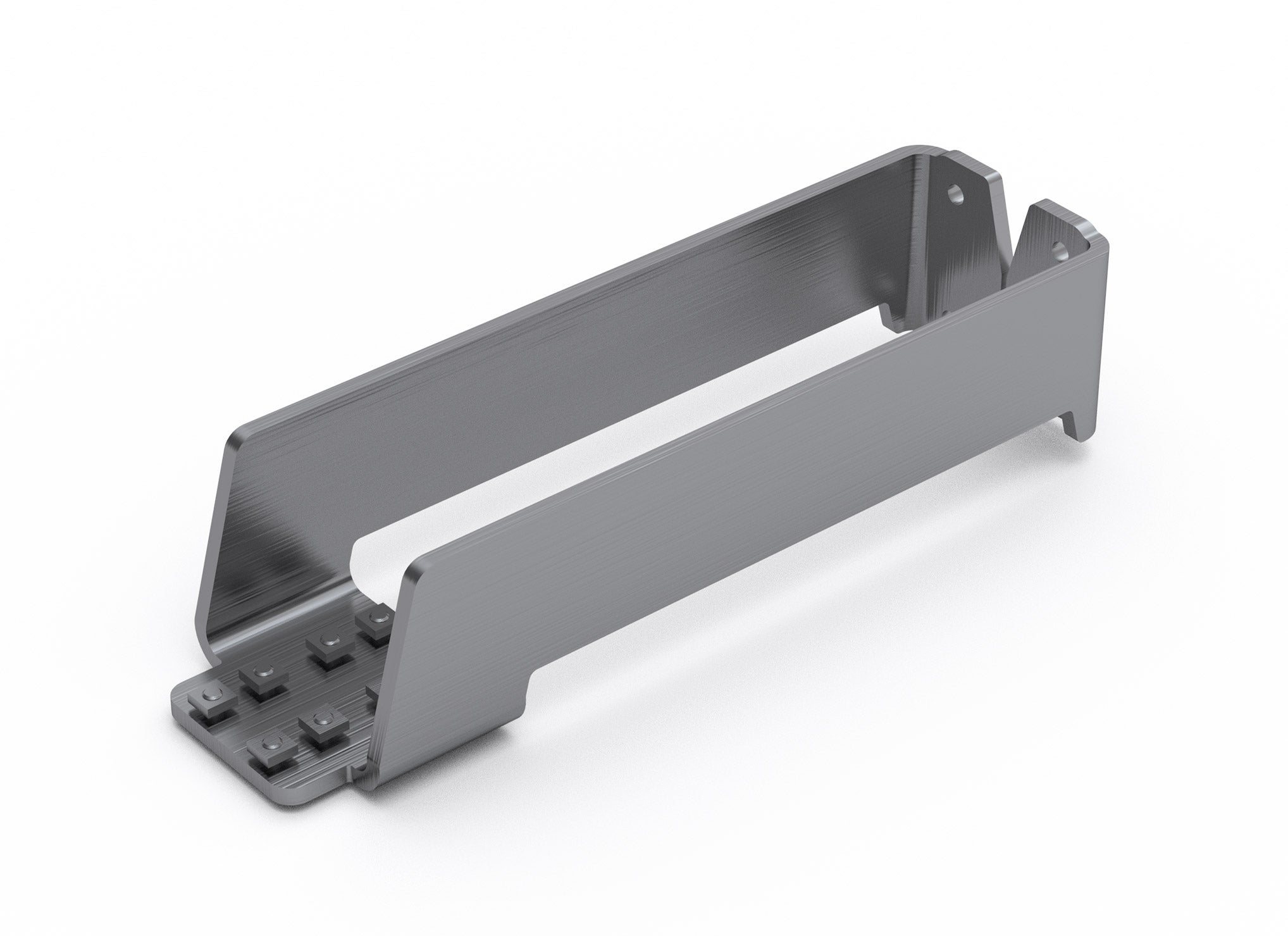

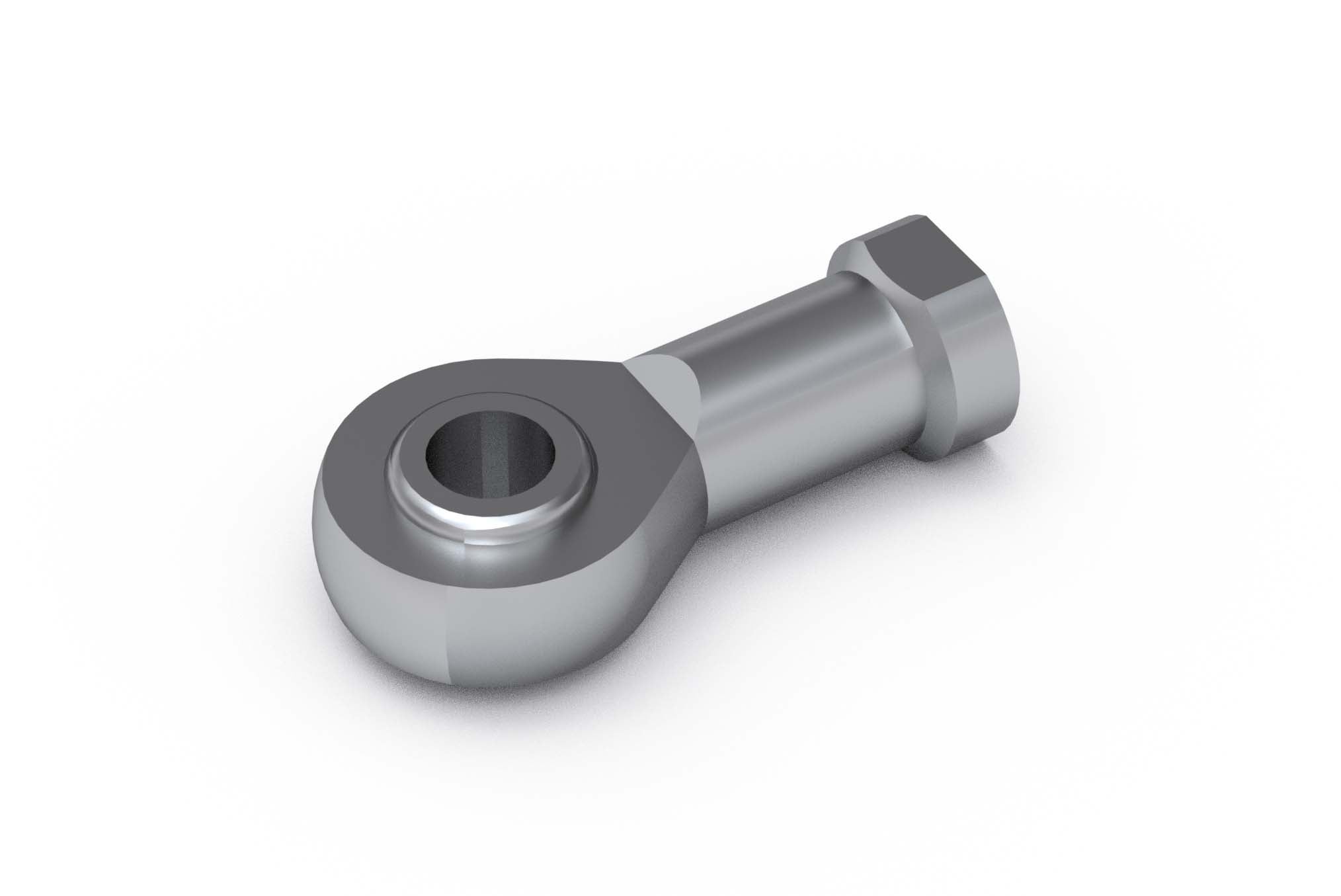

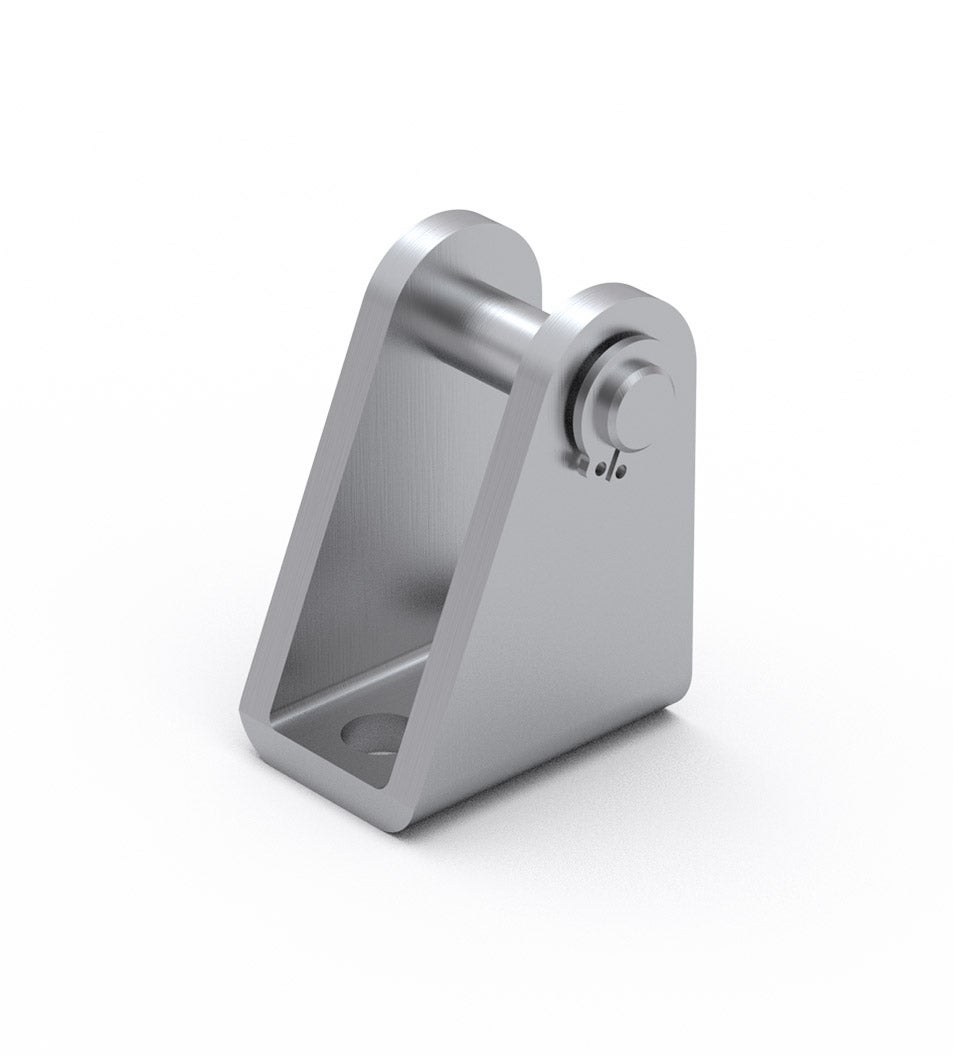

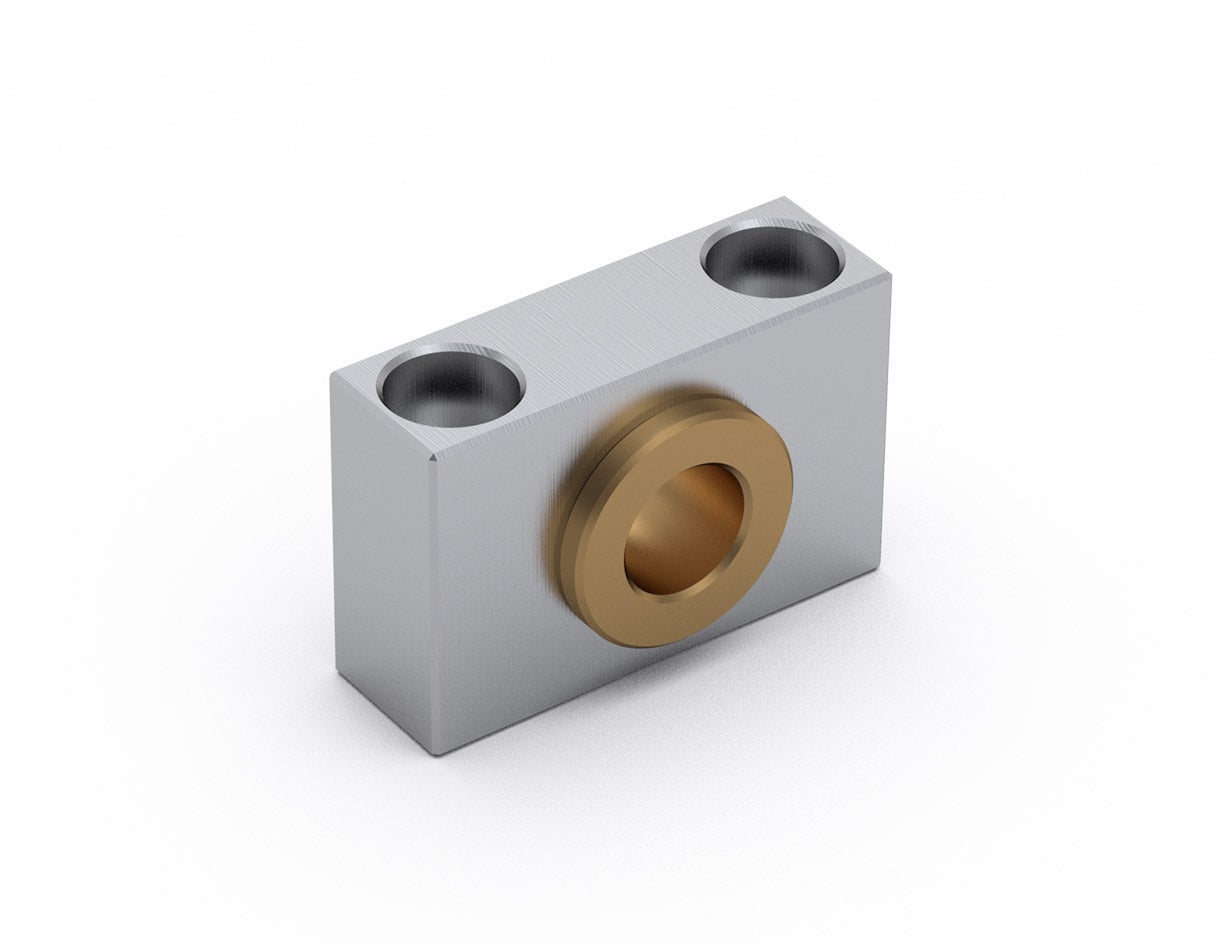

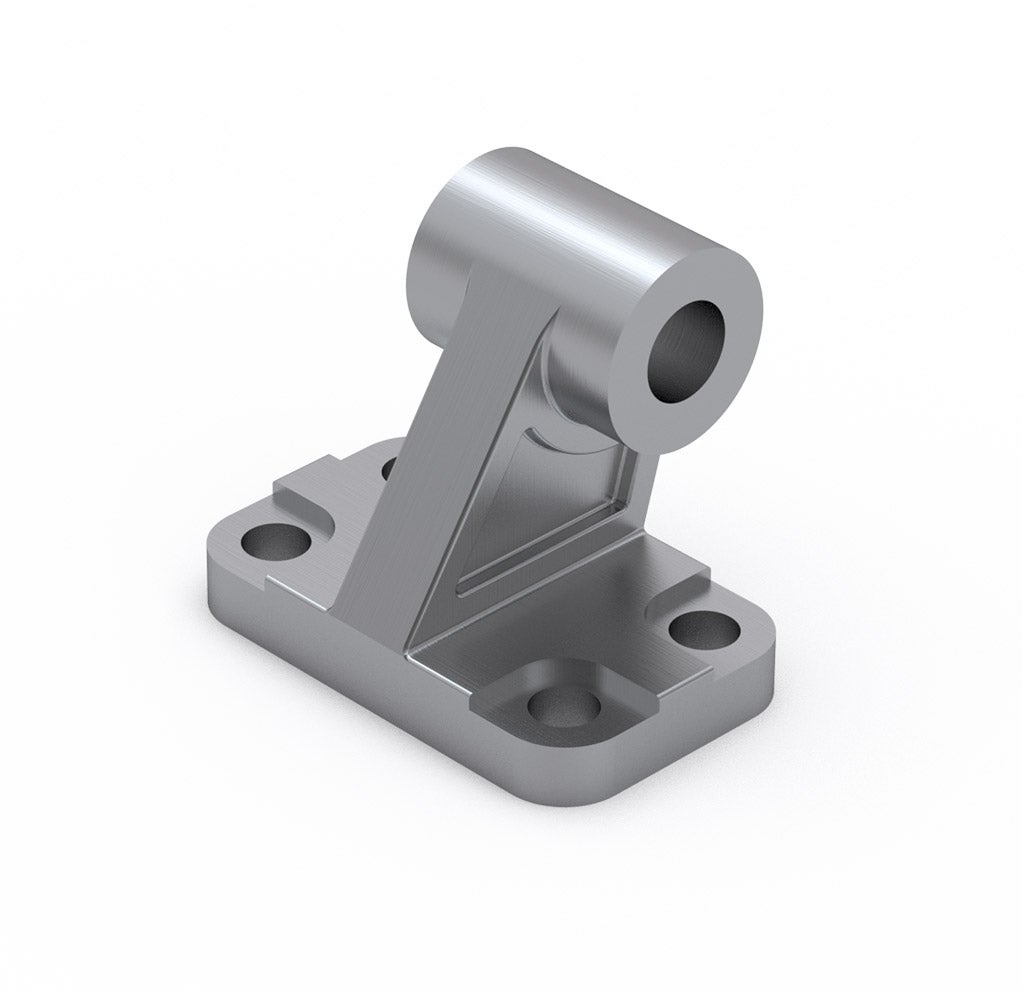

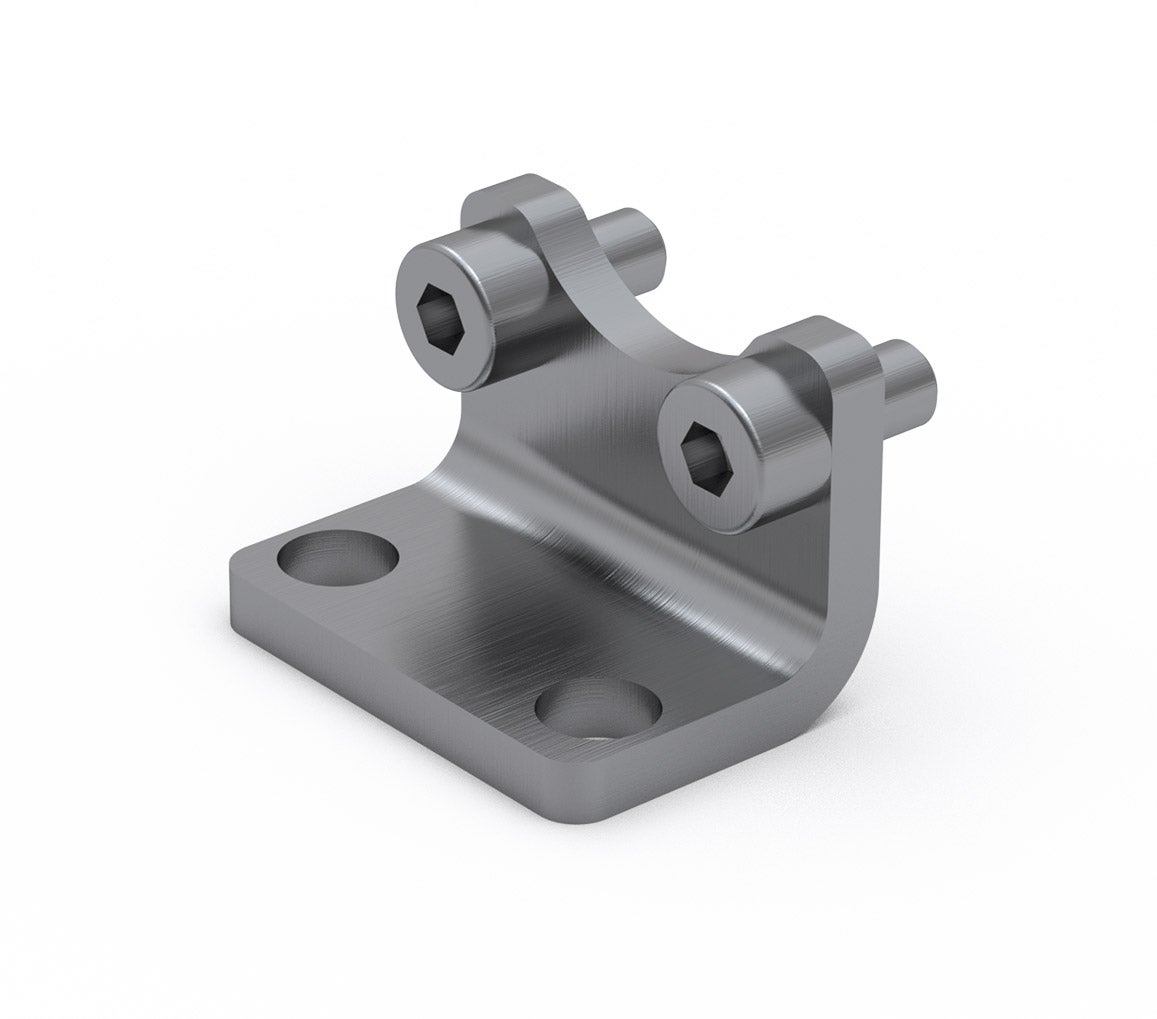

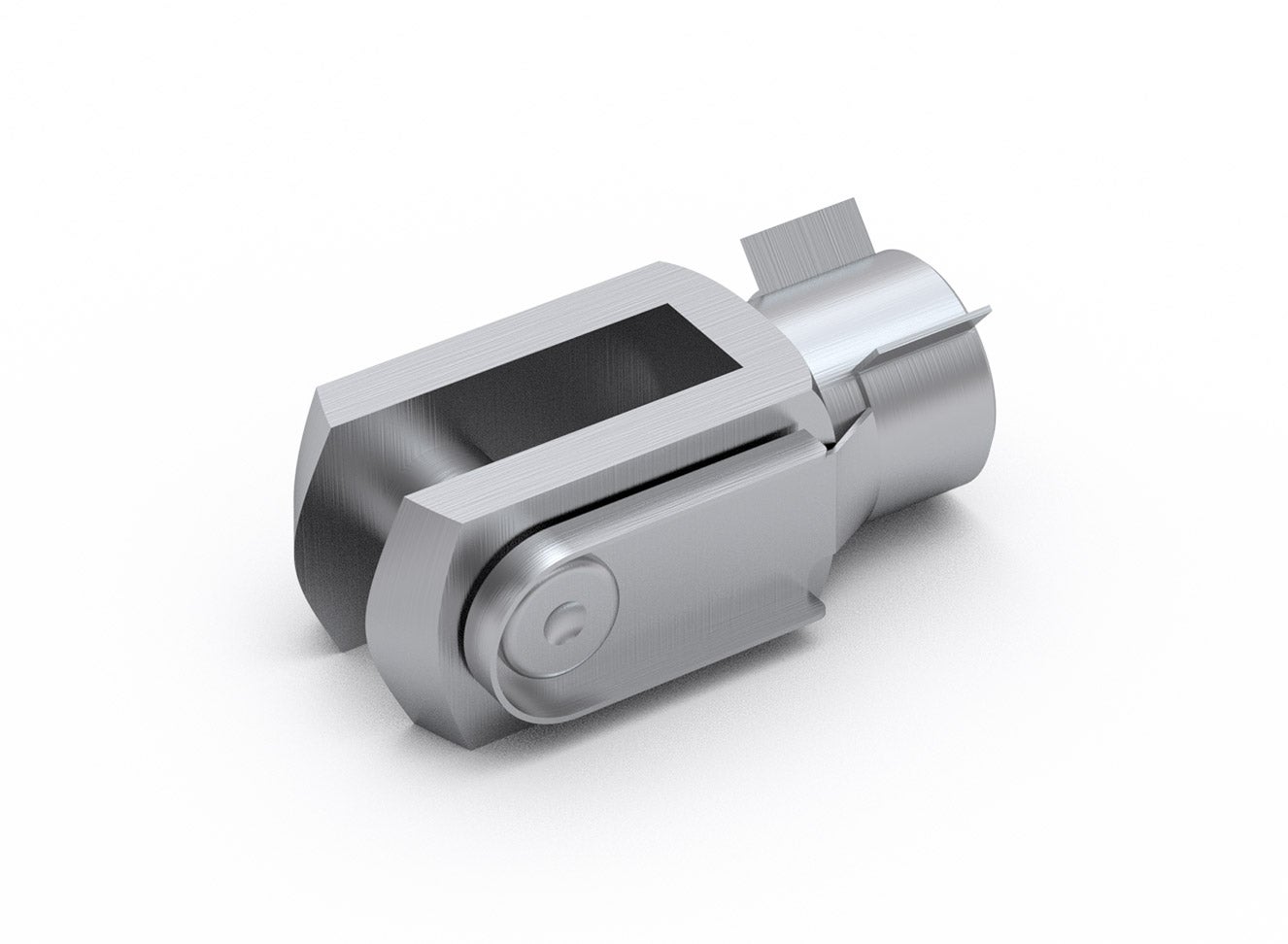

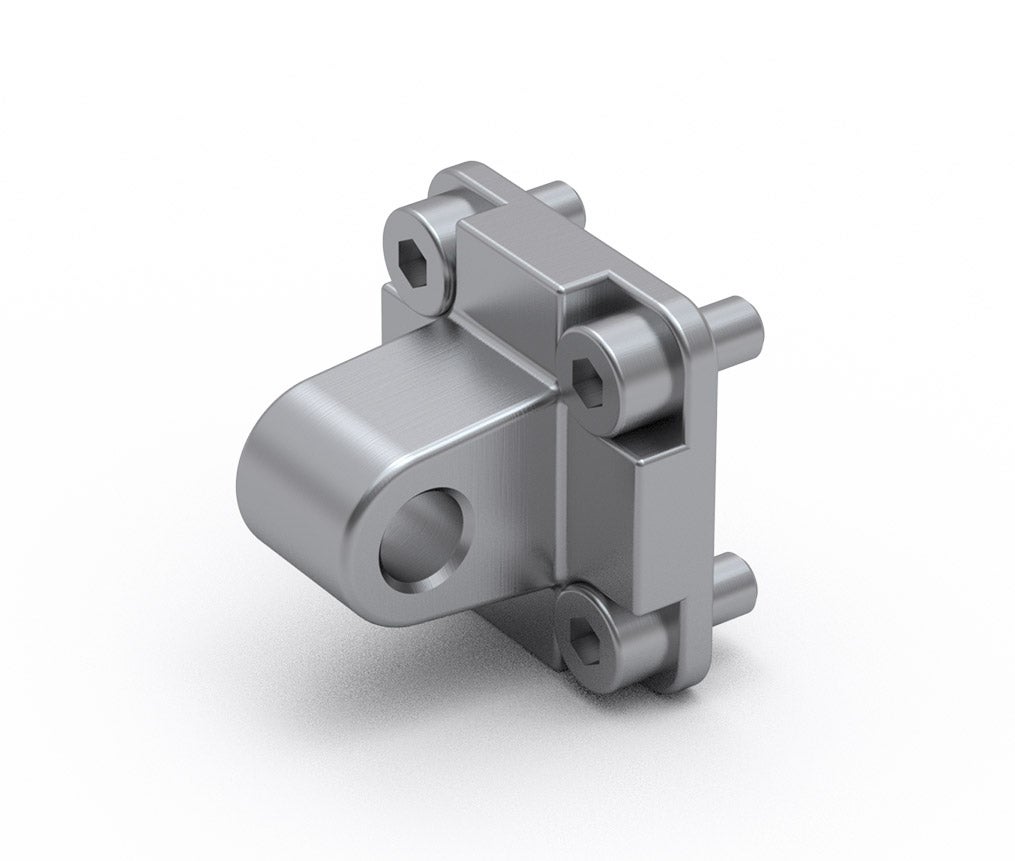

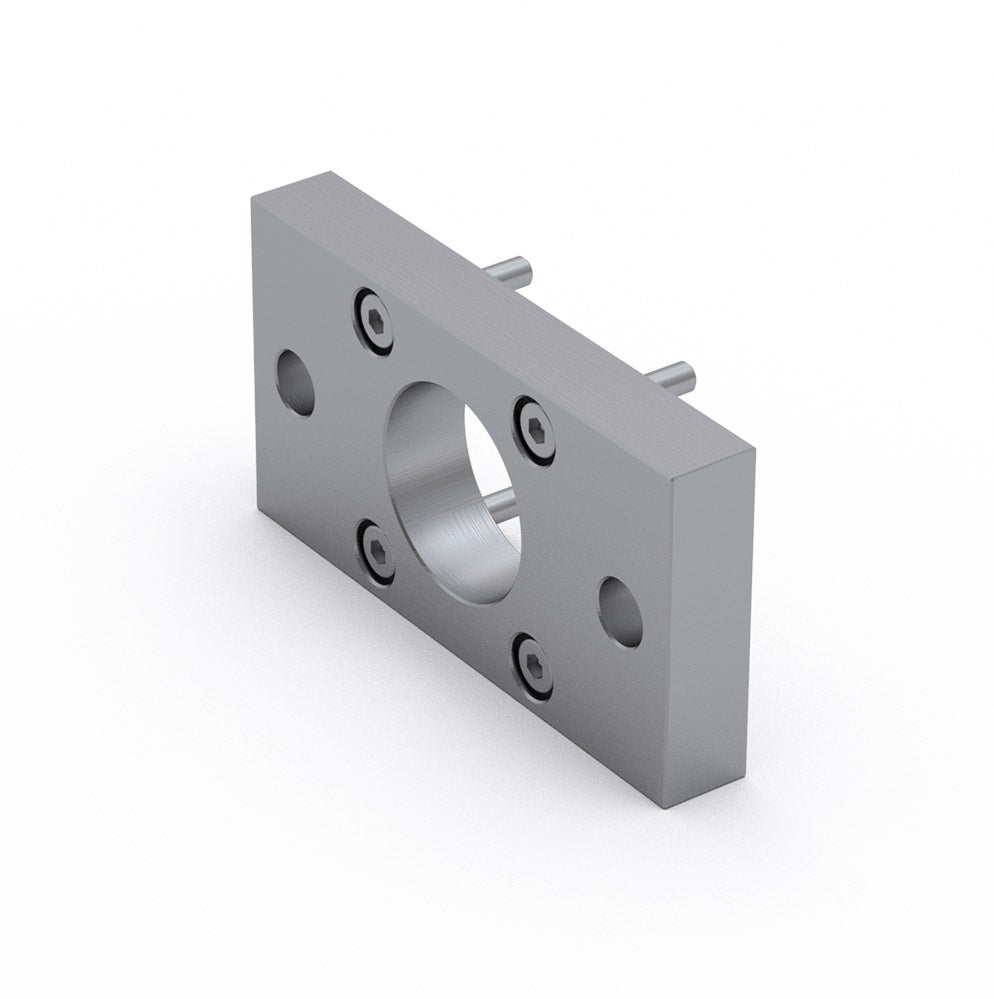

Options, such as female piston rod end and extended piston rod, together with a wide range of accessories make this product highly flexible. There is also an option of the mini electric cylinder without the preassembled motor if an individual motor is required.

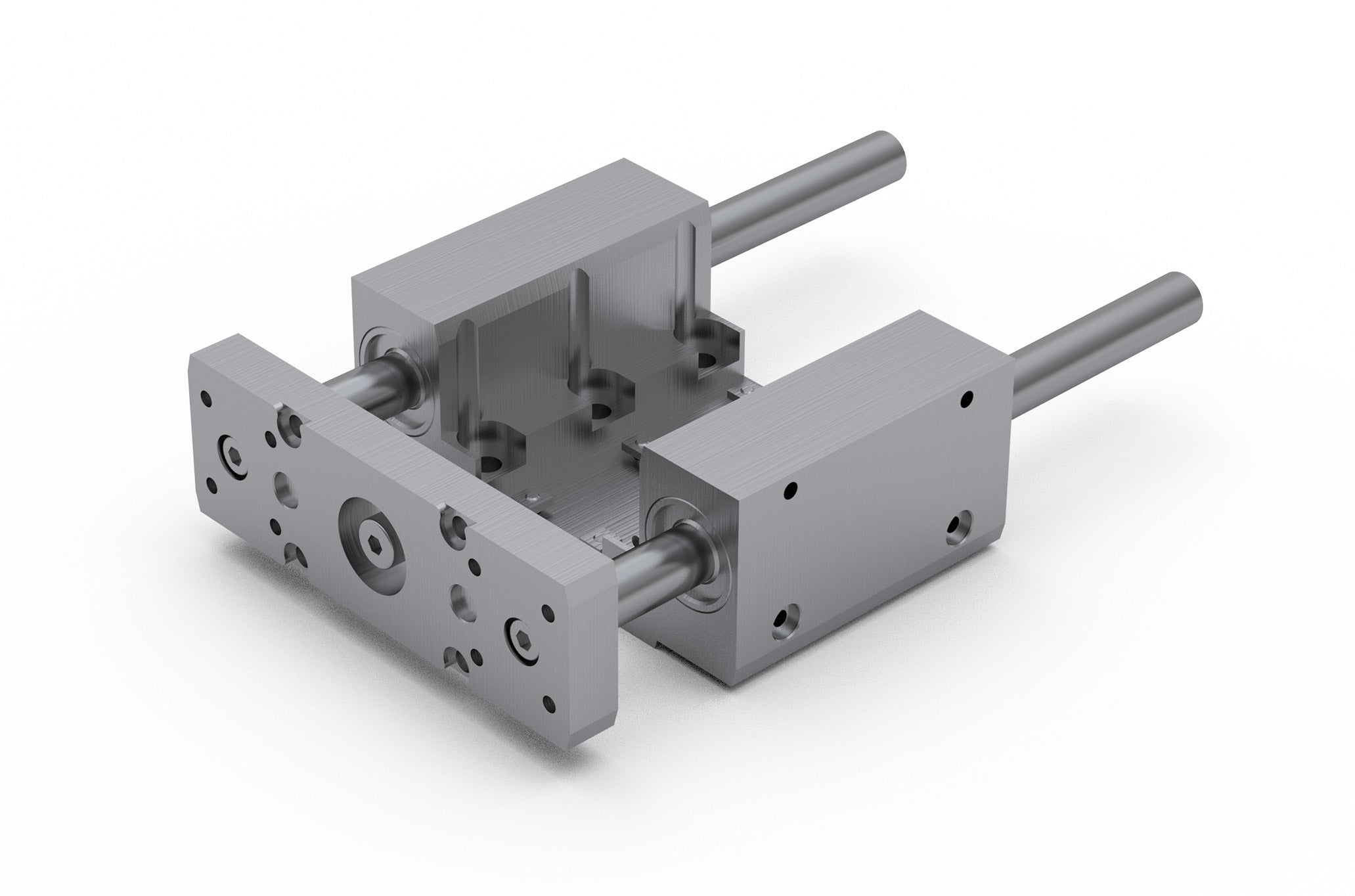

For applications, where higher resistance to lateral loads or torsional moments is required, a guiding unit GUC can be used. By using the guiding unit, which offers high precision guiding and positioning, the mini electric cylinders can easily be combined to the multi-axis systems.

Each MCE is optimally pre-lubricated and ready for a maintenance-free operating process.

Note!
All the data of the dynamic load capacities (ball screw drive) stated in the tables are theoretical without considering any safety factor. The safety factor depends on the application and its requested safety and service life.

We recommend a minimum dynamic safety factor of 5,0 or more. Please refer to the Technical Information document where calculation of the safety factor of the ball screw drive and how the applied load affects the service life are presented.

All dimensions are in mm. The scale of the drawings may not be equal.

Please see the attached Technical information document for further information and data.

Contact us if you have questions or need additional information.

Product Information

Max. Acceleration (m/s): 20
Protection Class: IP40
Ambient Temperature (°C): 0 – +50 (0 – +60 without a motor)
Duty Cycle: 100%
Maintenance: Life-time pre-lubricated
Designation Select all Lead Time * Description Ball Screw (d x l) Max. Drive Torque Mₚ (Nm) Max. Travel Speed Vmax (m/s) Max. Rotational Speed nmax (min⁻¹) (rev/min) No Load Torque M₀ (Nm) Axial Dynamic Load Capacity Ca (N) Max. Permissible Axial Load Fpa (N) Max. Permissible Payload Horizontal mph (kg) Max. Permissible Payload Vertical mpv (kg) Max. Permissible Radial Load on Shaft Fpr (N) Motor Type Motor Size (mm) Compare
2 Without motor 6 × 2 mm 0.06 0.150 4500 0.02 1900 170 57 14 25 - -
Get quote
2 With motor size 28 and motor adapter VK 6 × 2 mm - 0.100 3000 - 1900 170 57 14 - Stepper 28
Get quote
2 With motor size 28 and motor side drive MSD 6 × 2 mm - 0.100 3000 - 1900 170 57 14 - Stepper 28
Get quote
2 Without motor 6 × 6 mm 0.10 0.450 4500 0.02 1700 90 30 7 25 - -
Get quote
2 With motor size 28 and motor adapter VK 6 × 6 mm - 0.300 3000 - 1700 90 13 7.4 - Stepper 28
Get quote
2 With motor size 28 and motor side drive MSD 6 × 6 mm - 0.300 3000 - 1700 90 13 7.4 - Stepper 28
Get quote
2 Without motor 8 × 2 mm 0.13 0.150 4500 0.04 2000 375 126 31 50 - -
Get quote
2 With motor size 28 and motor adapter VK 8 × 2 mm - 0.094 2810 - 2000 215 72 18 - Stepper 28
Get quote
2 With motor size 28 and motor side drive MSD 8 × 2 mm - 0.064 1920 - 2000 180 60 15 - Stepper 28
Get quote
2 With motor size 42 and motor adapter VK 8 × 2 mm - 0.100 3000 - 2000 375 126 31 - Stepper 42
Get quote
2 With motor size 42 and motor side drive MSD 8 × 2 mm - 0.100 3000 - 2000 375 126 31 - Stepper 42
Get quote
2 Without motor 8 × 8 mm 0.53 0.600 4500 0.05 1500 375 126 31 50 - -
Get quote
2 With motor size 28 and motor adapter VK 8 × 8 mm - 0.400 3000 - 1500 50 6.6 4 - Stepper 28
Get quote
2 With motor size 28 and motor side drive MSD 8 × 8 mm - 0.208 1560 - 1500 40 6.8 3.1 - Stepper 28
Get quote
2 With motor size 42 and motor adapter VK 8 × 8 mm - 0.400 3000 - 1500 200 35 17 - Stepper 42
Get quote
2 With motor size 42 and motor side drive MSD 8 × 8 mm - 0.400 3000 - 1500 175 35 15 - Stepper 42
Get quote
2 Without motor 10 × 3 mm 0.37 0.225 4500 0.07 3500 695 233 58 100 - -
Get quote
2 With motor size 42 and motor adapter VK 10 × 3 mm - 0.150 3000 - 3500 465 156 39 - Stepper 42
Get quote
2 With motor size 42 and motor side drive MSD 10 × 3 mm - 0.148 2960 - 3500 400 134 33 - Stepper 42
Get quote
2 With motor size 56 and motor adapter VK 10 × 3 mm - 0.150 3000 - 3500 695 233 58 - Stepper 56
Get quote
2 With motor size 56 and motor side drive MSD 10 × 3 mm - 0.150 3000 - 3500 695 233 58 - Stepper 56
Get quote
2 Without motor 10 × 10 mm 1.23 0.750 4500 0.09 3200 695 233 58 100 - -
Get quote
2 With motor size 42 and motor adapter VK 10 × 10 mm - 0.492 2950 - 3200 135 21 11 - Stepper 42
Get quote
2 With motor size 42 and motor side drive MSD 10 × 10 mm - 0.477 2860 - 3200 120 20 10 - Stepper 42
Get quote
2 With motor size 56 and motor adapter VK 10 × 10 mm - 0.500 3000 - 3200 580 133 49 - Stepper 56
Get quote
2 With motor size 56 and motor side drive MSD 10 × 10 mm - 0.500 3000 - 3200 450 133 38 - Stepper 56
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all L1 L2 L3 L4 L5 L6 L7 L8 ZK1 ZK2 V1 V2 V3 V4 L9 L10 L11 L12 L13 L14 L15 L16 L17 L18 L19 L20 L21 L22 L23 L24 L25 L26 L27 L28 L29 U1 U2 U3 U4 U5 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 E1 E2 E3 E4 E5 E6 E7 E8 E9 E10 Compare
50 26 16 10 Ø 12 3.5 Ø M6 × 1 3.2 10 10 - - - - 8 Ø M2.5 25 21 13.5 19.25 4.4 Ø M4 8 19 17 18 Ø M2.5 8 14 7 Ø 5 (h7) Ø 17.6 Ø 20 (h7) 4.5 2.3 2.2 4.2 2.8 1.4 1 - - - - - - - - - - - - - - - - - - - - - - - -
Get quote
50 26 16 10 Ø 12 3.5 Ø M6 × 1 3.2 10 10 35 24.5 28 5.5 8 Ø M2.5 25 21 13.5 19.25 4.4 Ø M4 8 19 17 18 Ø M2.5 8 14 7 Ø 5 (h7) Ø 17.6 Ø 20 (h7) 4.5 2.3 2.2 4.2 2.8 1.4 1 22 12.5 52.5 (± 0.5) 18.25 19.5 5.5 18 Ø M4 6 24.5 31.5 34 38.5 83.25 - - - - - - - - - -
Get quote
50 26 16 10 Ø 12 3.5 Ø M6 × 1 3.2 10 10 35 24.5 28 5.5 8 Ø M2.5 25 21 13.5 19.25 4.4 Ø M4 8 19 17 18 Ø M2.5 8 14 7 Ø 5 (h7) Ø 17.6 Ø 20 (h7) 4.5 2.3 2.2 4.2 2.8 1.4 1 22 12.5 52.5 (± 0.5) 18.25 19.5 5.5 18 Ø M4 6 24.5 31.5 34 38.5 83.25 - - - - - - - - - -
Get quote
50 26 16 10 Ø 12 3.5 Ø M6 × 1 3.2 10 10 - - - - 8 Ø M2.5 25 21 13.5 19.25 4.4 Ø M4 8 19 17 18 Ø M2.5 8 14 7 Ø 5 (h7) Ø 17.6 Ø 20 (h7) 4.5 2.3 2.2 4.2 2.8 1.4 1 - - - - - - - - - - - - - - - - - - - - - - - -
Get quote
50 26 16 10 Ø 12 3.5 Ø M6 × 1 3.2 10 10 35 24.5 28 5.5 8 Ø M2.5 25 21 13.5 19.25 4.4 Ø M4 8 19 17 18 Ø M2.5 8 14 7 Ø 5 (h7) Ø 17.6 Ø 20 (h7) 4.5 2.3 2.2 4.2 2.8 1.4 1 22 12.5 52.5 (± 0.5) 18.25 19.5 5.5 18 Ø M4 6 24.5 31.5 34 38.5 83.25 - - - - - - - - - -
Get quote
50 26 16 10 Ø 12 3.5 Ø M6 × 1 3.2 10 10 35 24.5 28 5.5 8 Ø M2.5 25 21 13.5 19.25 4.4 Ø M4 8 19 17 18 Ø M2.5 8 14 7 Ø 5 (h7) Ø 17.6 Ø 20 (h7) 4.5 2.3 2.2 4.2 2.8 1.4 1 22 12.5 52.5 (± 0.5) 18.25 19.5 5.5 18 Ø M4 6 24.5 31.5 34 38.5 83.25 - - - - - - - - - -
Get quote
65 32 20 12 Ø 14 5.5 Ø M8 × 1.25 4 12 13 - - - - 8 Ø M4 32 22 13.5 22.8 4.4 Ø M5 8 24.5 24.5 24.5 Ø M3 8 14 7 Ø 5 (h7) Ø 22.6 Ø 25 (h7) 4.5 2.3 3.2 5.8 3.6 2 1 - - - - - - - - - - - - - - - - - - - - - - - -
Get quote
65 32 20 12 Ø 14 5.5 Ø M8 × 1.25 4 12 13 35 31.5 31.5 0 8 Ø M4 32 22 13.5 22.8 4.4 Ø M5 8 24.5 24.5 24.5 Ø M3 8 14 7 Ø 5 (h7) Ø 22.6 Ø 25 (h7) 4.5 2.3 3.2 5.8 3.6 2 1 22 16 52.5 18.25 19.5 5.5 22 Ø M5 7 31.5 31.5 34 0 86.75 - - - - - - - - - -
Get quote
65 32 20 12 Ø 14 5.5 Ø M8 × 1.25 4 12 13 35 31.5 31.5 0 8 Ø M4 32 22 13.5 22.8 4.4 Ø M5 8 24.5 24.5 24.5 Ø M3 8 14 7 Ø 5 (h7) Ø 22.6 Ø 25 (h7) 4.5 2.3 3.2 5.8 3.6 2 1 22 16 52.5 18.25 19.5 5.5 22 Ø M5 7 31.5 31.5 34 0 86.75 - - - - - - - - - -
Get quote
65 32 20 12 Ø 14 5.5 Ø M8 × 1.25 4 12 13 40 31.5 42 5.5 8 Ø M4 32 22 13.5 22.8 4.4 Ø M5 8 24.5 24.5 24.5 Ø M3 8 14 7 Ø 5 (h7) Ø 22.6 Ø 25 (h7) 4.5 2.3 3.2 5.8 3.6 2 1 22 16 70.5 24.25 19.5 6.5 22 Ø M5 7 31.5 44.5 46 48 110.75 M12 5-pole M12 8-pole – (with brake: M8 3-pole) 14 (± 1) 14 (± 0.3) 19.5 – (with brake: 9 (± 1)) – (with brake: 27 (± 0.3)) 70.4 (± 1) (with brake: 106.4 (± 0.3)) 42.3
Get quote
65 32 20 12 Ø 14 5.5 Ø M8 × 1.25 4 12 13 40 31.5 42 5.5 8 Ø M4 32 22 13.5 22.8 4.4 Ø M5 8 24.5 24.5 24.5 Ø M3 8 14 7 Ø 5 (h7) Ø 22.6 Ø 25 (h7) 4.5 2.3 3.2 5.8 3.6 2 1 22 16 70.5 24.25 19.5 6.5 22 Ø M5 7 31.5 44.5 46 48 110.75 M12 5-pole M12 8-pole – (with brake: M8 3-pole) 14 (± 1) 14 (± 0.3) 19.5 – (with brake: 9 (± 1)) – (with brake: 27 (± 0.3)) 70.4 (± 1) (with brake: 106.4 (± 0.3)) 42.3
Get quote
65 32 20 12 Ø 14 5.5 Ø M8 × 1.25 4 12 13 - - - - 8 Ø M4 32 22 13.5 22.8 4.4 Ø M5 8 24.5 24.5 24.5 Ø M3 8 14 7 Ø 5 (h7) Ø 22.6 Ø 25 (h7) 4.5 2.3 3.2 5.8 3.6 2 1 - - - - - - - - - - - - - - - - - - - - - - - -
Get quote
65 32 20 12 Ø 14 5.5 Ø M8 × 1.25 4 12 13 35 31.5 31.5 0 8 Ø M4 32 22 13.5 22.8 4.4 Ø M5 8 24.5 24.5 24.5 Ø M3 8 14 7 Ø 5 (h7) Ø 22.6 Ø 25 (h7) 4.5 2.3 3.2 5.8 3.6 2 1 22 16 52.5 18.25 19.5 5.5 22 Ø M5 7 31.5 31.5 34 0 86.75 - - - - - - - - - -
Get quote
65 32 20 12 Ø 14 5.5 Ø M8 × 1.25 4 12 13 35 31.5 31.5 0 8 Ø M4 32 22 13.5 22.8 4.4 Ø M5 8 24.5 24.5 24.5 Ø M3 8 14 7 Ø 5 (h7) Ø 22.6 Ø 25 (h7) 4.5 2.3 3.2 5.8 3.6 2 1 22 16 52.5 18.25 19.5 5.5 22 Ø M5 7 31.5 31.5 34 0 86.75 - - - - - - - - - -
Get quote
65 32 20 12 Ø 14 5.5 Ø M8 × 1.25 4 12 13 40 31.5 42 5.5 8 Ø M4 32 22 13.5 22.8 4.4 Ø M5 8 24.5 24.5 24.5 Ø M3 8 14 7 Ø 5 (h7) Ø 22.6 Ø 25 (h7) 4.5 2.3 3.2 5.8 3.6 2 1 22 16 70.5 24.25 19.5 6.5 22 Ø M5 7 31.5 44.5 46 48 110.75 M12 5-pole M12 8-pole – (with brake: M8 3-pole) 14 (± 1) 14 (± 0.3) 19.5 – (with brake: 9 (± 1)) – (with brake: 27 (± 0.3)) 70.4 (± 1) (with brake: 106.4 (± 0.3)) 42.3
Get quote
65 32 20 12 Ø 14 5.5 Ø M8 × 1.25 4 12 13 40 31.5 42 5.5 8 Ø M4 32 22 13.5 22.8 4.4 Ø M5 8 24.5 24.5 24.5 Ø M3 8 14 7 Ø 5 (h7) Ø 22.6 Ø 25 (h7) 4.5 2.3 3.2 5.8 3.6 2 1 22 16 70.5 24.25 19.5 6.5 22 Ø M5 7 31.5 44.5 46 48 110.75 M12 5-pole M12 8-pole – (with brake: M8 3-pole) 14 (± 1) 14 (± 0.3) 19.5 – (with brake: 9 (± 1)) – (with brake: 27 (± 0.3)) 70.4 (± 1) (with brake: 106.4 (± 0.3)) 42.3
Get quote
80 38 22 16 Ø 18 7 Ø M10 × 1.25 5 16 17 - - - - 12 Ø M6 45 32 20 30.5 4.4 Ø M6 12 34 34 34 Ø M4 10 16 8 Ø 8 (h7) Ø 31.6 Ø 34 (h7) 4.5 2.3 4.2 7.5 4.7 2.5 1.2 - - - - - - - - - - - - - - - - - - - - - - - -
Get quote
80 38 22 16 Ø 18 7 Ø M10 × 1.25 5 16 17 42 44.5 44.5 0 12 Ø M6 45 32 20 30.5 4.4 Ø M6 12 34 34 34 Ø M4 10 16 8 Ø 8 (h7) Ø 31.6 Ø 34 (h7) 4.5 2.3 4.2 7.5 4.7 2.5 1.2 27.5 22.5 81 24.75 24.5 6.5 32 Ø M6 7 44.5 44.5 46 0 128.25 M12 5-pole M12 8-pole – (with brake: M8 3-pole) 14 (± 1) 14 (± 0.3) 19.5 – (with brake: 9 (± 1)) – (with brake: 27 (± 0.3)) 70.4 (± 1) (with brake: 106.4 (± 0.3)) 42.3
Get quote
80 38 22 16 Ø 18 7 Ø M10 × 1.25 5 16 17 42 44.5 44.5 0 12 Ø M6 45 32 20 30.5 4.4 Ø M6 12 34 34 34 Ø M4 10 16 8 Ø 8 (h7) Ø 31.6 Ø 34 (h7) 4.5 2.3 4.2 7.5 4.7 2.5 1.2 27.5 22.5 81 24.75 24.5 6.5 32 Ø M6 7 44.5 44.5 46 0 128.25 M12 5-pole M12 8-pole – (with brake: M8 3-pole) 14 (± 1) 14 (± 0.3) 19.5 – (with brake: 9 (± 1)) – (with brake: 27 (± 0.3)) 70.4 (± 1) (with brake: 106.4 (± 0.3)) 42.3
Get quote
80 38 22 16 Ø 18 7 Ø M10 × 1.25 5 16 17 46 44.5 56.4 9.5 12 Ø M6 45 32 20 30.5 4.4 Ø M6 12 34 34 34 Ø M4 10 16 8 Ø 8 (h7) Ø 31.6 Ø 34 (h7) 4.5 2.3 4.2 7.5 4.7 2.5 1.2 27.5 22.5 88.5 33.25 24.5 6 32 Ø M6 7 44.5 59.5 59.5 64.5 144.25 M12 5-pole M12 8-pole – (with brake: M8 3-pole) 14 (± 1) 13.4 (± 0.3) 23 – (with brake: 9 (± 1)) – (with brake: 12 (± 0.3)) 98 (± 1) (with brake: 138 (± 0.3)) 56.4
Get quote
80 38 22 16 Ø 18 7 Ø M10 × 1.25 5 16 17 46 44.5 56.4 9.5 12 Ø M6 45 32 20 30.5 4.4 Ø M6 12 34 34 34 Ø M4 10 16 8 Ø 8 (h7) Ø 31.6 Ø 34 (h7) 4.5 2.3 4.2 7.5 4.7 2.5 1.2 27.5 22.5 88.5 33.25 24.5 6 32 Ø M6 7 44.5 59.5 59.5 64.5 144.25 M12 5-pole M12 8-pole – (with brake: M8 3-pole) 14 (± 1) 13.4 (± 0.3) 23 – (with brake: 9 (± 1)) – (with brake: 12 (± 0.3)) 98 (± 1) (with brake: 138 (± 0.3)) 56.4
Get quote
80 38 22 16 Ø 18 7 Ø M10 × 1.25 5 16 17 - - - - 12 Ø M6 45 32 20 30.5 4.4 Ø M6 12 34 34 34 Ø M4 10 16 8 Ø 8 (h7) Ø 31.6 Ø 34 (h7) 4.5 2.3 4.2 7.5 4.7 2.5 1.2 - - - - - - - - - - - - - - - - - - - - - - - -
Get quote
80 38 22 16 Ø 18 7 Ø M10 × 1.25 5 16 17 42 44.5 44.5 0 12 Ø M6 45 32 20 30.5 4.4 Ø M6 12 34 34 34 Ø M4 10 16 8 Ø 8 (h7) Ø 31.6 Ø 34 (h7) 4.5 2.3 4.2 7.5 4.7 2.5 1.2 27.5 22.5 81 24.75 24.5 6.5 32 Ø M6 7 44.5 44.5 46 0 128.25 M12 5-pole M12 8-pole – (with brake: M8 3-pole) 14 (± 1) 14 (± 0.3) 19.5 – (with brake: 9 (± 1)) – (with brake: 27 (± 0.3)) 70.4 (± 1) (with brake: 106.4 (± 0.3)) 42.3
Get quote
80 38 22 16 Ø 18 7 Ø M10 × 1.25 5 16 17 42 44.5 44.5 0 12 Ø M6 45 32 20 30.5 4.4 Ø M6 12 34 34 34 Ø M4 10 16 8 Ø 8 (h7) Ø 31.6 Ø 34 (h7) 4.5 2.3 4.2 7.5 4.7 2.5 1.2 27.5 22.5 81 24.75 24.5 6.5 32 Ø M6 7 44.5 44.5 46 0 128.25 M12 5-pole M12 8-pole – (with brake: M8 3-pole) 14 (± 1) 14 (± 0.3) 19.5 – (with brake: 9 (± 1)) – (with brake: 27 (± 0.3)) 70.4 (± 1) (with brake: 106.4 (± 0.3)) 42.3
Get quote
80 38 22 16 Ø 18 7 Ø M10 × 1.25 5 16 17 46 44.5 56.4 9.5 12 Ø M6 45 32 20 30.5 4.4 Ø M6 12 34 34 34 Ø M4 10 16 8 Ø 8 (h7) Ø 31.6 Ø 34 (h7) 4.5 2.3 4.2 7.5 4.7 2.5 1.2 27.5 22.5 88.5 33.25 24.5 6 32 Ø M6 7 44.5 59.5 59.5 64.5 144.25 M12 5-pole M12 8-pole – (with brake: M8 3-pole) 14 (± 1) 13.4 (± 0.3) 23 – (with brake: 9 (± 1)) – (with brake: 12 (± 0.3)) 98 (± 1) (with brake: 138 (± 0.3)) 56.4
Get quote
80 38 22 16 Ø 18 7 Ø M10 × 1.25 5 16 17 46 44.5 56.4 9.5 12 Ø M6 45 32 20 30.5 4.4 Ø M6 12 34 34 34 Ø M4 10 16 8 Ø 8 (h7) Ø 31.6 Ø 34 (h7) 4.5 2.3 4.2 7.5 4.7 2.5 1.2 27.5 22.5 88.5 33.25 24.5 6 32 Ø M6 7 44.5 59.5 59.5 64.5 144.25 M12 5-pole M12 8-pole – (with brake: M8 3-pole) 14 (± 1) 13.4 (± 0.3) 23 – (with brake: 9 (± 1)) – (with brake: 12 (± 0.3)) 98 (± 1) (with brake: 138 (± 0.3)) 56.4
Get quote
Designation Select all Moved Mass (kg) Mass of the Mini Electric Cylinder mMCE (kg) Mass Moment of Inertia JMCE (10⁻² kg cm²) Compare
0.06 + 0.0004 × Abs. stroke + 0.0004 × E 0.15 + 0.0013 × Abs. stroke + 0.0004 × E 0.28 + 0.0007 × Abs. stroke + 0.00004 × E + 0.1013 × mload
Get quote
- - -
Get quote
- - -
Get quote
0.06 + 0.0004 × Abs. stroke + 0.0004 × E 0.15 + 0.0013 × Abs. stroke + 0.0004 × E 0.33 + 0.0011 × Abs. stroke + 0.00036 × E + 0.9119 × mload
Get quote
- - -
Get quote
- - -
Get quote
0.12 + 0.0005 × Abs. stroke + 0.0005 × E 0.31 + 0.0023 × Abs. stroke + 0.0005 × E 0.70 + 0.0025 × Abs. stroke + 0.00005 × E + 0.1013 × mload
Get quote
- - -
Get quote
- - -
Get quote
- - -
Get quote
- - -
Get quote
0.12 + 0.0005 × Abs. stroke + 0.0005 × E 0.31 + 0.0023 × Abs. stroke + 0.0005 × E 0.88 + 0.0033 × Abs. stroke + 0.00077 × E + 1.6211 × mload
Get quote
- - -
Get quote
- - -
Get quote
- - -
Get quote
- - -
Get quote
0.20 + 0.0010 × Abs. stroke + 0.0010 × E 0.67 + 0.0043 × Abs. stroke + 0.0010 × E 2.77 + 0.0057 × Abs. stroke + 0.00022 × E + 0.2280 × mload
Get quote
- - -
Get quote
- - -
Get quote
- - -
Get quote
- - -
Get quote
0.20 + 0.0010 × Abs. stroke + 0.0010 × E 0.67 + 0.0043 × Abs. stroke + 0.0010 × E 3.23 + 0.0081 × Abs. stroke + 0.00249 × E + 2.5330 × mload
Get quote
- - -
Get quote
- - -
Get quote
- - -
Get quote
- - -
Get quote
