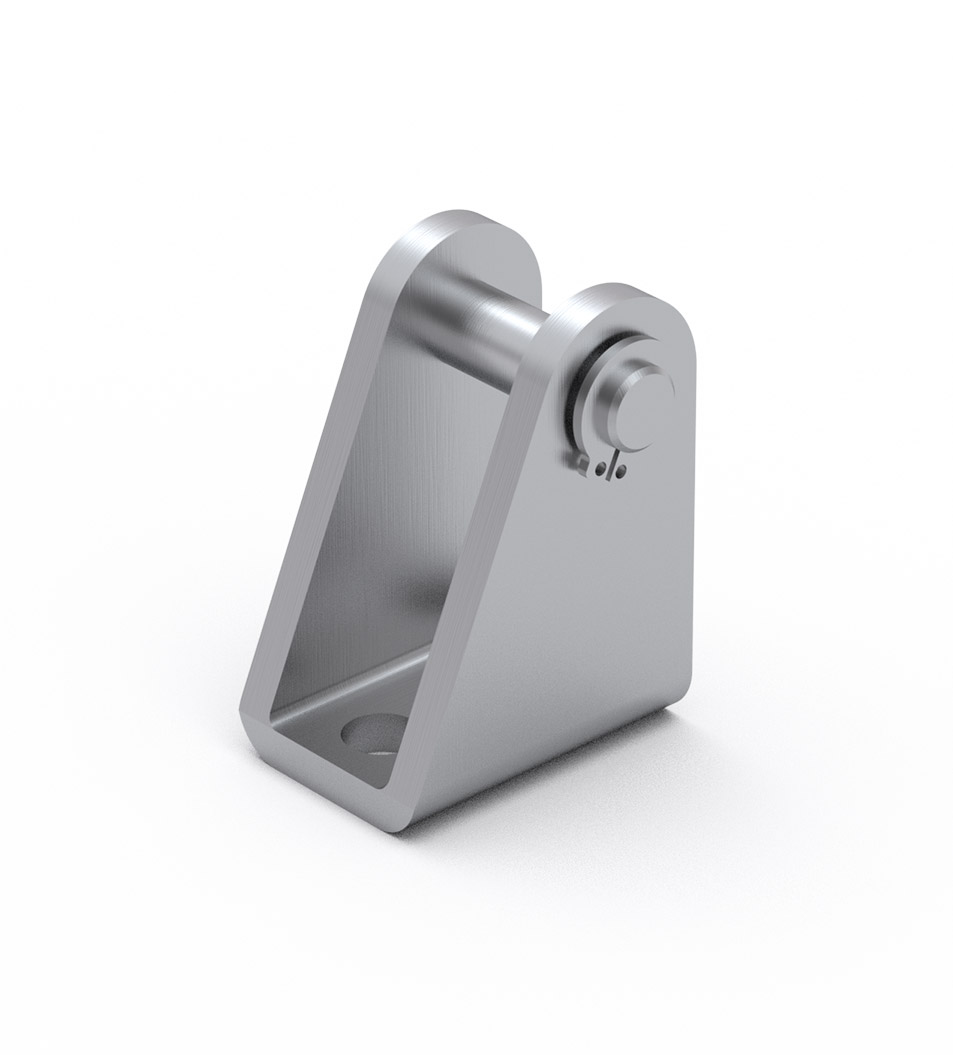

Clevis foot mounting MLBU
Dimensions in mm.
Read more
Product Information
Material: Galvanized steel
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Material | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | - | MCE 25 | Galvanized steel | F MCE | 0.04 | ||||
|
|
|
2 | MLBU 32 | MCE 32 | Galvanized steel | F MCE | 0.08 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | D1 | D2 | R | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
25 | 15 | 12.1 | 23.0 (+0.3/0) | 27 (±0.5) | 3 (±0.5) | 18 | 6 (f7) | 5.5 | 7 | ||||
|
|
|
32 | 20 | 16.1 | 29.5 (+0.3/0) | 30 (±0.5) | 4 (±0.5) | 24 | 8 (f7) | 6.6 | 10 |
-
-
