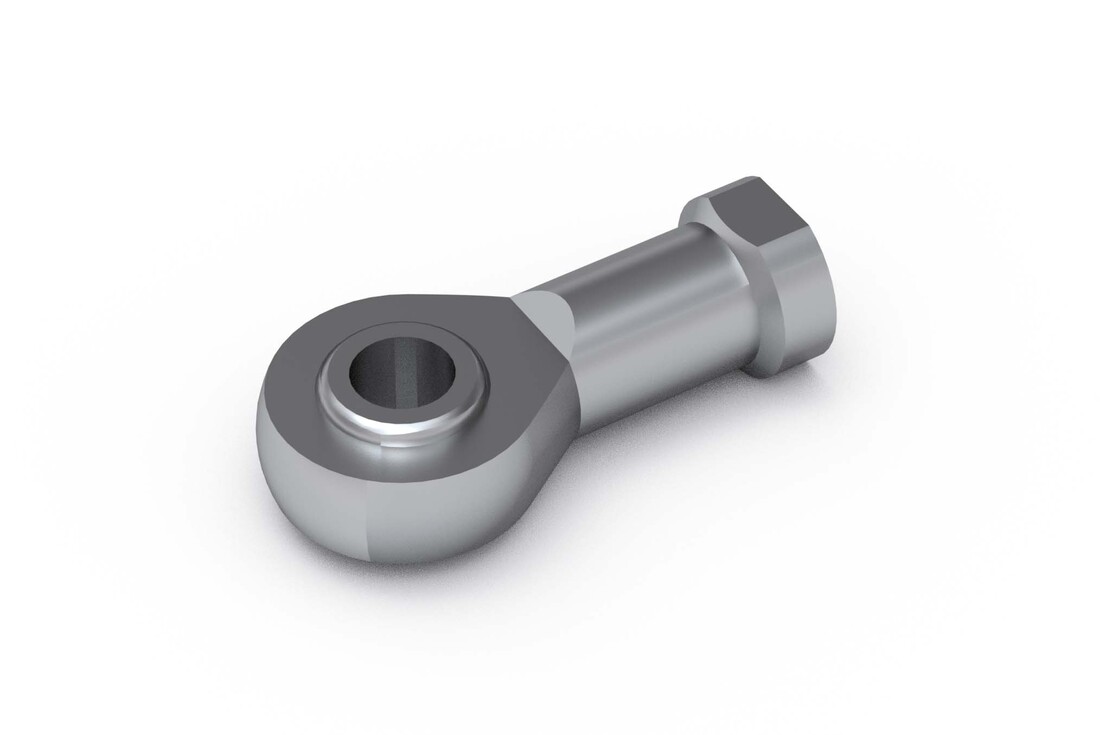

Rod eye SGS

Dimensions in mm.
Read more

Product Information

Material: Galvanized steel
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD / Request quote Download CAD
Designation Select all CAD Compare Get quote Lead Time * Description Compatible with Material Fmax (N) Mass (kg)
Request quote 2 SGS 25 MCE 25 Galvanized steel F MCE 0.03
Request quote 2 SGS 32 MCE 32 Galvanized steel F MCE 0.05
Request quote 2 SGS 45 MCE 45 Galvanized steel F MCE 0.08

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote M L1 L2 L3 L4 L5 D1 D2 R CH Z
Request quote M6 40 30 9 6.75 12 6 (H7) 13 10 11 13°
Request quote M8 48 36 12 9 16 8 (H7) 16 12 14 14°
Request quote M10 × 1.25 57 43 14 10.5 20 10 (H7) 19 14 17 13°
