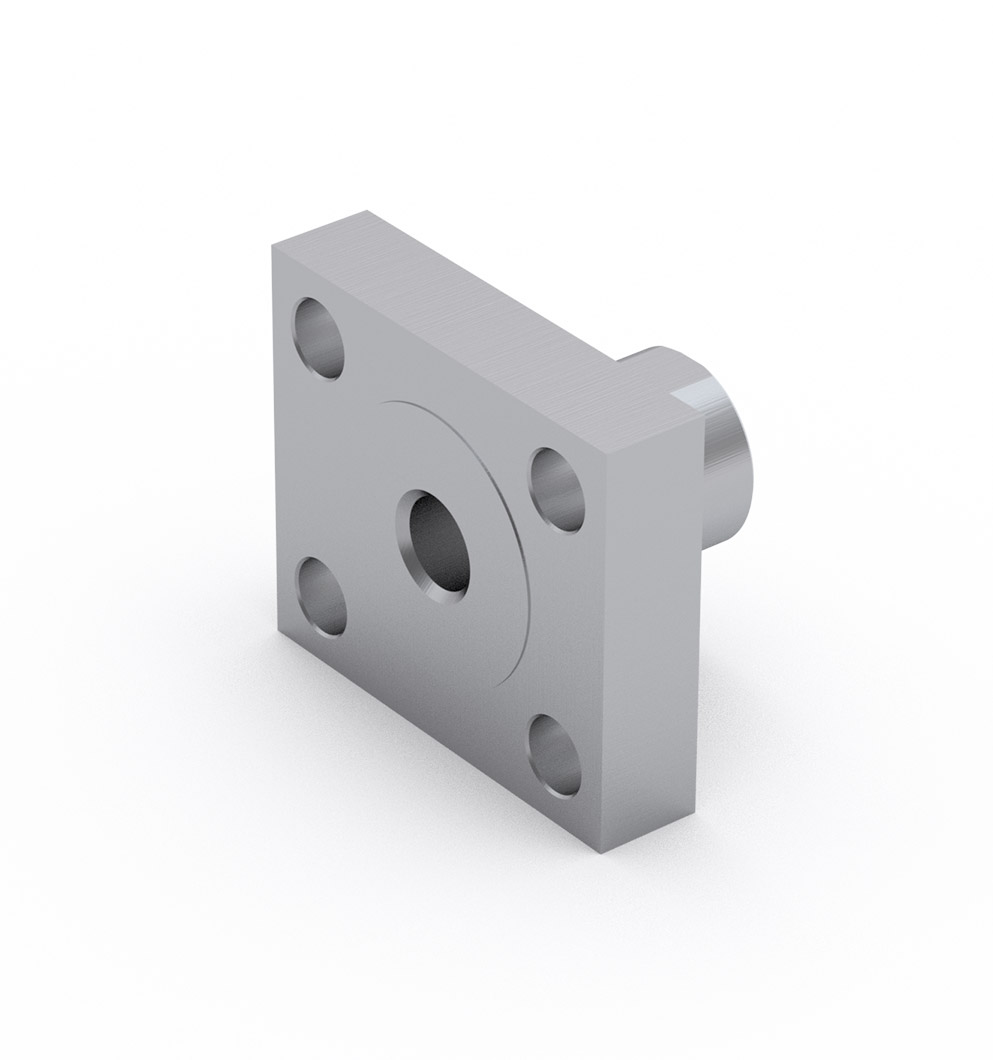

Coupling piece KSZ

Dimensions in mm.
Download PDF Generating PDF
+ Add to PDF catalogue

Product Information

Material: Galvanized steel
Designation Select all Compatible with Description Material Fmax (N) Mass (kg)
/storage/7BAE5D944ADA875850A3BEDC983802C50569FBEE854938C9C78EB86D01DF52F6/ab034cb0b32b43d0a5c1186260e9e6d6/STP/media/e814fe9398804d24aa2b7fc376c9cf80/CAD_KSZ25-5227_CouplingPieceKSZ_Rollco.STP MCE 25 KSZ 25 Galvanized steel F MCE 0.05
Get quote
/storage/50C0FEF4C79EF1FB0AA9587AF6D1A69070D7125E5BDF3EEEDA88A9C695E9528D/b5bcee1382e2493fadb6bcc4cefd9935/STP/media/22111f4bdf924ddc856e5ba3a9ecf4ad/CAD_KSZ32-5228_CouplingPieceKSZ_Rollco.STP MCE 32 KSZ 32 Galvanized steel F MCE 0.07
Get quote
/storage/49C7C7A39534AFE7072D71793C3333907A299650FEE9BC42C1E99D34485A04AF/b2233f9020704d3f99b7c16b4fd8039c/stp/media/a73d769bbc464e55912c00bdcafb7241/CAD_KSZ45-5229_CouplingPieceKSZ_Rollco.stp MCE 45 KSZ 45 Galvanized steel F MCE 0.11
Get quote
Designation Select all M L1 L2 L3 L4 L5 L6 L7 D1 D2 D3 CH
/storage/7BAE5D944ADA875850A3BEDC983802C50569FBEE854938C9C78EB86D01DF52F6/ab034cb0b32b43d0a5c1186260e9e6d6/STP/media/e814fe9398804d24aa2b7fc376c9cf80/CAD_KSZ25-5227_CouplingPieceKSZ_Rollco.STP M6 30 25 20 15 16 8 0.10 12^-0.1 18 5.50 10
Get quote
/storage/50C0FEF4C79EF1FB0AA9587AF6D1A69070D7125E5BDF3EEEDA88A9C695E9528D/b5bcee1382e2493fadb6bcc4cefd9935/STP/media/22111f4bdf924ddc856e5ba3a9ecf4ad/CAD_KSZ32-5228_CouplingPieceKSZ_Rollco.STP M8 35 30 25 20 22 8 0.10 14^-0.1 20 5.50 13
Get quote
/storage/49C7C7A39534AFE7072D71793C3333907A299650FEE9BC42C1E99D34485A04AF/b2233f9020704d3f99b7c16b4fd8039c/stp/media/a73d769bbc464e55912c00bdcafb7241/CAD_KSZ45-5229_CouplingPieceKSZ_Rollco.stp M10x1.25 40 35 30 25 20 10 0.10 17^-0.2 26 5.50 15
Get quote
