Trunnion mount MZK
Mounting Attachment Accessory MZK, galvanized steel

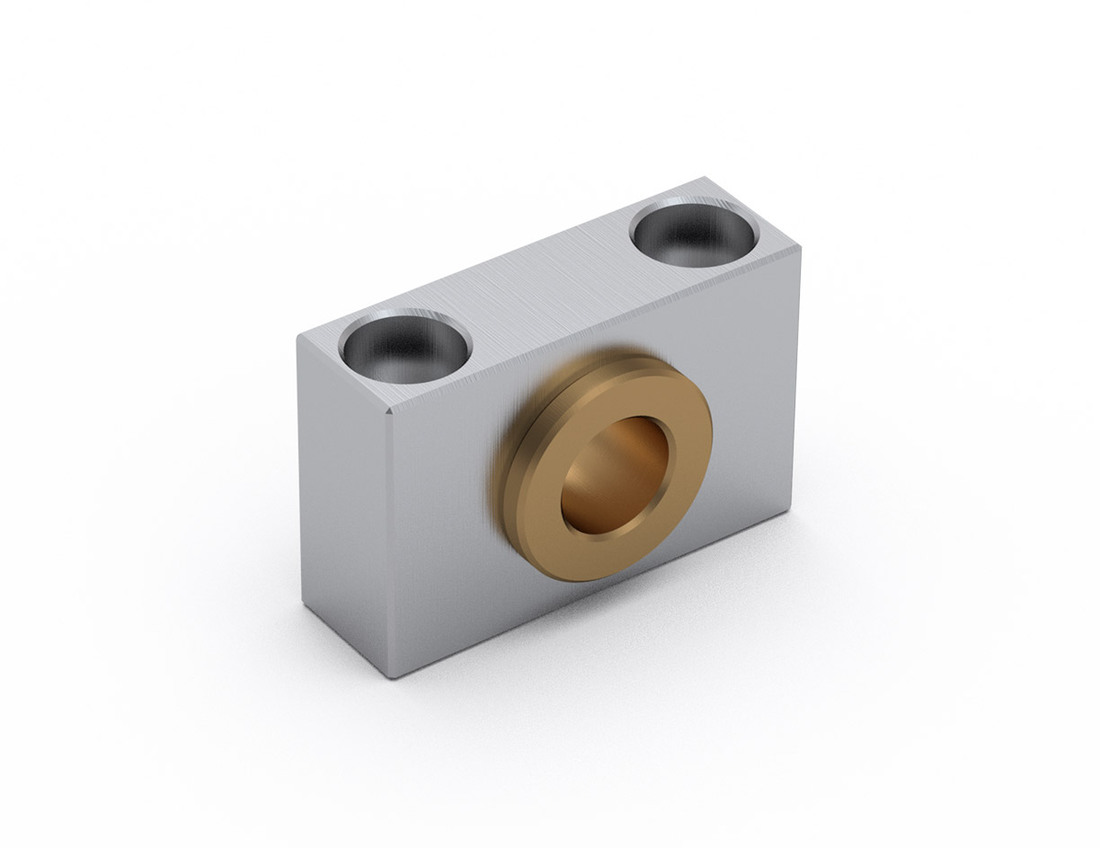

Trunnion support MLZ
Dimensions in mm.
Set contains 2 pcs.
Set contains 2 pcs.
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
Product Information
Material: Galvanized steel and sinterized bronze
| Designation | Select all | Lead Time * | Compatible with | Description | Fmax (N) | Mass (kg) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/FBA32903BA70B2B1CD7D60972A3F8FFCD745256E3116884D6F42F32AD8ACBD19/94d4f71d5b0c4ef0baf2deffe5dad0d6/STP/media/63a8f9b7cdc54f24b97dbb8be9704588/CAD_MLZ32-45-108234_TrunnionSupportMLZ_Rollco.STP | 2 | MCE 32, MCE 45 | MLZ 32/45 | F MCE | 0.2 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | D1 | D2 | D3 | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/FBA32903BA70B2B1CD7D60972A3F8FFCD745256E3116884D6F42F32AD8ACBD19/94d4f71d5b0c4ef0baf2deffe5dad0d6/STP/media/63a8f9b7cdc54f24b97dbb8be9704588/CAD_MLZ32-45-108234_TrunnionSupportMLZ_Rollco.STP | 46 | 32 (±0.2) | 18 | 15 | 10.5 | 30 | 15 (±0.1) | 7 (±0.5) | 12 (F7) | 11 | 6.6 |
|
