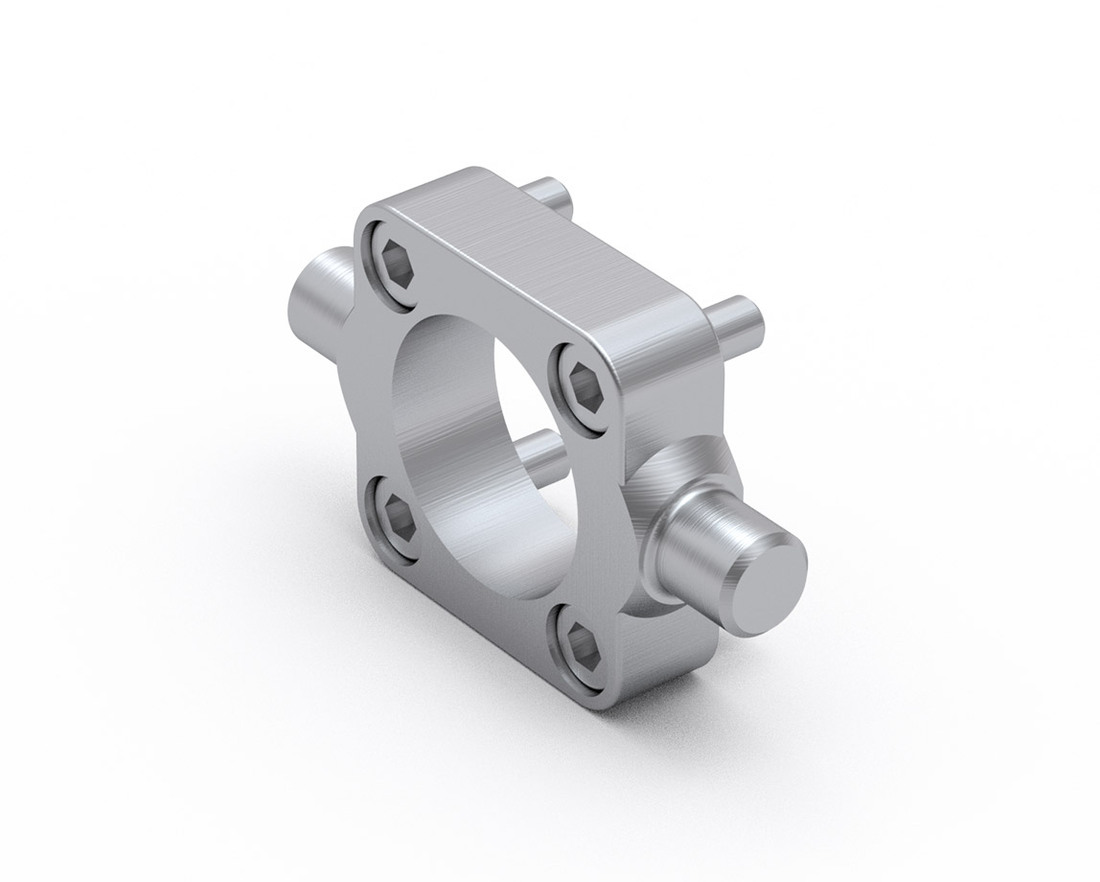

Trunnion mount MZK

Dimensions in mm.

Mounting screws are included.

Material: Galvanized steel

+ Add to PDF catalogue

Designation	Select all	CAD	Compare	Get quote	Lead Time *	Description	Compatible with	Material	Fmax (N)	Mass (kg)
MZK 32 - 108230					Get quote	2	MZK 32	MCE 32	Galvanized steel	F MCE	0.12
MZK 45 - 108231					Get quote	2	MZK 45	MCE 45	Galvanized steel	F MCE	0.17

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation	Select all	CAD	Compare	Get quote	L1	L2	L3	L4	L5	L6	L7	D1	D2	D3	D4
MZK 32 - 108230					Get quote	35	22	38 (h14)	12 (h14)	14	6.5 (+0.3/0)	6 (±0.2)	5.5	10	12 (e9)	18
MZK 45 - 108231					Get quote	46	32	52 (h14)	12 (h14)	14	6.5 (+0.3/0)	7 (±0.2)	6.6	10.5	12 (e9)	32

Trunnion support MLZ

Mounting Attachment Accessory MLZ, galvanized steel and sinterized bronze
