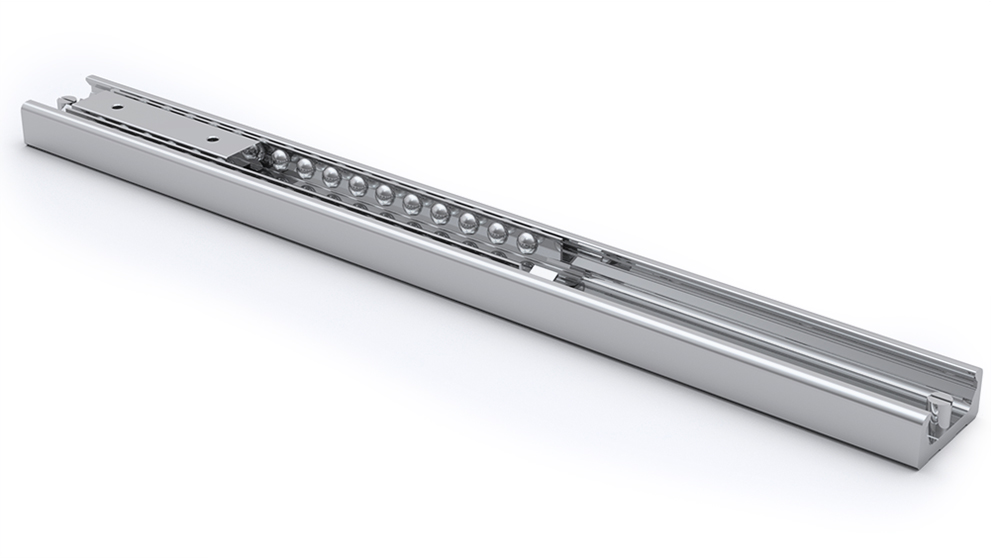

SN 63

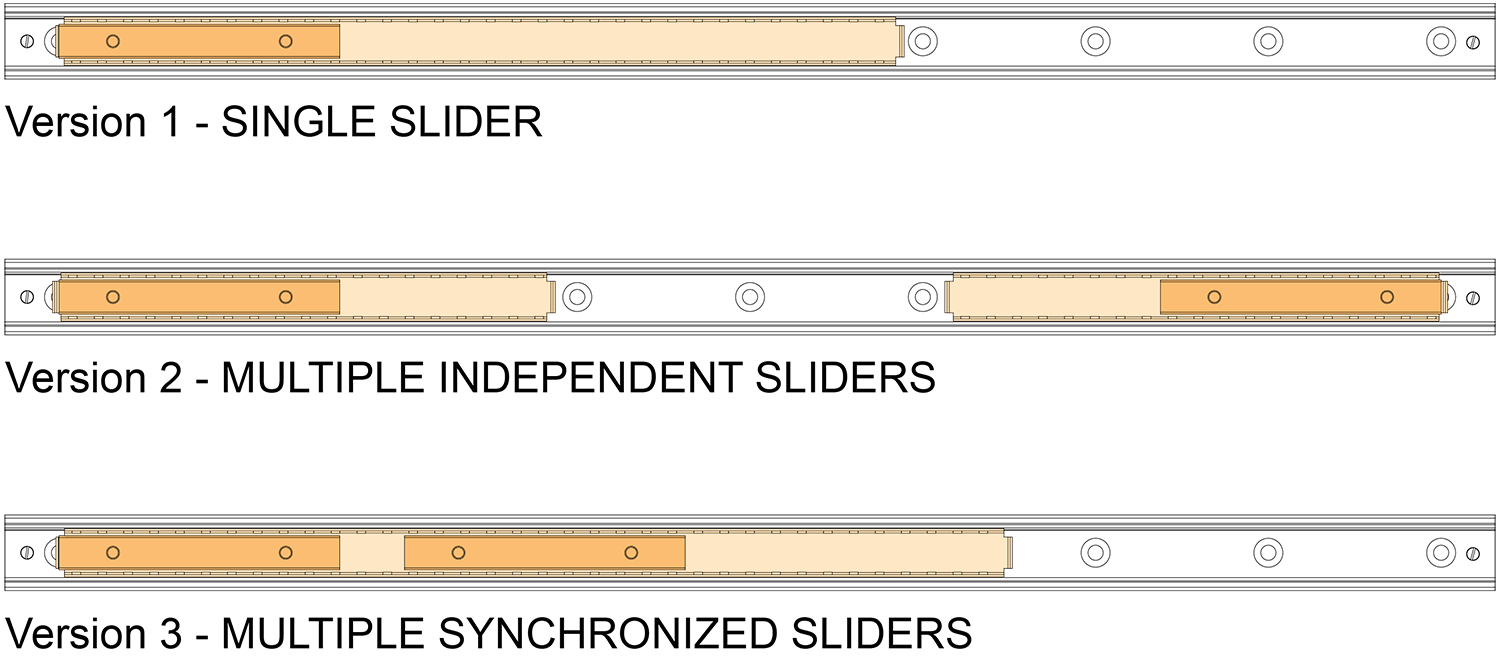

Variants below are standard configurations. Other configurations and customer-specific adaptations are available upon request. Please contact us for more information.

Fixing holes (C) for socket cap screws according to DIN 7984. Alternative fixing with Torx® screws in special design with low head (on request).

Dimensions in mm.
Download PDF

Product Information

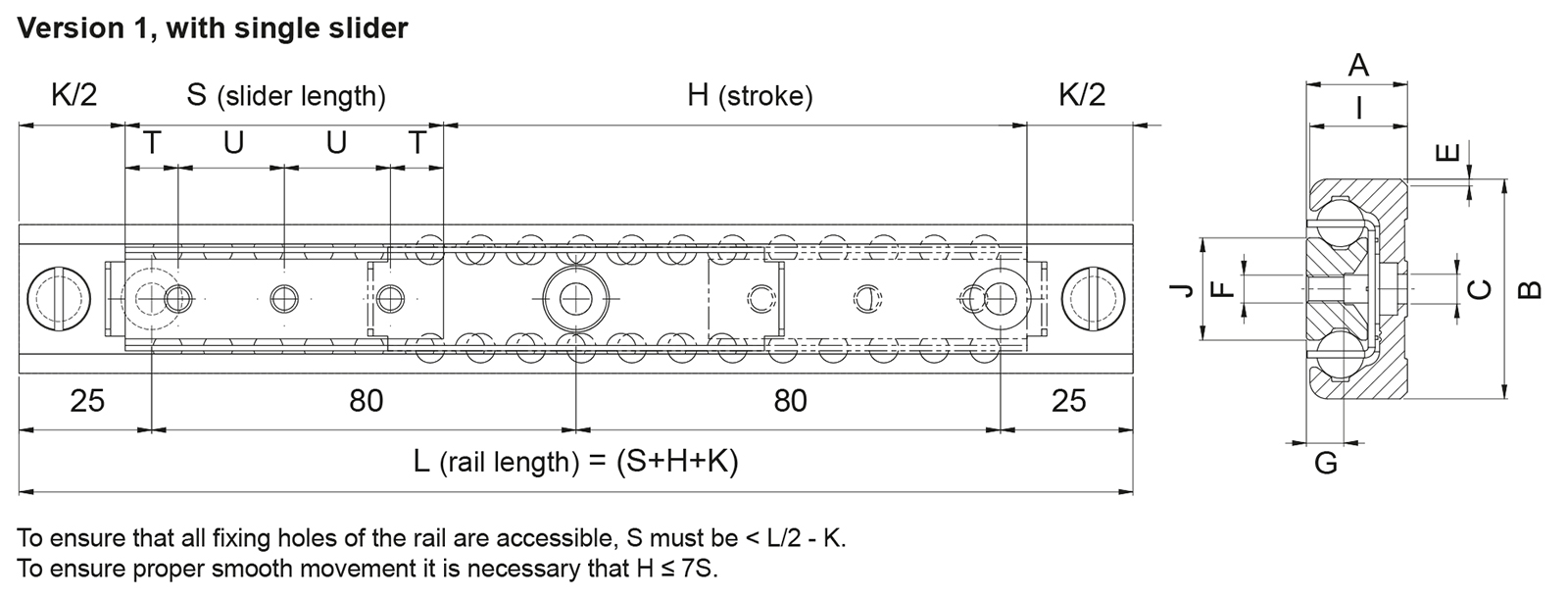

Technical Drawing
Designation Lead Time * A B E F G I J K S T U V Mx moment (Nm) My moment (Nm) Mz moment (Nm)
2 29 63 M8 2x45 M8 10.50 28 29.30 80 130 25 80 238.80 394.00 563.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 130 25 80 238.80 394.00 563.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 130 25 80 238.80 394.00 563.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 130 25 80 238.80 394.00 563.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 130 25 80 238.80 394.00 563.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 130 25 80 238.80 394.00 563.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 210 25 80 385.80 1,029.00 1,470.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 210 25 80 385.80 1,029.00 1,470.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 210 25 80 385.80 1,029.00 1,470.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 210 25 80 385.80 1,029.00 1,470.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 210 25 80 385.80 1,029.00 1,470.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 210 25 80 385.80 1,029.00 1,470.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 210 25 80 385.80 1,029.00 1,470.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 210 25 80 385.80 1,029.00 1,470.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 210 25 80 385.80 1,029.00 1,470.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 210 25 80 385.80 1,029.00 1,470.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 290 25 80 532.80 1,962.00 2,803.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 290 25 80 532.80 1,962.00 2,803.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 290 25 80 532.80 1,962.00 2,803.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 290 25 80 532.80 1,962.00 2,803.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 290 25 80 532.80 1,962.00 2,803.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 290 25 80 532.80 1,962.00 2,803.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 290 25 80 532.80 1,962.00 2,803.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 290 25 80 532.80 1,962.00 2,803.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 290 25 80 532.80 1,962.00 2,803.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 290 25 80 532.80 1,962.00 2,803.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 370 25 80 679.80 3,194.00 4,563.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 370 25 80 679.80 3,194.00 4,563.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 370 25 80 679.80 3,194.00 4,563.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 370 25 80 679.80 3,194.00 4,563.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 370 25 80 679.80 3,194.00 4,563.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 370 25 80 679.80 3,194.00 4,563.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 370 25 80 679.80 3,194.00 4,563.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 370 25 80 679.80 3,194.00 4,563.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 370 25 80 679.80 3,194.00 4,563.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 450 25 80 826.70 4,725.00 6,750.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 450 25 80 826.70 4,725.00 6,750.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 450 25 80 826.70 4,725.00 6,750.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 450 25 80 826.70 4,725.00 6,750.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 450 25 80 826.70 4,725.00 6,750.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 450 25 80 826.70 4,725.00 6,750.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 450 25 80 826.70 4,725.00 6,750.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 450 25 80 826.70 4,725.00 6,750.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 530 25 80 973.70 6,554.00 9,363.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 530 25 80 973.70 6,554.00 9,363.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 530 25 80 973.70 6,554.00 9,363.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 530 25 80 973.70 6,554.00 9,363.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 530 25 80 973.70 6,554.00 9,363.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 530 25 80 973.70 6,554.00 9,363.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 610 25 80 1,120.70 8,682.00 12,403.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 610 25 80 1,120.70 8,682.00 12,403.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 610 25 80 1,120.70 8,682.00 12,403.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 610 25 80 1,120.70 8,682.00 12,403.00 Get quote
2 29 63 M8 2x45 M8 10.50 28 29.30 80 610 25 80 1,120.70 8,682.00 12,403.00 Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Additional Drawing 1
Designation Length System Load Capacity Radial System Load Capacity Axial Stroke Number of Fixing Holes
610.00 26000 N 18200 N 400 2 Get quote
690.00 26000 N 18200 N 480 2 Get quote
770.00 26000 N 18200 N 560 2 Get quote
850.00 26000 N 18200 N 640 2 Get quote
930.00 26000 N 18200 N 720 2 Get quote
1,010.00 26000 N 18200 N 800 2 Get quote
610.00 42000 N 29400 N 320 3 Get quote
690.00 42000 N 29400 N 400 3 Get quote
770.00 42000 N 29400 N 480 3 Get quote
850.00 42000 N 29400 N 560 3 Get quote
930.00 42000 N 29400 N 640 3 Get quote
1,010.00 42000 N 29400 N 720 3 Get quote
1,170.00 42000 N 29400 N 880 3 Get quote
1,330.00 42000 N 29400 N 1040 3 Get quote
1,490.00 42000 N 29400 N 1200 3 Get quote
1,650.00 42000 N 29400 N 1360 3 Get quote
610.00 58000 N 40600 N 240 4 Get quote
690.00 58000 N 40600 N 320 4 Get quote
770.00 58000 N 40600 N 400 4 Get quote
850.00 58000 N 40600 N 480 4 Get quote
930.00 58000 N 40600 N 560 4 Get quote
1,010.00 58000 N 40600 N 640 4 Get quote
1,170.00 58000 N 40600 N 800 4 Get quote
1,330.00 58000 N 40600 N 960 4 Get quote
1,490.00 58000 N 40600 N 1120 4 Get quote
1,650.00 58000 N 40600 N 1280 4 Get quote
770.00 74000 N 51800 N 320 5 Get quote
850.00 74000 N 51800 N 400 5 Get quote
930.00 74000 N 51800 N 480 5 Get quote
1,010.00 74000 N 51800 N 560 5 Get quote
1,170.00 74000 N 51800 N 720 5 Get quote
1,330.00 74000 N 51800 N 880 5 Get quote
1,490.00 74000 N 51800 N 1040 5 Get quote
1,650.00 74000 N 51800 N 1200 5 Get quote
1,810.00 74000 N 51800 N 1360 5 Get quote
930.00 90000 N 63000 N 400 6 Get quote
1,010.00 90000 N 63000 N 480 6 Get quote
1,170.00 90000 N 63000 N 640 6 Get quote
1,330.00 90000 N 63000 N 800 6 Get quote
1,490.00 90000 N 63000 N 960 6 Get quote
1,650.00 90000 N 63000 N 1120 6 Get quote
1,810.00 90000 N 63000 N 1280 6 Get quote
1,170.00 90000 N 63000 N 560 6 Get quote
1,170.00 106000 N 74200 N 560 7 Get quote
1,330.00 106000 N 74200 N 720 7 Get quote
1,490.00 106000 N 74200 N 880 7 Get quote
1,650.00 106000 N 74200 N 1040 7 Get quote
1,810.00 106000 N 74200 N 1200 7 Get quote
1,970.00 106000 N 74200 N 1360 7 Get quote
1,330.00 122000 N 85400 N 640 8 Get quote
1,490.00 122000 N 85400 N 800 8 Get quote
1,650.00 122000 N 85400 N 960 8 Get quote
1,810.00 122000 N 85400 N 1120 8 Get quote
1,970.00 122000 N 85400 N 1280 8 Get quote
