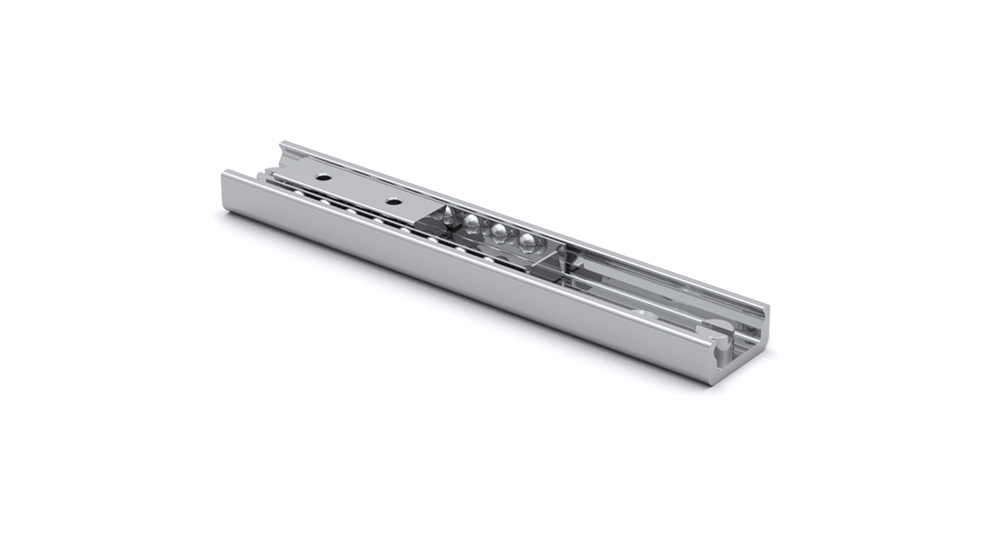

SN 22

Variants below are standard configurations. Other configurations and customer-specific adaptations are available upon request. Please contact us for more information.

Fixing holes (V) for countersunk head screws according to DIN 7991.

Dimensions in mm.
Download PDF
Additional Drawing 1
Designation Lead Time * Length System Load Capacity Radial System Load Capacity Axial Stroke Number of Fixing Holes
2 130.00 1320 N 924 N 60 2 Get quote
2 210.00 1320 N 924 N 140 2 Get quote
2 290.00 1320 N 924 N 220 2 Get quote
2 130.00 1980 N 1386 N 40 3 Get quote
2 210.00 1980 N 1386 N 120 3 Get quote
2 290.00 1980 N 1386 N 200 3 Get quote
2 370.00 1980 N 1386 N 280 3 Get quote
2 450.00 1980 N 1386 N 360 3 Get quote
2 210.00 2640 N 1848 N 100 4 Get quote
2 290.00 2640 N 1848 N 180 4 Get quote
2 370.00 2640 N 1848 N 260 4 Get quote
2 450.00 2640 N 1848 N 340 4 Get quote
2 530.00 2640 N 1848 N 420 4 Get quote
2 610.00 2640 N 1848 N 500 4 Get quote
2 290.00 4290 N 3003 N 130 2 Get quote
2 370.00 4290 N 3003 N 210 2 Get quote
2 450.00 4290 N 3003 N 290 2 Get quote
2 530.00 4290 N 3003 N 370 2 Get quote
2 610.00 4290 N 3003 N 450 2 Get quote
2 690.00 4290 N 3003 N 530 2 Get quote
2 770.00 4290 N 3003 N 610 2 Get quote
2 850.00 4290 N 3003 N 690 2 Get quote
2 930.00 4290 N 3003 N 770 2 Get quote
2 1,010.00 4290 N 3003 N 850 2 Get quote
2 450.00 6930 N 4851 N 210 3 Get quote
2 530.00 6930 N 4851 N 290 3 Get quote
2 610.00 6930 N 4851 N 370 3 Get quote
2 690.00 6930 N 4851 N 450 3 Get quote
2 770.00 6930 N 4851 N 530 3 Get quote
2 850.00 6930 N 4851 N 610 3 Get quote
2 930.00 6930 N 4851 N 690 3 Get quote
2 1,010.00 6930 N 4851 N 770 3 Get quote
2 1,170.00 6930 N 4851 N 930 3 Get quote
2 610.00 9570 N 6699 N 290 4 Get quote
2 690.00 9570 N 6699 N 370 4 Get quote
2 770.00 9570 N 6699 N 450 4 Get quote
2 850.00 9570 N 6699 N 530 4 Get quote
2 930.00 9570 N 6699 N 610 4 Get quote
2 1,010.00 9570 N 6699 N 690 4 Get quote
2 1,170.00 9570 N 6699 N 850 4 Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation A B E F G I J K S T U V Mx moment (Nm) My moment (Nm) Mz moment (Nm)
11 22 3 M4 6.50 10.25 11.30 30 40 10 20 M4 4.40 6.00 5.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 40 10 20 M4 4.40 6.00 9.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 40 10 20 M4 4.40 6.00 9.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 60 10 20 M4 6.70 14.00 20.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 60 10 20 M4 6.70 14.00 20.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 60 10 20 M4 6.70 14.00 20.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 60 10 20 M4 6.70 14.00 20.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 60 10 20 M4 6.70 14.00 20.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 80 10 20 M4 8.90 25.00 35.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 80 10 20 M4 8.90 25.00 35.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 80 10 20 M4 8.90 25.00 35.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 80 10 20 M4 8.90 25.00 35.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 80 10 20 M4 8.90 25.00 35.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 80 10 20 M4 8.90 25.00 35.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 130 25 80 M4 14.40 65.00 93.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 130 25 80 M4 14.40 65.00 93.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 130 25 80 M4 14.40 65.00 93.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 130 25 80 M4 14.40 65.00 93.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 130 25 80 M4 14.40 65.00 93.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 130 25 80 M4 14.40 65.00 93.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 130 25 80 M4 14.40 65.00 93.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 130 25 80 M4 14.40 65.00 93.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 130 25 80 M4 14.40 65.00 93.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 130 25 80 M4 14.40 65.00 93.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 210 25 80 M4 23.30 170.00 243.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 210 25 80 M4 23.30 170.00 243.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 210 25 80 M4 23.30 170.00 243.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 210 25 80 M4 23.30 170.00 243.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 210 25 80 M4 23.30 170.00 243.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 210 25 80 M4 23.30 170.00 243.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 210 25 80 M4 23.30 170.00 243.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 210 25 80 M4 23.30 170.00 243.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 210 25 80 M4 23.30 170.00 243.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 290 25 80 M4 32.20 324.00 463.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 290 25 80 M4 32.20 324.00 463.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 290 25 80 M4 32.20 324.00 463.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 290 25 80 M4 32.20 324.00 463.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 290 25 80 M4 32.20 324.00 463.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 290 25 80 M4 32.20 324.00 463.00 Get quote
11 22 3 M4 6.50 10.25 11.30 30 290 25 80 M4 32.20 324.00 463.00 Get quote
