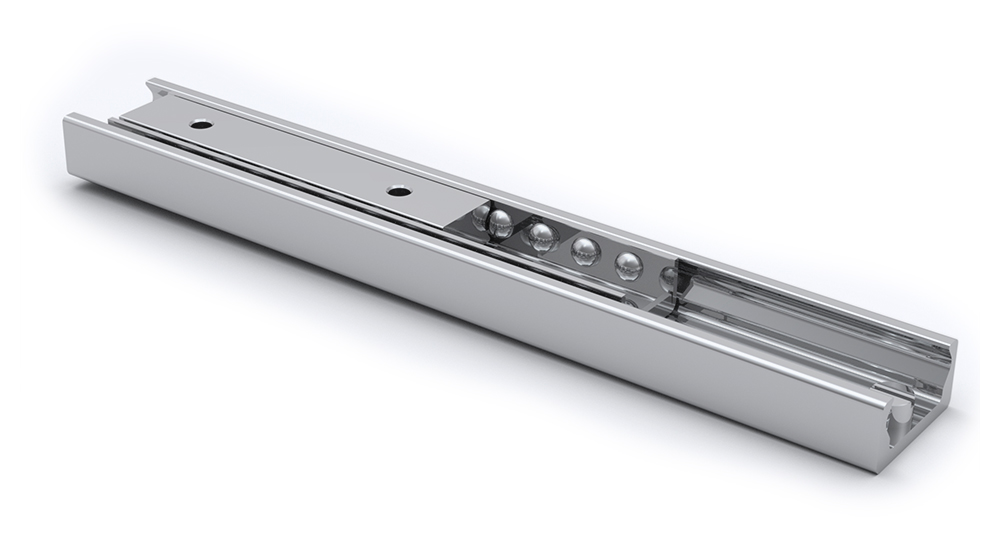

SN 43

Variants below are standard configurations. Other configurations and customer-specific adaptations are available upon request. Please contact us for more information.

Fixing holes (V) for countersunk head screws according to DIN 7991.

Dimensions in mm.
Download PDF
Additional Drawing 1
Designation Lead Time * Length System Load Capacity Radial System Load Capacity Axial Stroke Number of Fixing Holes
2 290.00 13910 N 9737 N 110 2 Get quote
2 370.00 13910 N 9737 N 190 2 Get quote
2 450.00 13910 N 9737 N 270 2 Get quote
2 530.00 13910 N 9737 N 350 2 Get quote
2 610.00 13910 N 9737 N 430 2 Get quote
2 690.00 13910 N 9737 N 510 2 Get quote
2 770.00 13910 N 9737 N 590 2 Get quote
2 850.00 13910 N 9737 N 670 2 Get quote
2 930.00 13910 N 9737 N 750 2 Get quote
2 1,010.00 13910 N 9737 N 830 2 Get quote
2 450.00 22470 N 15729 N 190 3 Get quote
2 530.00 22470 N 15729 N 270 3 Get quote
2 610.00 22470 N 15729 N 350 3 Get quote
2 690.00 22470 N 15729 N 430 3 Get quote
2 770.00 22470 N 15729 N 510 3 Get quote
2 850.00 22470 N 15729 N 590 3 Get quote
2 930.00 22470 N 15729 N 670 3 Get quote
2 1,010.00 22470 N 15729 N 750 3 Get quote
2 1,170.00 22470 N 15729 N 910 3 Get quote
2 1,330.00 22470 N 15729 N 1070 3 Get quote
2 1,490.00 22470 N 15729 N 1230 3 Get quote
2 1,650.00 22470 N 15729 N 1390 3 Get quote
2 610.00 31030 N 21721 N 270 4 Get quote
2 690.00 31030 N 21721 N 350 4 Get quote
2 770.00 31030 N 21721 N 430 4 Get quote
2 850.00 31030 N 21721 N 510 4 Get quote
2 930.00 31030 N 21721 N 590 4 Get quote
2 1,010.00 31030 N 21721 N 670 4 Get quote
2 1,170.00 31030 N 21721 N 830 4 Get quote
2 1,330.00 31030 N 21721 N 990 4 Get quote
2 1,490.00 31030 N 21721 N 1150 4 Get quote
2 1,650.00 31030 N 21721 N 1310 4 Get quote
2 1,810.00 31030 N 21721 N 1470 4 Get quote
2 770.00 39590 N 27713 N 350 5 Get quote
2 850.00 39590 N 27713 N 430 5 Get quote
2 930.00 39590 N 27713 N 510 5 Get quote
2 1,010.00 39590 N 27713 N 590 5 Get quote
2 1,170.00 39590 N 27713 N 750 5 Get quote
2 1,330.00 39590 N 27713 N 910 5 Get quote
2 1,490.00 39590 N 27713 N 1070 5 Get quote
2 1,650.00 39590 N 27713 N 1230 5 Get quote
2 1,810.00 39590 N 27713 N 1390 5 Get quote
2 930.00 48150 N 33750 N 430 6 Get quote
2 1,010.00 48150 N 33750 N 510 6 Get quote
2 1,170.00 48150 N 33750 N 670 6 Get quote
2 1,330.00 48150 N 33750 N 830 6 Get quote
2 1,490.00 48150 N 33750 N 990 6 Get quote
2 1,650.00 48150 N 33750 N 1150 6 Get quote
2 1,810.00 48150 N 33750 N 1310 6 Get quote
2 1,970.00 48150 N 33750 N 1470 6 Get quote
2 1,170.00 56710 N 39697 N 590 7 Get quote
2 1,330.00 56710 N 39697 N 750 7 Get quote
2 1,490.00 56710 N 39697 N 910 7 Get quote
2 1,650.00 56710 N 39697 N 1070 7 Get quote
2 1,810.00 56710 N 39697 N 1230 7 Get quote
2 1,970.00 56710 N 39697 N 1390 7 Get quote
2 1,330.00 65270 N 45689 N 670 8 Get quote
2 1,490.00 65270 N 45689 N 830 8 Get quote
2 1,650.00 65270 N 45689 N 990 8 Get quote
2 1,810.00 65270 N 45689 N 1150 8 Get quote
2 1,970.00 65270 N 45689 N 1310 8 Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation A B E F G I J K S T U V Mx moment (Nm) My moment (Nm) Mz moment (Nm)
22 43 2.50 M8 13.50 21 23 50 130 25 80 M8 96.00 211.00 301.00 Get quote
22 43 2.50 M8 13.50 21 23 50 130 25 80 M8 96.00 211.00 301.00 Get quote
22 43 2.50 M8 13.50 21 23 50 130 25 80 M8 96.00 211.00 301.00 Get quote
22 43 2.50 M8 13.50 21 23 50 130 25 80 M8 96.00 211.00 301.00 Get quote
22 43 2.50 M8 13.50 21 23 50 130 25 80 M8 96.00 211.00 301.00 Get quote
22 43 2.50 M8 13.50 21 23 50 130 25 80 M8 96.00 211.00 301.00 Get quote
22 43 2.50 M8 13.50 21 23 50 130 25 80 M8 96.00 211.00 301.00 Get quote
22 43 2.50 M8 13.50 21 23 50 130 25 80 M8 96.00 211.00 301.00 Get quote
22 43 2.50 M8 13.50 21 23 50 130 25 80 M8 96.00 211.00 301.00 Get quote
22 43 2.50 M8 13.50 21 23 50 130 25 80 M8 96.00 211.00 301.00 Get quote
22 43 2.50 M8 13.50 21 23 50 210 25 80 M8 155.10 551.00 786.00 Get quote
22 43 2.50 M8 13.50 21 23 50 210 25 80 M8 155.10 551.00 786.00 Get quote
22 43 2.50 M8 13.50 21 23 50 210 25 80 M8 155.10 551.00 786.00 Get quote
22 43 2.50 M8 13.50 21 23 50 210 25 80 M8 155.10 551.00 786.00 Get quote
22 43 2.50 M8 13.50 21 23 50 210 25 80 M8 155.10 551.00 786.00 Get quote
22 43 2.50 M8 13.50 21 23 50 210 25 80 M8 155.10 551.00 786.00 Get quote
22 43 2.50 M8 13.50 21 23 50 210 25 80 M8 155.10 551.00 786.00 Get quote
22 43 2.50 M8 13.50 21 23 50 210 25 80 M8 155.10 551.00 786.00 Get quote
22 43 2.50 M8 13.50 21 23 50 210 25 80 M8 155.10 551.00 786.00 Get quote
22 43 2.50 M8 13.50 21 23 50 210 25 80 M8 155.10 551.00 786.00 Get quote
22 43 2.50 M8 13.50 21 23 50 210 25 80 M8 155.10 551.00 786.00 Get quote
22 43 2.50 M8 13.50 21 23 50 210 25 80 M8 155.10 551.00 786.00 Get quote
22 43 2.50 M8 13.50 21 23 50 290 25 80 M8 214.10 1,050.00 1,500.00 Get quote
22 43 2.50 M8 13.50 21 23 50 290 25 80 M8 214.10 1,050.00 1,500.00 Get quote
22 43 2.50 M8 13.50 21 23 50 290 25 80 M8 214.10 1,050.00 1,500.00 Get quote
22 43 2.50 M8 13.50 21 23 50 290 25 80 M8 214.10 1,050.00 1,500.00 Get quote
22 43 2.50 M8 13.50 21 23 50 290 25 80 M8 214.10 1,050.00 1,500.00 Get quote
22 43 2.50 M8 13.50 21 23 50 290 25 80 M8 214.10 1,050.00 1,500.00 Get quote
22 43 2.50 M8 13.50 21 23 50 290 25 80 M8 214.10 1,050.00 1,500.00 Get quote
22 43 2.50 M8 13.50 21 23 50 290 25 80 M8 214.10 1,050.00 1,500.00 Get quote
22 43 2.50 M8 13.50 21 23 50 290 25 80 M8 214.10 1,050.00 1,500.00 Get quote
22 43 2.50 M8 13.50 21 23 50 290 25 80 M8 214.10 1,050.00 1,500.00 Get quote
22 43 2.50 M8 13.50 21 23 50 290 25 80 M8 214.10 1,050.00 1,500.00 Get quote
22 43 2.50 M8 13.50 21 23 50 370 25 80 M8 273.20 1,709.00 2,441.00 Get quote
22 43 2.50 M8 13.50 21 23 50 370 25 80 M8 273.20 1,709.00 2,441.00 Get quote
22 43 2.50 M8 13.50 21 23 50 370 25 80 M8 273.20 1,709.00 2,441.00 Get quote
22 43 2.50 M8 13.50 21 23 50 370 25 80 M8 273.20 1,709.00 2,441.00 Get quote
22 43 2.50 M8 13.50 21 23 50 370 25 80 M8 273.20 1,709.00 2,441.00 Get quote
22 43 2.50 M8 13.50 21 23 50 370 25 80 M8 273.20 1,709.00 2,441.00 Get quote
22 43 2.50 M8 13.50 21 23 50 370 25 80 M8 273.20 1,709.00 2,441.00 Get quote
22 43 2.50 M8 13.50 21 23 50 370 25 80 M8 273.20 1,709.00 2,441.00 Get quote
22 43 2.50 M8 13.50 21 23 50 370 25 80 M8 273.20 1,709.00 2,441.00 Get quote
22 43 2.50 M8 13.50 21 23 50 450 25 80 M8 332.30 2,528.00 3,611.00 Get quote
22 43 2.50 M8 13.50 21 23 50 450 25 80 M8 332.30 2,528.00 3,611.00 Get quote
22 43 2.50 M8 13.50 21 23 50 450 25 80 M8 332.30 2,528.00 3,611.00 Get quote
22 43 2.50 M8 13.50 21 23 50 450 25 80 M8 332.30 2,528.00 3,611.00 Get quote
22 43 2.50 M8 13.50 21 23 50 450 25 80 M8 332.30 2,528.00 3,611.00 Get quote
22 43 2.50 M8 13.50 21 23 50 450 25 80 M8 332.30 2,528.00 3,611.00 Get quote
22 43 2.50 M8 13.50 21 23 50 450 25 80 M8 332.30 2,528.00 3,611.00 Get quote
22 43 2.50 M8 13.50 21 23 50 450 25 80 M8 332.30 2,528.00 3,611.00 Get quote
22 43 2.50 M8 13.50 21 23 50 530 25 80 M8 391.40 3,507.00 5,009.00 Get quote
22 43 2.50 M8 13.50 21 23 50 530 25 80 M8 391.40 3,507.00 5,009.00 Get quote
22 43 2.50 M8 13.50 21 23 50 530 25 80 M8 391.40 3,507.00 5,009.00 Get quote
22 43 2.50 M8 13.50 21 23 50 530 25 80 M8 391.40 3,507.00 5,009.00 Get quote
22 43 2.50 M8 13.50 21 23 50 530 25 80 M8 391.40 3,507.00 5,009.00 Get quote
22 43 2.50 M8 13.50 21 23 50 530 25 80 M8 391.40 3,507.00 5,009.00 Get quote
22 43 2.50 M8 13.50 21 23 50 610 25 80 M8 450.40 4,645.00 6,636.00 Get quote
22 43 2.50 M8 13.50 21 23 50 610 25 80 M8 450.40 4,645.00 6,636.00 Get quote
22 43 2.50 M8 13.50 21 23 50 610 25 80 M8 450.40 4,645.00 6,636.00 Get quote
22 43 2.50 M8 13.50 21 23 50 610 25 80 M8 450.40 4,645.00 6,636.00 Get quote
22 43 2.50 M8 13.50 21 23 50 610 25 80 M8 450.40 4,645.00 6,636.00 Get quote
