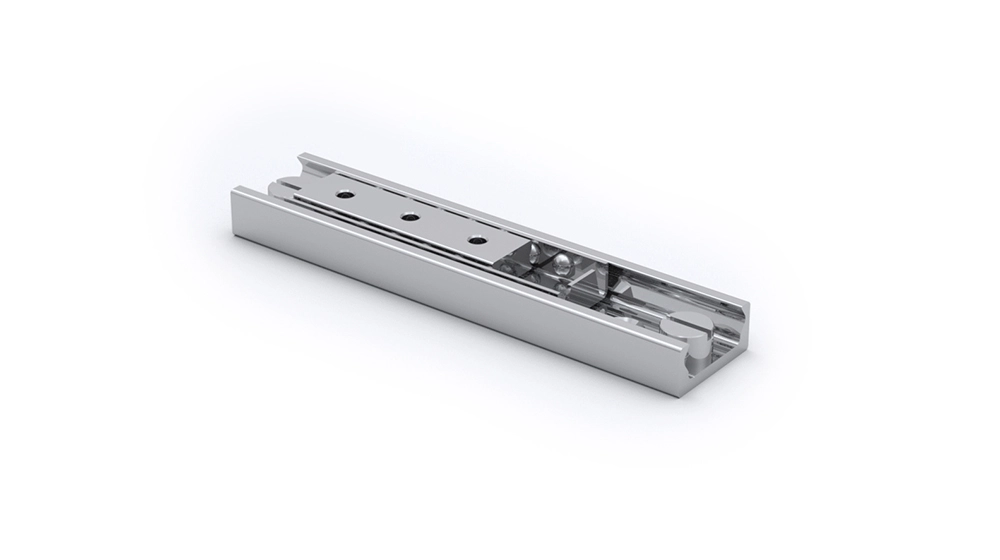

SN 28

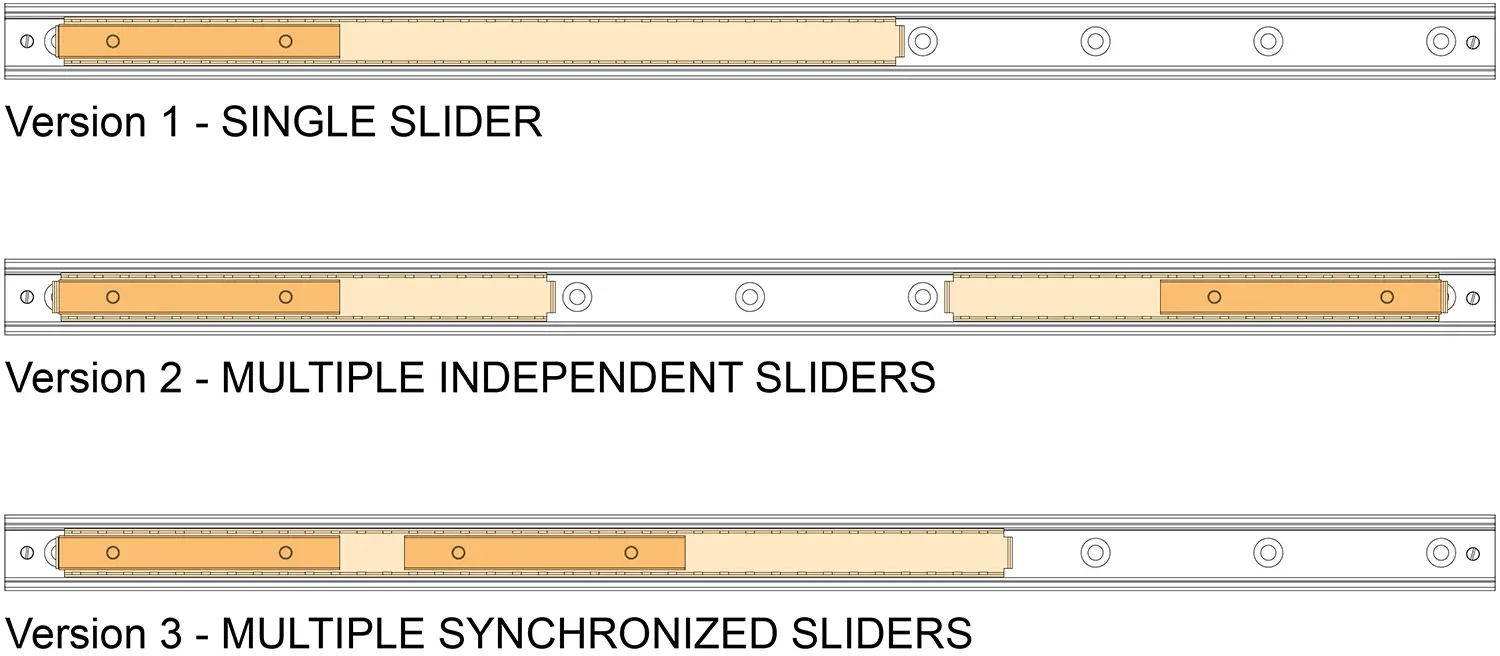

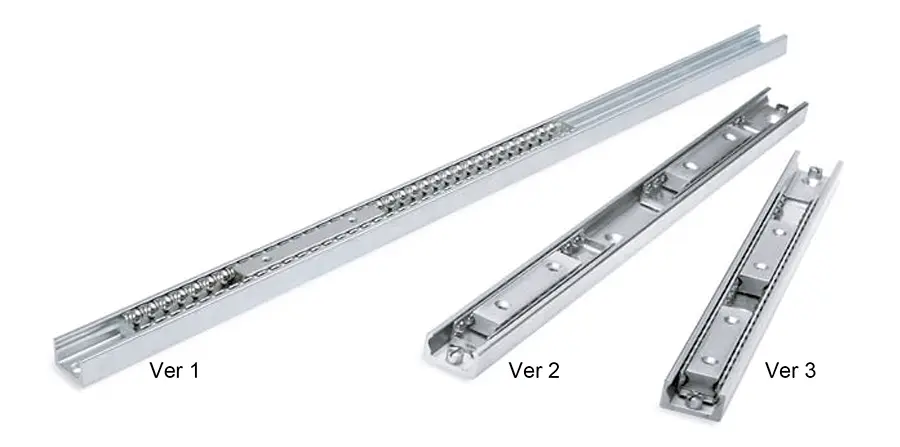

Variants below are standard configurations. Other configurations and customer-specific adaptations are available upon request. Please contact us for more information.

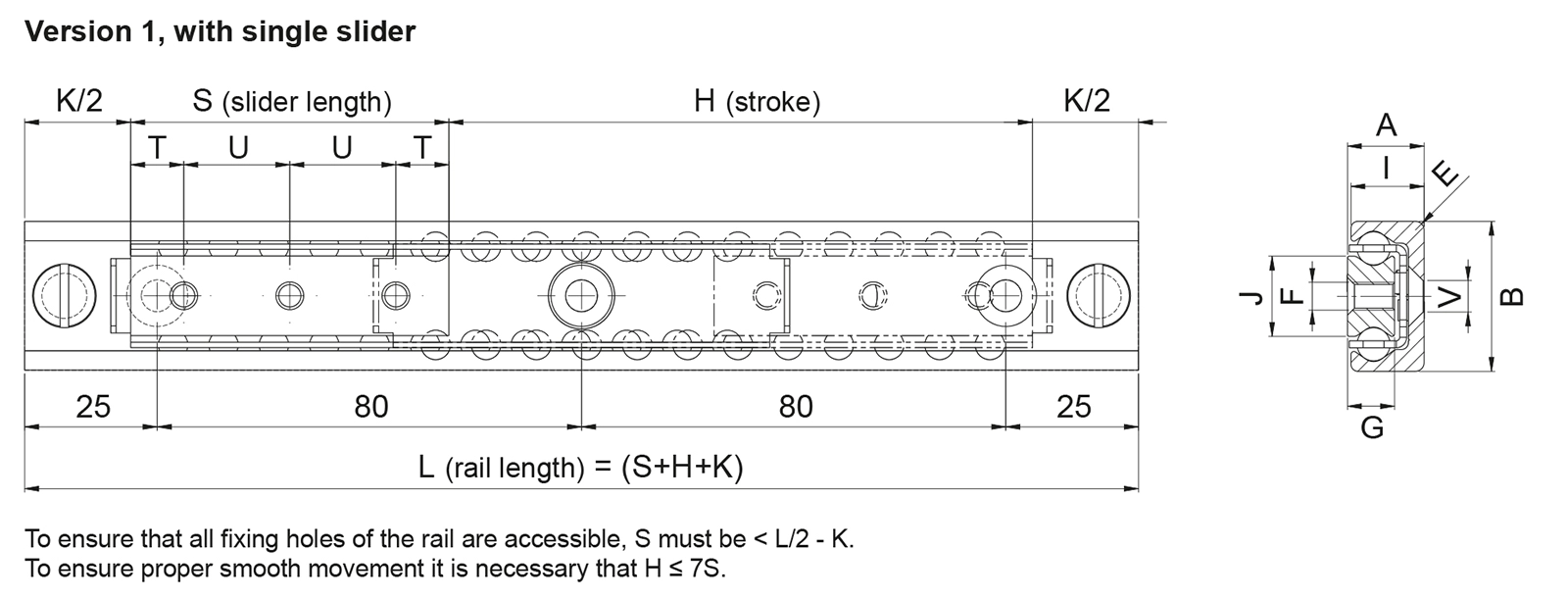

Fixing holes (V) for countersunk head screws according to DIN 7991.
Dimensions in mm.
Fixing holes (V) for countersunk head screws according to DIN 7991.
Dimensions in mm.
.jpg)
| Designation | Lead Time * | Length | System Load Capacity Radial | System Load Capacity Axial | Stroke | Number of Fixing Holes | ||
|---|---|---|---|---|---|---|---|---|
|
|
2 | 130.00 | 3480 N | 2436 N | 30 | 3 | Get quote | |
|
|
2 | 210.00 | 3480 N | 2436 N | 110 | 3 | Get quote | |
|
|
2 | 290.00 | 3480 N | 2436 N | 190 | 3 | Get quote | |
|
|
2 | 370.00 | 3480 N | 2436 N | 270 | 3 | Get quote | |
|
|
2 | 450.00 | 3480 N | 2436 N | 350 | 3 | Get quote | |
|
|
2 | 210.00 | 4640 N | 3248 N | 90 | 4 | Get quote | |
|
|
2 | 290.00 | 4640 N | 3248 N | 170 | 4 | Get quote | |
|
|
2 | 370.00 | 4640 N | 3248 N | 250 | 4 | Get quote | |
|
|
2 | 450.00 | 4640 N | 3248 N | 330 | 4 | Get quote | |
|
|
2 | 530.00 | 4640 N | 3248 N | 410 | 4 | Get quote | |
|
|
2 | 610.00 | 4640 N | 3248 N | 490 | 4 | Get quote | |
|
|
2 | 290.00 | 7540 N | 5278 N | 120 | 2 | Get quote | |
|
|
2 | 370.00 | 7540 N | 5278 N | 200 | 2 | Get quote | |
|
|
2 | 450.00 | 7540 N | 5278 N | 280 | 2 | Get quote | |
|
|
2 | 530.00 | 7540 N | 5278 N | 360 | 2 | Get quote | |
|
|
2 | 610.00 | 7540 N | 5278 N | 440 | 2 | Get quote | |
|
|
2 | 690.00 | 7540 N | 5278 N | 520 | 2 | Get quote | |
|
|
2 | 770.00 | 7540 N | 5278 N | 600 | 2 | Get quote | |
|
|
2 | 850.00 | 7540 N | 5278 N | 680 | 2 | Get quote | |
|
|
2 | 930.00 | 7540 N | 5278 N | 760 | 2 | Get quote | |
|
|
2 | 1,010.00 | 7540 N | 5278 N | 840 | 2 | Get quote | |
|
|
2 | 450.00 | 12180 N | 8526 N | 200 | 3 | Get quote | |
|
|
2 | 530.00 | 12180 N | 8526 N | 280 | 3 | Get quote | |
|
|
2 | 610.00 | 12180 N | 8526 N | 360 | 3 | Get quote | |
|
|
2 | 690.00 | 12180 N | 8526 N | 440 | 3 | Get quote | |
|
|
2 | 770.00 | 12180 N | 8526 N | 520 | 3 | Get quote | |
|
|
2 | 850.00 | 12180 N | 8526 N | 600 | 3 | Get quote | |
|
|
2 | 930.00 | 12180 N | 8526 N | 680 | 3 | Get quote | |
|
|
2 | 1,010.00 | 12180 N | 8526 N | 760 | 3 | Get quote | |
|
|
2 | 1,170.00 | 12180 N | 8526 N | 920 | 3 | Get quote | |
|
|
2 | 1,330.00 | 12180 N | 8526 N | 1080 | 3 | Get quote | |
|
|
2 | 610.00 | 16820 N | 11774 N | 280 | 4 | Get quote | |
|
|
2 | 690.00 | 16820 N | 11774 N | 360 | 4 | Get quote | |
|
|
2 | 770.00 | 16820 N | 11774 N | 440 | 4 | Get quote | |
|
|
2 | 850.00 | 16820 N | 11774 N | 520 | 4 | Get quote | |
|
|
2 | 930.00 | 16820 N | 11774 N | 600 | 4 | Get quote | |
|
|
2 | 1,010.00 | 16820 N | 11774 N | 680 | 4 | Get quote | |
|
|
2 | 1,170.00 | 16820 N | 11774 N | 840 | 4 | Get quote | |
|
|
2 | 1,330.00 | 16820 N | 11774 N | 1000 | 4 | Get quote | |
|
|
2 | 1,490.00 | 16820 N | 11774 N | 1160 | 4 | Get quote | |
|
|
2 | 770.00 | 21460 N | 15022 N | 360 | 5 | Get quote | |
|
|
2 | 850.00 | 21460 N | 15022 N | 440 | 5 | Get quote | |
|
|
2 | 930.00 | 21460 N | 15022 N | 520 | 5 | Get quote | |
|
|
2 | 1,010.00 | 21460 N | 15022 N | 600 | 5 | Get quote | |
|
|
2 | 1,170.00 | 21460 N | 15022 N | 760 | 5 | Get quote | |
|
|
2 | 1,330.00 | 21460 N | 15022 N | 920 | 5 | Get quote | |
|
|
2 | 1,490.00 | 21460 N | 15022 N | 1080 | 5 | Get quote | |
|
|
2 | 930.00 | 26100 N | 18270 N | 440 | 6 | Get quote | |
|
|
2 | 1,010.00 | 26100 N | 18270 N | 520 | 6 | Get quote | |
|
|
2 | 1,170.00 | 26100 N | 18270 N | 680 | 6 | Get quote | |
|
|
2 | 1,330.00 | 26100 N | 18270 N | 840 | 6 | Get quote | |
|
|
2 | 1,490.00 | 26100 N | 18270 N | 1000 | 6 | Get quote | |
|
|
2 | 1,650.00 | 26100 N | 18270 N | 1160 | 6 | Get quote |
* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

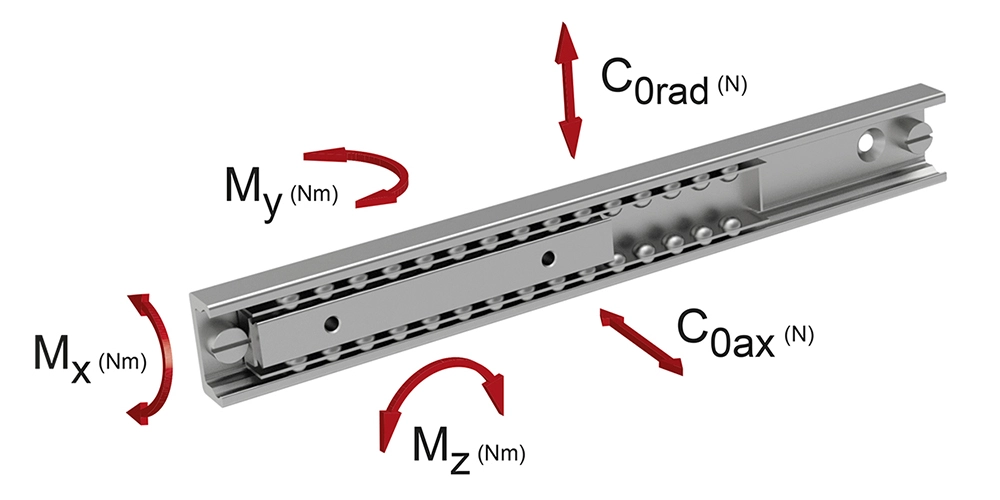

| Designation | A | B | E | F | G | I | J | K | S | T | U | V | Mx moment (Nm) | My moment (Nm) | Mz moment (Nm) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 60 | 10 | 20 | M5 | 17.10 | 24.00 | 35.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 60 | 10 | 20 | M5 | 17.10 | 24.00 | 35.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 60 | 10 | 20 | M5 | 17.10 | 24.00 | 35.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 60 | 10 | 20 | M5 | 17.10 | 24.00 | 35.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 60 | 10 | 20 | M5 | 17.10 | 24.00 | 35.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 80 | 10 | 20 | M5 | 22.70 | 43.00 | 62.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 80 | 10 | 20 | M5 | 22.70 | 43.00 | 62.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 80 | 10 | 20 | M5 | 22.70 | 43.00 | 62.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 80 | 10 | 20 | M5 | 22.70 | 43.00 | 62.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 80 | 10 | 20 | M5 | 22.70 | 43.00 | 62.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 80 | 10 | 20 | M5 | 22.70 | 43.00 | 62.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 130 | 25 | 80 | M5 | 36.90 | 114.00 | 163.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 130 | 25 | 80 | M5 | 36.90 | 114.00 | 163.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 130 | 25 | 80 | M5 | 36.90 | 114.00 | 163.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 130 | 25 | 80 | M5 | 36.90 | 114.00 | 163.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 130 | 25 | 80 | M5 | 36.90 | 114.00 | 163.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 130 | 25 | 80 | M5 | 36.90 | 114.00 | 163.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 130 | 25 | 80 | M5 | 36.90 | 114.00 | 163.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 130 | 25 | 80 | M5 | 36.90 | 114.00 | 163.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 130 | 25 | 80 | M5 | 36.90 | 114.00 | 163.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 130 | 25 | 80 | M5 | 36.90 | 114.00 | 163.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 210 | 25 | 80 | M5 | 59.70 | 298.00 | 426.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 210 | 25 | 80 | M5 | 59.70 | 298.00 | 426.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 210 | 25 | 80 | M5 | 59.70 | 298.00 | 426.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 210 | 25 | 80 | M5 | 59.70 | 298.00 | 426.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 210 | 25 | 80 | M5 | 59.70 | 298.00 | 426.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 210 | 25 | 80 | M5 | 59.70 | 298.00 | 426.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 210 | 25 | 80 | M5 | 59.70 | 298.00 | 426.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 210 | 25 | 80 | M5 | 59.70 | 298.00 | 426.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 210 | 25 | 80 | M5 | 59.70 | 298.00 | 426.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 210 | 25 | 80 | M5 | 59.70 | 298.00 | 426.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 290 | 25 | 80 | M5 | 82.40 | 569.00 | 813.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 290 | 25 | 80 | M5 | 82.40 | 569.00 | 813.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 290 | 25 | 80 | M5 | 82.40 | 569.00 | 813.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 290 | 25 | 80 | M5 | 82.40 | 569.00 | 813.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 290 | 25 | 80 | M5 | 82.40 | 569.00 | 813.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 290 | 25 | 80 | M5 | 82.40 | 569.00 | 813.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 290 | 25 | 80 | M5 | 82.40 | 569.00 | 813.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 290 | 25 | 80 | M5 | 82.40 | 569.00 | 813.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 290 | 25 | 80 | M5 | 82.40 | 569.00 | 813.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 370 | 25 | 80 | M5 | 105.10 | 926.00 | 1,323.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 370 | 25 | 80 | M5 | 105.10 | 926.00 | 1,323.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 370 | 25 | 80 | M5 | 105.10 | 926.00 | 1,323.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 370 | 25 | 80 | M5 | 105.10 | 926.00 | 1,323.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 370 | 25 | 80 | M5 | 105.10 | 926.00 | 1,323.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 370 | 25 | 80 | M5 | 105.10 | 926.00 | 1,323.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 370 | 25 | 80 | M5 | 105.10 | 926.00 | 1,323.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 450 | 25 | 80 | M5 | 127.90 | 1,370.00 | 1,958.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 450 | 25 | 80 | M5 | 127.90 | 1,370.00 | 1,958.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 450 | 25 | 80 | M5 | 127.90 | 1,370.00 | 1,958.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 450 | 25 | 80 | M5 | 127.90 | 1,370.00 | 1,958.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 450 | 25 | 80 | M5 | 127.90 | 1,370.00 | 1,958.00 | Get quote | |
|
|
13 | 28 | 1 | M5 | 7.50 | 12.25 | 15 | 40 | 450 | 25 | 80 | M5 | 127.90 | 1,370.00 | 1,958.00 | Get quote |
