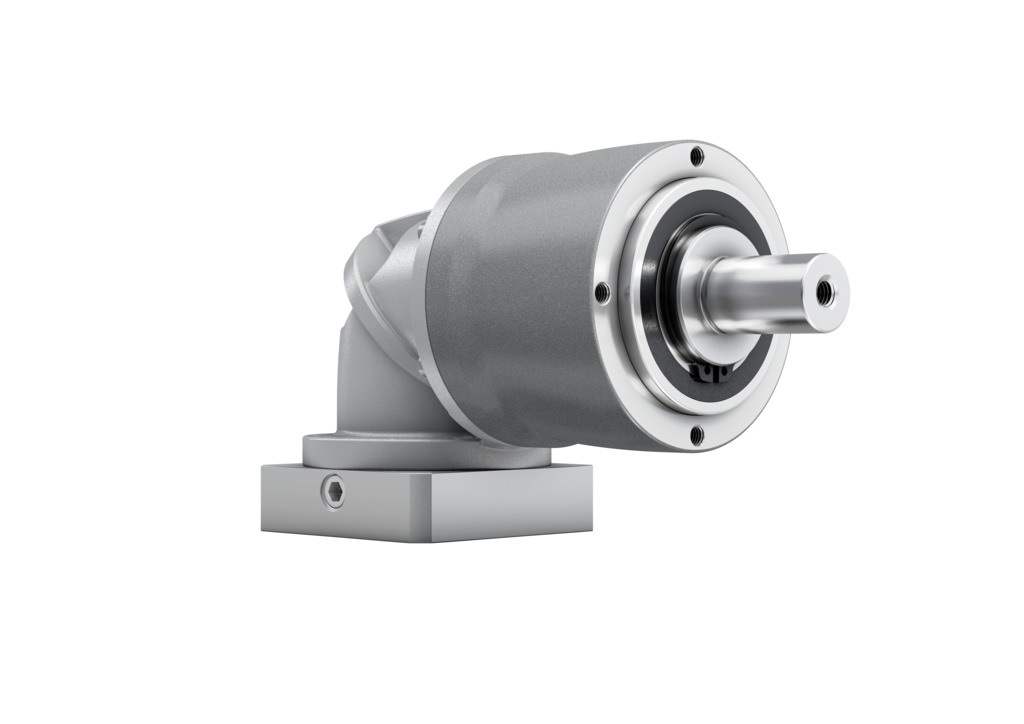

NPK bevel gearbox

Versatile right-angle planetary gearbox. Based on the NP gearbox with an additional bevel-gear input stage. Used where space-constraints does not allow an in-line assembly with the motor. With LP+ B14 output geometry. Smooth or keyed output shaft. The stated maximal backlash is kept throughout the lifetime of the gearbox.
Contact Rollco for CAD-files.

Product Information

Ratio: 3-100

Max. Torque (Nm): 14 - 700

Other models: food-grade lubrication

Technical_information_NPK-NPLK-NPSK-NPTK-NPRK.pdf

Planetary_Gearboxes_Order_Codes.pdf

Operating_manual_NP-NPK-NPL-NPLK-NPR-NPRK-NPS-NPSK-NPT-NPTK-CP-CPS-CPS-CPSK.pdf

Download PDF (all data) Generating PDF

+ Add to PDF catalogue

Configure CAD Download CAD

Designation	Get quote	Lead Time *	Ratio	Size
NPK005	Get quote	2	4/5/7/8/10/16/20/25/28/35/40/50/64/70/100 (Gearbox model Standard)	005
NPK015	Get quote	2	3/4/5/7/8/10/12/15/16/20/25/28/30/32/35/40/50/64/70/100 (Gearbox model Standard)	015
NPK025	Get quote	2	3/4/5/7/8/9/10/12/15/16/20/25/28/30/32/35/40/50/64/70/100 (Gearbox model Standard)	025
NPK035	Get quote	2	3/4/5/7/8/9/10/12/15/16/20/25/28/30/32/35/40/50/64/70/100 (Gearbox model Standard)	035
NPK045	Get quote	2	5/8/10/25/32/50/64/100 (Gearbox model Standard)	045

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
