Linear Unit RHL80
Complete linear unit with rail guide and toothed belt

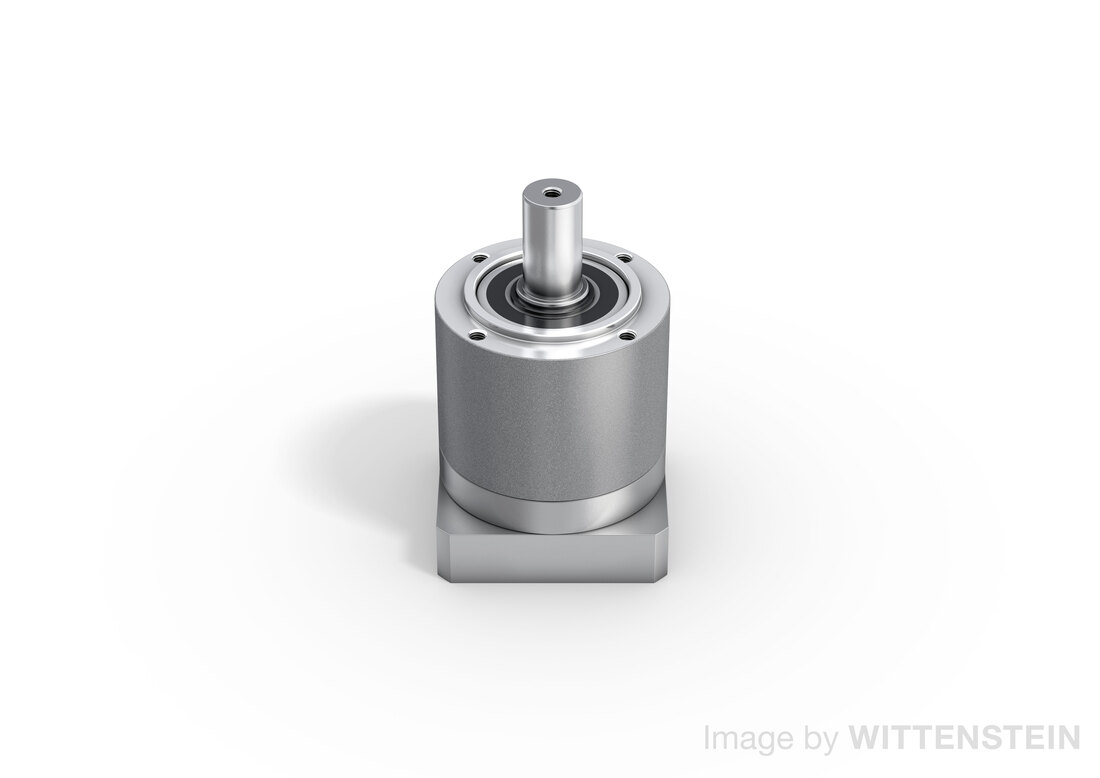

CP planetary gearbox
Economical entry level planetary gearbox with impressive price-performance and quality. CP offers a simple and compact B14 output interface with smooth shaft or with a keyway. The stated maximal backlash is kept throughout the lifetime of the gearbox.
Read more
Product Information
Ratio: 3-100
Max. Torque (Nm): 17 - 800
Other models: food-grade lubrication
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Ratio | Size |
|---|---|---|---|---|---|---|---|
|
|
|
2 | 4 / 5 / 7 / 8 / 10 / 16 / 20 / 25 / 28 / 35 /40 /50 / 70 / 100 | 05 | |||
|
|
|
2 | 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100 | 015 | |||
|
|
|
2 | 3 / 4 / 5 / 7 / 8 / 9 / 10/ 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100 | 025 | |||
|
|
|
2 | 3 / 4 / 5 / 7 / 8 / 9 / 10/ 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100 | 035 | |||
|
|
|
2 | 5 / 8 / 10 / 25 / 50 / 100 | 045 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
Linear Unit RHL110
Complete linear unit with rail guide and toothed belt -
Adapter kit RHL
Connects linear unit RHL with a planetary gearbox.
-
NPS planetary gearbox
Ratio 3-100, Backlash: ≤ 8 -10 arcmin. For medium accuracy. -
NPL planetary gearbox
Ratio 3-100, Backlash: ≤ 8 -10 arcmin. For medium accuracy. -
NPK bevel gearbox
Version of NP with a 90° bevel gear input stage. Backlash ≤ 11 - 15 arcmin. -
NP planetary gearbox
Ratio 3-100, Backlash: ≤ 8 -13 arcmin. For medium accuracy. -
NPSK bevel gearbox
Version of NPS with a 90° bevel gear input stage. Backlash ≤ 11 - 15 arcmin. -
CPS planetary gearbox
Ratio 3-100, Backlash: ≤ 12 -15 arcmin. For medium to low accuracy. -
NPLK bevel gearbox
Version of NPL with a 90° bevel gear input stage. Backlash ≤ 11 - 15 arcmin. -
CPK bevel gearbox
Version of CP with a 90° bevel gear input stage. Backlash ≤ 13 - 20 arcmin. -
CPSK bevel gearbox
Version of CPS with a 90° bevel gear input stage. Backlash ≤ 15 - 18 arcmin.
