NP planetary gearbox

Universally suitable gearbox from alpha Value Line with the best price-performance level. With LP+ B14 output geometry. Smooth or keyed output shaft. Optional available in High Torque execution for ratio 3:1 and 4:1 and products thereof for 2-stage gears. The stated maximal backlash is kept throughout the lifetime of the gearbox.
Contact Rollco for CAD-files.

Product Information

Ratio: 3-100

Max. Torque (Nm): 18 - 800

Other models: food-grade lubrication

Technical_information_NP-NPL-NPS-NPT-NPR.pdf

Planetary_Gearboxes_Order_Codes.pdf

Operating_manual_NP-NPK-NPL-NPLK-NPR-NPRK-NPS-NPSK-NPT-NPTK-CP-CPS-CPS-CPSK.pdf

Download PDF (all data) Generating PDF

+ Add to PDF catalogue

Configure CAD Download CAD

Designation	Get quote	Lead Time *	Ratio	Size
NP005	Get quote	2	4 / 5 / 7 / 8 / 10 / 16 / 20 / 25 / 28 / 35 / 40 / 50 / 64 / 70 / 100	005
NP015	Get quote	2	3 / 4 / 5 / 7 / 8 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 32 / 35 / 40 / 50 / 64 / 70 / 100 (Gearbox model Standard)	015
NP025	Get quote	2	3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16/ 20 / 25 / 28 / 30 / 32 / 35 / 40 / 50 / 64 / 70 / 100 (Gearbox model Standard)	025
NP035	Get quote	2	3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16/ 20 / 25 / 28 / 30 / 32 / 35 / 40 / 50 / 64 / 70 / 100 (Gearbox model Standard)	035
NP045	Get quote	2	5 / 8 / 10 / 25 / 32 / 50 / 64 / 100	045

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

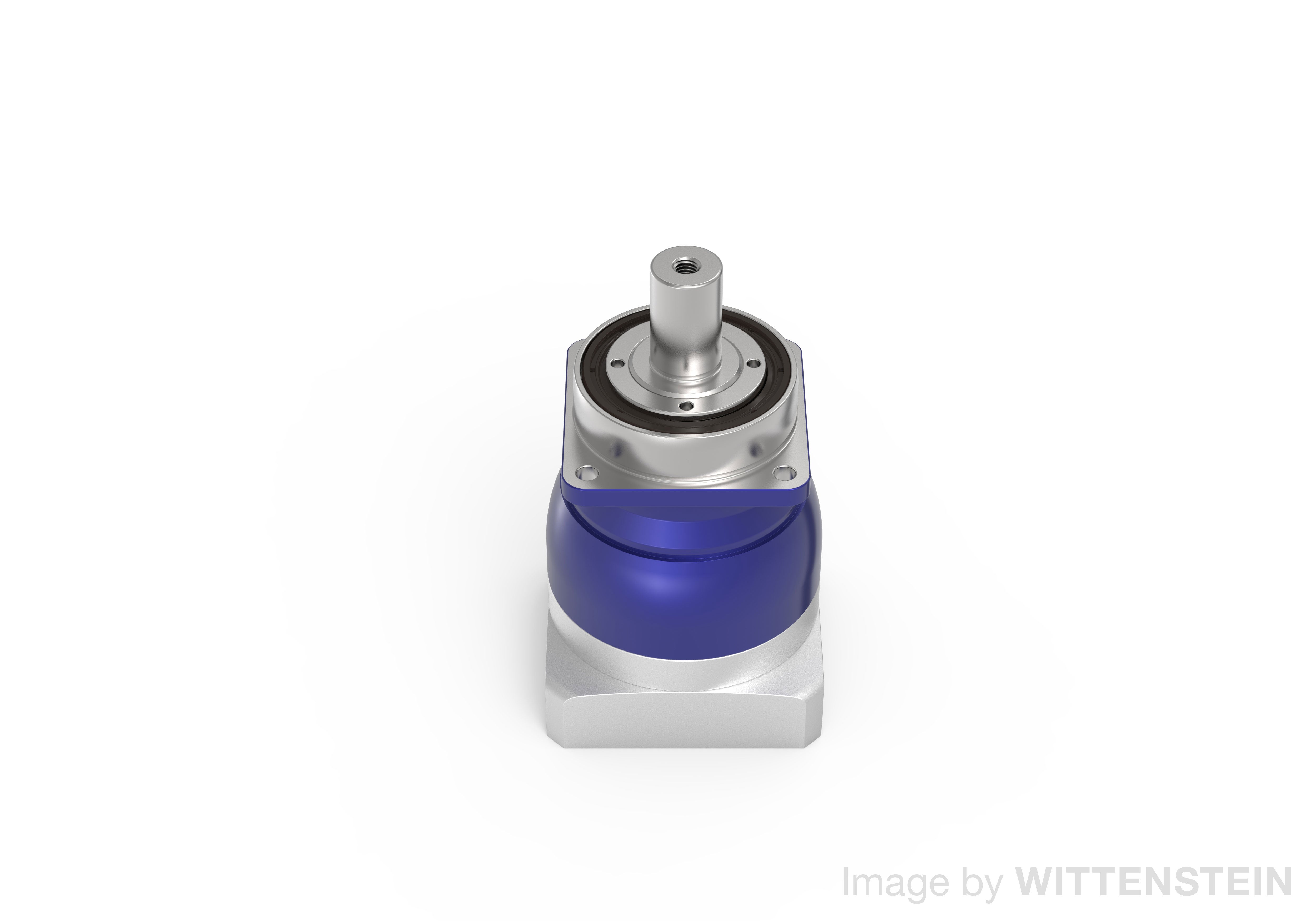

NPS planetary gearbox

Ratio 3-100, Backlash: ≤ 8 -10 arcmin. For medium accuracy.
NPL planetary gearbox

Ratio 3-100, Backlash: ≤ 8 -10 arcmin. For medium accuracy.

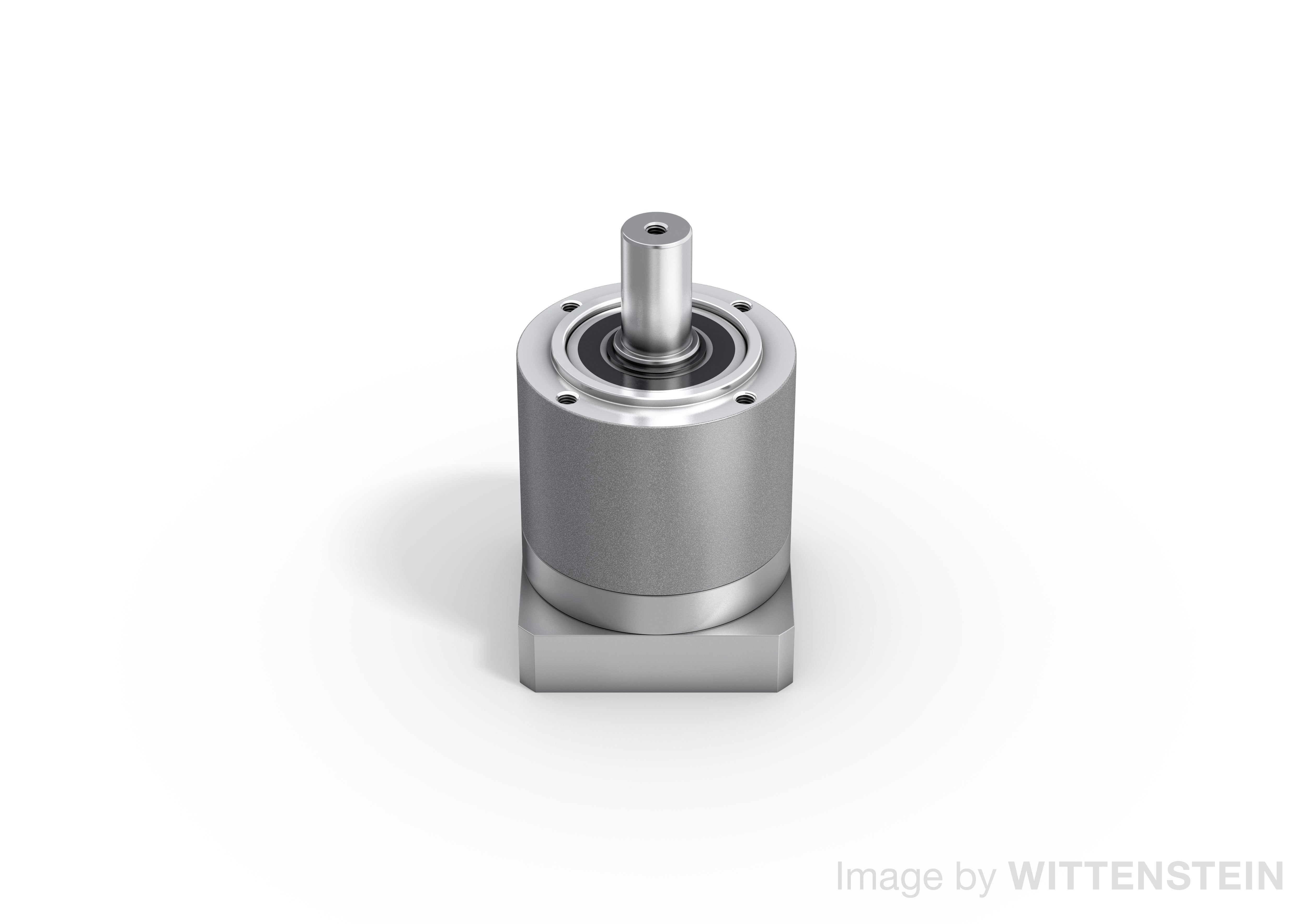

CP planetary gearbox

Ratio 3-100, Backlash: ≤ 12 -18 arcmin. For medium to low accuracy.
NPK bevel gearbox

Version of NP with a 90° bevel gear input stage. Backlash ≤ 11 - 15 arcmin.

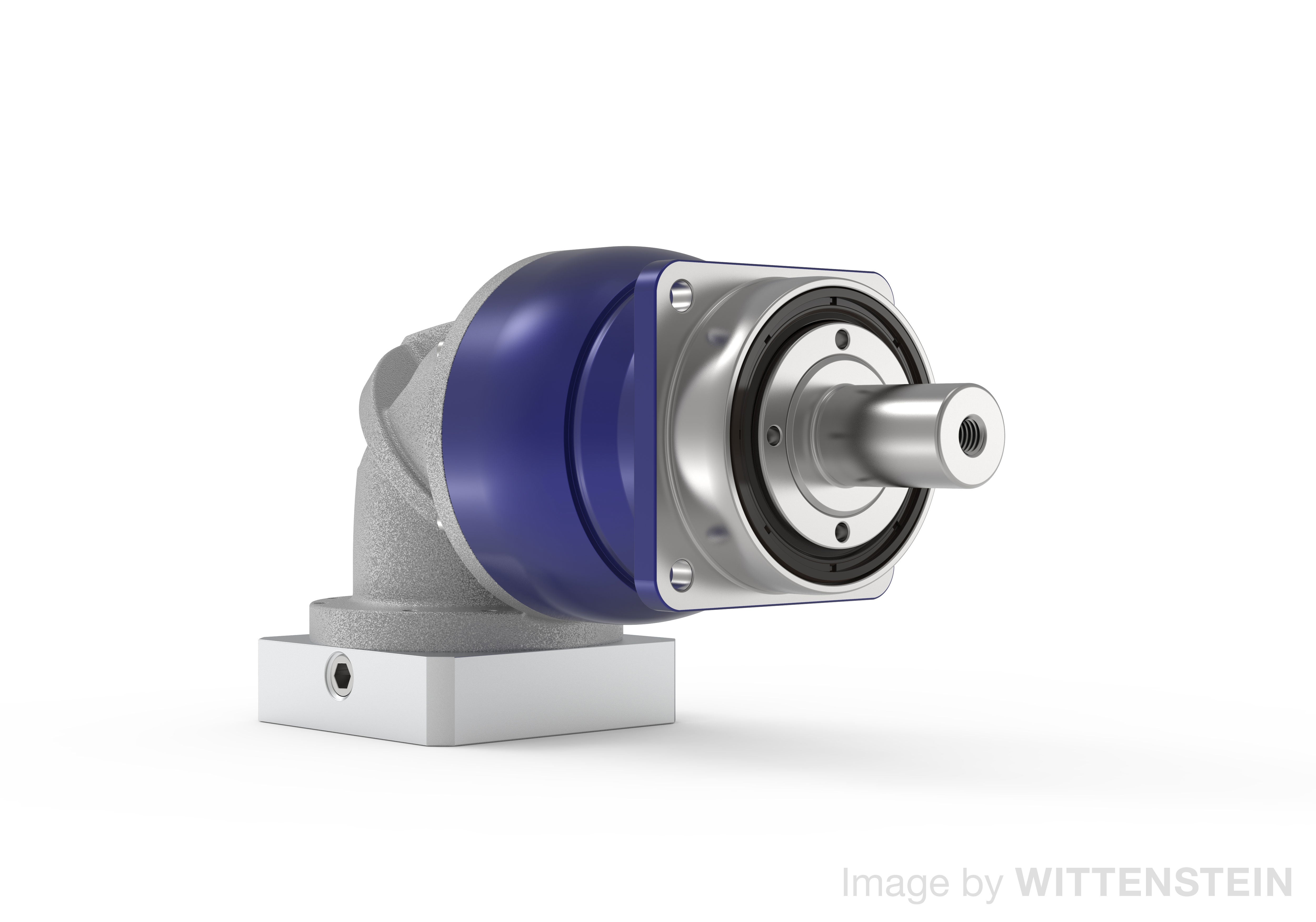

NPSK bevel gearbox

Version of NPS with a 90° bevel gear input stage. Backlash ≤ 11 - 15 arcmin.
COMBINE WITH LINEAR UNIT RHL

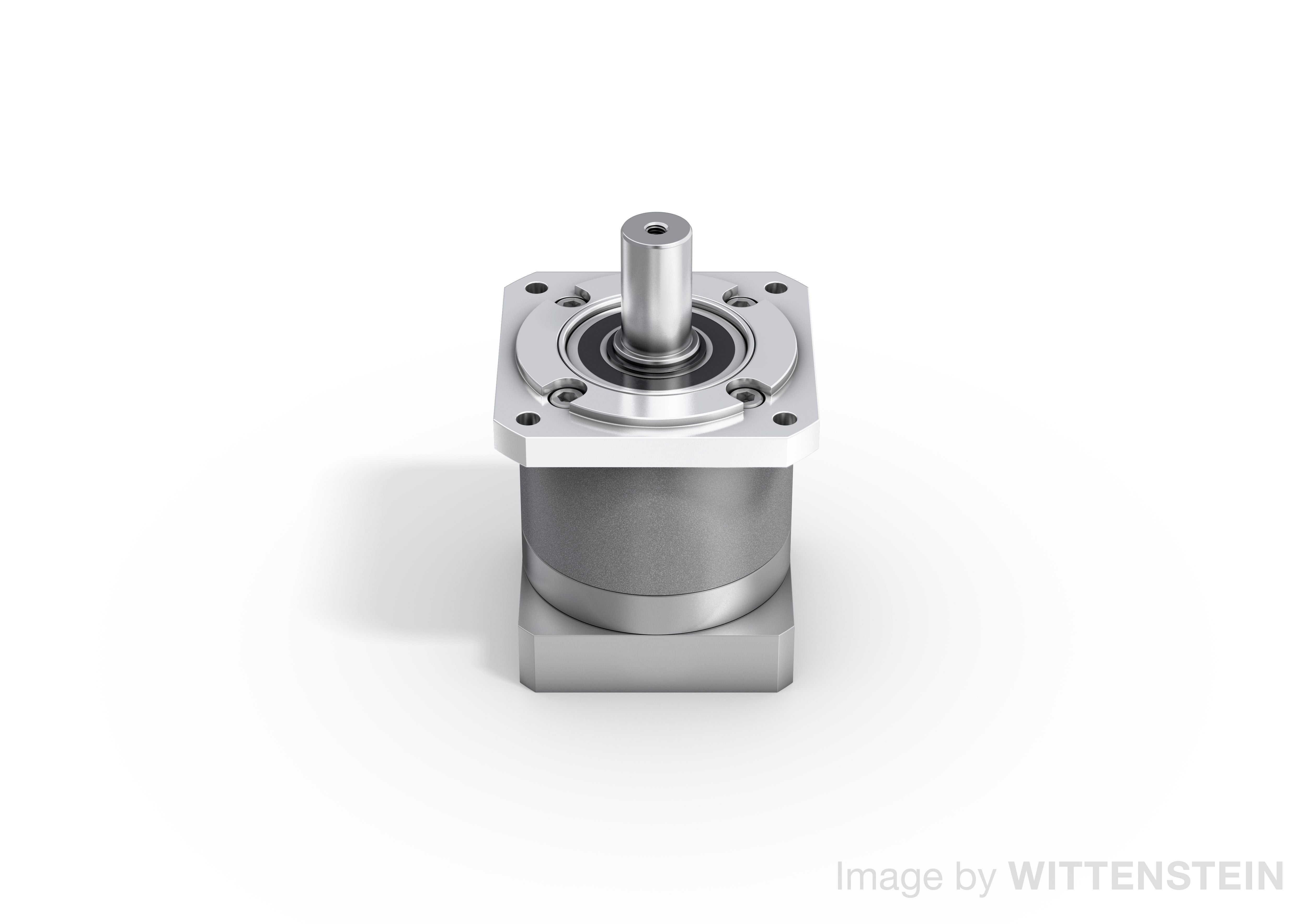

CPS planetary gearbox

Ratio 3-100, Backlash: ≤ 12 -15 arcmin. For medium to low accuracy.

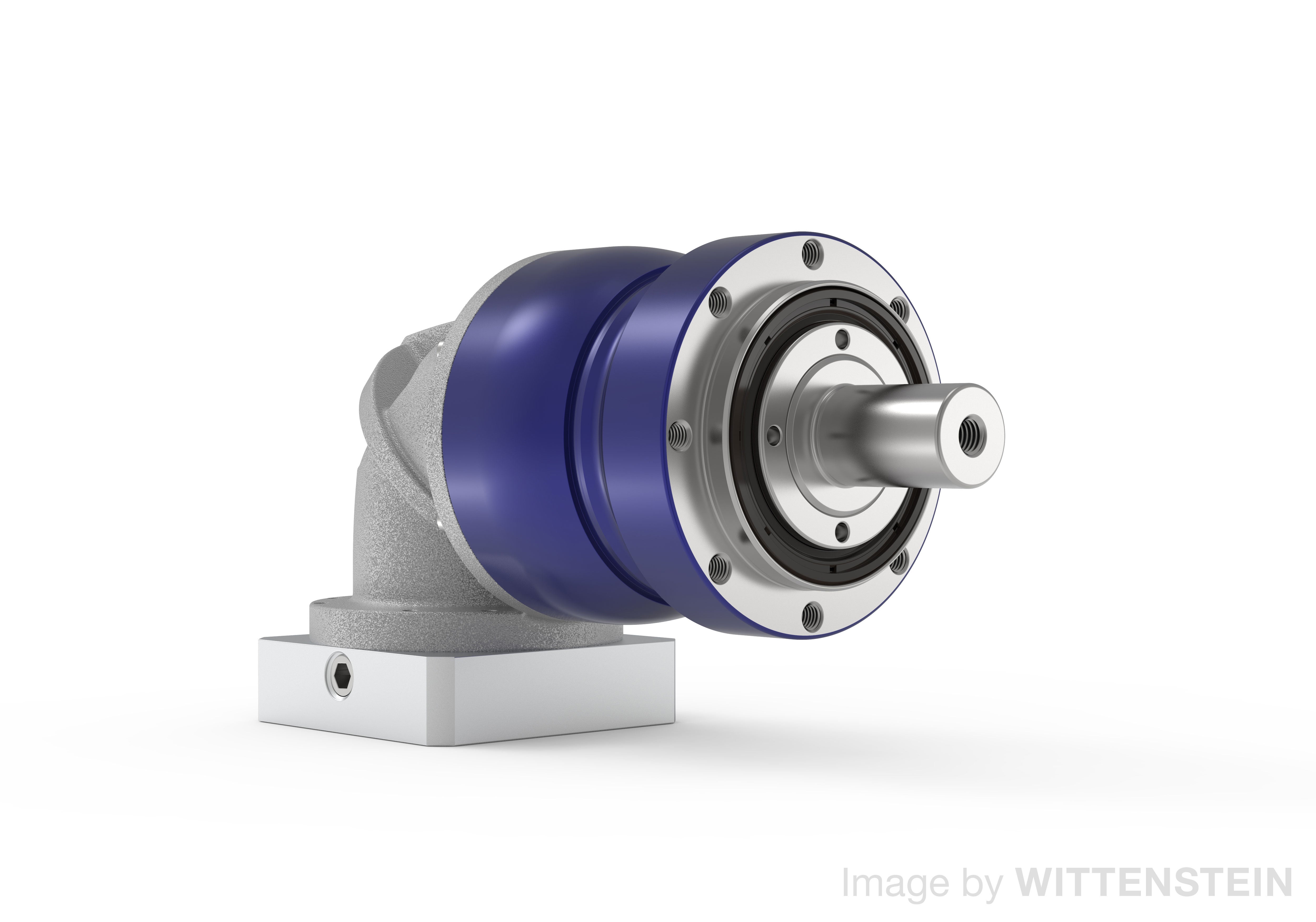

NPLK bevel gearbox

Version of NPL with a 90° bevel gear input stage. Backlash ≤ 11 - 15 arcmin.

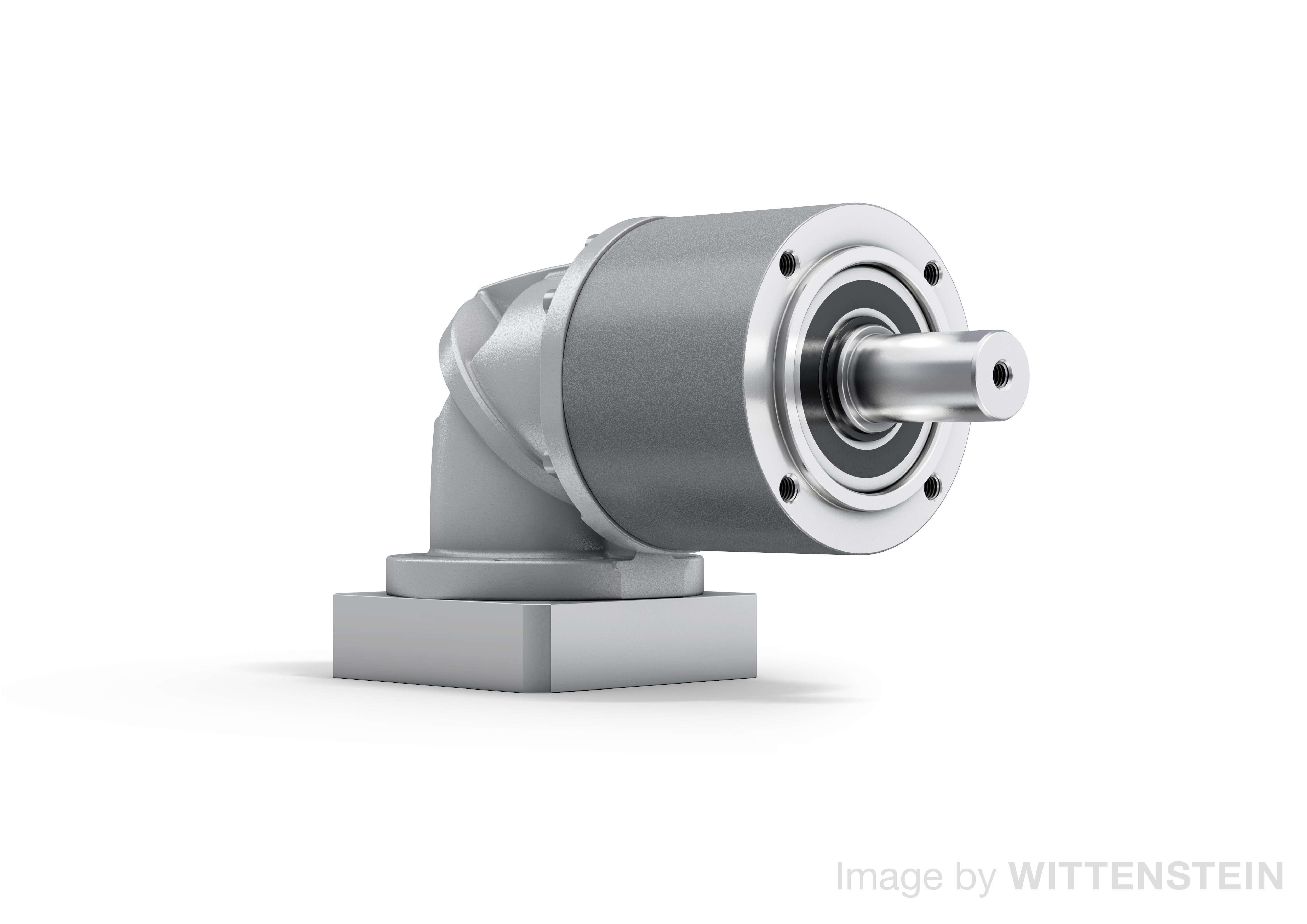

CPK bevel gearbox

Version of CP with a 90° bevel gear input stage. Backlash ≤ 13 - 20 arcmin.
COMBINE WITH LINEAR UNIT RHL

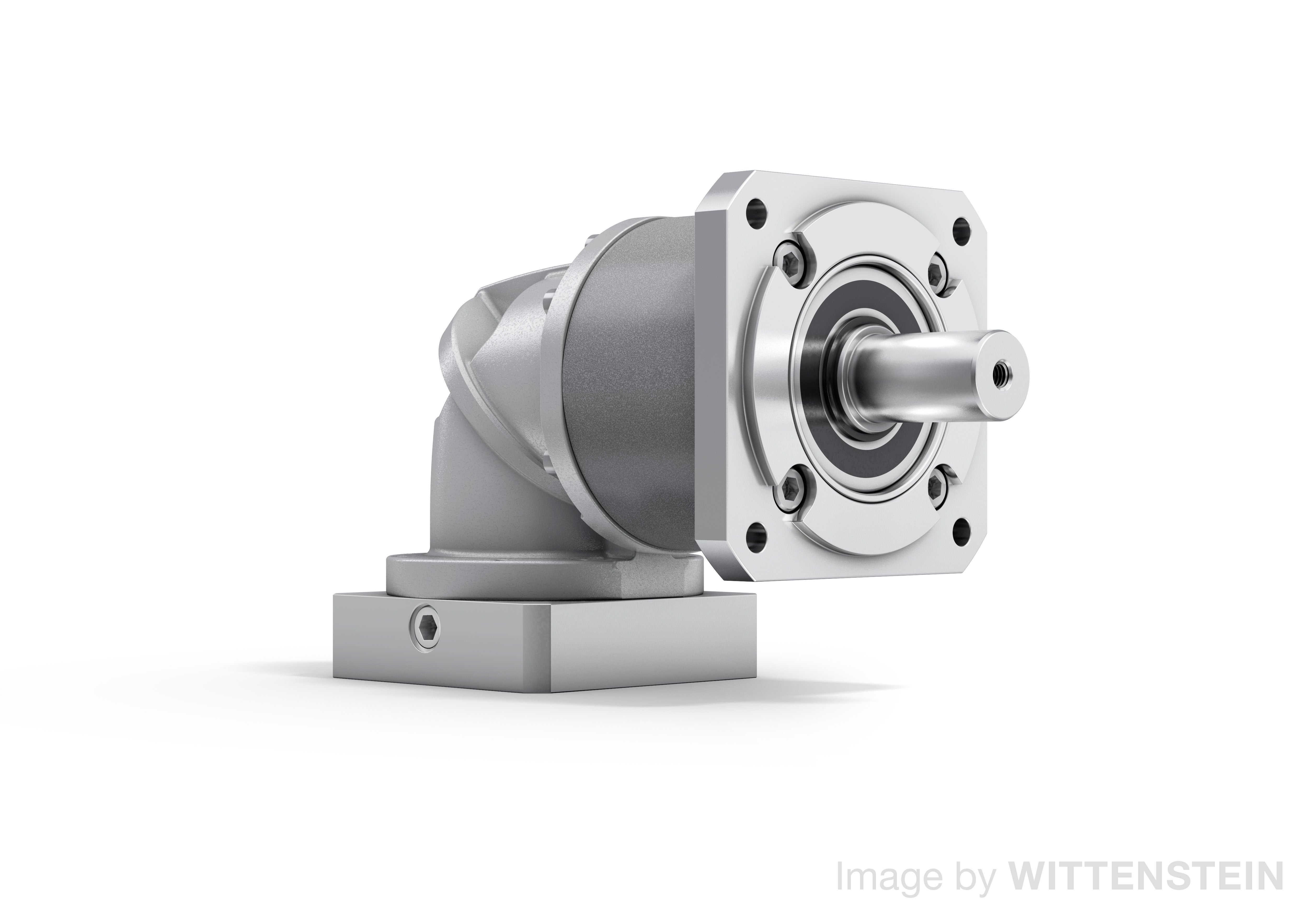

CPSK bevel gearbox

Version of CPS with a 90° bevel gear input stage. Backlash ≤ 15 - 18 arcmin.
