MGTB

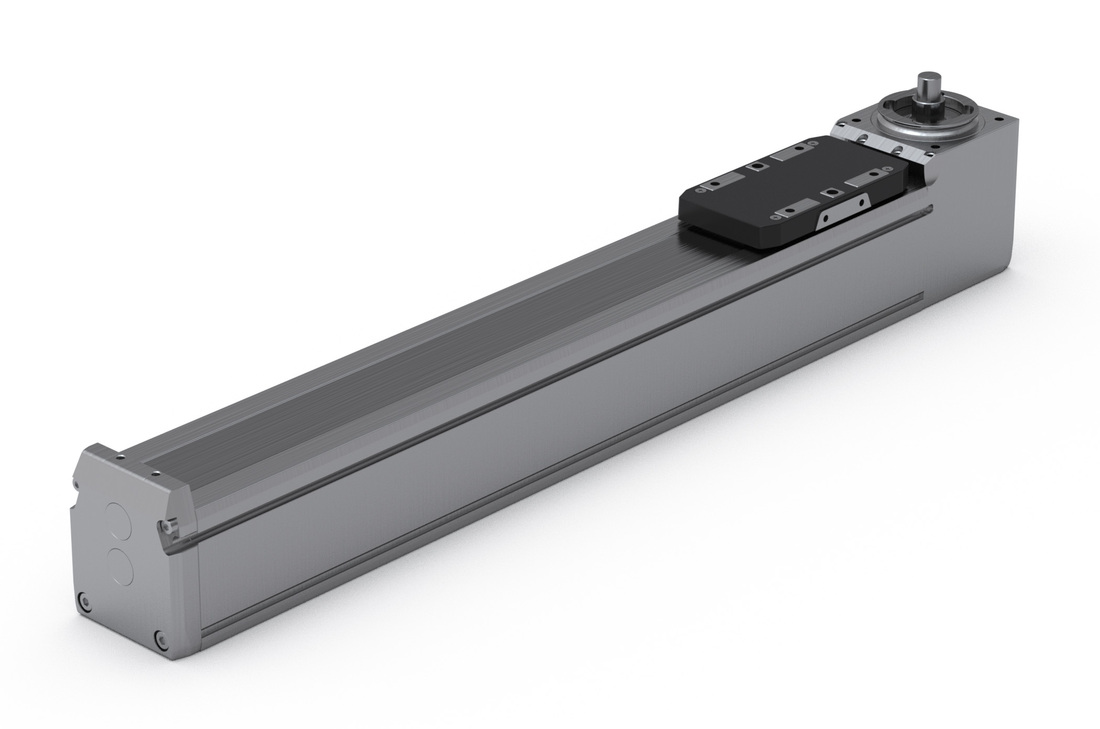

The MGTB is a toothed belt driven mini linear unit where the rotary motion (rotation) of the drive shaft is converted to the linear motion (translation) of the carriage with high mechanical efficiency and low internal friction.

High-performance features such as high speed, good positioning accuracy, and high repeatability are ensured through a zero-backlash toothed belt drive and a linear guiding system.

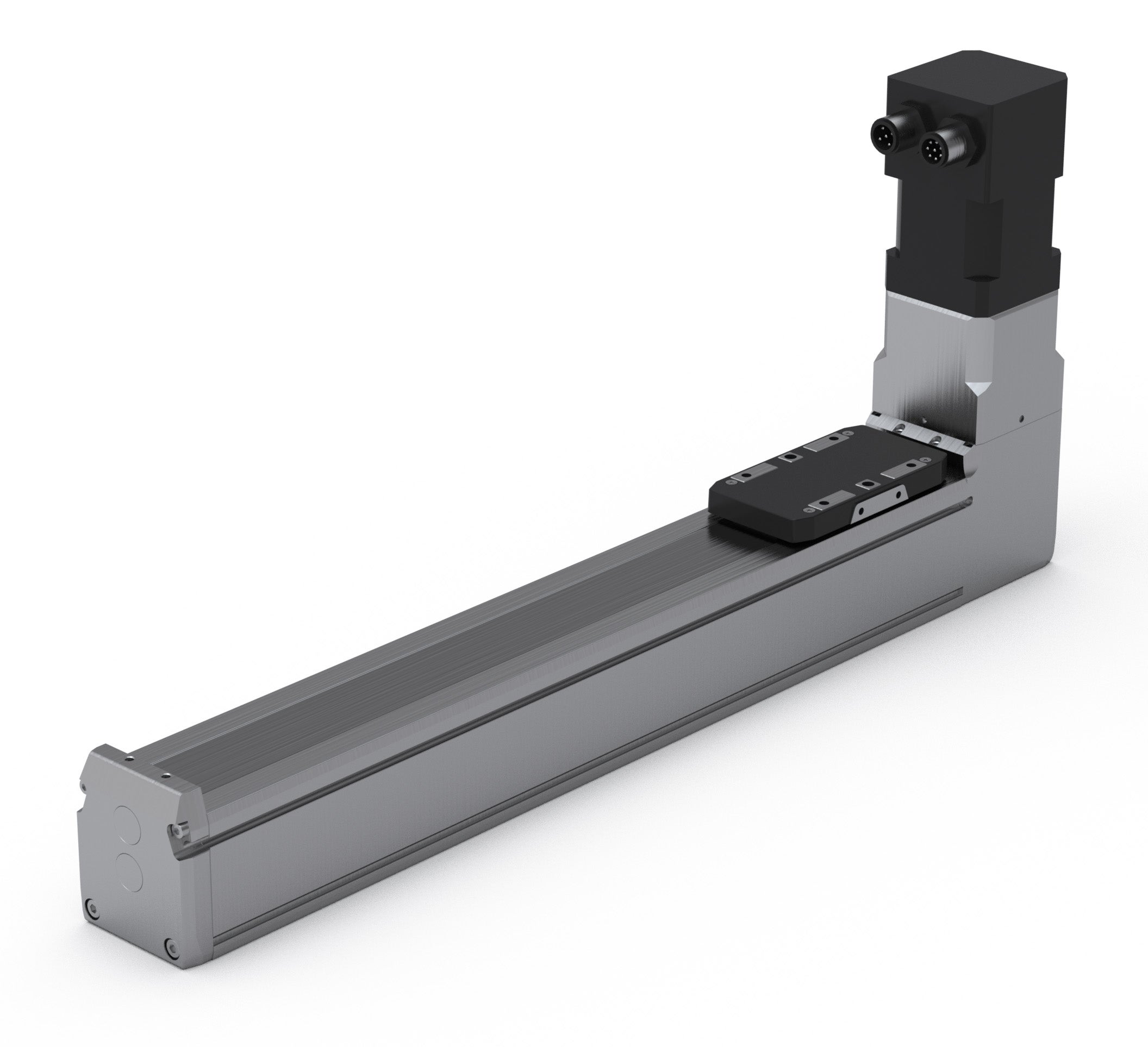

A preassembled standard motor (with a motor adapter and a coupling) together with the standard drive, makes the system plug and drive ready. Compact dimensions and optimally selected motor combinations cover a wide range of applications.

Options, such as different motor sizes, together with a wide range of accessories and possible multi-axis system combinations make this product highly flexible.

□ = Square cross section

Dimensions in mm.

For other CAD files, please contact Rollco.
Read more

Product Information

Ambient Temperature (°C): 0 °C ~ +50 °C
Ambient Temperature without a Motor (°C): 0 °C ~ +60 °C
Protection Class: IP40
Duty Cycle: 100 %
Maintenance: Life-time pre-lubricated
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD CAD Compare Get quote Lead Time * Description Dynamic Load Capacity C (N) Dynamic Moment Mx (Nm) Dynamic Moment My (Nm) Dynamic Moment Mz (Nm) Max. Permissible Loads Forces Fpy (N) Max. Permissible Loads Forces Fpz (N) Max. Permissible Loads Moments Mpx (Nm) Max. Permissible Loads Moments Mpy (Nm) Max. Permissible Loads Moments Mpz (Nm) Max. Repeatability (mm) Absolute Stroke Pulley Drive Ratio (mm/rev) Pulley Diameter (mm) Max. Permissible Axial Load Fpa (N) Max. Permissible Payload Horizontal mph (kg) Max. Permissible Payload Vertical mpv (kg) Max. Drive Torque Mₚ (Nm) No Load Torque M₀ (Nm) Max. Permissible Radial Load on Shaft Fpr (N) Max. Travel Speed Vmax (m/s) Max. Rotational Speed (rev/min) Max. Acceleration (m/s²) Moved Mass (kg) Mass of Linear Unit (kg) Mass Moment of Inertia JMGTB (10⁻² kg cm²) Planar Moment of Inertia ly (cm⁴) Planar Moment of Inertia lz (cm⁴)
2 Without a motor 1310 4.8 4.1 4.1 200 300 2.0 1.8 1.3 ± 0.08 100, 200, 300, 400, 500, 600, 700, 800, 1000, 1200, 1400, 1600 66 21.00 65 31 5.4 0.68 0.07 50 1500 1365 20 0.06 0.37 + 0.0012 × Abs. Stroke 9.19 + 0.0024 × Abs. Stroke + 110.339 × mload 4.3 4.6
2 Without a motor 3240 20.1 17.4 17.4 400 700 7.4 6.3 4.7 ± 0.08 100, 200, 300, 400, 500, 600, 700, 800, 1000, 1200, 1400, 1600 63 20.05 85 42 7.1 0.85 0.20 100 1500 1430 20 0.15 0.92 + 0.0023 × Abs. Stroke 18.80 + 0.0022 × Abs. Stroke + 100.536 × mload 14.3 15.9
2 Without a motor 11190 77.4 79.8 79.8 850 2000 29.2 30.8 31.8 ± 0.08 100, 200, 300, 400, 500, 600, 700, 800, 1000, 1200, 1400, 1600, 1800, 2000 78 24.83 130 65 11 1.61 0.40 200 1500 1155 20 0.45 2.12 + 0.0041 × Abs. Stroke 81.72 + 0.0040 × Abs. Stroke + 154.110 × mload 43.8 50.3

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD CAD Compare Get quote Lc L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 L12 L13 L14 L15 L16 L17 L18 L19 L20 L21 L22 L23 L24 L25 L26 L27 L28 L29 L30 L31 L32 L33 L34 L35
65 104 32.75 8 2.5 36.5 38.5 35.75 32 4.4 23.7 4 5.9 18 M2 4 14.6 18.4 22.5 30 35 M3 2 (H7) 5 7 5 (h7) 22.6 25 (h7) 14 2.3 4.5 15.75 24.5 M3 3 37.75
75 124 49 10 4.3 44.7 54 52.25 45 4.4 36.5 5 7.8 18 M3 6 18.6 16.4 32 42 42 M4 4 (H7) 6 8 8 (h7) 31.6 34 (h7) 16 2.3 4.5 22.25 34 M4 10 54.85
90 139 64 12 3.2 45.8 72 68.75 60 4.4 45 6 11 30 M4 6 25.4 38.4 45 57 55 M5 5 (H7) 8 10 10 (h7) 39.6 42 (h7) 20 2.3 4.5 29.75 48 M5 10 72.50
