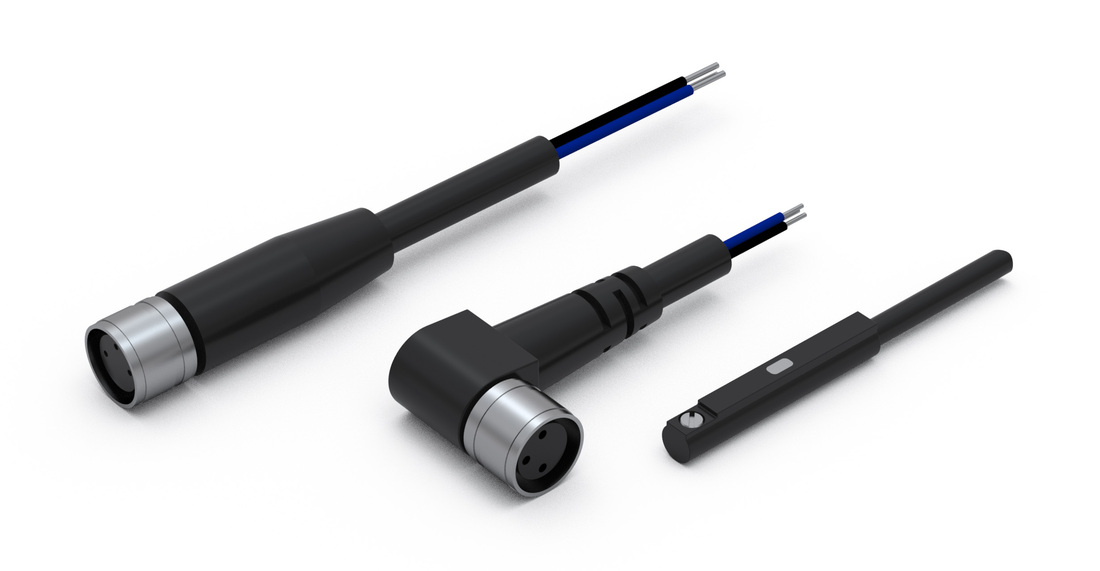

Magnetic field sensors

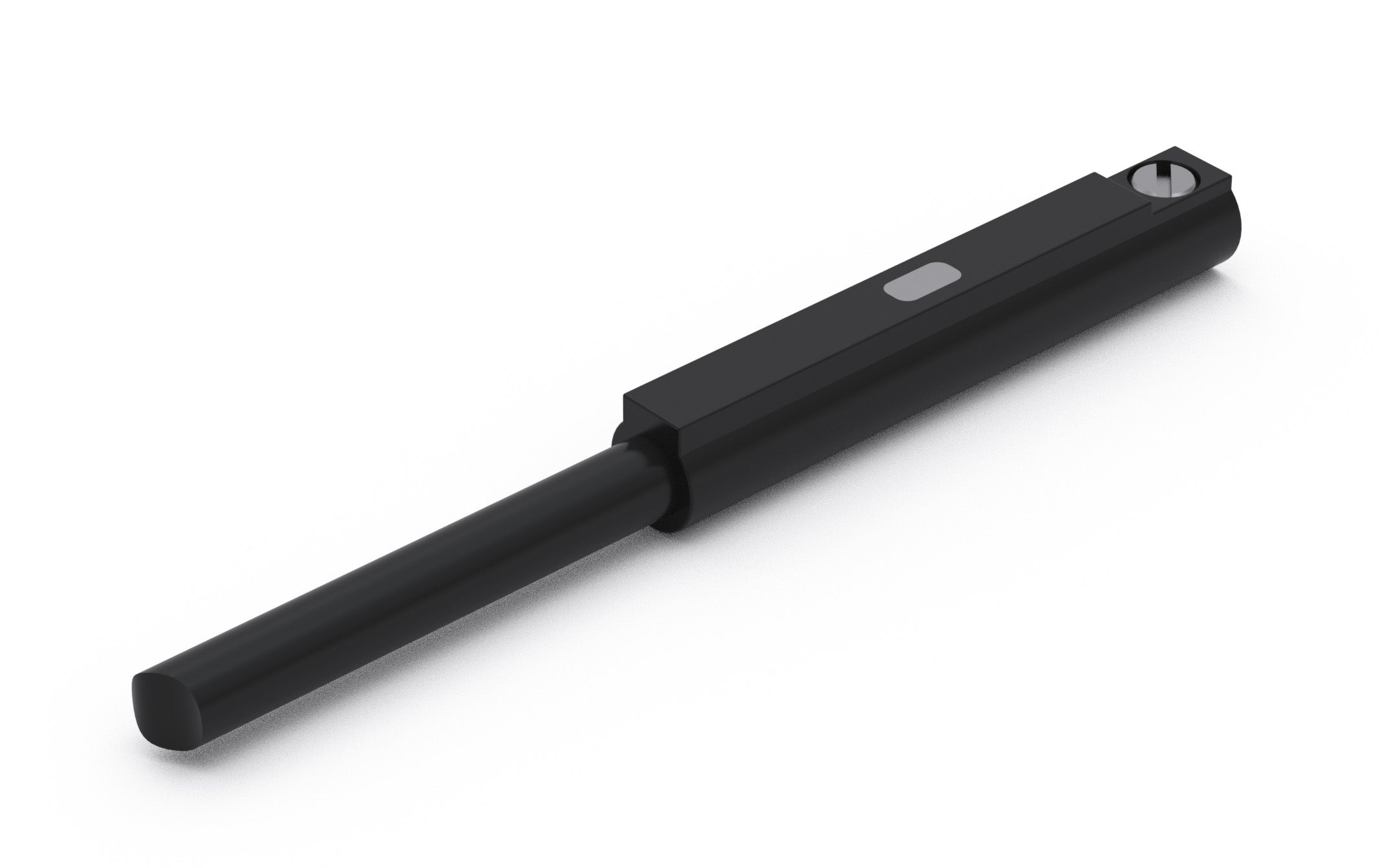

Magnetic field sensors can be mounted using the slot for the magnetic field sensor, placed on both sides of the MGBS / MGTB profile.
Dimensions in mm.
Dimensions in mm.
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
Product Information
Function principle: Magnetic
Switching function: NC normally close ; NO normally open
Wiring method: 3-wire type
Sensor Type: PNP current sourcing
Operating Voltage (V DC): 5 ~ 30
Max. Switching Current (mA): 200
Contact rating: 6 W max.
Voltage drop: 0,5 V @ 200 mA max.
Current consumption: 6 mA @ 24 V DC max.
Max. Leakage Current (mA): 0,01
Operating Frequency (Hz): 1000 max.
Ambient Temperature (°C): –10 ~ +70
Shock/vibration: 50 G / 9 G
Protection Class: IP67
LED indicator: Green
Electrical connection: M8, 3-pin
Cable (Diameter, Material, Length): ∅2,8 mm, PUR, 150 mm
Extension cable: Energy chain compliant
| Designation | Select all | Lead Time * | Type | Compatible with | Length (m) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
/storage/AF007562BBE1D10090608A09DE7026164AFB7AC73B65B2E08F287E8829640E77/ef625547f53b4c58b0cb0e3552046c22/STP/media/8bd3d8a7a5b840d1b494b88cfd3335f1/CAD_SMO-40-TP-K-NC-109125_MagneticFieldSensor_Rollco.STP | 2 | - | MGBS/MGTB | - |
|
||
|
|
/storage/493F4FB782E4DDFDB58DA42CBEF9DC508B78BC029D4F562789ACA12208E1C73E/fe22d37a8ba64456bc1839c0ade214f3/STP/media/2357af3c3860473e8e70aec3ad92720f/CAD_SMO-40-TP-K-NO-12259_MagneticFieldSensor_Rollco.STP | 2 | - | MGBS/MGTB | - |
|
||
|
|

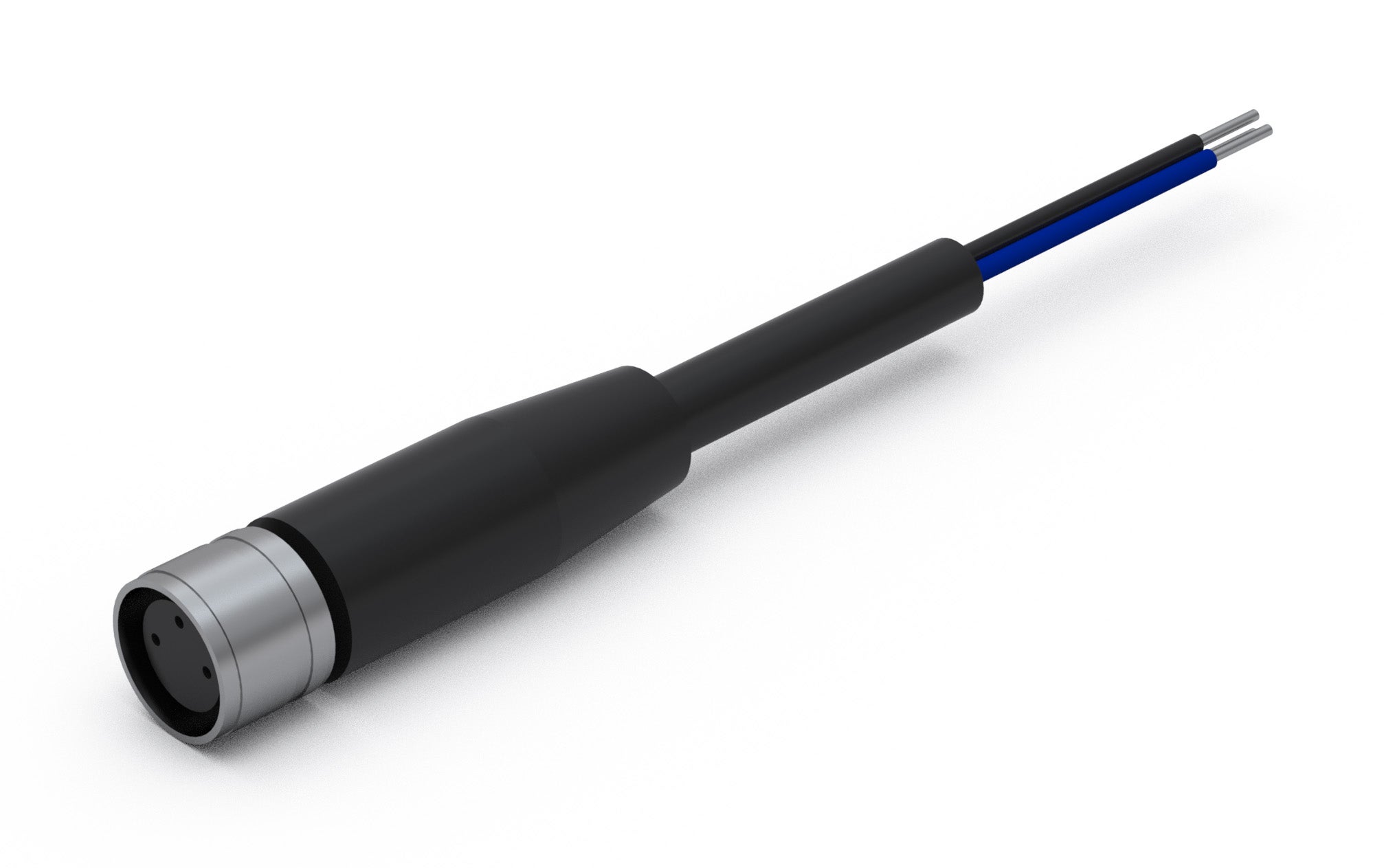

2 | Straight connector extension cable | SMO 40 TP K NC/SMO 40 TP K NO | 2 |
|
|||
|
|
/storage/C26A4C5CD2EB5D3FDC733A16A15325D046370FE94DF929C82E3A0B883318C491/e3bbb009d25147cbb29fff139fc68436/stp/media/28c0d9e5ad7a4b1cb510271014090228/CAD_ExtensionCable-8147_MagneticFieldSensor_Rollco.stp | 2 | Straight connector extension cable | SMO 40 TP K NC/SMO 40 TP K NO | 5 |
|
||
|
|

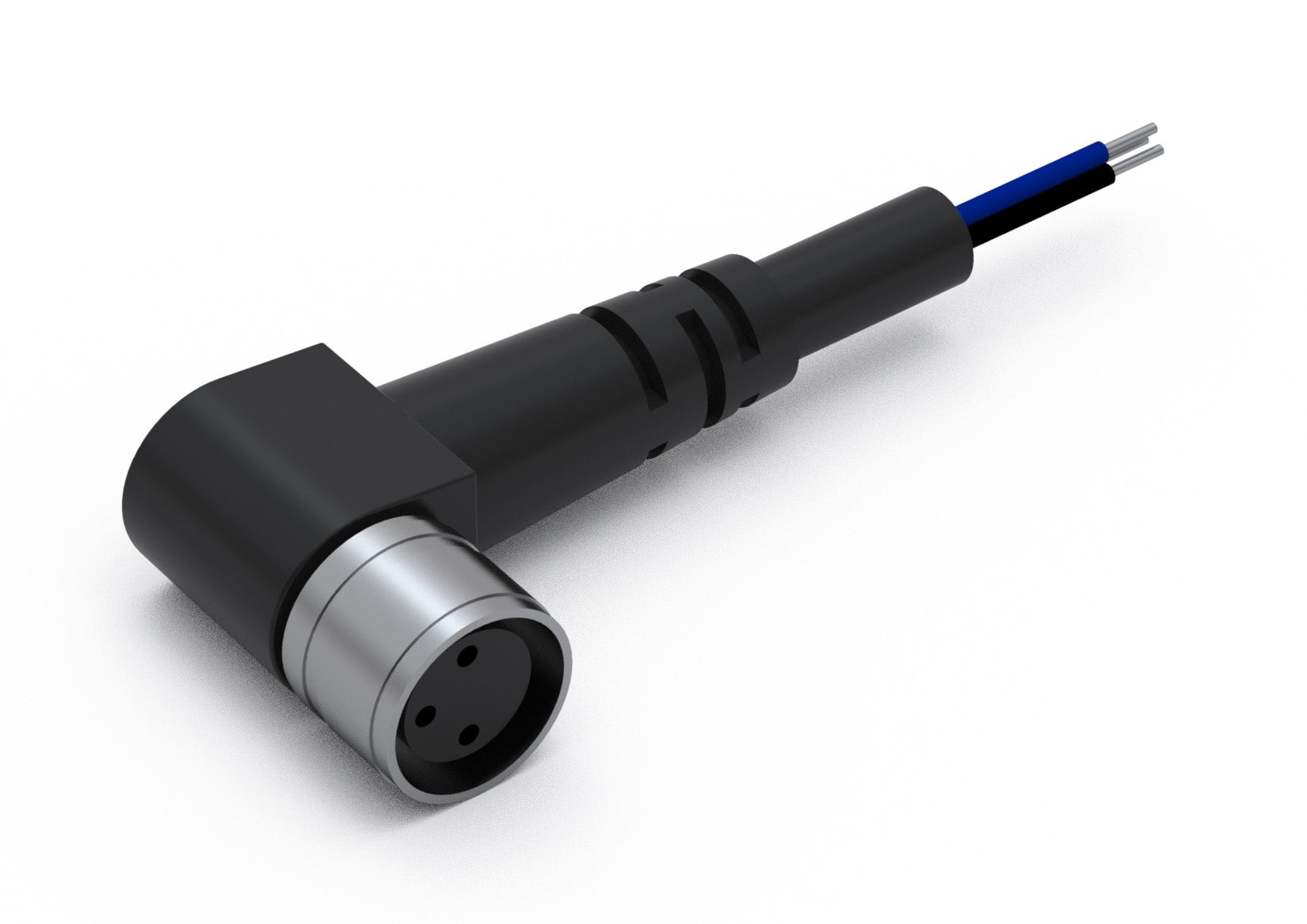

/storage/21B39BB86109694912954023D448840AF1FF604D337247AC375E4A579745C350/0025efcb1fa1456fbed150fc1262f335/stp/media/fd72caf7506548b3aedce84bdf9f332f/CAD_ExtensionCable-9017_MagneticFieldSensor_Rollco.stp | 2 | Angled connector extension cable | SMO 40 TP K NC/SMO 40 TP K NO | 2 |
|
||
|
|
/storage/957CCCB9DEB95CE4335D521712EDC3CEF9EE104364B3248B685F35D6F254171D/e499b945dee246bcb2188065a0f1b651/stp/media/47000bf65f6e4d9e899813a404b6a572/CAD_ExtensionCable-9019_MagneticFieldSensor_Rollco.stp | 2 | Angled connector extension cable | SMO 40 TP K NC/SMO 40 TP K NO | 5 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
