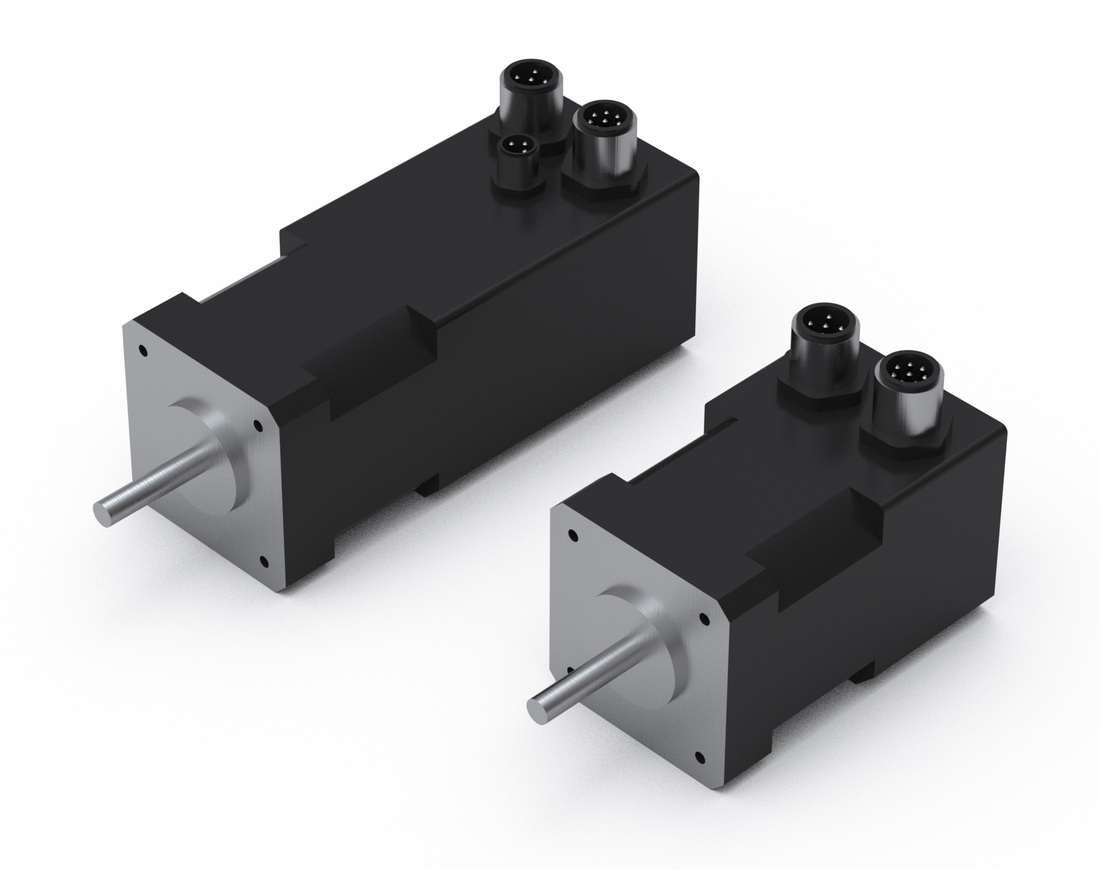

Motor

For Mini Linear Units MGBS & MGTB and MCE & MSCE Mini Electric Cylinders & Sliders.

See documentation below for more information.

Dimensions in mm.
Download PDF (all data) Generating PDF
+ Add to PDF catalogue

Product Information

Ambient Temperature (°C): –10 ~ +50
Ambient Humidity: Max. 85 % (non-condensing)
Protection Class: IP65
Duty Cycle: 100 %
MGBS_MGTB_Stepper_Systems.pdf
MGBS_MGTB_Motor_Order_Codes.pdf
Mini_Linear_Units_MGBS_MGTB_Technical_Information.pdf
MCE_MSCE_Mini_Electric_Cylinders_Sliders_Technical_Information.pdf
Designation Select all Lead Time * Compatible with Motor Type Motor Size (mm) Brake Voltage (V DC) Current per Phase (A) Mass Moment of Inertia (kg cm²) Holding Torque (Nm) Step Angle (°) Resistance per Phase (Ohm) Inductance per Phase (mH) Voltage Constant (mV/min⁻¹) Mass (kg) Type Measuring Principle Interface Resolution Operating Voltage (V DC) Rated Output (W) CAD Compare

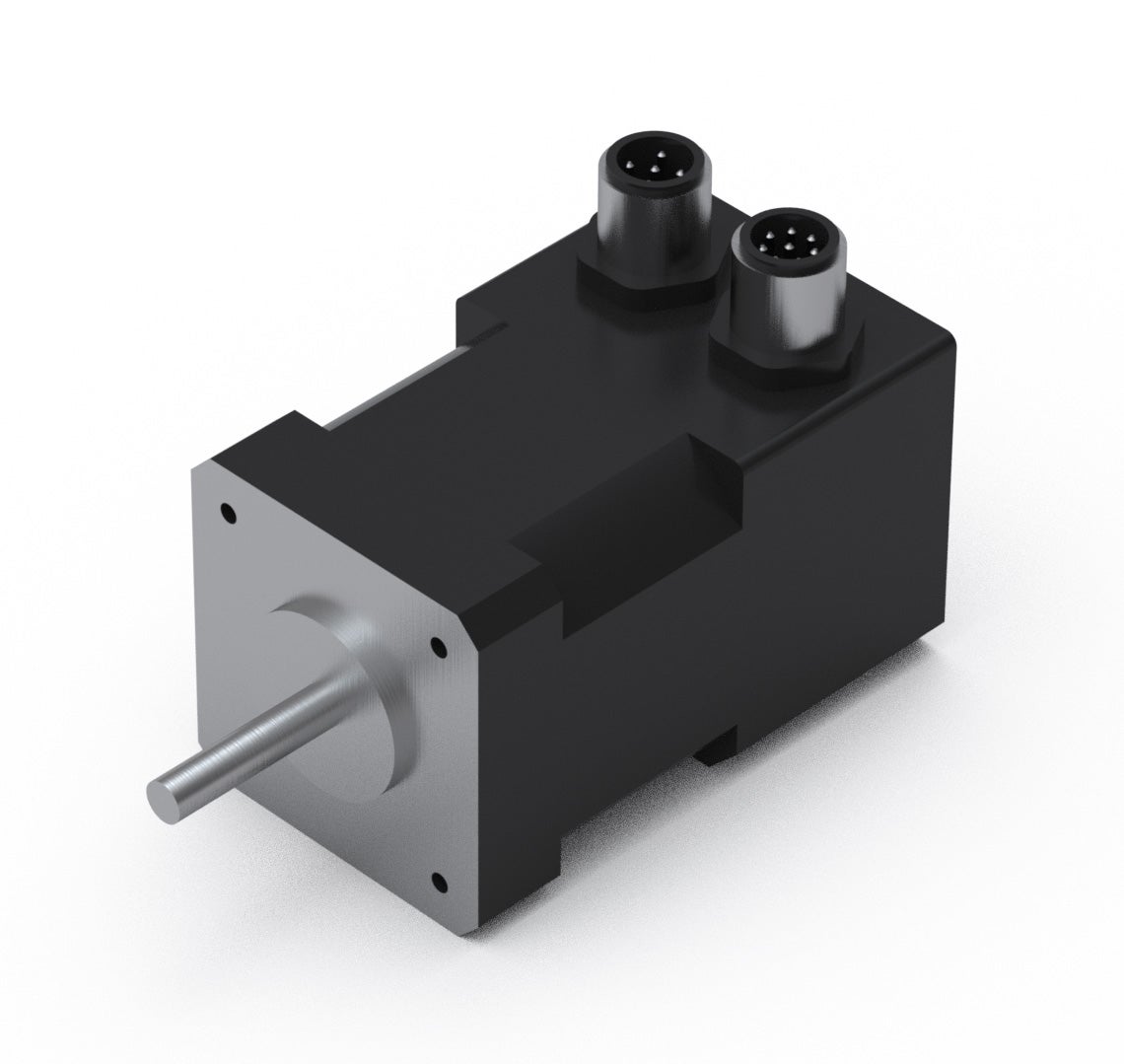

/storage/1FB0CCE8BDCB935E61B834BF5B4429FC2E3B7257186C4E291E39319389BFE045/074c091e48d44c4aadaef41a7a5379f8/STP/media/9c418c064f4a42ff84bcaf5baad36c58/CAD_STMN-42-L-E_Motor_Rollco.STP 2 MGBS/MGTB 32 & 45, MCE/MSCE 32 & 45 Stepper 42 Without 3.15 1.8 0.082 0.5 1.8 ± 5 % 1.75 ± 15 % 3.3 ± 20 % 23 0.44 Incremental Opto-electrical Line drive 500/2000 (cpr/ppr) 5 8
Get quote

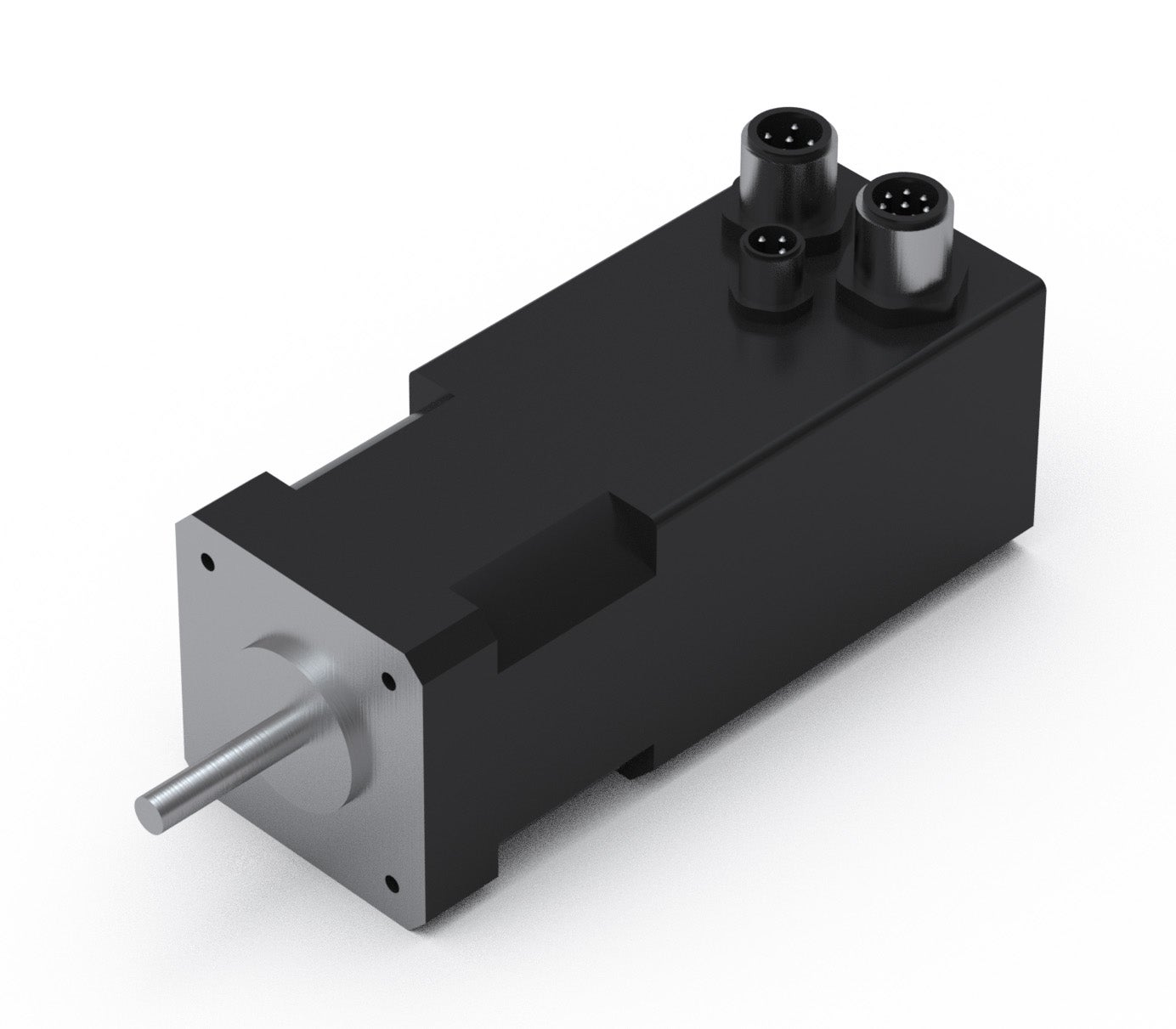

/storage/C26879F772D0EE184C124FEED8FB91E31A7E772452F01032BE5DE752F2B5C487/9b964f38599f49ae961f11e6a4cb55f7/STP/media/bd719b56439340d9af12a4a269b0fb0c/CAD_STMN-42-L-E-B_Motor_Rollco.STP 2 MGBS/MGTB 32 & 45, MCE/MSCE 32 & 45 Stepper 42 With 3.15 1.8 0.095 0.5 (motor); 0.4 (brake) 1.8 ± 5 % 1.75 ± 15 % 3.3 ± 20 % 23 0.57 Incremental Opto-electrical Line drive 500/2000 (cpr/ppr) 5 (encoder) ; 24 (+6/–10 %) (brake) 8
Get quote
/storage/047F310974305F4EEB5E30A8691A13AF2D5868F04269BAD15359A3D7A811D439/49fb9d63c6114f69938516cf7392cf14/STP/media/f198138510ba442bb49095241c962fd2/CAD_STMN-56-L-E_Motor_Rollco.STP 2 MGBS/MGTB 45 & 60, MCE/MSCE 45 Stepper 56 Without 2.4 4.2 0.480 1.87 1.8 ± 5 % 0.58 ± 15 % 1.9 ± 20 % 32.5 1.14 Incremental Opto-electrical Line drive 500/2000 (cpr/ppr) 5 10
Get quote
/storage/C6DAE750A924ED8F9EE8700B86DB5E90EE20E3F0C88F54414EB5C6B6CDFD0F16/1367ce8729674cbdbef128ec25c9d98d/STP/media/ad3b9848d0ae4a25af1a4fb5f11a452e/CAD_STMN-56-L-E-B_Motor_Rollco.STP 2 MGBS/MGTB 45 & 60, MCE/MSCE 45 Stepper 56 With 2.4 4.2 0.501 1.87 (motor) ; 1.0 (brake) 1.8 ± 5 % 0.58 ± 15 % 1.9 ± 20 % 32.5 1.33 Incremental Opto-electrical Line drive 500/2000 (cpr/ppr) 5 (encoder) ; 24 (+6/–10 %) (brake) 10
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all E1 E2 E3 E4 E5 E6 E7 E8 E9 E10 CAD Compare
/storage/1FB0CCE8BDCB935E61B834BF5B4429FC2E3B7257186C4E291E39319389BFE045/074c091e48d44c4aadaef41a7a5379f8/STP/media/9c418c064f4a42ff84bcaf5baad36c58/CAD_STMN-42-L-E_Motor_Rollco.STP M12 5-pole M12 8-pole - 14 14 19.5 - - 70.4 42.3
Get quote
/storage/C26879F772D0EE184C124FEED8FB91E31A7E772452F01032BE5DE752F2B5C487/9b964f38599f49ae961f11e6a4cb55f7/STP/media/bd719b56439340d9af12a4a269b0fb0c/CAD_STMN-42-L-E-B_Motor_Rollco.STP M12 5-pole M12 8-pole M8 3-pole 14 14 19.5 9 27 106.4 42.3
Get quote
/storage/047F310974305F4EEB5E30A8691A13AF2D5868F04269BAD15359A3D7A811D439/49fb9d63c6114f69938516cf7392cf14/STP/media/f198138510ba442bb49095241c962fd2/CAD_STMN-56-L-E_Motor_Rollco.STP M12 5-pole M12 8-pole - 14 13.4 23 - - 98 56.4
Get quote
/storage/C6DAE750A924ED8F9EE8700B86DB5E90EE20E3F0C88F54414EB5C6B6CDFD0F16/1367ce8729674cbdbef128ec25c9d98d/STP/media/ad3b9848d0ae4a25af1a4fb5f11a452e/CAD_STMN-56-L-E-B_Motor_Rollco.STP M12 5-pole M12 8-pole M8 3-pole 14 52.4 23 9 12 138 56.4
