Narrow Block Type GNS

STOCK ITEM

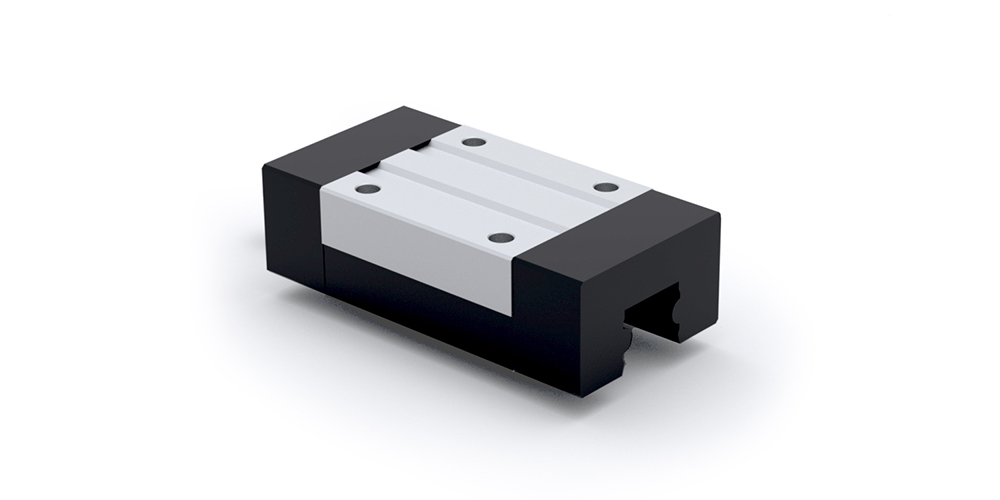

This light-weight narrow runner block corresponds to the structure of the flanged runner block from the previous page. It’s only slimmer and designed for mounting from above. The mounting dimensions are also identical to the steel guiding rails and in accordance to DIN 645-1. In this way you can easily change the installed constructions.

Note!
Determination of the dynamic load capacities and torques is based on a travel life of 100.000 m. Due to the mechanical operations of guide rails and runner block with their different materials, is not possible to clearly indicate a static load rating. In this case never exceed Max permissible load or Static moment Mr0. Otherwise malfunction or damage may occur.

See technical information regarding Lube units.

Dimensions in mm.

Lead times in the table below are only indications. Choice of options will affect lead time. Please contact us for exact delivery time for your request.

Product Information

Designation Select all Lead Time * Dynamic Load Capacity C (N) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Dynamic Moment Mr (Nm) Dynamic Moment Mp (Nm) Dynamic Moment My (Nm) Weight Block (kg) Max. Permissible Load Fmax (N) Compare
1 5000 14 12 12 36 29 29 0.07 2000
Get quote
1 11000 40 35 35 101 89 89 0.15 4400
Get quote
1 16000 66 59 59 165 147 147 0.22 6400
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all System Height (H) System Width (W) Block Length (L) W2 Compare
24 34 64 9.5
Get quote
30 44 85.9 12
Get quote
36 48 96 12.5
Get quote
Designation Select all P2 P1 M1 Compare
26 26 M4
Get quote
32 36 M5
Get quote
35 35 M6
Get quote
Designation Select all W1 Compare
15
Get quote
20
Get quote
23
Get quote
Designation Select all Block Length (L) System Width (W) L1 h2 W2 T g2 Compare
64 34 37.8 19.8 9.5 - 6
Get quote
85.9 44 51.5 24.7 12 7.5 -
Get quote
96 48 58 29.9 12.5 9 -
Get quote
  • STOCK ITEM
  • STOCK ITEM

    Rail Type B

    Aluminium rail with threaded holes for mounting from below
