Clamping Element

STOCK ITEM

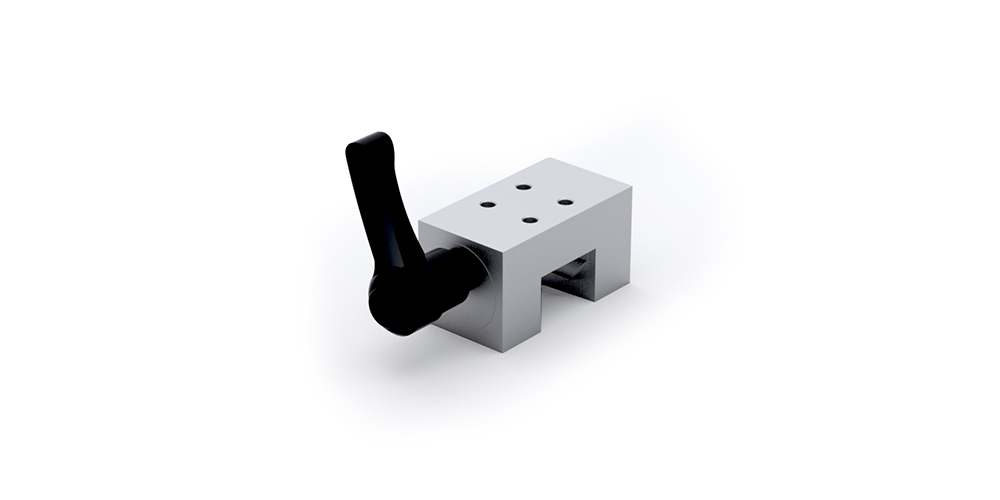

The manual clamping unit dHK is made of aluminium and plastic.
It fits on both type of rails (A and B).

Compatible with Linear Rail Aluminium only.

Dimensions in mm.
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Designation Select all Lead Time * H1 Holding Force (N) Tightening Torque (Nm) Compatible with CAD Compare
/storage/20B4108CCC5C830F71C736A0390857ABBE571CF72C9A8858856D35DAE235FBF9/cb86bacadd64416083ed8b454e31ee1c/step/media/74fcee3286b24a78a93d57eaeed32e4f/dHK15-Rollco.step 1 19.8 130 3 A15-…*, B15-…*
Get quote
/storage/D5F8FE7D2EB139FC266ECFFF96D955A96F278C8D58FC1B80A1CF6810A2A8081A/58dbd00796d144af84de6538f6d74680/step/media/4ac4286258e548349879bcec93d3d4ba/dHK20-Rollco.step 2 24 250 3 A20-…*, B20-…*
Get quote
/storage/84EEE1B3C7C98F2020EB31193421A3E9D331F901D7791BFDA13F151C46C4E77F/249a482afd1849d6b1ffce8fab9378b9/step/media/f18244b51f694d0e8cf1bd1fd854c37d/dHK25-Rollco.step 1 29 330 3 A25-…*, B25-…*
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all A B C E1 E2 H H1 L L1 L2 N3 S2 CAD Compare
/storage/20B4108CCC5C830F71C736A0390857ABBE571CF72C9A8858856D35DAE235FBF9/cb86bacadd64416083ed8b454e31ee1c/step/media/74fcee3286b24a78a93d57eaeed32e4f/dHK15-Rollco.step 34 20 12.9 10 10 24 19.8 40 29.9 33.3 6 M3
Get quote
/storage/D5F8FE7D2EB139FC266ECFFF96D955A96F278C8D58FC1B80A1CF6810A2A8081A/58dbd00796d144af84de6538f6d74680/step/media/4ac4286258e548349879bcec93d3d4ba/dHK20-Rollco.step 44 24 16 12 12 30 24 40 29.9 33.4 6 M4
Get quote
/storage/84EEE1B3C7C98F2020EB31193421A3E9D331F901D7791BFDA13F151C46C4E77F/249a482afd1849d6b1ffce8fab9378b9/step/media/f18244b51f694d0e8cf1bd1fd854c37d/dHK25-Rollco.step 48 30 19.6 15 15 36 29 44 29.8 33.3 7 M5
