Clamping Element
Manual clamping element. Compatible with Linear Rail Aluminium.

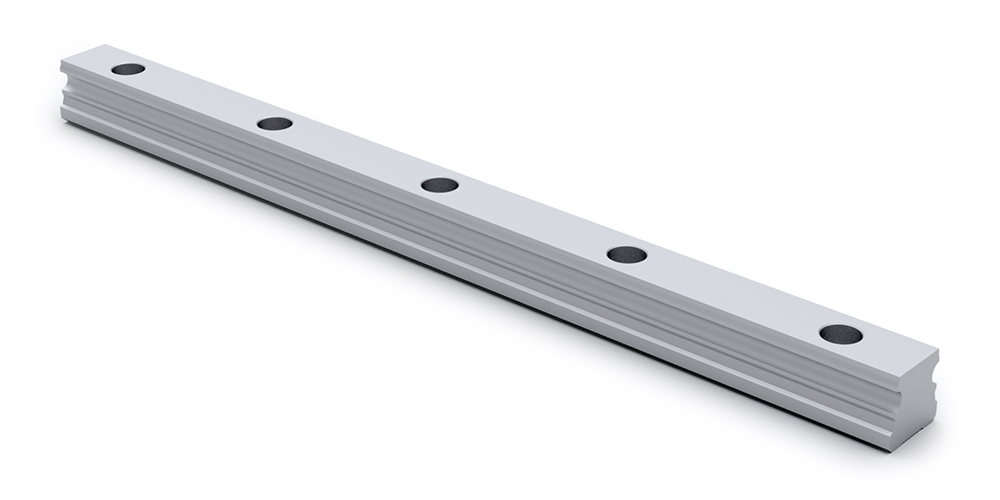

Rail Type A
Corrosion resistant profiled rail, counterbore from above.
The aluminium profile rails are made of high quality aluminium alloy with rolled and precisely calibrated raceways made of stainless steel, X46Cr13 (1.4034) and are produced only in the accuracy class P. The use of aluminium achieves a weight saving compared to the steel types. It better compensates any unevenness in the mounting surface. The use of stainless steel for the track material, makes the rail corrosion resistant.
Due to the aluminium/steel composite construction, the rails should get ordered in the correct length. Only in exceptional cases it is allowed to cut it by yourself. Please insert rail lengths in mm after the designation when ordering. For example: A20-820.
Dimensions in mm.
The aluminium profile rails are made of high quality aluminium alloy with rolled and precisely calibrated raceways made of stainless steel, X46Cr13 (1.4034) and are produced only in the accuracy class P. The use of aluminium achieves a weight saving compared to the steel types. It better compensates any unevenness in the mounting surface. The use of stainless steel for the track material, makes the rail corrosion resistant.
Due to the aluminium/steel composite construction, the rails should get ordered in the correct length. Only in exceptional cases it is allowed to cut it by yourself. Please insert rail lengths in mm after the designation when ordering. For example: A20-820.
Dimensions in mm.
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
Product Information
| Designation | Select all | Lead Time * | Length | Hole Pitch (P) | D x d x g1 | H1 | W1 | Compare | |
|---|---|---|---|---|---|---|---|---|---|
|
|
1 | 4000 | 60 | 7.5 x 4.4 x 5.9 | 14 | 15 |
|
||
|
|
1 | 4000 | 60 | 9.5 x 6 x 7.4 | 19 | 20 |
|
||
|
|
1 | 4000 | 60 | 11 x 7 x 8.9 | 21.8 | 23 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
Seal Unit
Greased seal units -
Lube Unit with Sealing Function
For continuous lubrication and front seal for dirty environments
-
Flanged Block Type FNS
Standard block with flange -
Narrow Block Type GNS
Narrow block
-
Rail Type B
Aluminium rail with threaded holes for mounting from below
