Flanged Block Type FNS

STOCK ITEM

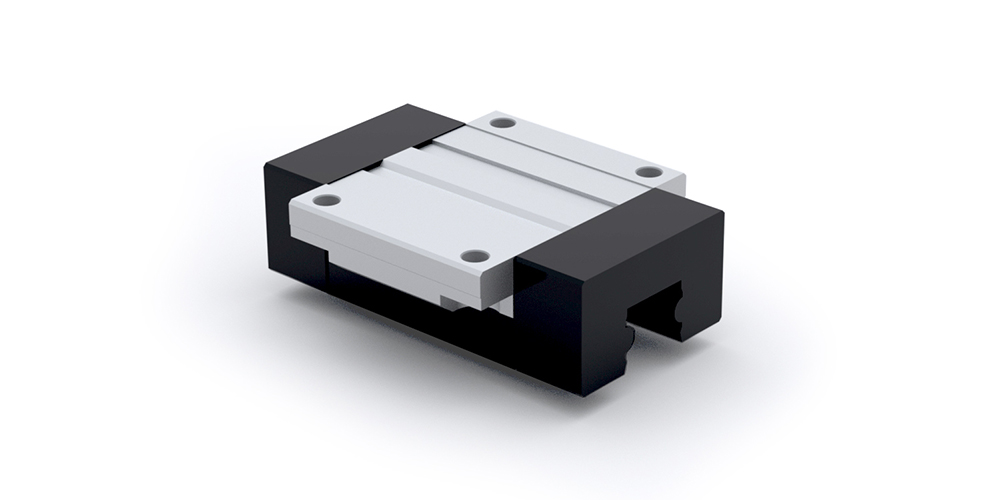

This light-weight flanged runner block is designed for cost-effective applications such as assembly and handling processes. Mounting dimensions are identical to those of the steel guiding rails and in accordance to DIN 645-1, which makes them interchangeable and replaceable.

The runner block has a lateral abutment edge and can then be screwed from above or below. Runner block consists of an aluminium alloy with a tensile strength of 350N/mm2, balls and running tracks of hardened stainless steel, X46Cr13 (1.4034). All others parts are made of POM. The carriage is pre-lubricated and has standard seal units, which can be replaced.

Note!
Determination of the dynamic load capacities and torques is based on a travel life of 100.000 m. Due to the mechanical operations of guide rails and runner block with their different materials, is not possible to clearly indicate a static load rating. In this case never exceed Max permissible load or Static moment Mr0. Otherwise malfunction or damage may occur.

See technical information regarding Lube units.

Dimensions in mm.

Lead times in the table below are only indications. Choice of options will affect lead time. Please contact us for exact delivery time for your request.

Product Information

Designation Select all Lead Time * Dynamic Load Capacity C (N) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Dynamic Moment Mr (Nm) Dynamic Moment Mp (Nm) Dynamic Moment My (Nm) Weight Block (kg) Max. Permissible Load Fmax (N) Compare
1 5000 14 12 12 36 29 29 0.08 2000
Get quote
1 11000 40 35 35 101 89 89 0.18 4400
Get quote
1 16000 66 59 59 165 147 147 0.26 6400
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all System Height (H) System Width (W) Block Length (L) W2 Compare
24 47 64 16
Get quote
30 63 85.9 21.5
Get quote
36 70 96 23.5
Get quote
Designation Select all P2 P1 M1 Compare
38 30 M5
Get quote
53 40 M6
Get quote
57 45 M8
Get quote
Designation Select all W1 Compare
15
Get quote
20
Get quote
23
Get quote
Designation Select all Block Length (L) System Width (W) L1 h2 W2 T Compare
64 47 37.8 19.8 16 6
Get quote
85.9 63 51.5 24.7 21.5 8
Get quote
96 70 58 29.9 23.5 9.3
Get quote
