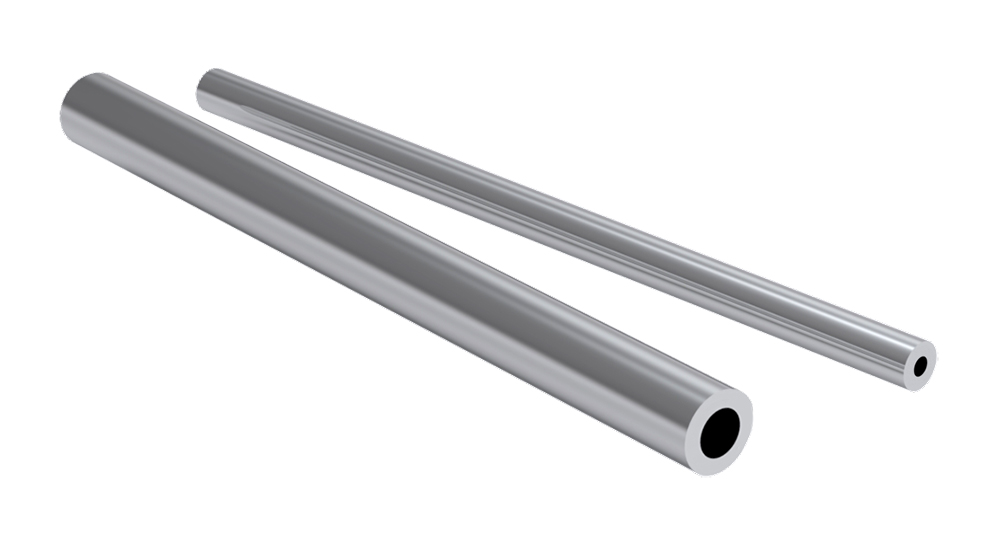

WH

STOCK ITEM
Dimensions in mm.

Other types available on request.

Contact us for CAD-files.
Read more

Product Information

Material: Quenched and tempered steel C60 / 1.1221
Surface hardness: 59 HRC min. Hardening depth according to DIN ISO 18203.
Standard Tolerance: ISO h6
Designation Select all Compare Get quote Lead Time * Weight (kg/m)
Get quote 2 0.79
Get quote 1 1.28
Get quote 1 1.25
Get quote 1 2.35
Get quote 2 3.5
Get quote 2 4.99
Get quote 2 9.91

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Compare Get quote Lw (mm) Diameter Inner Diameter Hardening Depth Roundness t1 Parallelism t2 Straightness t3
Get quote 6000 12 4 .6 8 8 .3
Get quote 6000 16 7 .6 8 8 .3
Get quote 6000 20 14 .9 9 9 .3
Get quote 6000 25 15.6 .9 9 9 .3
Get quote 6000 30 18.3 .9 9 9 .3
Get quote 6000 40 28 1.5 11 11 .3
Get quote 6000 50 29.7 1.5 11 11 .2
  • STOCK ITEM

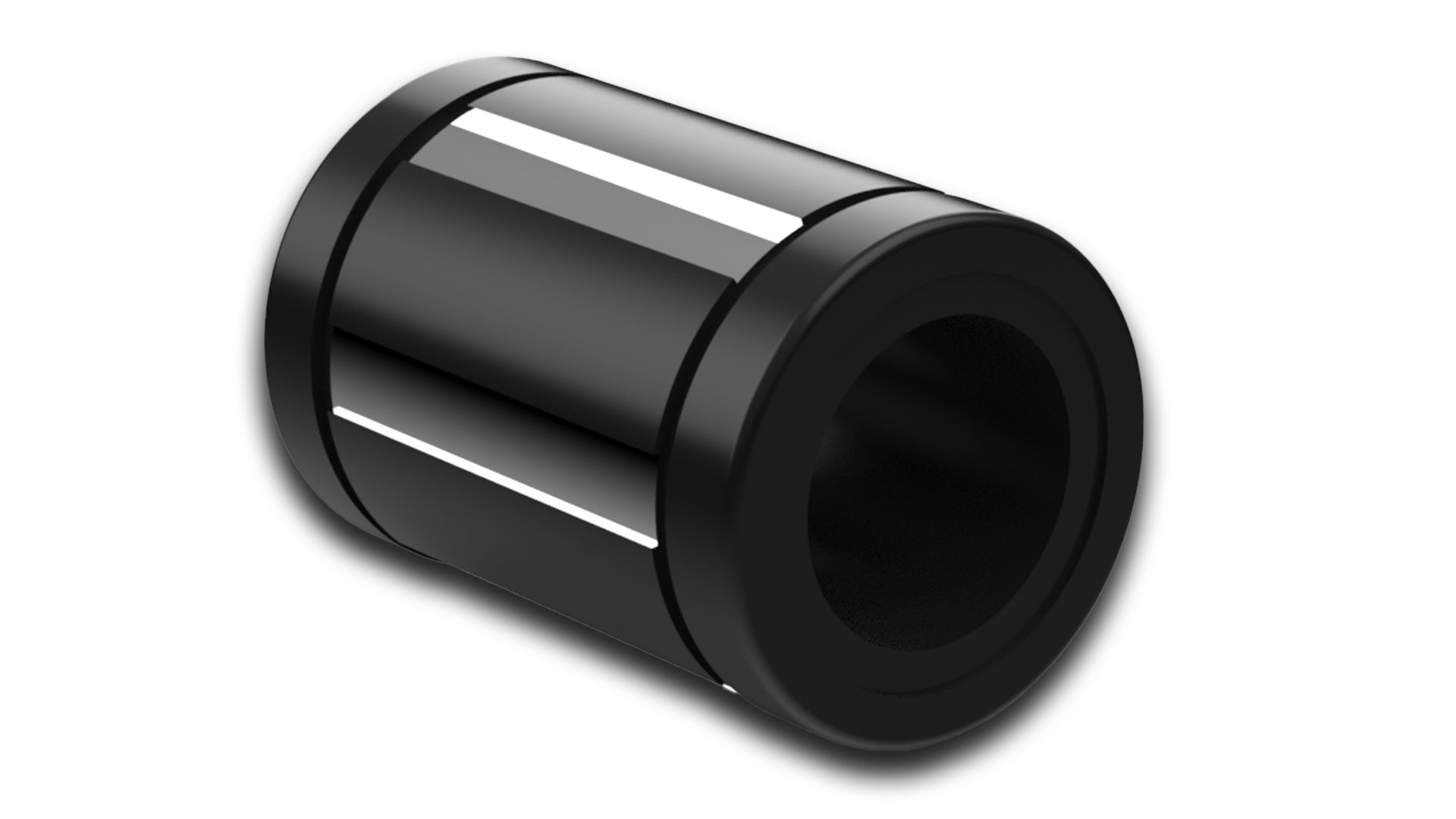

    SBE

    Self-aligning closed type linear ball bearing, Ø 16-50 mm.
  • STOCK ITEM

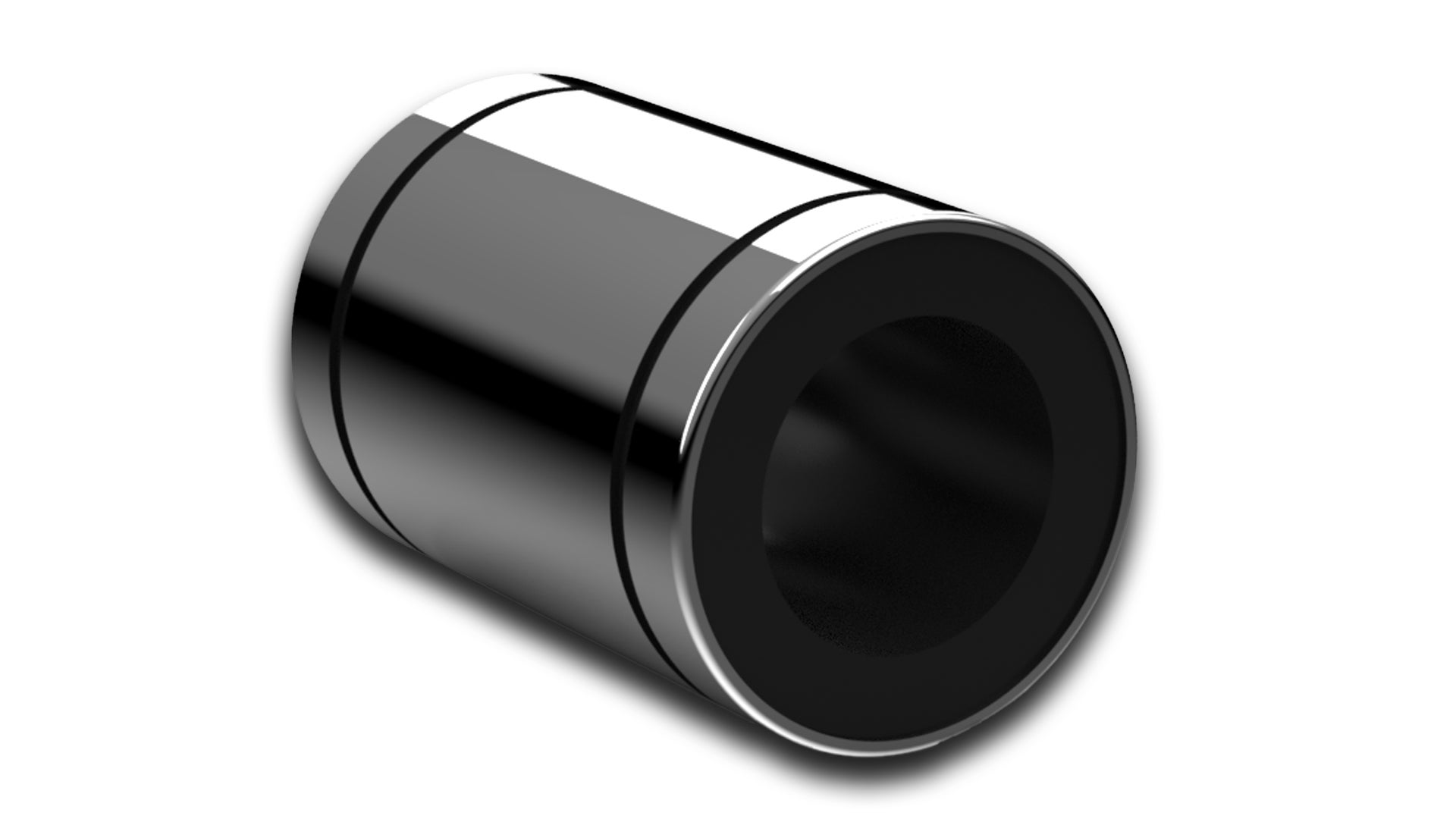

    LME

    Closed type, linear ball bearing, Ø 5-60 mm.
  • STOCK ITEM

    LMES

    Closed type stainless, linear ball bearing Ø 8-40 mm.
  • STOCK ITEM
  • STOCK ITEM

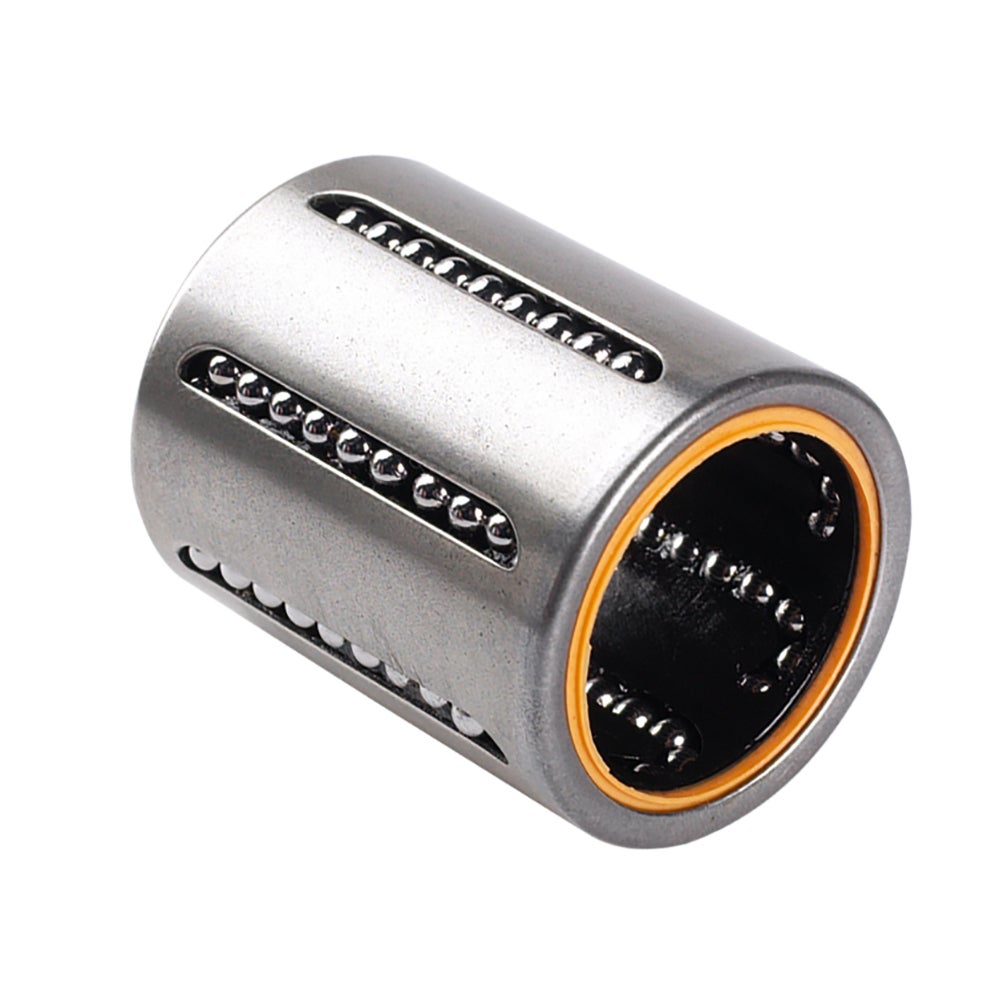

    KH

    Compact type, linear ball bearing, Ø 6-50 mm.
  • STOCK ITEM
  • STOCK ITEM
  • STOCK ITEM
  • STOCK ITEM

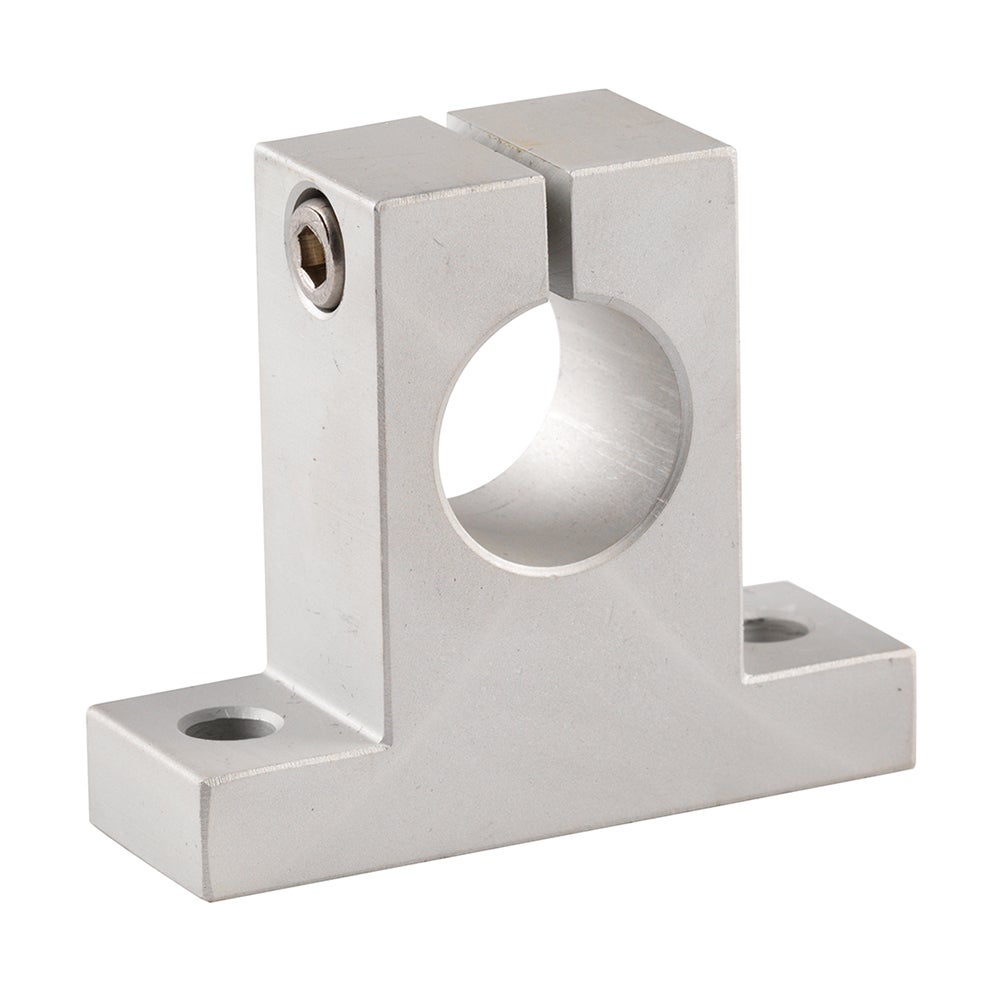

    SK

    Shaft support block, Ø 12-50 mm.
  • STOCK ITEM

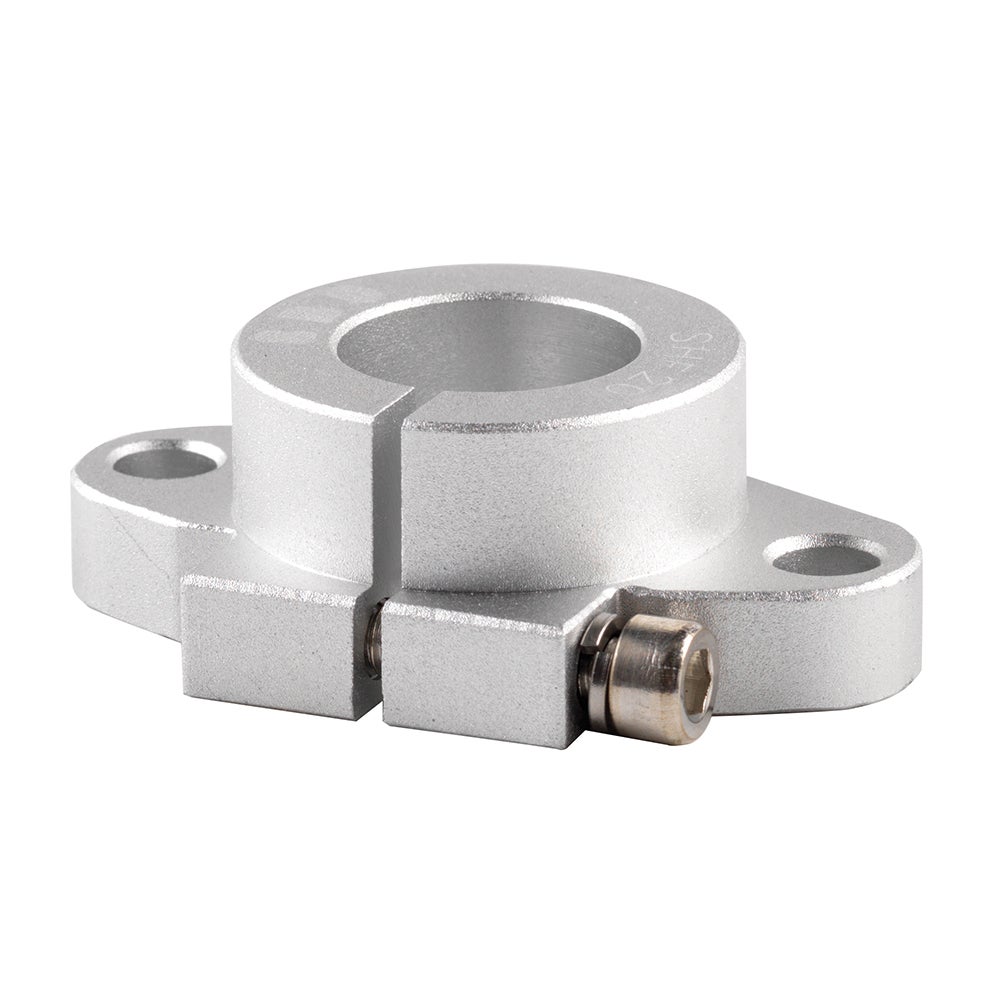

    SHF

    Shaft support block, Ø 12-40 mm.
  • STOCK ITEM

    W

    Hardened precision steel shaft, Ø 5-80 mm.
  • STOCK ITEM

    WV

    Chrome plated hardened precision shaft, Ø 10-40 mm.
  • STOCK ITEM

    WRB

    Hardened precision stainless steel shaft X46, Ø 5-60 mm.
  • STOCK ITEM

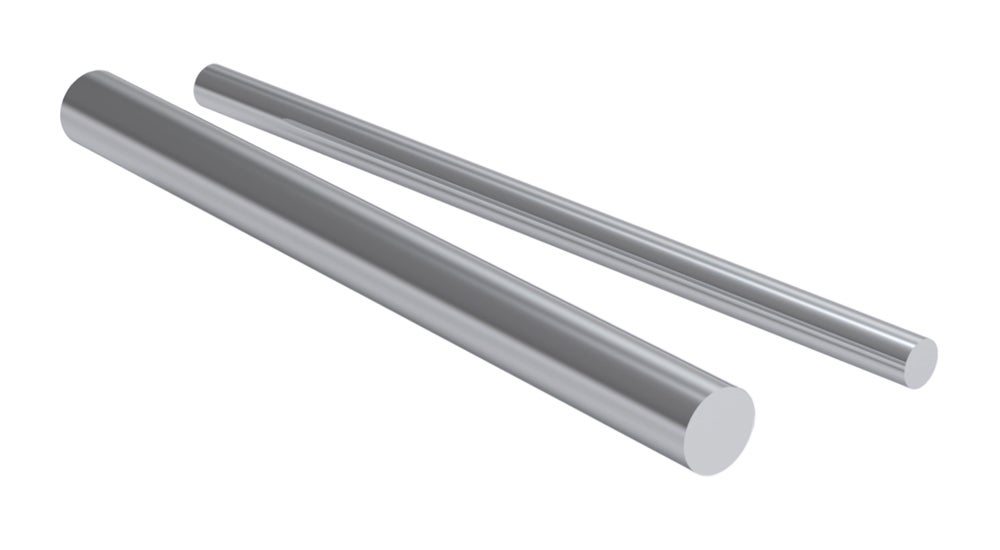

    WRA

    Hardened precision stainless steel shaft X90, Ø 8-50 mm.
  • STOCK ITEM

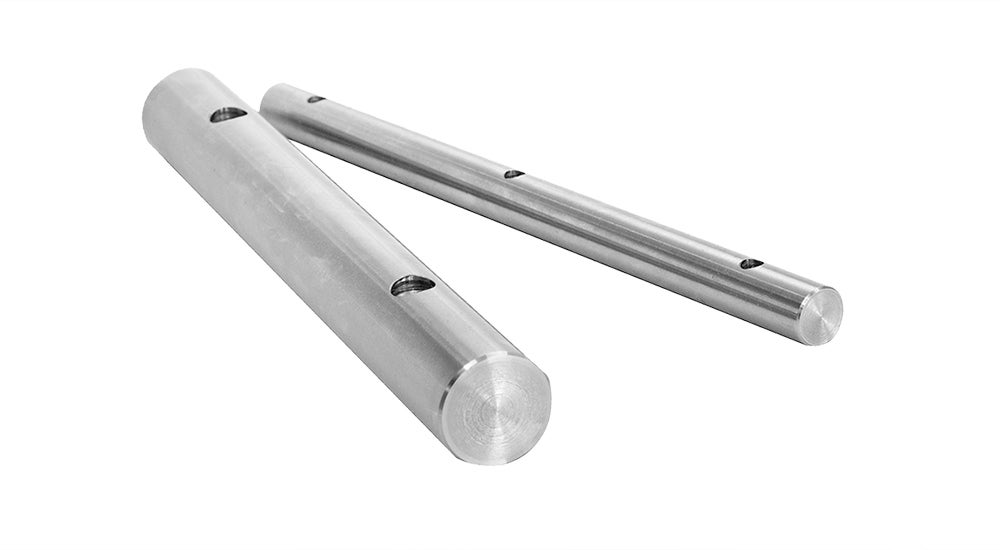

    WB
