W

STOCK ITEM
Dimensions in mm.

Other types available on request.
Read more

Product Information

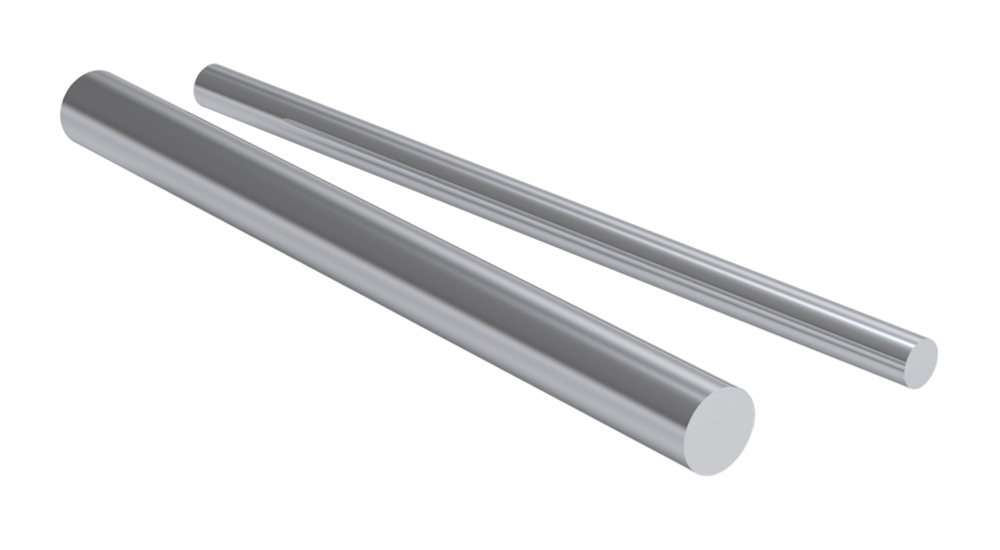

Material: Quenched and tempered steel Cf53 / 1.1213 / C53G
Surface hardness: 59 HRC min. Hardening depth according to DIN ISO 18203.
Standard Tolerance: ISO h6
Designation Select all Compare Get quote Lead Time * Weight (kg/m)
Get quote 1 0.15
Get quote 1 0.22
Get quote 1 0.39
Get quote 1 0.62
Get quote 1 0.89
Get quote 1 1.21
Get quote 1 1.58
Get quote 1 2.47
Get quote 1 3.85
Get quote 1 5.55
Get quote 1 9.86
Get quote 1 15.41
Get quote 1 22.2
Get quote 2 39.46

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Compare Get quote Lw (mm) Diameter Hardening Depth Roundness t1 Parallelism t2 Straightness t3
Get quote 4000 5 .4 4 5 .3
Get quote 6000 6 .4 4 5 .3
Get quote 6000 8 .4 4 6 .3
Get quote 6000 10 .4 4 6 .3
Get quote 6000 12 .6 5 8 .3
Get quote 6000 14 .6 5 8 .3
Get quote 6000 16 .6 5 8 .2
Get quote 6000 20 .9 6 9 .2
Get quote 6000 25 .9 6 9 .2
Get quote 6000 30 .9 6 9 .2
Get quote 6000 40 1.5 7 11 .2
Get quote 6000 50 1.5 7 11 .2
Get quote 6000 60 2.2 8 13 .2
Get quote 6000 80 2.2 8 13 .2
  • STOCK ITEM

    SBE

    Self-aligning closed type linear ball bearing, Ø 16-50 mm.
  • STOCK ITEM

    LME

    Closed type, linear ball bearing, Ø 5-60 mm.
  • STOCK ITEM

    LMES

    Closed type stainless, linear ball bearing Ø 8-40 mm.
  • STOCK ITEM
  • STOCK ITEM

    KH

    Compact type, linear ball bearing, Ø 6-50 mm.
  • STOCK ITEM
  • STOCK ITEM
  • STOCK ITEM
  • STOCK ITEM

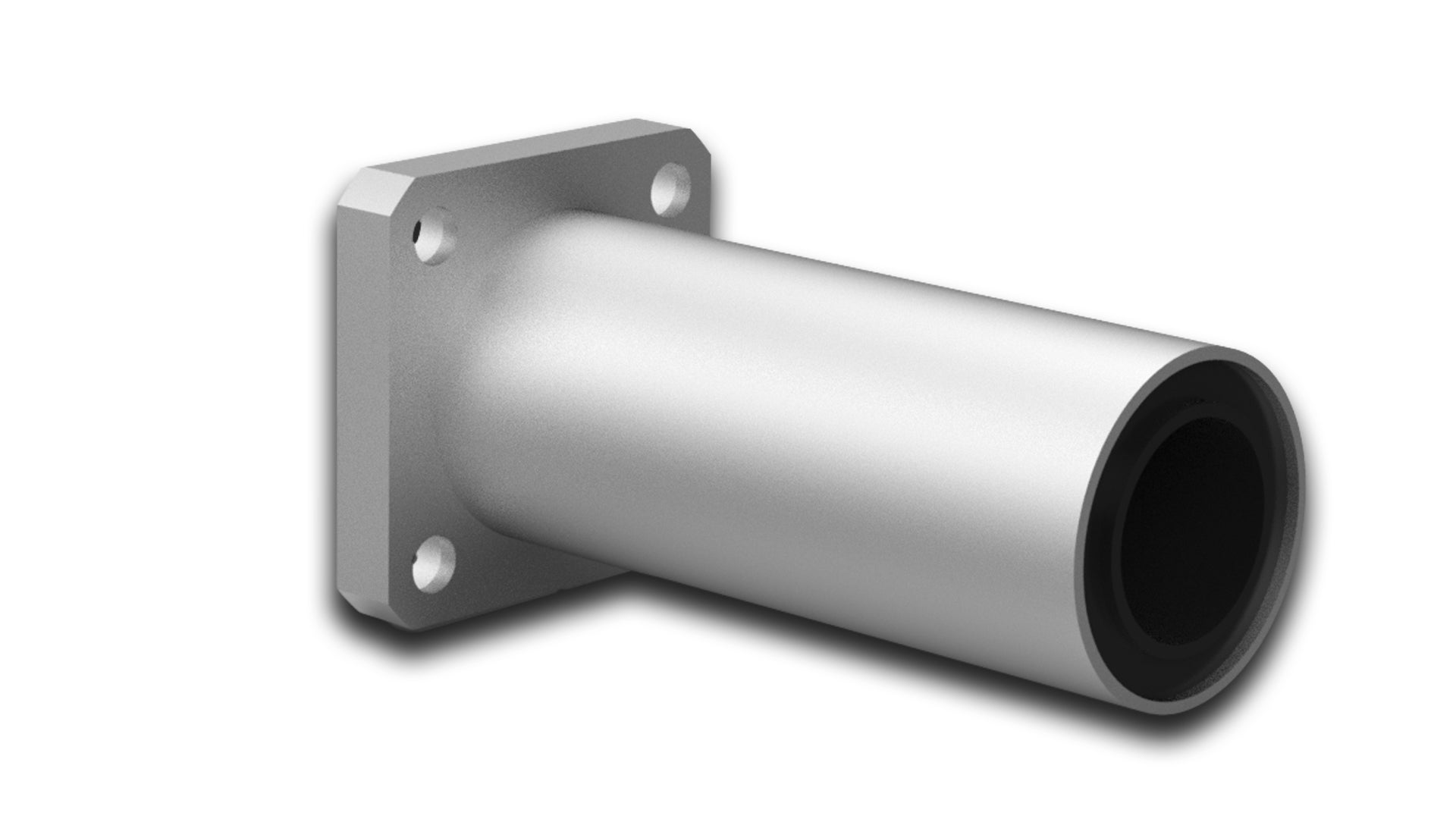

    LMEK...LUU

    Linear unit with flange, long type, Ø 12-60 mm.
  • STOCK ITEM

    SK

    Shaft support block, Ø 12-50 mm.
  • STOCK ITEM

    SHF

    Shaft support block, Ø 12-40 mm.
  • STOCK ITEM

    WV

    Chrome plated hardened precision shaft, Ø 10-40 mm.
  • STOCK ITEM

    WRB

    Hardened precision stainless steel shaft X46, Ø 5-60 mm.
  • STOCK ITEM

    WRA

    Hardened precision stainless steel shaft X90, Ø 8-50 mm.
  • STOCK ITEM

    WB

    Hardened precision steel shaft predrilled, Ø 12-40 mm.
  • STOCK ITEM

    WH

    Hardened precision steel shaft hollow, Ø 12-50 mm.
