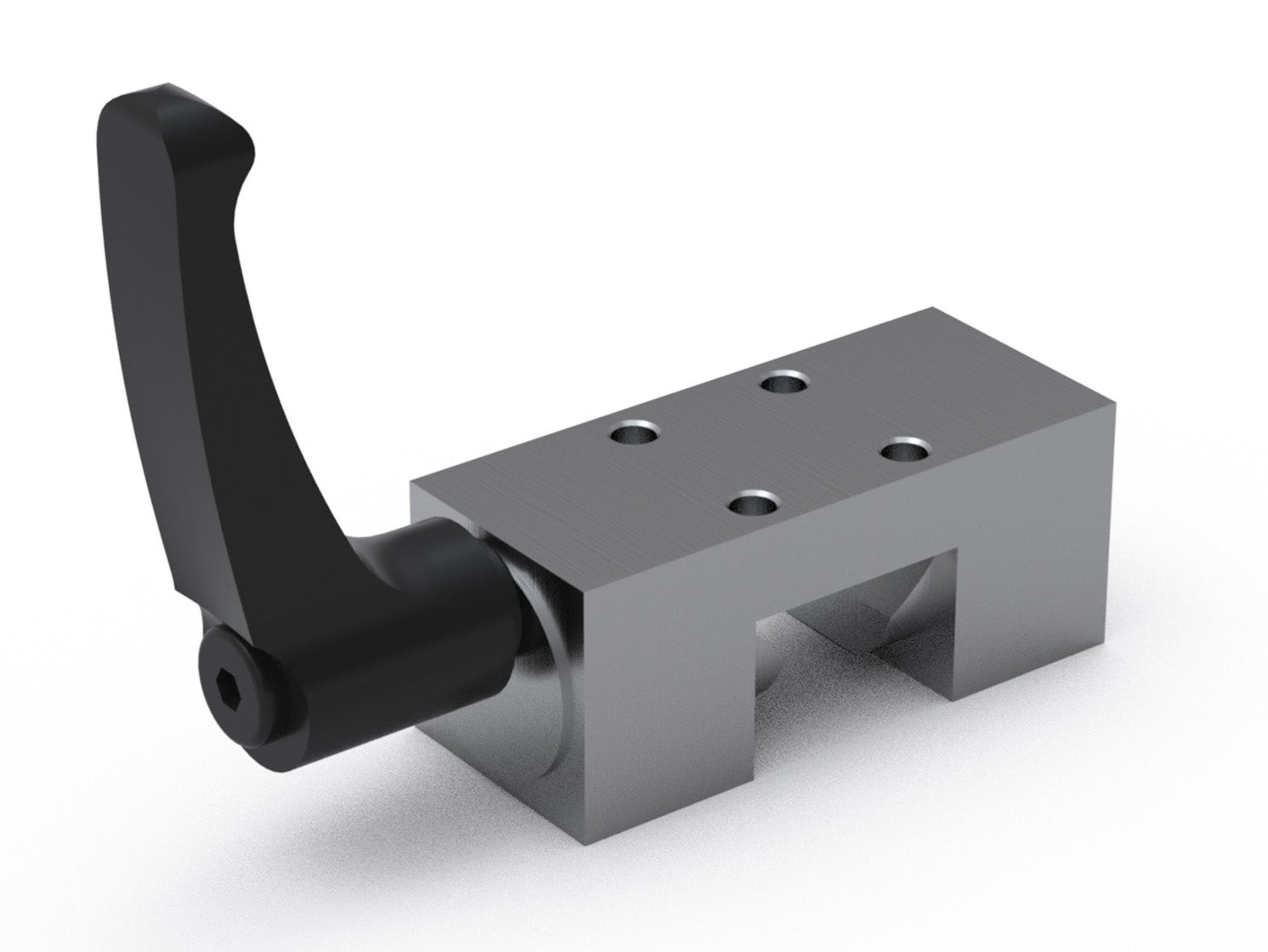

HK Clamping Element

STANDARD
Clamping elements are designed to be used when holding a position on the rail.

Note! As of April 2023, MC Clamping Element for Linear Rail HRC/ERC/ARC are replaced with the new HK Clamping Elements. Please, download the new CAD files below and see document "New HK Clamping Elements" for more information.

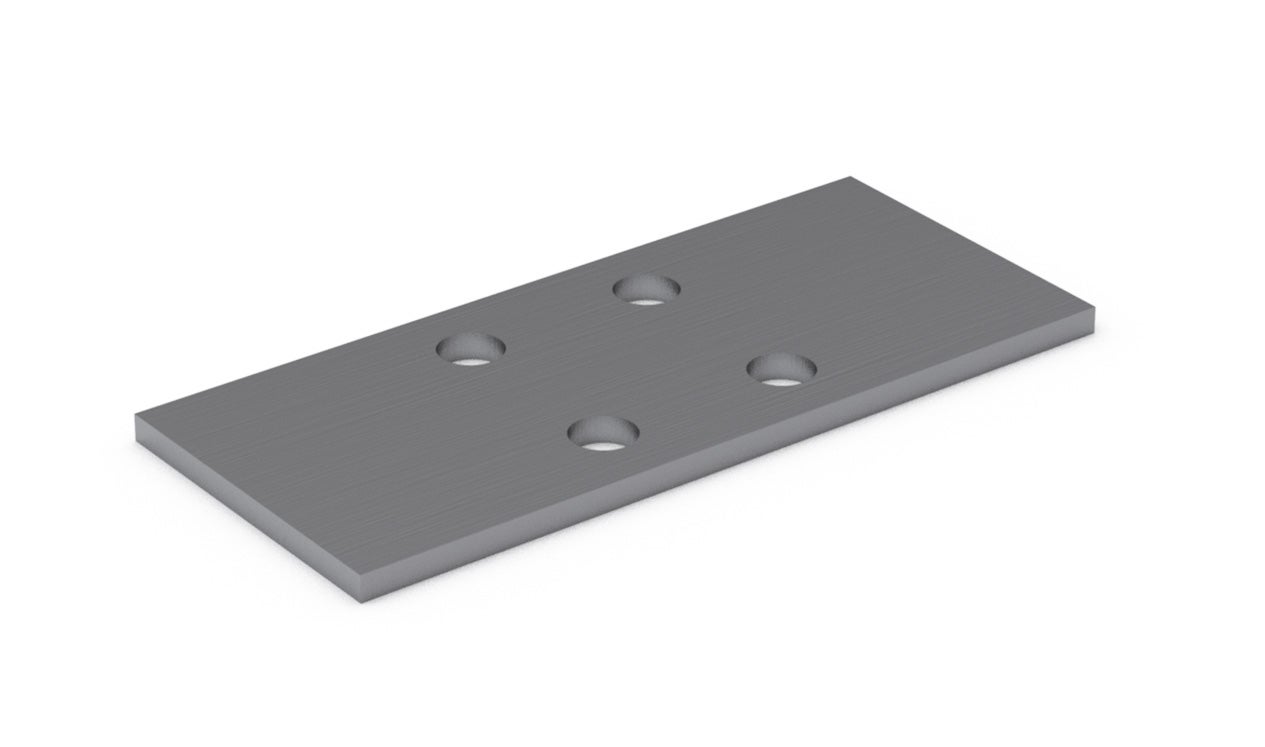

Because of the height difference of different rail guide blocks and to ensure the proper function of the HK Clamping Elements, the use of adapter plates is sometimes needed. See document "Selection of Clamping Elements" for individual block types and whether an adapter plate is needed.

Compatible with Linear Rail HRC/ARC/ERC only.

Dimensions in mm.
Read more
Designation Select all CAD Compare Get quote Lead Time * Remark Holding Force (N) Tightening Torque (Nm) Weight (kg) Max. Length Clamping Size
Request quote 2 Use Distance Plate PHK15-4 for HRC15MN and HRC15ML. 1200 5.00 0.14 24 15
Request quote 2 - 750 4.00 0.14 24 20
Request quote 2 - 1200 5.00 0.22 24 20
Request quote 1 - 750 4.00 0.14 24 25
Request quote 1 Use Distance Plate PHK25-4 for HRC25MN and HRC25ML. 1200 7.00 0.39 30 25
Request quote 2 Use Distance Plate PHK30-3 for HRC30MN and HRC30ML. 2000 15.00 0.77 39 30
Request quote 2 Use Distance Plate PMK35-7 for HRC35MN and HRC35ML. 2000 15.00 0.96 39 35
Request quote 2 Use Distance Plate PHK45-10 for HRC45MN and HRC45ML. 2000 15.00 1.4 44 45

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote A C B H1 N3 S2 E1 E2 E3 L L1 L2
Request quote 47 13.3 24 17.5 5 M4 17 17 4 44 30.5 33.5
Request quote 42 14.3 24 18 5 M5 15 15 4.5 44 30.5 33.5
Request quote 60 17.5 24 23 6 M5 15 15 4.5 44 30.5 33.5
Request quote 42 14.3 24 18 5 M5 15 15 4.5 44 30.5 33.5
Request quote 70 22.3 30 29 7 M6 20 20 5 63 38.5 41.5
Request quote 90 23.6 39 32 8 M6 22 22 8.5 78 46.5 50.5
Request quote 100 31 39 41 10 M8 24 24 7.5 78 46.5 50.5
Request quote 120 32.6 44 44 14 M10 26 26 9 78 46.5 50.5
  • MK Clamping Element

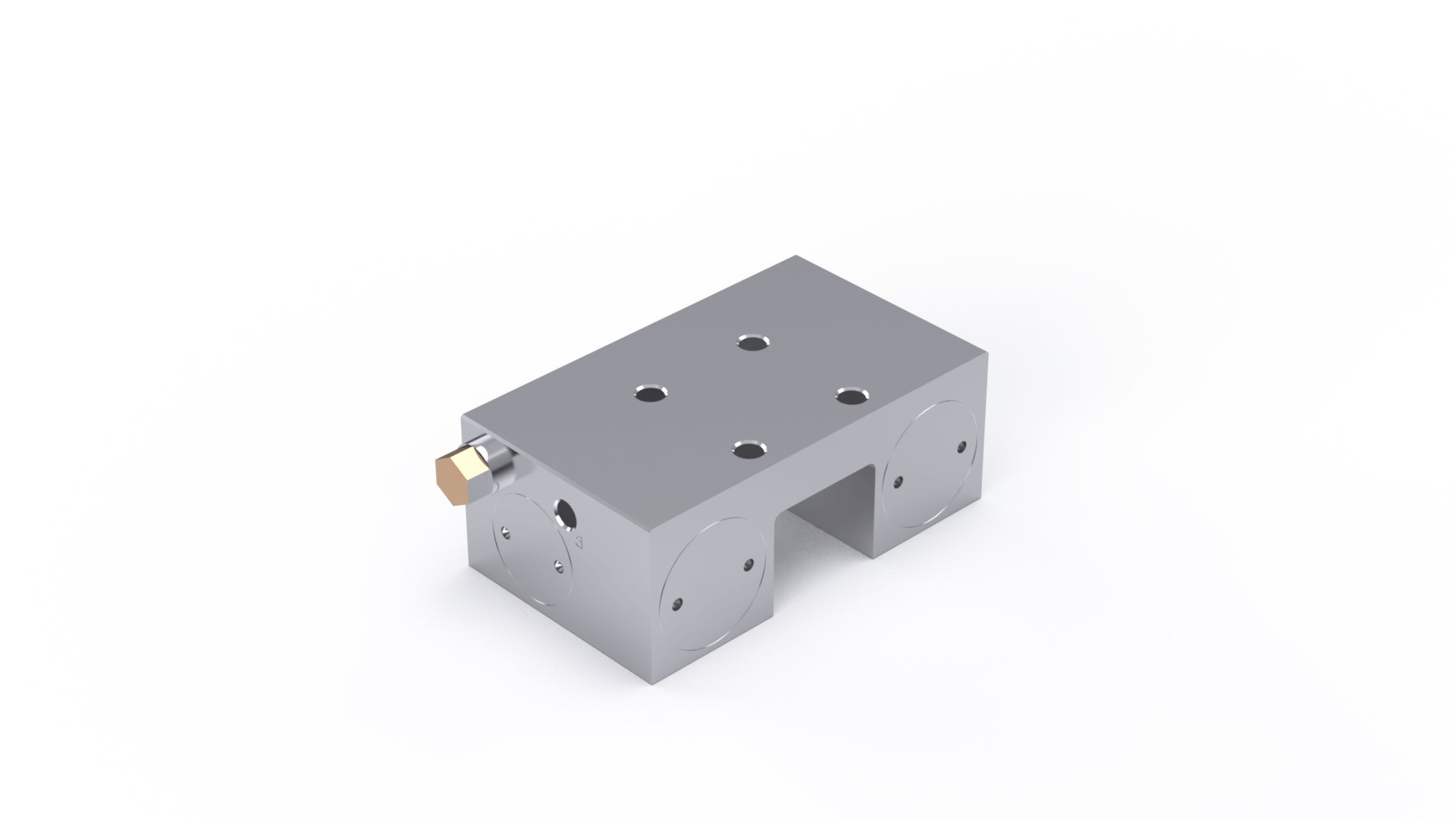

    Pneumatic clamping element, normally open. Compatible with Linear Rail HRC/ARC/ERC.
  • MKS Clamping Element

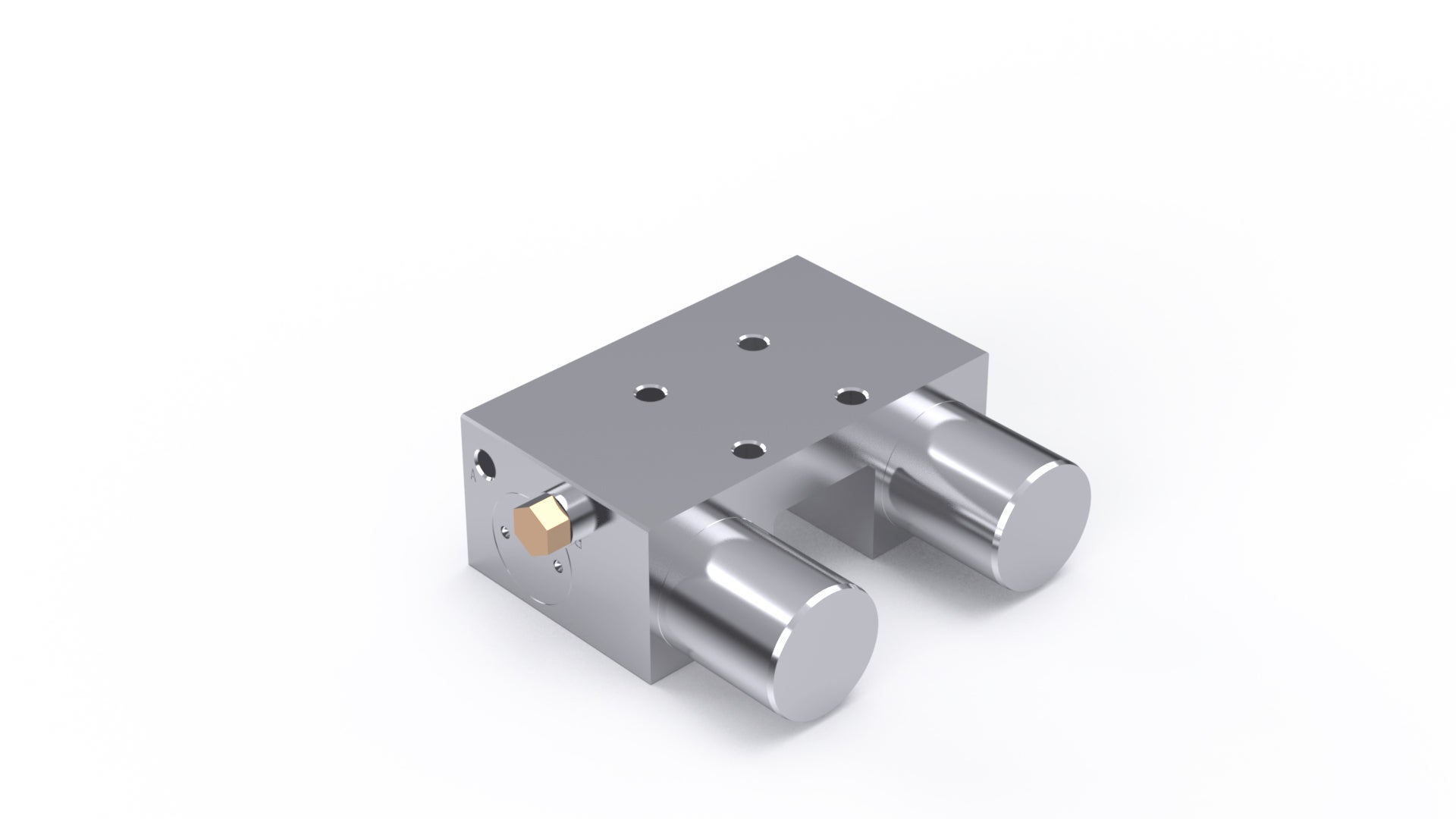

    Pneumatic clamping element, normally closed by spring force. Compatible with Linear Rail HRC/ARC/ERC.
