DSS28

LOCALLY MANUFACTURED 114-448 kg/pair

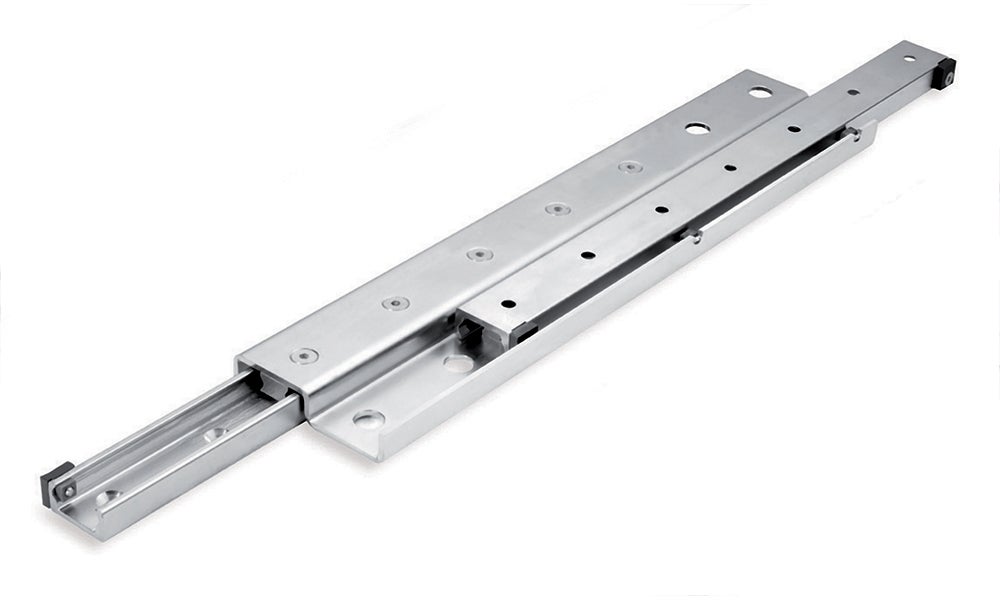

Full extension consisting of two guide rails made of fixed and movable elements and an S-shaped intermediate element. This has a high moment of inertia and high rigidity with slim size. This results in a high loading capacity with low deflection in the extended state.

The DS series is available in three different designs: Version S with one-sided extension, Version B with locking in the extracted state for one-sided extension (DSB) and Version D with double-sided extension (DSD).

Number of holes shown in table are accessible holes/total holes.

Special strokes are defined as deviations from standard stroke H. See section "Special strokes" in the document Technical Information for Telescopic Rail Heavy.

Dimensions in mm.

System Load Capacity Radial value refers to a pair of rails.
Read more
Designation Select all CAD Compare Get quote Lead Time * Length Stroke Weight (kg/m) System Load Capacity Radial (N) Number of Fixing Holes
Get quote 2 290 296 6.4 1140 3/4
Get quote 2 370 380 6.4 1538 4/5
Get quote 2 450 464 6.4 1938 4/6
Get quote 2 530 548 6.4 2340 6/7
Get quote 2 610 630 6.4 2752 6/8
Get quote 2 690 714 6.4 3154 7/9
Get quote 2 770 798 6.4 3556 7/10
Get quote 2 850 864 6.4 4222 9/11
Get quote 2 930 950 6.4 4480 9/12
Get quote 2 1010 1034 6.4 4108 10/13
Get quote 2 1090 1118 6.4 3792 10/14
Get quote 2 1170 1202 6.4 3522 12/15
Get quote 2 1250 1266 6.4 3390 12/16
Get quote 2 1330 1350 6.4 3172 13/17
Get quote 2 1410 1434 6.4 2980 13/18
Get quote 2 1490 1518 6.4 2810 15/19

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
