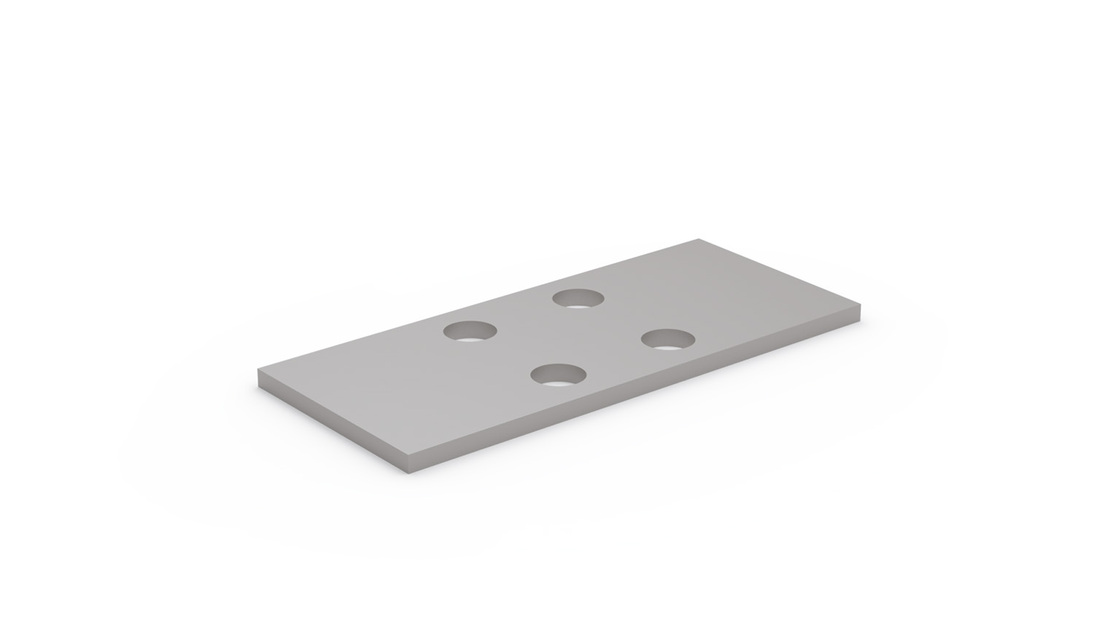

Adapter Plate for MK & MKS Clamping Elements

Because of the height difference of different rail guide blocks and to ensure the proper function of the MK and MKS Clamping Elements, the use of adapter plates is sometimes needed. See "Selection of Clamping Elements" for individual block types and whether an adapter plate is needed.

Compatible with Linear Rail HRC/ARC/ERC only.

Dimensions in mm.
Read more
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD / Request quote Download CAD
Designation Select all CAD Compare Get quote Lead Time * Compatible with Remark Recommended screw size Weight (kg)
Request quote 2 MK1514D, MKS1514D Use Distance Plate PMK15-4 for HRC15MN M4 0.065
Request quote 2 MK2014D, MKS2014D Use Distance Plate PMK20-2-A for HRC20FL, HRC20FN, HRC20ML, HRC20MN M6 0.029
Request quote 2 MK2514D, MKS2514D Use Distance Plate PMK25-4 for HRC25ML, HRC25MN M6 0.078
Request quote 2 MK3005A, MKS3005A Use Distance Plate PMK30-3 for HRC30ML, HRC30MN M8 0.077
Request quote 2 MK3514D, MKS3514D Use Distance Plate PMK35-7 for HRC35ML, HRC35MN M8 0.2
Request quote 2 MK4514D, MKS4514D Use Distance Plate PMK45-10 for HRC45ML, HRC45MN M10 0.43

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote H L P1 P2 P3 P4 W
Request quote 4 39 15 15 4.5 15.5 55
Request quote 2 30 20 20 6.5 5 66
Request quote 4 35 20 20 6.5 5 75
Request quote 3 39 22 22 8.5 8.5 90
Request quote 7 39 24 24 8.5 7.5 100
Request quote 10 49 26 26 10.5 11.5 120

  • MK Clamping Element
    Pneumatic clamping element, normally open. Compatible with Linear Rail HRC/ARC/ERC.

  • MKS Clamping Element
    Pneumatic clamping element, normally closed by spring force. Compatible with Linear Rail HRC/ARC/ERC.
