FTSU

STOCK ITEM

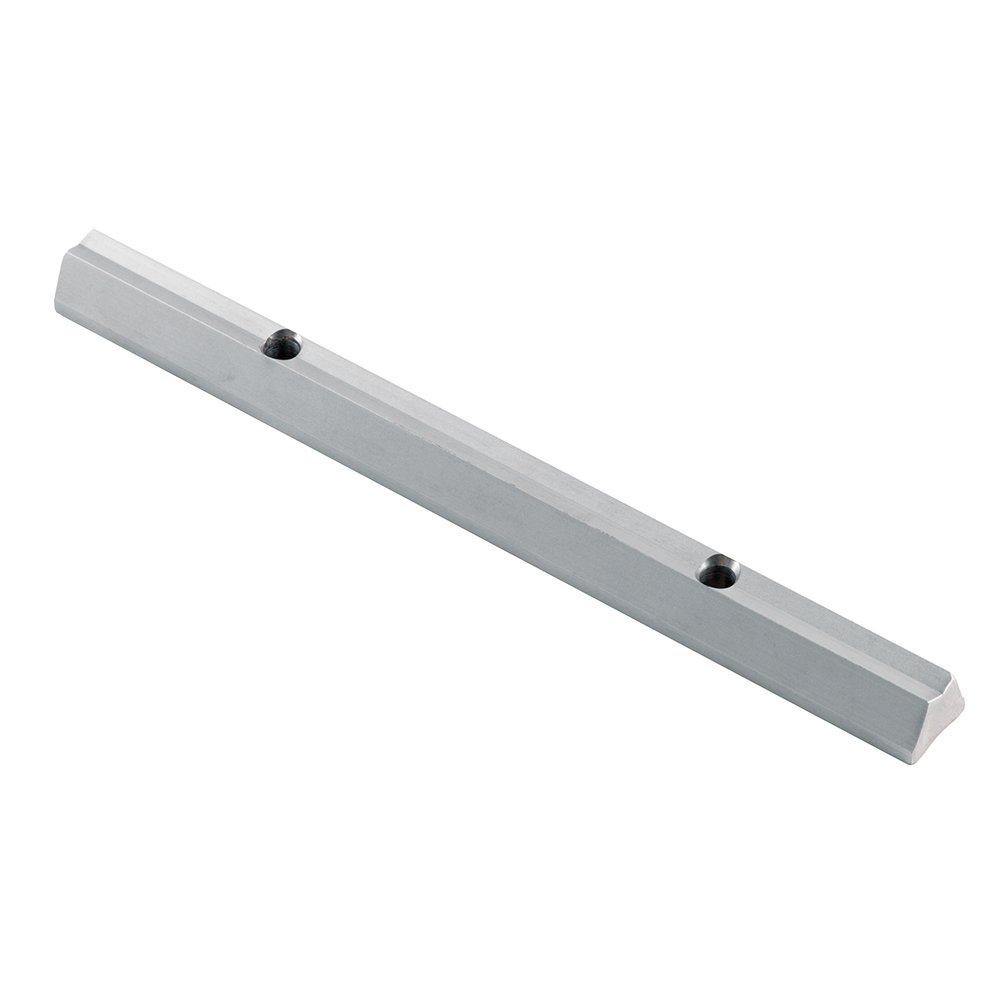

Aluminium with mounting holes.

Standard section length L = 4000 mm. Lengths other than standard (Lmax = 4000 mm) are also available on request.

Support rails can be supplied upon request, with or without mounting holes. No anodizing in holes.

Dimensions in mm.

Note: The shaft is not included, please order separately.
Read more
Designation Select all Compare Get quote Lead Time * Remark G A B H D K F C I J
Get quote 2 Standard section length L = 4000 mm 100 14 7 18 16 M5 3 5.5 7 19
Get quote 2 Standard section length L = 4000 mm 100 17 8.5 22 20 M6 3 6.6 8.1 23
Get quote 1 Standard section length L = 4000 mm 120 21 10.5 26 25 M8 3 9 10.3 28.5
Get quote 1 Standard section length L = 4000 mm 150 23 11.5 30 30 M10 3 11 11 32
Get quote 2 Standard section length L = 4000 mm 200 40 15 39 40 M10 4 13.5 15 39.5

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

  • STOCK ITEM

    LMEK...LUU

    Linear unit with flange, long type, Ø 12-60 mm.
  • STOCK ITEM

    WB

    Hardened precision steel shaft predrilled, Ø 12-40 mm.
  • STOCK ITEM

    FTSN

    Aluminium shaft support with flange, for drilled shafts Ø 12-40 mm.
