C-RAIL

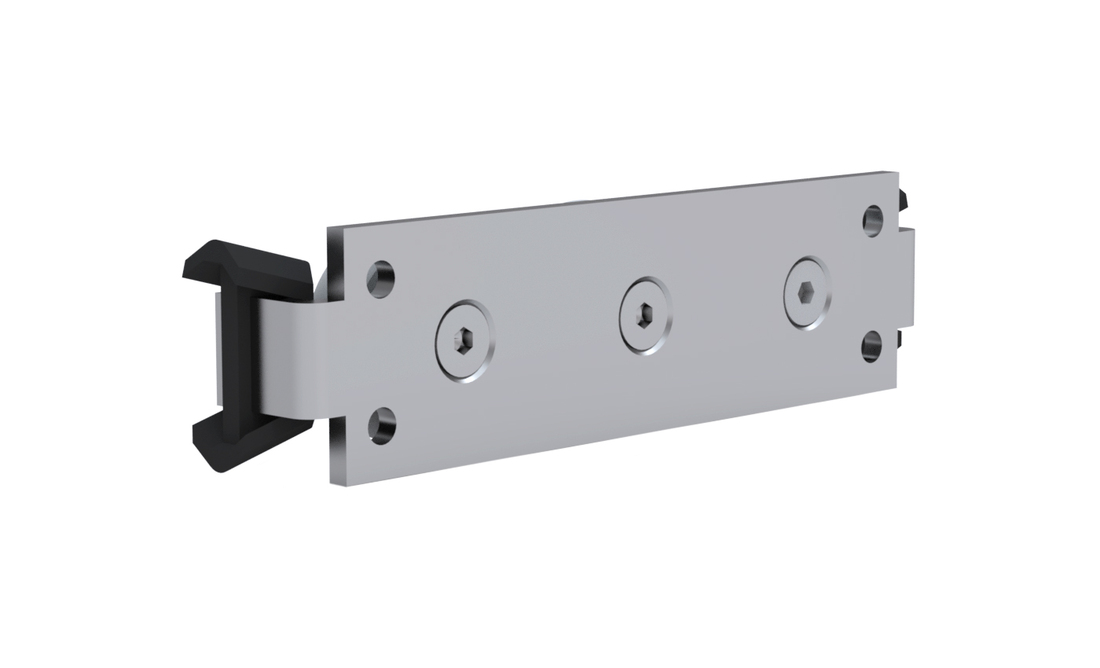

Slider Plate Version
Slider Plate Version
STANDARD
LSWL: Stainless steel body with wipers and standard steel rollers
LXWL: Stainless steel body with wipers and stainless steel rollers (AISI-440C)
Read more
Read less
Product Information
C-Rail_Technical_Information.pdf
C-Rail_Order_Codes.pdf
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
Configure CAD
Download CAD
General Data
Designation
Select all
CAD
Compare
Get quote
Lead Time *
Weight (kg)
Max. Permissible Radial Load Fmax (N)
Max. Permissible Axial Load Fmax (N)
LSWL20-80-2Z
1
0.05
300
170
LSWL30-88-2Z
1
0.11
800
400
LSWL45-150-2Z
1
0.40
1600
860
LXWL20-80-2RS
1
0.05
300
170
LXWL30-88-2RS
2
0.11
800
400
LXWL45-150-2RS
1
0.40
1600
860
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
Dimensions
Designation
Select all
CAD
Compare
Get quote
A
B
C
D
E
F
G
H
I
J
K
L
M
N
LSWL20-80-2Z
19.2
16
18
2.5
3
M5
11.5
91
80
71
5.5
60
-
9
LSWL30-88-2Z
29.5
20.5
25
3.5
2.5
M5
14.5
97
88
80
5.0
70
15
5
LSWL45-150-2Z
45.7
31.0
40
5.0
4.0
M6
22
160
150
135
7.5
120
23
8.5
LXWL20-80-2RS
19.2
16.0
18
2.5
3.0
M5
11.5
91
80
71
5.5
60
-
9
LXWL30-88-2RS
29.5
20.5
25
4.0
2.5
M5
14.5
97
88
80
5.0
70
15
5
LXWL45-150-2RS
45.7
31.0
40
5.0
4.0
M6
22
160
150
135
7.5
120
23
8.5
Cad
Accessories
STANDARD
Button Head Screw (ISO 7380)
Zink plated and Stainless steel screw for C-rail
Related Products
STANDARD
Rail
Standard zinc plated steel or Stainless Steel C-rail
STANDARD
Rollers for Plate Version
Concentric and Eccentric rollers for plate version slider
Similar Products
STANDARD
Slider Solid Version
Standard zinc plated steel or stainless steel slider for C-rail, solid version
×
Download as PDF catalogue
