Wiring Duct Caps
For wiring ducts

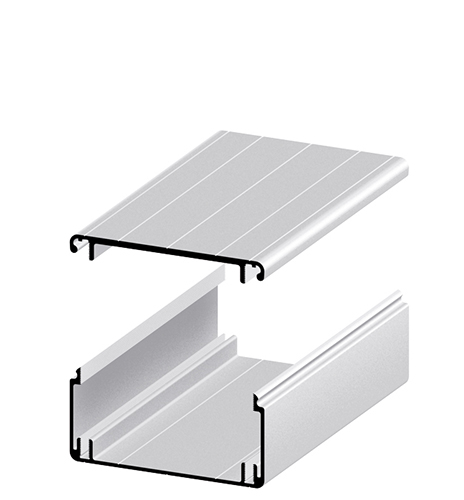

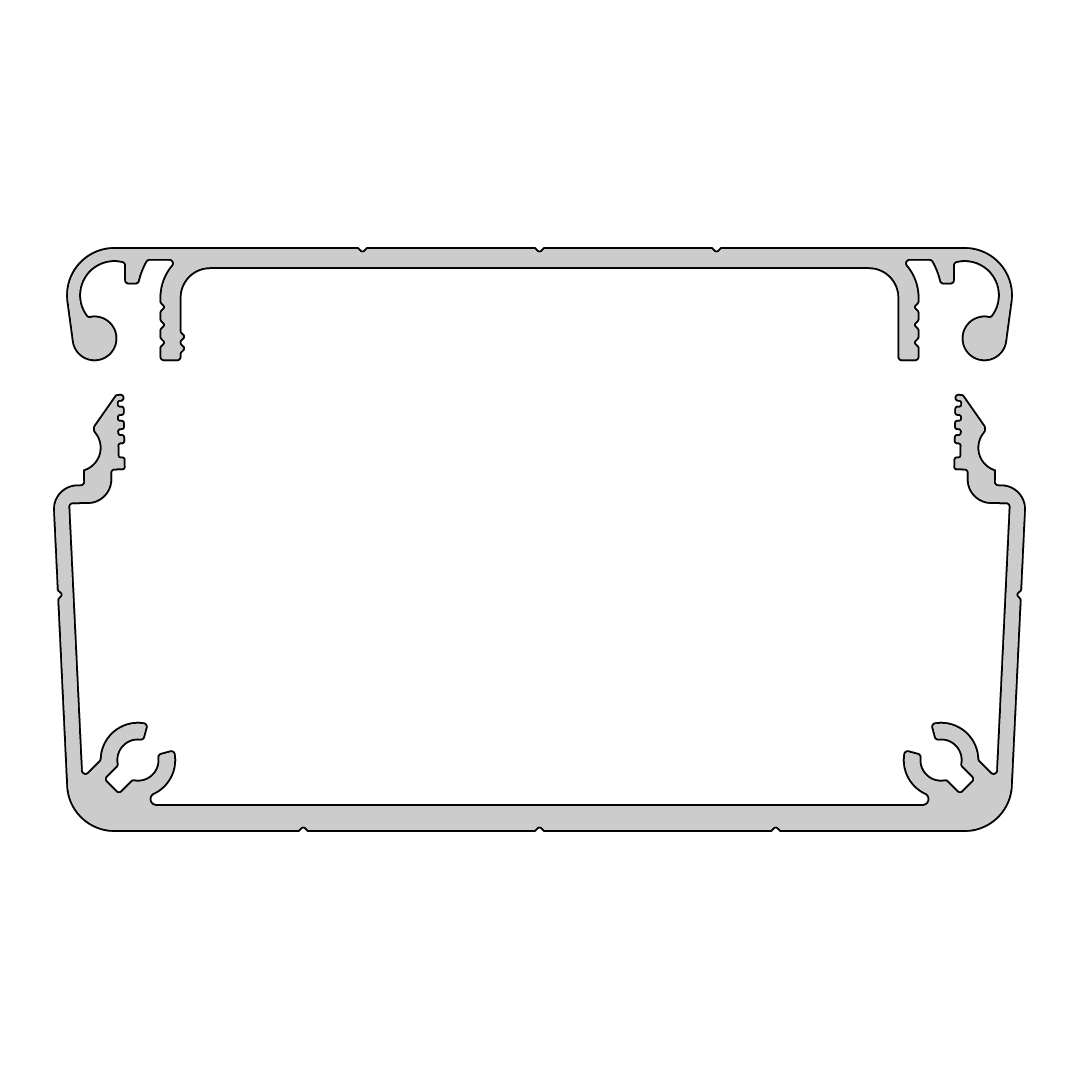

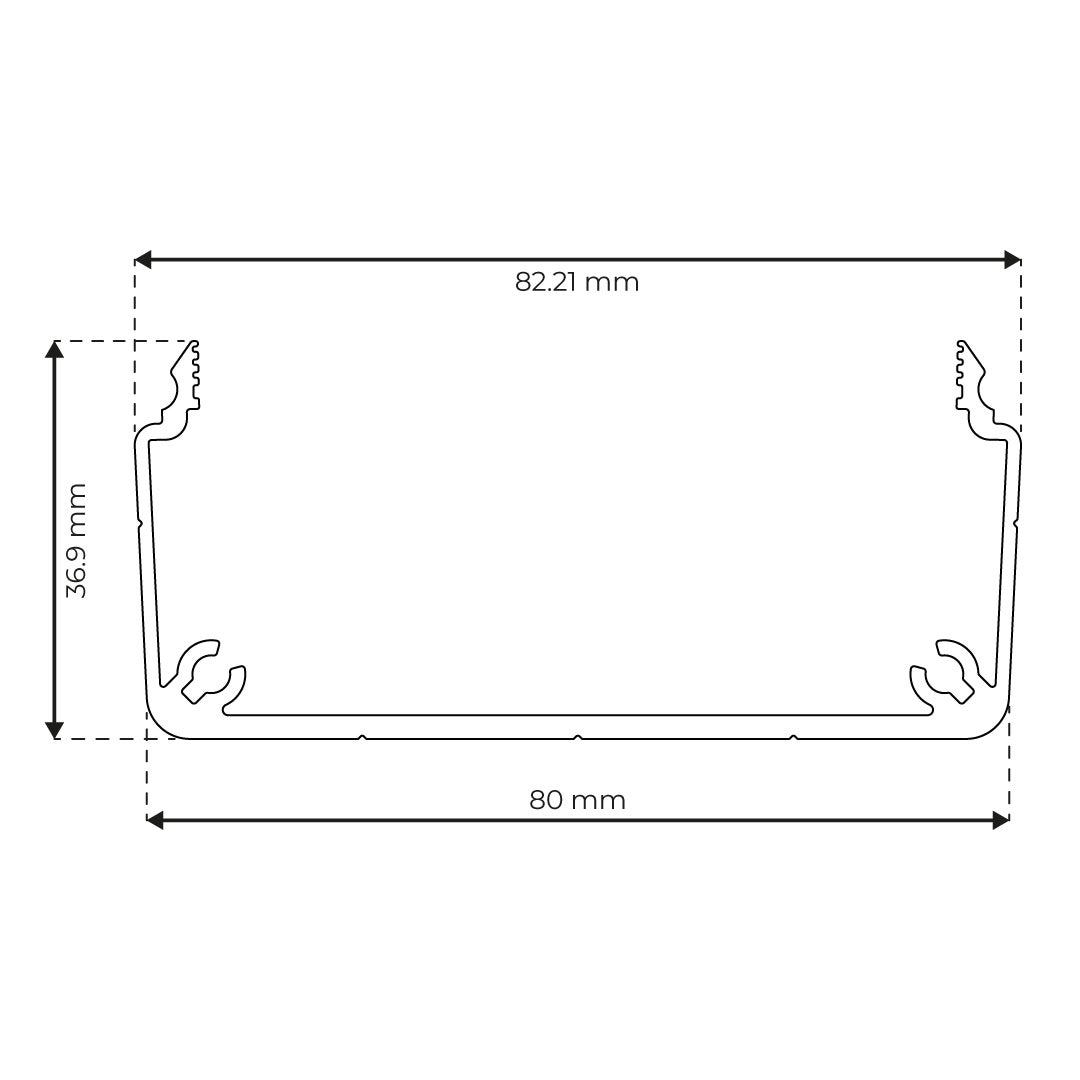

Wiring Duct 40 x 80
Please note that duct and cover must be ordered separately.
Read more
Product Information
System: 40 - Slot 8
Length (mm): 6000
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Ix (cm⁴) | ly (cm⁴) | Wx (cm³) | Wy (cm³) | A (cm²) | Mass (kg/m) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | Wiring Duct 40x80 | 3.74 | 29.82 | 1.36 | 7.46 | 2.87 | 0.78 | ||||
|
|
|
1 | Wiring Duct Cover 80 | 0.1 | 14.91 | 0.14 | 3.73 | 2.37 | 0.64 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
Wiring Duct 40 x 40
Duct and duct cover for cables etc. -
Wiring Duct 80 x 80
Duct and duct cover for cables etc.
