Wiring Duct Caps
For wiring ducts

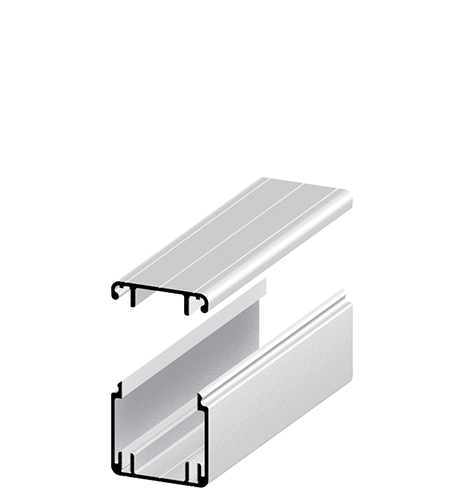

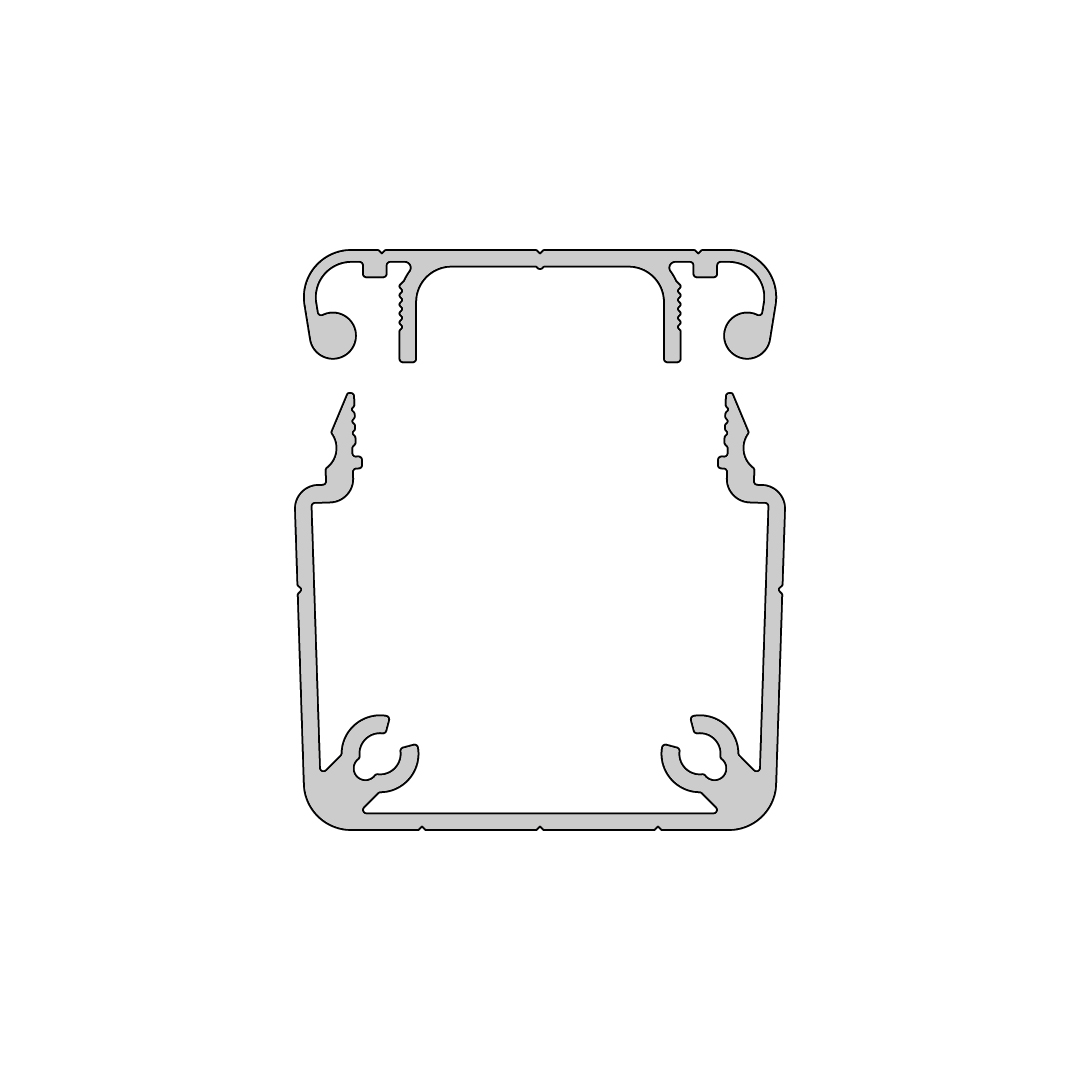

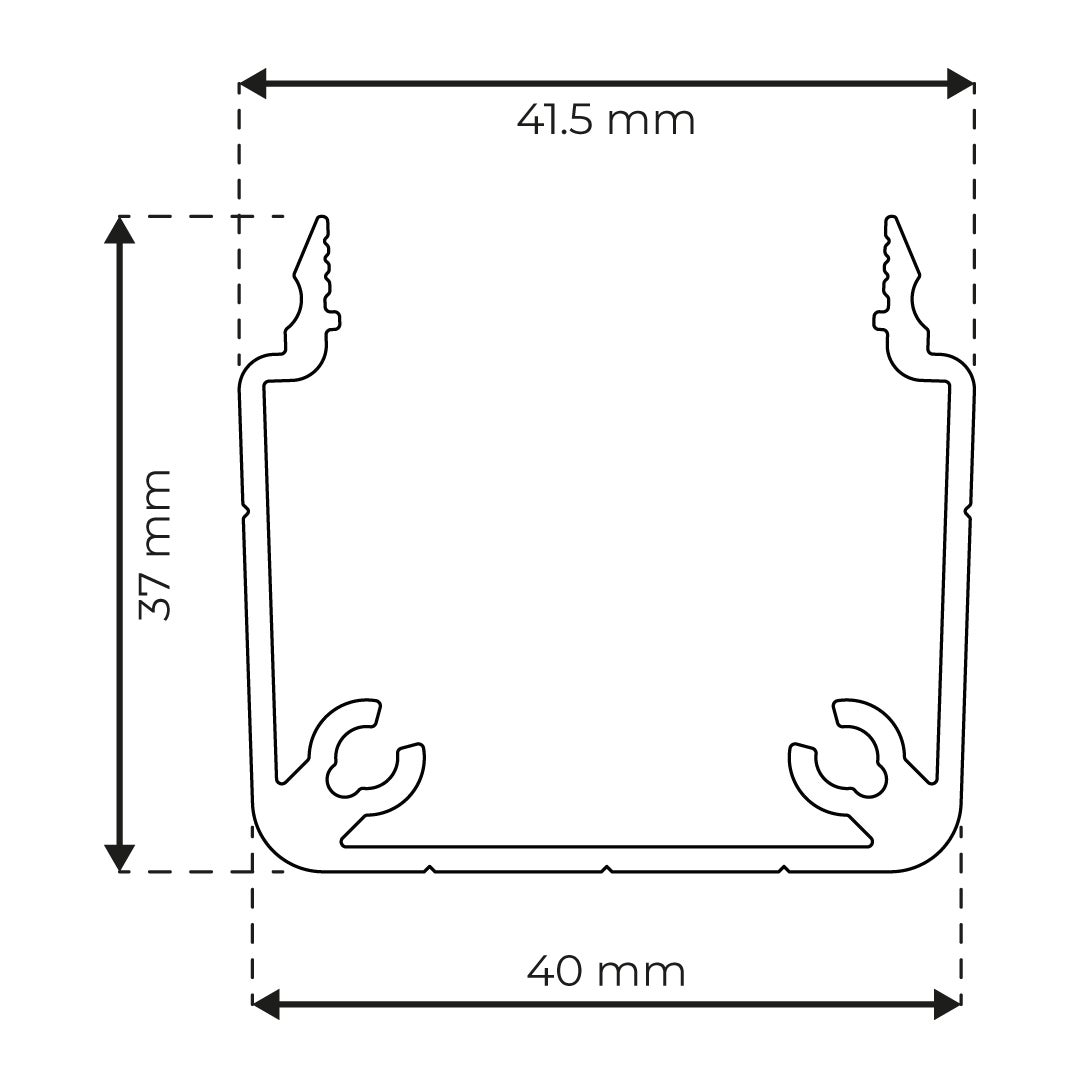

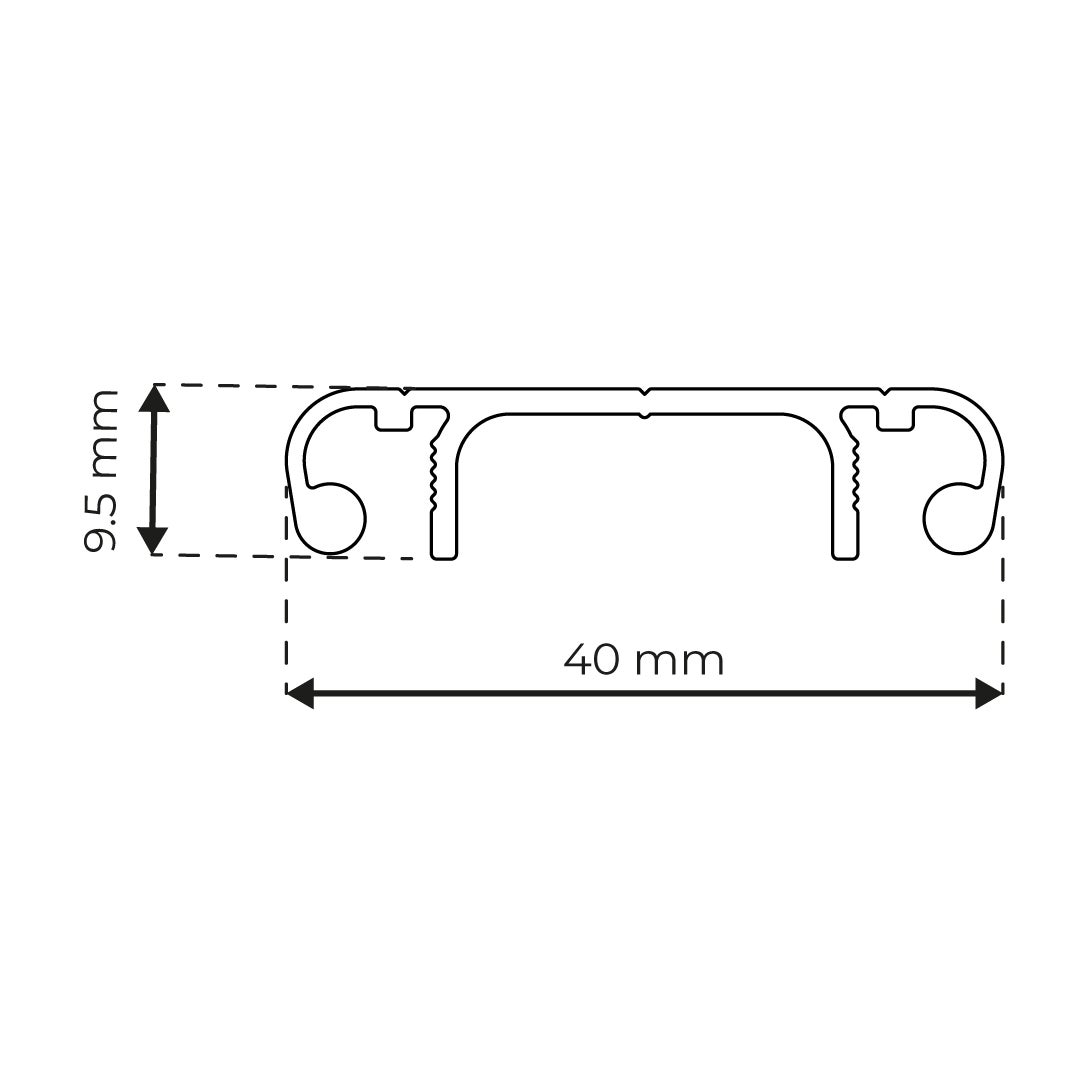

Wiring Duct 40 x 40
Please note that duct and cover must be ordered separately.
Read more
Product Information
System: 40 - Slot 8
Length (mm): 6000
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Ix (cm⁴) | ly (cm⁴) | Wx (cm³) | Wy (cm³) | A (cm²) | Mass (kg/m) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | Wiring Duct 40x40 | 3.13 | 5.93 | 1.24 | 2.97 | 2.28 | 0.62 | ||||
|
|
|
1 | Wiring Duct Cover 40 | 0.08 | 2.01 | 0.12 | 1.01 | 1.17 | 0.32 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
Wiring Duct 40 x 80
Duct and duct cover for cables etc. -
Wiring Duct 80 x 80
Duct and duct cover for cables etc.
