Cable Joints
Application:

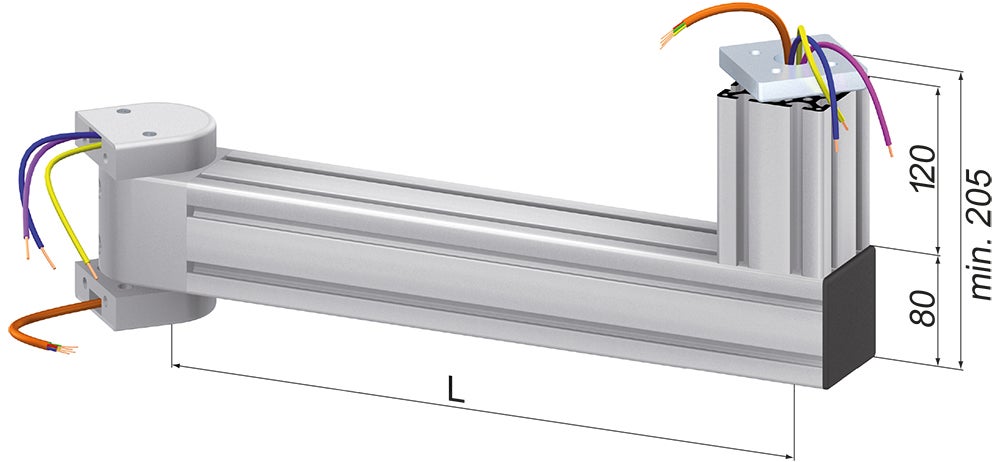

Together with the cable arm, the cable joint forms an ideal unit for running electrical data or control cables from switch box/control cabinets to the control desk. The cable runs entirely in the profile, providing the best possible protection to the cables.
SZ1720V includes:
4x cap head screw M 8 x 70, DIN 912
4x central fastener 40 EQ
Together with the cable arm, the cable joint forms an ideal unit for running electrical data or control cables from switch box/control cabinets to the control desk. The cable runs entirely in the profile, providing the best possible protection to the cables.
SZ1720V includes:
4x cap head screw M 8 x 70, DIN 912
4x central fastener 40 EQ
Product Information
System: 40 - Slot 8
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Material | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|

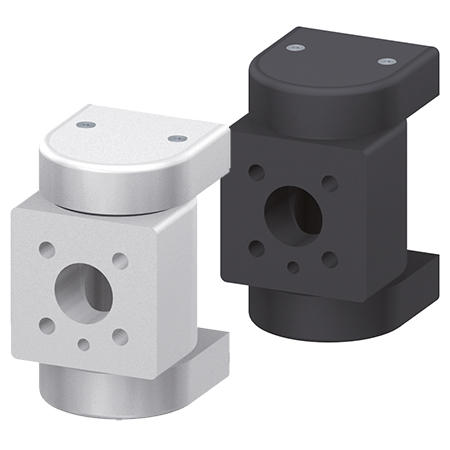

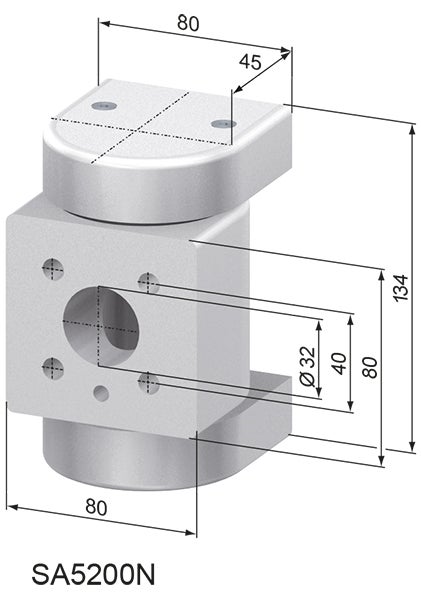

2 | Cable Joint 80, natural | Aluminium, natural anodized | 1.87 | ||||
|
|
|

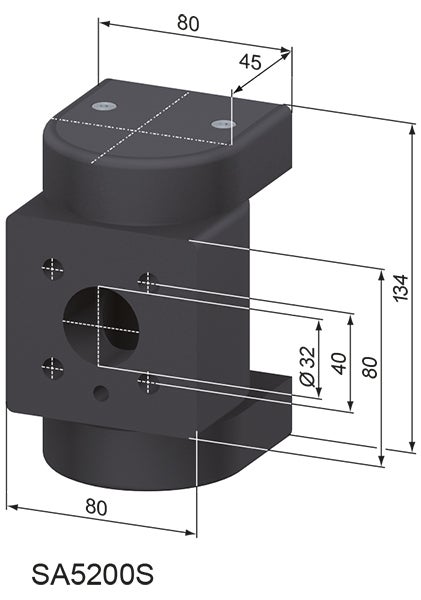

2 | Cable Joint 80, black | Aluminium, black anodized | 1.87 | ||||
|
|
|
2 | Fixing Set For Cable Joints | - | - |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
