Standard Rail SBI
Counterbore from above
RC Cap

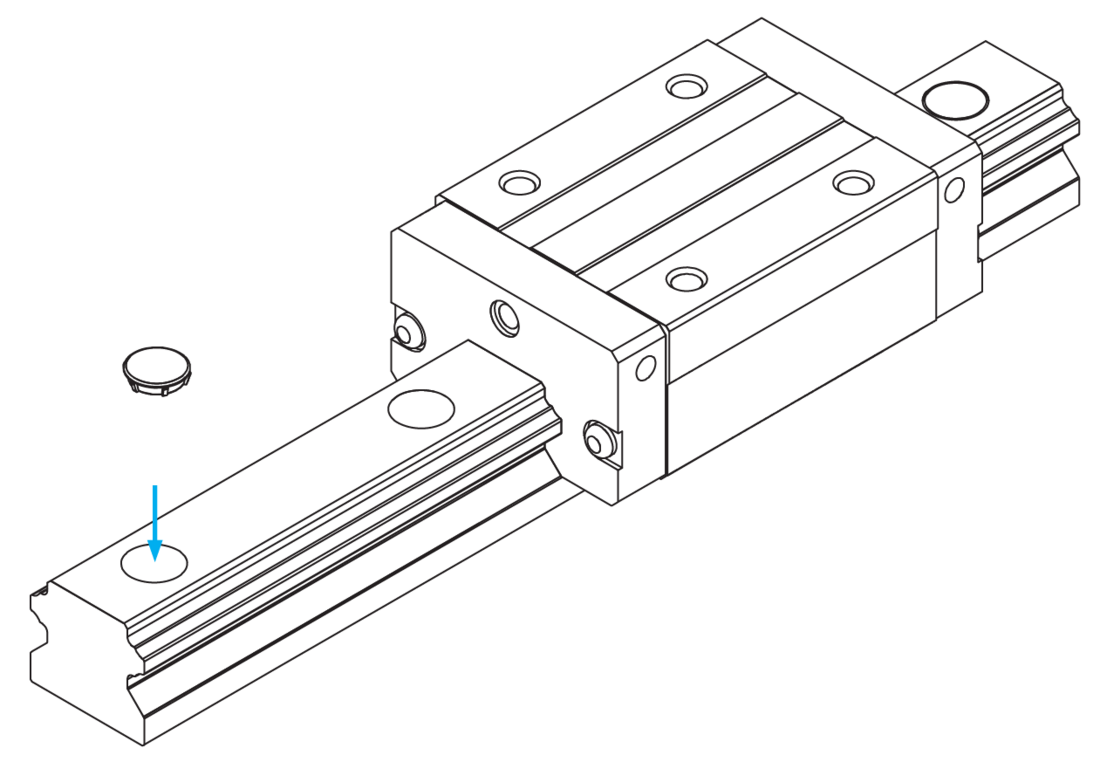

Contaminants invade into the bolt holes of the rail and pollute the inside of the bearing. You can use hole caps made from hardened rubber to fill the holes. RC caps are provided with the rails.
Dimensions in mm.
Read more
Dimensions in mm.
Product Information
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Compatible with | H | D |
|---|---|---|---|---|---|---|---|
|
|
|
2 | SBI 15 | 1.3 (±0.1) | 7.6 (±0.1) | ||
|
|
|
2 | SBI 20 | 3.5 (±0.1) | 9.6 (±0.1) | ||
|
|
|
2 | SBI 25 | 2.8 (±0.1) | 11.1 (±0.1) | ||
|
|
|
2 | SBI 30, 35 | 3.7 (±0.1) | 14.2 (±0.1) | ||
|
|
|
2 | SBI 45 | 4.7 (±0.1) | 20.2 (±0.1) | ||
|
|
|
2 | SBI 55 | 6 (±0.1) | 23.2 (±0.1) | ||
|
|
|
2 | SBI 65 | 6 (±0.1) | 26.2 (±0.1) |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
Bottom Mounting Rail SBI-B
Tapped from the bottom -

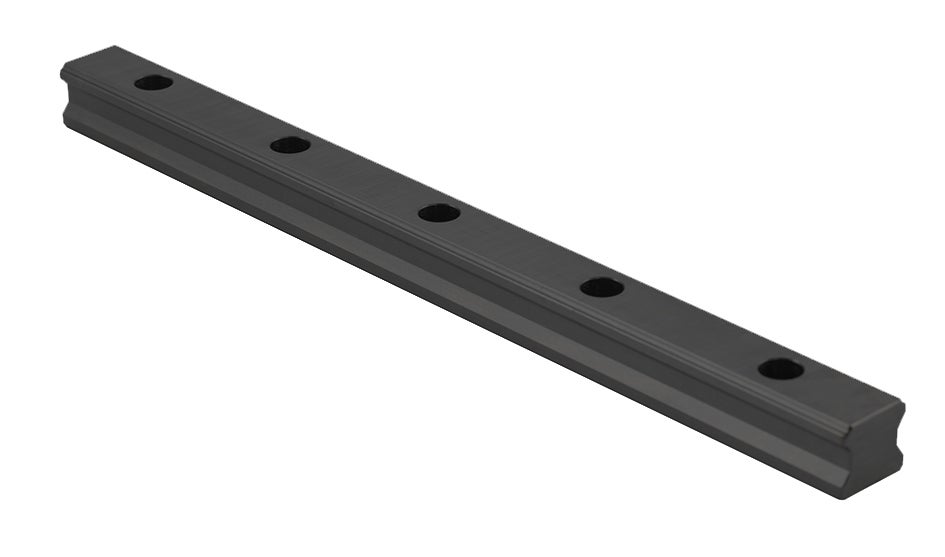

Standard Rail SBI Raydent
Counterbore from above β Raydent Surface Treatment -

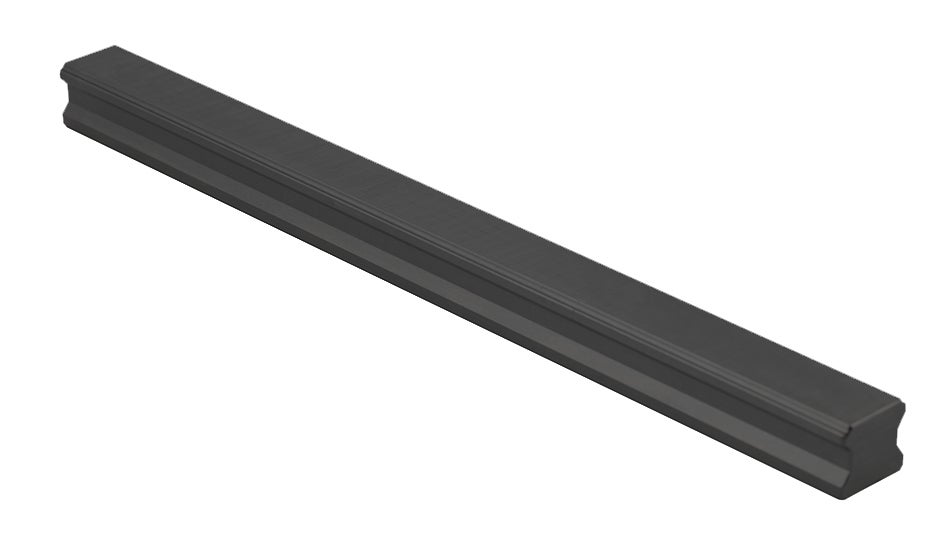

Bottom Mounting Rail SBI-B Raydent
Tapped from the bottom β Raydent Surface Treatment
