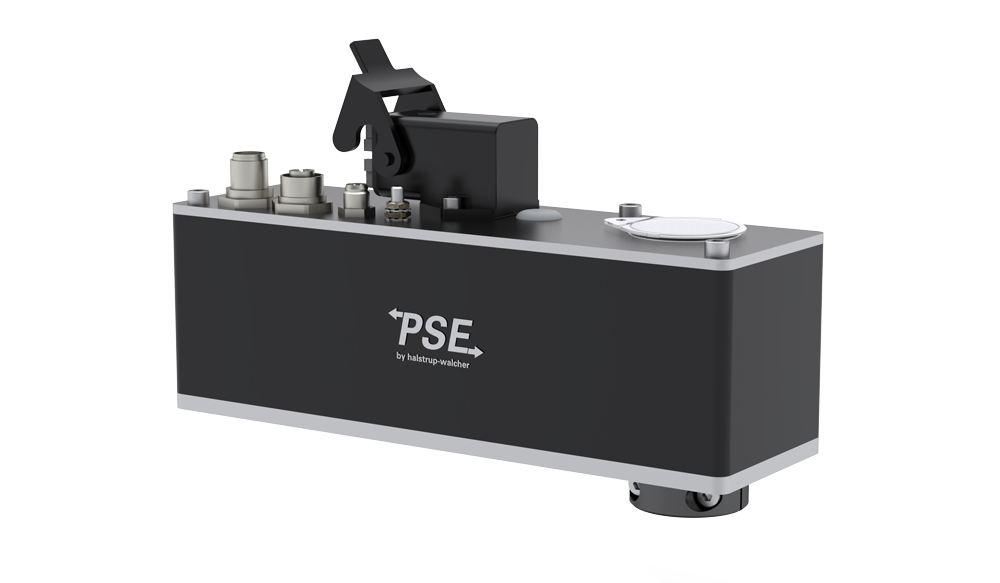

PSE 34 - Shaft 14 mm hollow

• Positioning system with 100 W power output
• For vertical applications with integrated brake (optional)
• Absolute measuring system
• Position control for direct connection to a control module
• Space-saving, compact design
• Galvanically separated supply voltages between control and motor and bus
• Durable EC-motor
• Extremely accurate positioning due to measurement of the position at the output side
• Bus interfaces simplify start-up and wiring complexity
• Address may be set using the bus or an address switch (not for IO-Link)
• Baud rate set via switch
• Status messages retrievable via bus
• Partial safety function for STO (Safe Torque Off)

Dimensions in mm.
Read more

Product Information

Type: Horizontal
Nominal Torque (Nm): 10; 18
Nominal Speed (rpm): 60; 80
Nominal Voltage (V DC): 24 (± 10 %)
Nominal Current (A): 7.8
Output Shaft (mm): 14
Output Shaft Type: Hollow
BUS Communication: Can Open (CA); Profi Bus (DP); Device Net (DN); Modbus (MB); IO-Link (IO); ProfiNet (PN); Sercos (SE); EtherCat (EC); Ethernet IP (EI); PowerLink (PL)
Electrical connection: "Standard; with jog keys; 1 connector Y-encoded or 1 connector Y-encoded with jog keys"
Protection Class: IP65
Motor: EC-motor
Supply Voltage: 24 V DC ± 10 % galvanically separated between control and motor and bus
Measurement System: Absolute, optical-magnetic
Accuracy: ± 0.9°
Intermittence: 20% (basis time 300 s)
Manual Adjustment: Standard
Brake: Optional (friction brake)
Designation Select all Compare Get quote Lead Time * Nominal Torque (Nm) Nominal Speed (rpm) Nominal Current (A) Self-holding Torque (Nm) Positioning Range (rot.)
Get quote 2 10 80 7.8 5 250
Get quote 2 18 60 7.8 9 250

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
