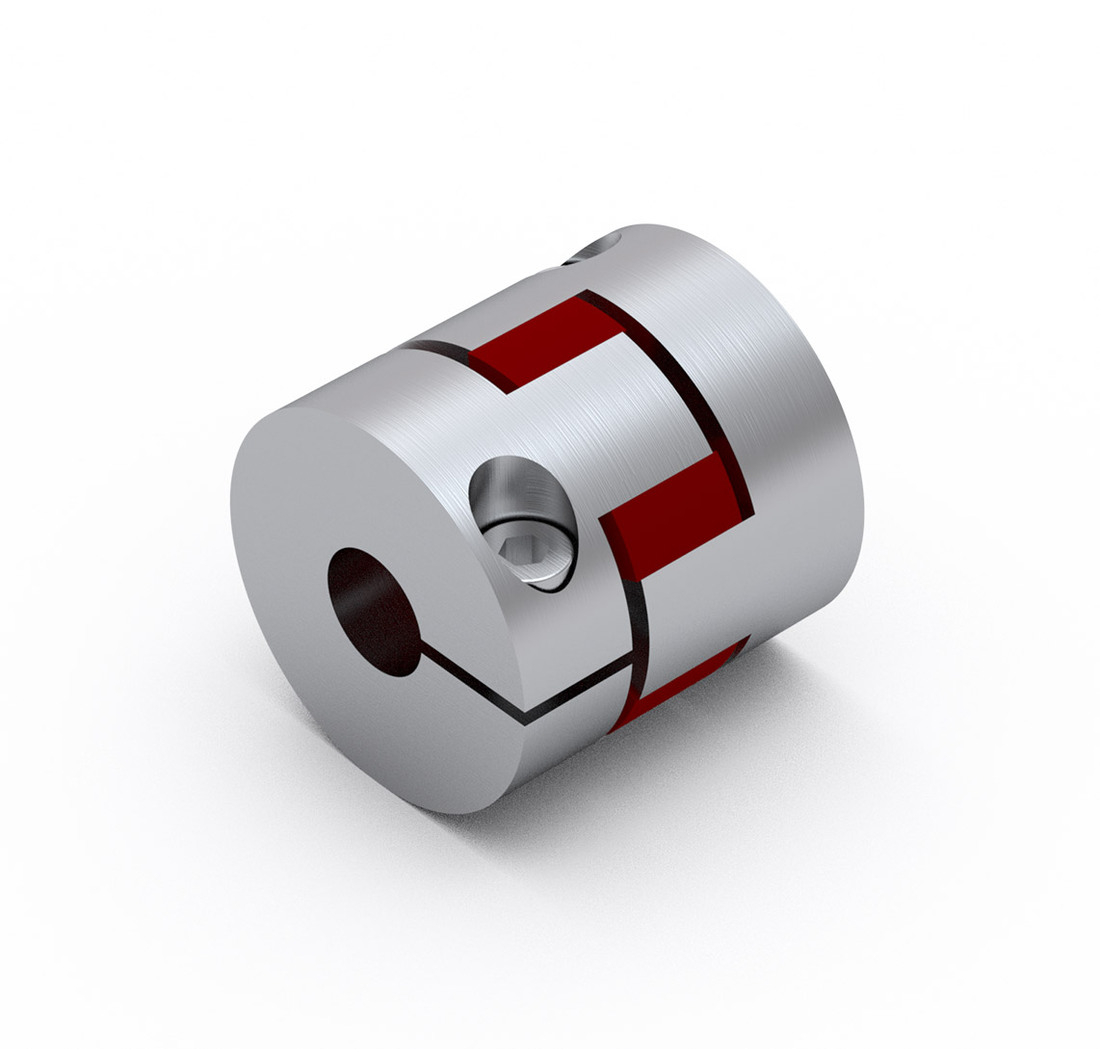

Couplings
Dimension in mm.

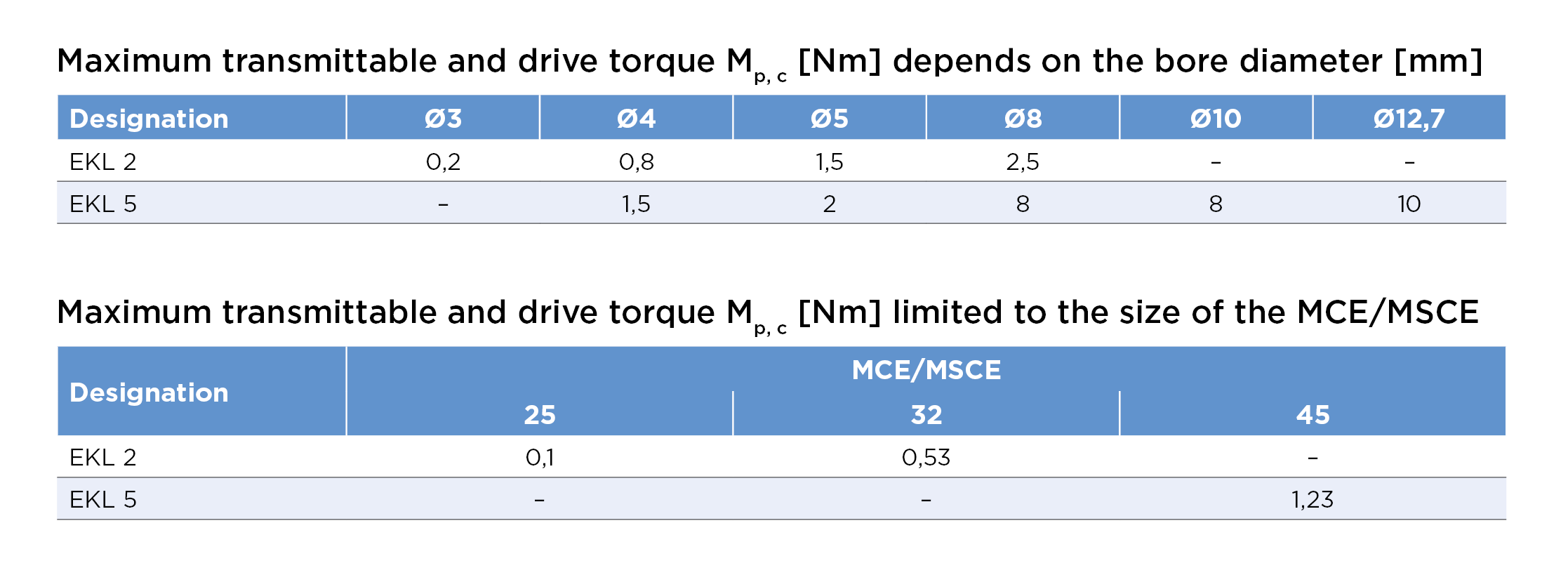

The maximum transmittable torque of the clamping hub depends on the bore diameter.
The maximum transmittable torque of the clamping hub depends on the bore diameter.
Download PDF
Generating PDF
+
Add to PDF catalogue
Product Information
| Designation | Select all | Rated torque | Max. torque | G | A | B | H | F | C | D1 | D2 | E | Tightening torque of the clamping screw | Compatible with | Moment of inertia per hub (10⁻³ kg m²) | Weight | Speed standard (min⁻¹) | BS | DE | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 Nm | 4 Nm | 3 | 20 | 16 | 12 | 5.50 | 6 | 3 | 8 | M2 | 0,6 Nm | MCE/MSCE series | 0.00 | ≈ 0,008 kg | 15000 | 17 | 6.20 |
|
||
|
|
9 Nm | 18 Nm | 4 | 26 | 25 | 16.70 | 8 | 8 | 4 | 12.70 | M3 | 2 Nm | MCE/MSCE 45 | 0.00 | ≈ 0,02 kg | 15000 | 25 | 10.20 |
|
