T-Slots / T-Nuts

STOCK ITEM

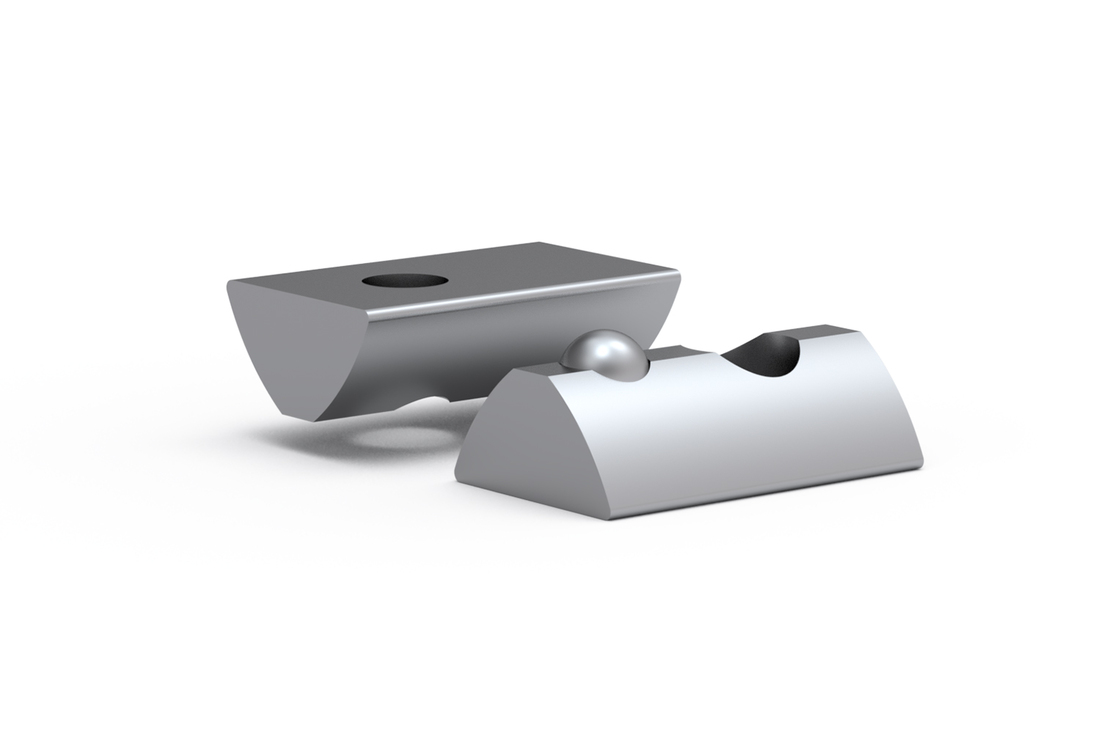

T-slot nuts. Dimensions in mm.

Read more

Download PDF (all data) Generating PDF

+ Add to PDF catalogue

Configure CAD Download CAD

Designation	Select all	CAD	Compare	Get quote	Lead Time *	Description	Material
PN4025					Get quote	1	M3, bottom slots RHL80 (Pivoting slot nut, ball spring)	Steel, galvanised
PN4030					Get quote	1	M4, bottom slots RHL80 (Pivoting slot nut, ball spring)	Steel, galvanised
PN4035					Get quote	1	M5, bottom slots RHL80 (Pivoting slot nut, ball spring)	Steel, galvanised

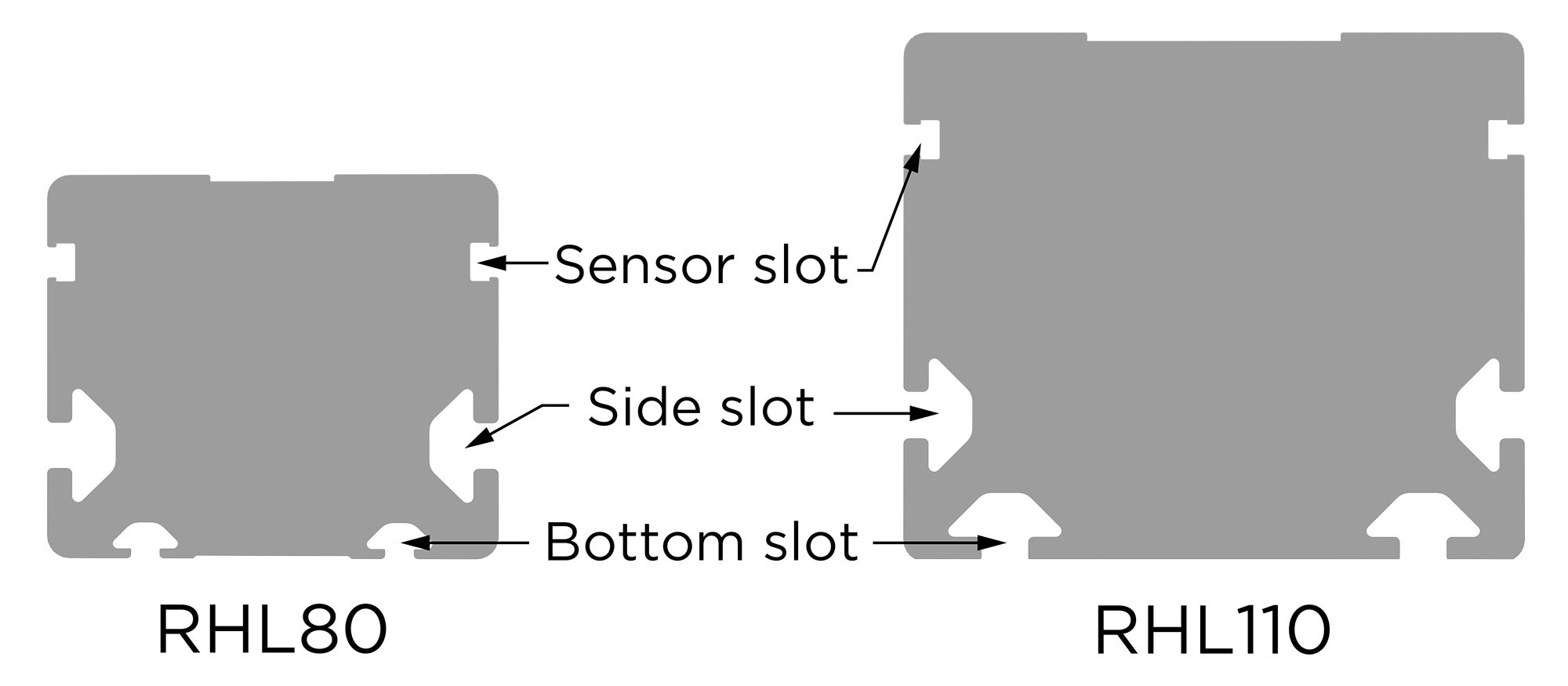

PN1035					Get quote	1	M5, side slots RHL80/RHL110, bottom slots RHL110 (Pivoting slot nut, ball spring)	Steel, galvanised
PN1040					Get quote	1	M6, side slots RHL80/RHL110, bottom slots RHL110 (Pivoting slot nut, ball spring)	Steel, galvanised
PN1045					Get quote	1	M8, side slots RHL80/RHL110, bottom slots RHL110 (Pivoting slot nut, ball spring)	Steel, galvanised

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation	Select all	CAD	Compare	Get quote	D	H	L	W	Thread	Slot
PN4025					Get quote	1	4.2	12	8	M3	5
PN4030					Get quote	1	4.2	12	8	M4	5
PN4035					Get quote	1	4.2	12	8	M5	5
PN1035					Get quote	1.7	7	22	13.7	M5	8
PN1040					Get quote	1.7	7	22	13.7	M6	8
PN1045					Get quote	1.7	7	22	13.7	M8	8
