Bellow

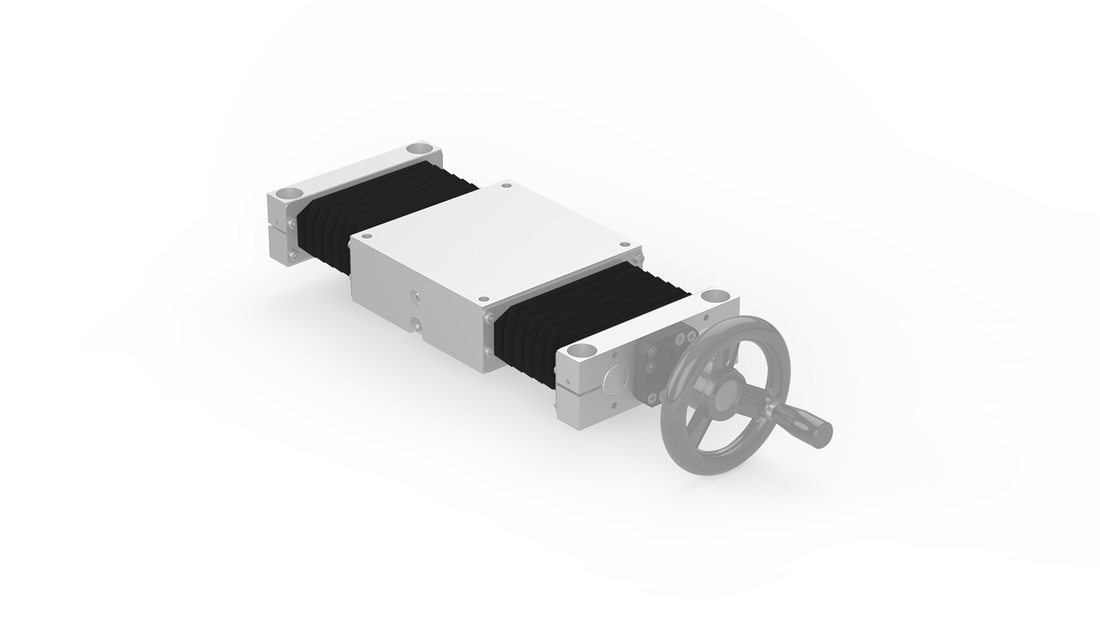

Bellow for Linear Unit QME is recommended for all applications where the unit isn’t protected against dust and dirt. The bellow may also work as a pinch protection.
Note that “stroke” for R+L unit refers to the stroke of each individual slider.
Dimension in mm.
Read more
Note that “stroke” for R+L unit refers to the stroke of each individual slider.
Dimension in mm.
Product Information
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Bellow Ltot | Bellow R+L Ltot |
|---|---|---|---|---|---|---|---|
|
|
|
2 | stroke * 1.28 + 113 | stroke * 2.56 + 206 | |||
|
|
|
2 | stroke * 1.23 + 166 | stroke * 2.46 + 303 | |||
|
|
|
2 | stroke * 1.18 + 238 | stroke * 2.36 + 445 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
