Mounted Slider & Rail

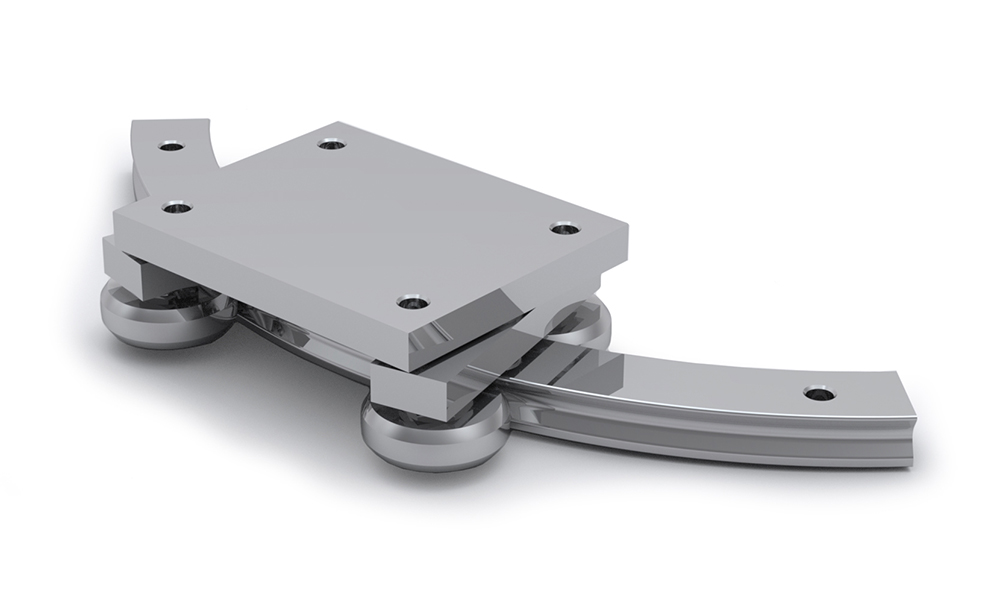

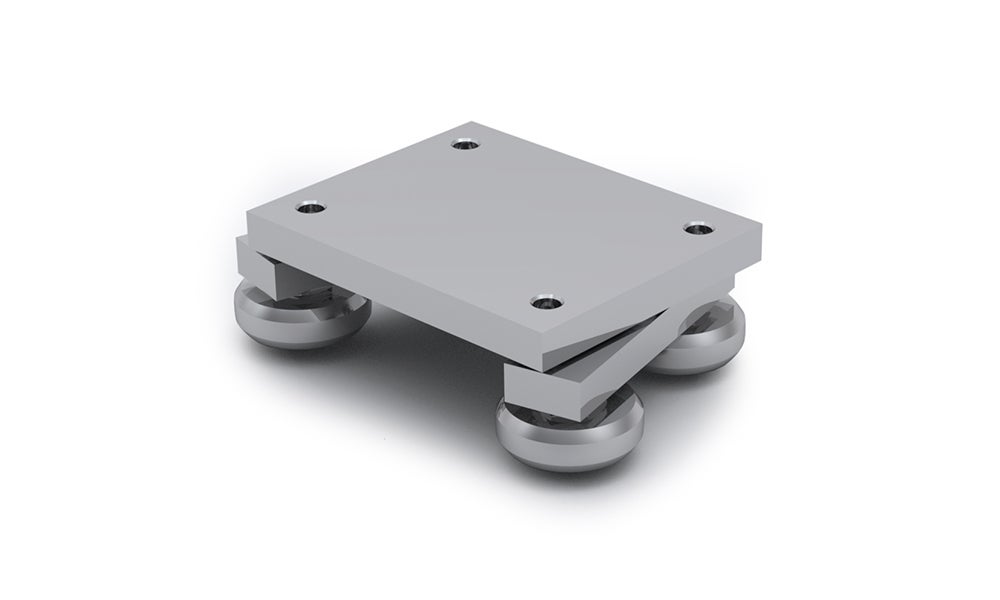

The sliders with four rollers, arranged in pairs, maintain the preload over the entire rail length. Pivoting roller mounts coupled with concentric and eccentric rollers allows for a smooth operation over complex rail layouts.

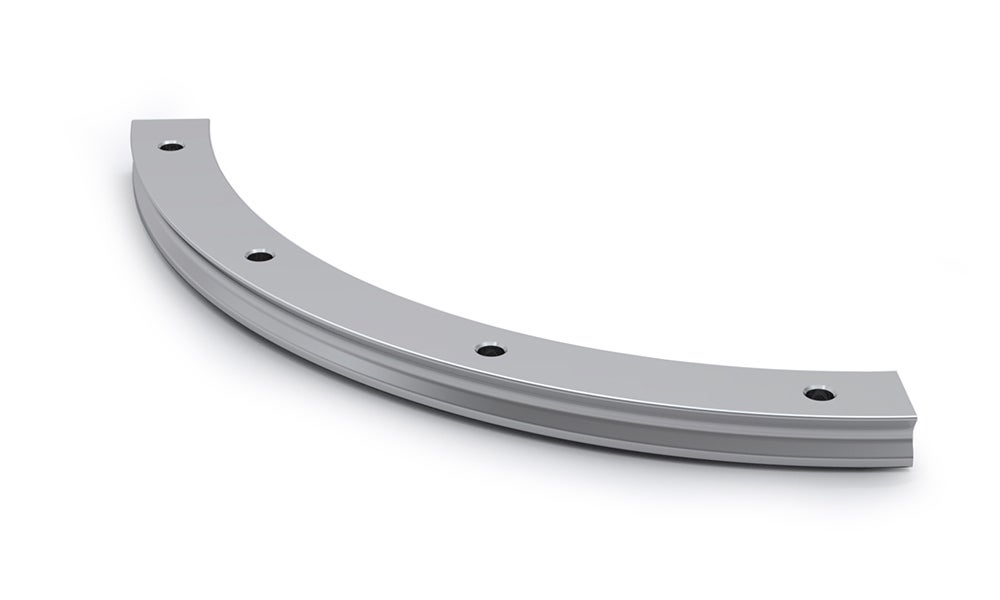

Rails can be ordered with constant or variable radius according to requirements. The use of standard radii is recommended. The layout of CKR guide rails corresponds to a partial section of a complete circle. CVR curvilinear rail is a variable combination of various radii and straight partial pieces.

Slider and rails in stainless steel, or carbon steel rails with tempered raceways are available as option. Contact us for more information

We customize each application according to drawing.

See document Technical Information for further details.

Dimensions in mm.

Please contact us for CAD-files.
